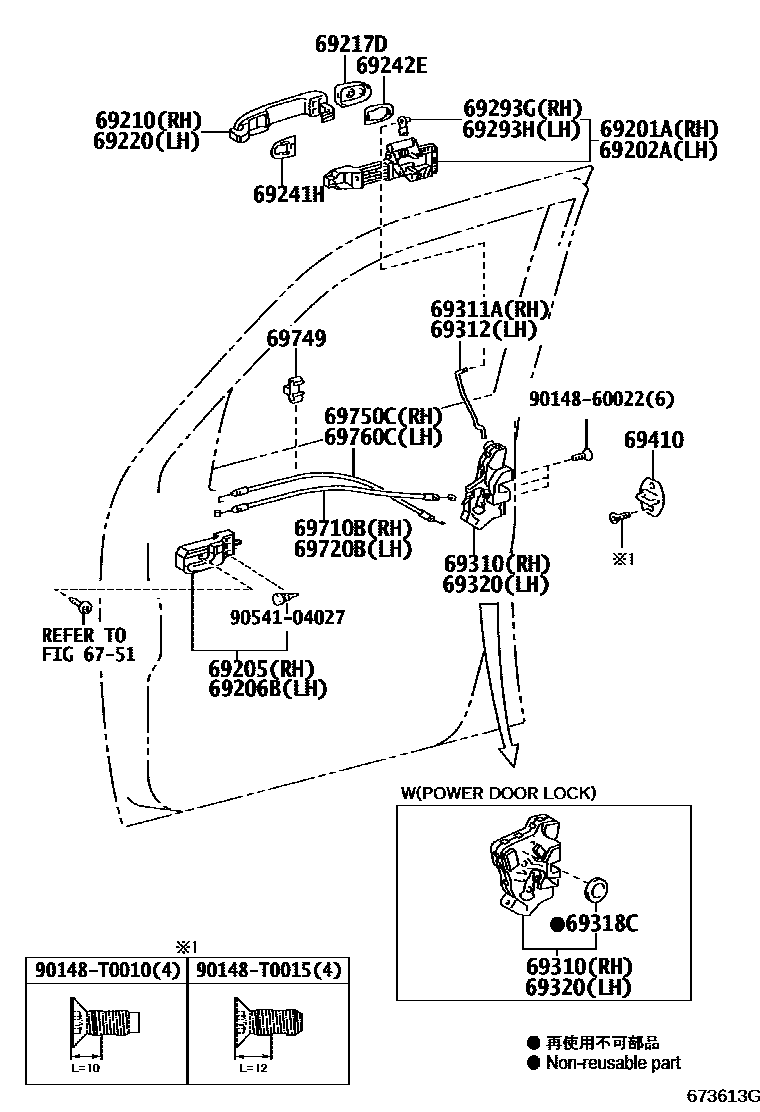

FRONT DOOR LOCK & HANDLE

6751

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-02030iGGN25,KUN2#,3#,TGN26,36..LA200501-201110

main69201-02050iGGN25,KUN15,2#,3#,LAN15,25,35,TGN15,16,26,36..SA200504-201108

main69201-06010iKUN16..DCB,SCB;KUN25..SCB..MA;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN25,TGN16..5F..(ANCOM,ARL,GCC,GEN);KUN15,26,TGN36..(DCB,SCB,THDCB,XTR)..(ANCOM,ARL,GCC,GEN200408-201112

main69201-06010iGGN25,KUN25,35,TGN26,36..ANCOM201112-201204

*299

main69201-33010iGGN25,KUN25,35,TGN26,36..ANCOM201112-201204

*300

main69201-52010iKUN15,LAN15..PKN200710-201202

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-02020iKUN2#,3#,TGN26,36..LA200501-201110

main69202-02030iGGN25,KUN15,2#,3#,LAN15,25,35,TGN15,16,26,36..SA200504-201108

main69202-06010iKUN26..IDN200408-201112

main69202-06010iGGN25,KUN25,35,TGN26,36..ANCOM201112-201204

*299

main69202-33010iGGN25,KUN25,35,TGN26,36..ANCOM201112-201204

*300

main69202-52010iKUN25..PKN200710-201202

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-0D070-A0iKUN26..XTR..TH;GGN15,25,KUN26..DCB..SR..(ARL,PHL,SA,TH);KUN15,16,25,36,TGN16,26,36..(DCB,XTR)..SR..(GCC,MA,PHL,SA,TH)200408-200810

IVORY,TRIM0#

sub69205-0D070

main69205-0D070-B3iGGN25..ARL;GGN25..5FC..SA;KUN35..GEN,SA,TH;KUN15,35..(DLX,STD)..PHL;TGN26..LHD..DLX..(GEN,SA);KUN15,26,TGN16..(SMT,THDCB)..DLX;KUN26..(DCB,SCB,XTR)..(ARL,GEN,SA,TH)200408-201109

GRAY,TRIM1#

sub69205-0D070

main69205-0D070-B3iKUN10,15,25,TGN1#,26..GCC200507-201107

GRAY,TRIM1#,3#

sub69205-0D070

main69205-0D070-E2iKUN35..SR..PHL;KUN25,35..(DCB,SMT)..(MA,TH);KUN15,16,26,36,TGN16..SR..(IDN,PHL,TH)200808-201107

SAND BEIGE,TRIM4#

sub69205-0D070

main69205-0D080-B3iGGN25,TGN26..SR201112-201204

GRAY,TRIM1#,*299

sub69205-0D080

main69205-0D080-B3iGGN25,TGN26..SR..(ANCOM,GEN)200507-201112

GRAY,TRIM1#

sub69205-0D080

main69205-12190-B4iGGN25,TGN26..SR201112-201204

GRAY,TRIM1#,*300

sub69205-12190

sub69205-0D080

main69205-12200-B5iTGN26..DLX..LA;TGN26..DLX..ANCOM..CBU;KUN2#,3#,TGN36..DLX..(ANCOM,LA,PKN)200501-201204

GRAY,TRIM1#

sub69205-12200

sub69205-0D070

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-0D070-A0iKUN26..XTR..TH;GGN15,25,KUN26..DCB..SR..(ARL,PHL,SA,TH);KUN15,16,25,36,TGN16,26,36..(DCB,XTR)..SR..(GCC,MA,PHL,SA,TH)200408-200810

IVORY,TRIM0#

sub69206-0D070

main69206-0D070-B3iKUN10,15,25,TGN1#,26..GCC200507-201107

GRAY,TRIM1#,3#

sub69206-0D070

main69206-0D070-B3iKUN25..DCB..SR;KUN25..SCB..MA;KUN26..XTR..ARL;KUN15,TGN26..(THDCB,XTR)..DLX;TGN26..(DCB,SCB)..(GEN,SA,TH);KUN15,16,26,TGN36..(DCB,SCB,THDCB)..(ARL,GEN,PHL,SA,TH);GG200408-201109

GRAY,TRIM1#

sub69206-0D070

main69206-0D070-E2iKUN35..SR..PHL;KUN25,35..(DCB,SMT)..(MA,TH);KUN15,16,26,36,TGN16..SR..(IDN,PHL,TH)200808-201107

SAND BEIGE,TRIM4#

sub69206-0D070

main69206-0D080-B3iGGN25,TGN26..SR201112-201204

GRAY,TRIM1#,*299

sub69206-0D080

main69206-0D080-B3iGGN25,KUN26,36,TGN26,36..LHD..SR..(ANCOM,GEN,LA)200507-201112

GRAY,TRIM1#

sub69206-0D080

main69206-12190-B4iGGN25,TGN26..SR201112-201204

GRAY,TRIM1#,*300

sub69206-12190

sub69206-0D080

main69206-12200-B5iTGN26..DLX..LA;TGN26..DLX..ANCOM..CBU;KUN2#,3#,TGN36..DLX..(ANCOM,LA,PKN)200501-201204

GRAY,TRIM1#

sub69206-12200

sub69206-0D070

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-06040iKUN26..4FC..TH;KUN26..THDCB..SR;KUN26,35..DCB..SR..(ARL,PHL);GGN15,25,KUN15,16,TGN26..(DCB,THDCB)..SR..(DCR,HTWC)..(ARL,GEN,PHL,TH)200908-201204

PLATED,*299

main69210-06040iTGN26..GCC,TH;TGN26..SR..(ANCOM,GEN);KUN10,15,25,TGN1#..5F..DLX..GCC;GGN15,25,KUN15,16,2#,36,TGN16,36..(DCB,SCB,THDCB,XTR)..SR..(ANCOM,ARL,GCC,GEN,MA,PHL,TH)200408-201204

PLATED

main69210-12260iGGN25,KUN26,36,TGN36..SA200504-201108

PLATING

main69211-02130iKUN35..DLX..(ANCOM,GEN,PHL);TGN26..DLX..(ANCOM,GEN)..CBU;GGN15,25,KUN15,16,2#,TGN10,15,16,36..(DLX,STD)..(ANCOM,ARL,GEN,IDN,MA,PHL,TH)200408-201204

NO PAINT REQ.

main69211-02150iKUN15,25,35,LAN15,25,35,TGN15,16,26..SA200504-201108

NO PAINT REQ.

main69211-02180iKUN26,36..SR..LA200501-201110

PAINT REQ.

main69211-0K010iKUN2#,3#,TGN26,36..DLX..LA200501-201110

NO PAINT REQ.

main69211-42010iKUN15,LAN15..PKN200710-201202

NO PAINT REQ.

69217DCOVER, FRONT DOOR OUTSIDE HANDLE

main69217-02060iKUN25..SCB..MA;TGN16..5F..(ARL,GEN);KUN16..(DCB,SCB)..DLX;GGN15,25,KUN15,2#,35,TGN10,15,26,36..DLX..(ANCOM,ARL,GEN,IDN,PHL,TH)200408-201204

BLACK

main69217-02100iKUN15,25,35,LAN15,25,35,TGN15,16,26..SA200504-201108

BLACK

main69217-02120iGGN25,KUN26,36,TGN26,36..SR..LA200910-201110

LESS COLOR,DRIVER SIDE

main69217-02120iKUN26,36..SR..LA200501-200910

LESS COLOR

main69217-06020iKUN16..DCB..TH;KUN26,TGN16..4FC..TH;GGN15,25,KUN15,26,35,TGN26..SR..(ARL,GEN,PHL)200408-201109

*CR

main69217-06020iGGN25,TGN26..SR..ANCOM200908-201204

*CR,DRIVER SIDE

main69217-0K010iKUN2#,3#,TGN26,36..DLX..LA200501-201110

BLACK

main69217-0K110iGGN25,TGN26..SR..ANCOM200910-201204

*CR,PASSENGER SIDE

main69217-0K110iGGN25,35,KUN26,3#,TGN36..(DCB,SCB)..SR..SA200910-201108

*CR,(L),PASSENGER SIDE

main69217-0K904iGGN25,KUN26,36,TGN26,36..SR..LA200910-201110

LESS COLOR,PASSENGER SIDE

main69217-12010iGGN25,35,KUN26,3#,TGN36..(DCB,SCB)..SR..SA200910-201108

*CR,DRIVER SIDE

main69217-12010iGGN25,35,KUN26,3#,TGN36..SR..SA200504-200910

*CR

main69217-33030iKUN16..SMT;KUN15,2#,3#,TGN16..5F..SR..(IDN,TH)200908-200910

*CR,WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITY SYSTEM),PASSENGER SIDE

main69217-33030iKUN26,TGN16..4FC..TH;KUN26,35..SR..(ARL,GEN,PHL);GGN15,25,KUN15,16,TGN26..(DCB,THDCB,XTR)..SR..(DCR,HTWC)..(ARL,GEN,PHL,TH)200908-200910

*CR,PASSENGER SIDE

main69217-33030iKUN26,TGN16..4FC..TH;KUN26,35..SR..(ARL,GEN,PHL);GGN15,25,KUN15,16,TGN26..(DCB,THDCB,XTR)..SR..(DCR,HTWC)..(ARL,GEN,PHL,TH)200908-200910

*CR,WIRELESS DOOR LOCK-WITH,PASSENGER SIDE

main69217-33030iGGN25,35,KUN26,3#,TGN36..(DCB,SCB)..SR..SA200910-201108

*CR,(J),PASSENGER SIDE

main69217-42010iKUN15,LAN15..PKN200710-201202

BLACK MATERIAL

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69210-06040iGGN25,TGN26..SR..ANCOM200908-201204

PLATED,*299

main69210-06040iTGN26..GCC,TH;TGN26..SR..(ANCOM,GEN);KUN10,15,25,TGN1#..5F..DLX..GCC;GGN15,25,KUN15,16,2#,36,TGN16,36..(DCB,SCB,THDCB,XTR)..SR..(ANCOM,ARL,GCC,GEN,MA,PHL,TH)200408-201204

PLATED

main69210-12260iGGN25,35,KUN26,3#,TGN36..(DCB,SCB)..SR..SA200504-201108

PLATING

main69211-02130iKUN35..DLX..(ANCOM,GEN,PHL);TGN26..DLX..(ANCOM,GEN)..CBU;GGN15,25,KUN15,16,2#,TGN10,15,16,36..(DLX,STD)..(ANCOM,ARL,GEN,IDN,MA,PHL,TH)200408-201204

NO PAINT REQ.

main69211-02150iKUN15,25,35,LAN15,25,35,TGN15,16,26..SA200504-201108

NO PAINT REQ.

main69211-02180iGGN25,KUN26,36,TGN26,36..SR..LA200501-201110

PAINT REQ.

main69211-0K010iKUN2#,3#,TGN26,36..DLX..LA200501-201110

NO PAINT REQ.

main69211-42010iKUN25..PKN200710-201202

NO PAINT REQ.

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-02050iGGN25,KUN2#,3#,TGN26,36..LA200501-201110

main69241-02060iGGN25,KUN15,2#,3#,LAN15,25,35,TGN15,16,26,36..SA200504-201108

main69241-06020iKUN26..THDCB;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..ANCOM,GCC,GEN;KUN16,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..200408-201202

main69241-06020iGGN25,KUN25,35,TGN26,36201112-201204

*299

main69241-42020iGGN25,KUN25,35,TGN26,36201112-201204

*300

69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-02050iGGN25,KUN2#,3#,TGN26,36..LA200501-201110

main69242-02060iGGN25,KUN15,2#,3#,LAN15,25,35,TGN15,16,26,36..SA200504-201108

main69242-06020iGGN25,TGN26..SR201112-201204

*299

main69242-06020iKUN26..THDCB;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..ANCOM,GCC,GEN;KUN16,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..200408-201202

main69242-42010iGGN25,TGN26..SR201112-201204

*300

69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH

main69293-12030iKUN26..4FC..LA;TGN36..DCB..SA;TGN36..SCB..(LA,SA);KUN25,35..DLX..(LA,SA);KUN26..DCB..5F..(LA,SA);TGN26,36..DCB..5F..DLX..LA;KUN36..(DCB,SCB)..5F..(LA,SA);GGN25,KUN1200501-201202

main69293-33010iGGN25..SCB,XTR;TGN16..(DCB,SCB)..GEN;GGN15,KUN16..DCB..5F..SR200408-201204

69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH

main69293-12040iTGN15..IV3200501-201202

main69293-33020iKUN26..IDN200408-201204

69310LOCK ASSY, FRONT DOOR, RH

main69030-02190iKUN2#,3#,TGN26,36..DCB..DLX..LA200501-200812

POWER DOOR LOCK-WITH

main69030-0K010iKUN15..SR..SA200408-201109

main69030-0K020iKUN10,15,2#,35,TGN11,15,16,26..LHD..(DCB,SCB,THDCB,XTR)..DLX..(GCC,GEN)200808-201107

POWER DOOR LOCK-WITH

main69030-0K020iKUN15,26,TGN16,26,36..SR..(GCC,GEN,PHL)200411-200808

main69030-0K060iGGN25,35,KUN26,3#,TGN36..(DCB,SCB)..SR..SA200810-201108

POWER DOOR LOCK-WITH

main69030-0K060iGGN25,KUN26,36,TGN36..SA200504-200810

main69310-0K010iKUN25,TGN16..RHD..DLX..(ARL,GEN,MA,PKN,TH);KUN15,16,TGN10..RHD..(DLX,STD)..(GEN,IDN,TH)200408-201202

main69310-0K020iKUN15..LHD..(DLX,STD)..(GCC,GEN,PHL);KUN10,2#,35,TGN1#,26..LHD..DLX..(GCC,GEN)200411-201107

main69310-0K050iTGN26..DLX..LA;TGN26..DLX..ANCOM..CBU;KUN2#,3#,TGN36..DLX..(ANCOM,LA)200501-200812

main69310-0K060iKUN15,25,35,LAN15,25,35,TGN15,26..RHD..SA200504-201108

main69310-0K080iKUN15,25,LAN15,25,TGN16,26..LHD..SA200507-201108

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-0K010iTGN16..ARL,GCC,TH;KUN26..ARL,GEN,PHL,TH;GGN15,KUN16..DCB..DLX;GGN15,KUN16..SCB,SMT,XTR;KUN26,36,TGN16..XTR..(GEN,SA);GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN10,15,3#,TGN200408-201202

main69311-0K030iTGN36..DLX;TGN26..ANCOM;TGN26..DCB..DLX..LA;GGN25,KUN2#,3#..ANCOM,LA200501-200812

main69311-0K060iGGN25,35,KUN15,2#,3#,LAN15,25,35,TGN15,16,26,36..(DCB,SCB)..SA200504-201108

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-0K010iTGN16..ARL,GCC,TH;KUN26..ARL,GEN,PHL,TH;GGN15,KUN16..DCB..DLX;GGN15,KUN16..SCB,SMT,XTR;KUN26,36,TGN16..XTR..(GEN,SA);GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN10,15,3#,TGN200408-201202

main69312-0K030iTGN26..LA;TGN26..ANCOM..CBU;GGN25,KUN2#,3#,TGN36..ANCOM,LA200501-200812

main69312-0K060iGGN25,35,KUN15,2#,3#,LAN15,25,35,TGN15,16,26,36..(DCB,SCB)..SA200504-201108

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-51010iTGN16..(DCB,SCB)..GEN200511-201108

POWER DOOR LOCK-WITH

main69318-51010iKUN16..IV3;TGN26..SR..ANCOM;KUN36..(DCB,XTR)..SR..(LA,TH);GGN25,KUN26..SR..(ANCOM,GEN,LA);GGN15,25,KUN2#..(SCB,XTR)..(ARL,TH);KUN15,16,TGN16,26..(SCB,THDCB,XTR)..SR200408-200812

69320LOCK ASSY, FRONT DOOR, LH

main69040-02180iGGN25,KUN26,36,TGN26,36..SR..(ANCOM,LA)200501-200812

POWER DOOR LOCK-WITH

main69040-0K010iKUN26..IDN;GGN25..SCB,XTR;GGN15,KUN16..DCB..5F..SR200408-201109

main69040-0K020iKUN10,15,2#,35,TGN11,15,16,26..LHD..(DCB,SCB,THDCB,XTR)..DLX..(GCC,GEN)200808-201107

POWER DOOR LOCK-WITH

main69040-0K020iKUN15,26,TGN16,26,36..SR..(GCC,GEN,PHL)200411-200808

main69040-0K060iGGN25,35,KUN26,3#,TGN36..(DCB,SCB)..SR..SA200810-201108

POWER DOOR LOCK-WITH

main69040-0K060iGGN25,KUN26,36,TGN36..SA200504-200810

main69320-0K010iKUN25,TGN16..RHD..DLX..(ARL,GEN,MA,PKN,TH);KUN15,16,TGN10..RHD..(DLX,STD)..(GEN,IDN,TH)200408-201202

main69320-0K020iKUN10,15,2#,35,TGN1#,26..LHD..DLX..(GCC,GEN,PHL)200411-201107

main69320-0K050iTGN26..DLX..LA;TGN26..DLX..ANCOM..CBU;KUN2#,3#,TGN36..DLX..(ANCOM,LA)200501-200812

main69320-0K060iKUN15,25,35,LAN15,25,35,TGN15,26..RHD..SA200504-201108

main69320-0K080iKUN15,25,LAN15,25,TGN16,26..LHD..SA200507-201108

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-0K010iKUN15..SR..SA200408-201202

main69410-0K030iTGN26..LA;TGN26..ANCOM..CBU;GGN25,KUN2#,3#,TGN36..ANCOM,LA200501-200812

main69410-0K040iGGN25,35,KUN15,2#,3#,LAN15,25,35,TGN15,16,26,36..(DCB,SCB)..SA200504-201108

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-0K010iTGN16..DCB..5F..(ARL,GCC,GEN);KUN15,26,TGN36..(DCB,THDCB)..(ARL,GCC,GEN,PHL,TH);GGN15,25,KUN16,25,3#,TGN15,26..(DCB,THDCB)..(ARL,GCC,GEN,MA,TH)200408-201107

main69710-0K020iGGN25,KUN15,2#,3#,LAN15,25,35,TGN16,26,36..DCB..SA200504-201108

main69710-0K030iTGN26..SR..ANCOM;TGN26,36..DCB..DLX..(ANCOM,LA);GGN25,KUN2#,3#..DCB..(ANCOM,LA)200501-200812

main69710-0K040iGGN25..SCB,XTR;TGN16..SCB..GEN200408-201202

main69710-0K050iKUN15,25,3#,LAN15,25,TGN15,16,26,36..SCB..SA200504-201108

main69710-0K060iTGN26..SCB..LA;TGN26..SCB..ANCOM..CBU;KUN25,35,TGN36..SCB..(ANCOM,LA)200502-200812

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-0K010iKUN26..IDN;TGN16..DCB..GEN;GGN15,KUN16..DCB..5F..SR200408-201107

main69710-0K020iGGN25,KUN15,2#,3#,LAN15,25,35,TGN16,26,36..DCB..SA200504-201108

main69710-0K030iTGN26..SR..ANCOM;TGN26,36..DCB..DLX..(ANCOM,LA);GGN25,KUN2#,3#..DCB..(ANCOM,LA)200501-200812

main69710-0K040iKUN15..SR..SA200408-201202

main69710-0K050iKUN15,2#,3#,LAN15,25,TGN15,16,36..SCB..SA200504-201108

main69710-0K060iTGN26..SCB..LA;TGN26..SCB..ANCOM..CBU;KUN25,35,TGN36..SCB..(ANCOM,LA)200502-200812

69749CLAMP, FRONT DOOR LOCK LINK

main69749-32040iGGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA)200408-201202

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-0K010iKUN26..IDN;TGN16..DCB..GEN;GGN15,KUN16..DCB..5F..SR200408-201107

main69750-0K020iGGN25,35,KUN15,2#,3#,LAN15,25,35,TGN16,26,36..DCB..SA200504-201108

main69750-0K030iTGN26..SR..ANCOM;TGN26,36..DCB..DLX..(ANCOM,LA);GGN25,KUN2#,3#..DCB..(ANCOM,LA)200501-200812

main69750-0K040iKUN36..SMT,XTR;KUN26,TGN16..XTR..(GEN,SA);TGN16..(SCB,SMT)..(ARL,GCC,TH);GGN15,KUN1#,2#,35,TGN10,11,15,26..(SCB,SMT,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,TH)200408-201202

main69750-0K050iKUN15,2#,3#,LAN15,25,TGN15,16,36..SCB..SA200504-201108

main69750-0K060iTGN26..SCB..ANCOM;KUN25,35,TGN36..SCB..(ANCOM,LA)200502-200812

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69760-0K010iTGN16..DCB..(ARL,GCC,TH);GGN15,KUN16,TGN15..DCB..DLX;GGN15,KUN16..DCB..(4FC,5FC)..SR;GGN25,KUN15,2#,3#,TGN26..(DCB,THDCB)..(ARL,GCC,GEN,MA,PHL,PKN,TH)200408-201107

main69760-0K020iGGN25,KUN15,2#,3#,LAN15,25,35,TGN16,26,36..DCB..SA200504-201108

main69760-0K030iGGN25,KUN2#,3#,TGN26,36..DCB..(ANCOM,LA)200501-200812

main69760-0K040iGGN25..SCB,XTR;TGN16..SCB..GEN200408-201202

main69760-0K050iKUN15,25,3#,LAN15,25,TGN15,16,26,36..SCB..SA200504-201108

main69760-0K060iTGN26..SCB..ANCOM;KUN25,35,TGN36..SCB..(ANCOM,LA)200502-200812

9014860022

main90148-60022

90148T0010

main90148-T0010

90148T0015

main90148-T0015

9054104027

main90541-04027

27 parts on this diagram · 1 diagram in section
