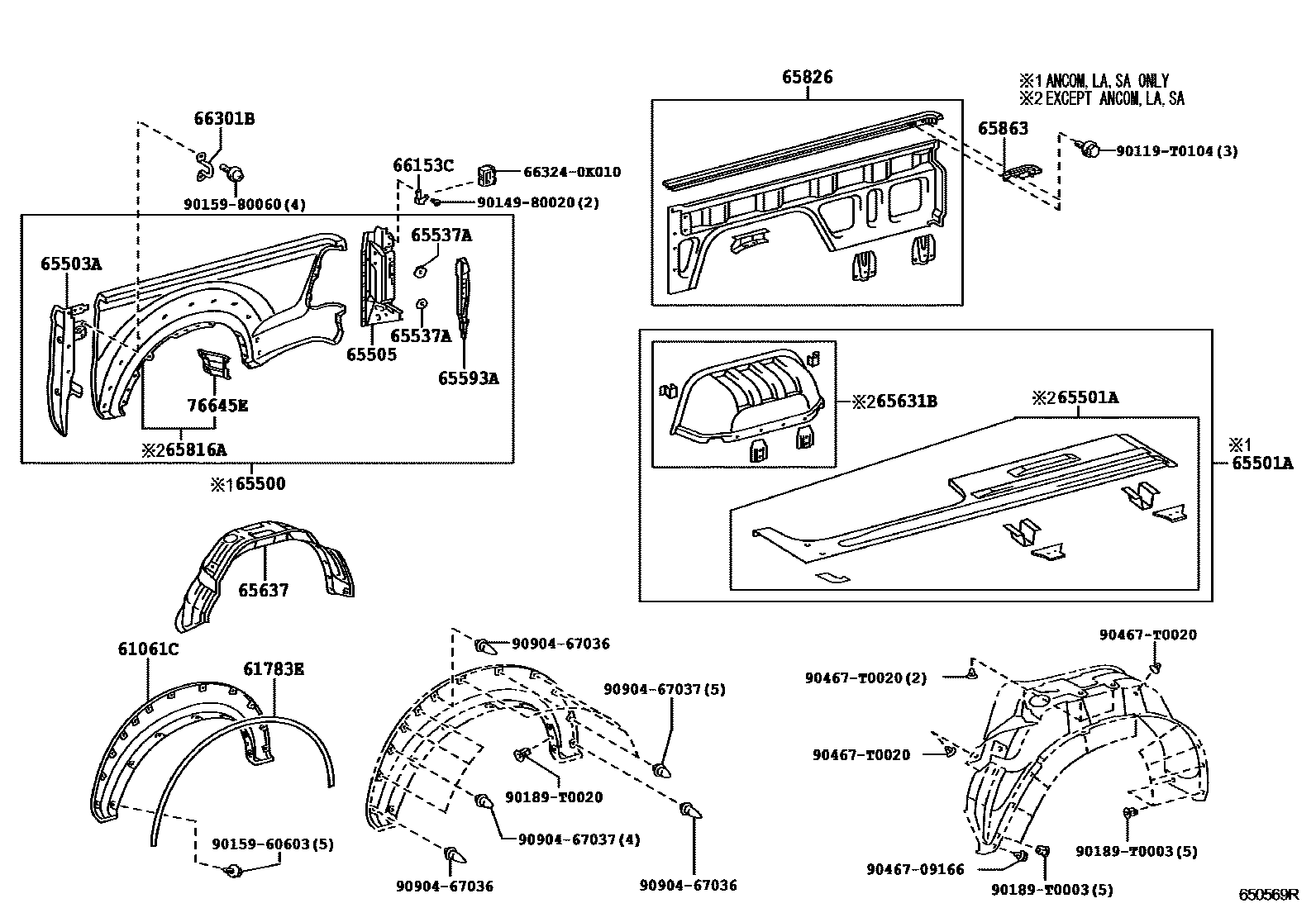

REAR BODY SIDE PANEL
61061CEXTENSION SUB-ASSY, REAR WHEEL OPENING, NO.1 RH
TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER)
TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER)
main61681-0K916iTGN26..DCB..DLX..ANCOM; TGN36..4FC..ANCOM;KUN25,35,TGN26,36..DCB..5F..DLX..(ANCOM,LA); TGN36..4FC..DLX..LA;TGN26,36..LHD..DCB..SR;GGN25,KUN26,36..ANCOM,LA; TGN36..DCB..5F..DLX200810
TIRE & DISC WHEEL-255/70R15C 7J ALMINUM; TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER); TIRE & DISC WHEEL-265/70R16 7J
61783EPAD, REAR WHEEL OPENING EXTENSION, NO.1
GRAY,040 ,1C0 ,4P9 ,8P1; TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER),GRAY,040 ,1C0 ,4P9 ,8P1
BLACK,209 ,3E5 ,6S3 ,8P1 ,8P4; TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER),BLACK,209 ,3E5 ,6S3 ,8P1 ,8P4
main61783-0K041iGGN25,TGN26..SR..ANCOM; KUN25,35,TGN26,36..DCB..DLX..ANCOM; TGN26..DCB..DLX..ANCOM200812-201204
TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER); TIRE & DISC WHEEL-265/70R16 7J
GRAY,040 ,1C0 ,4P9
BLACK,1E9 ,209 ,3E5 ,6S3 ,8T7; TIRE & DISC WHEEL-255/70R15C 7J ALMINUM,BLACK,1E9 ,209 ,3E5 ,6S3 ,8T7; TIRE & DISC WHEEL-265/70R16 7J,BLACK,1E9 ,209 ,3E5 ,6S3 ,8T7
65500PANEL ASSY, REAR BODY SIDE, RH
main65500-0K902iTGN26..SCB..(ANCOM,SA)..CBU;KUN15,25,35,LAN15,25,TGN15,16,36..SCB..DLX..(ANCOM,LA,SA)..CBU200502-200812
main65500-0K903iTGN36..4FC..ANCOM;KUN15,25,35,LAN15,25,35,TGN16,26,36..DCB..5F..DLX..(ANCOM,LA,SA)200810-201204
main65500-0K904iTGN26..DCB..DLX..ANCOM; TGN36..4FC..ANCOM;KUN25,35,LAN25,35,TGN26,36..DCB..5F..DLX..(ANCOM,LA,SA); TGN36..4FC..DLX..LA;GGN25,35,KUN26,36..DCB..(ANCOM,LA,SA);KUN35,TGN26,36..DCB..SR..(ANCOM,LA,SA)200810-201204
TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER); TIRE & DISC WHEEL-265/70R16 7J
SINGAPORE SPEC
65501APANEL SUB-ASSY, REAR BODY SIDE, RH
main65317-0K905iKUN26..DLX..GEN;GGN15,KUN16..DCB..(4FC,5FC)..SR;GGN25,KUN26,TGN16..(DCB,THDCB)..SR..(ARL,GEN,PHL,TH);KUN15,25,3#,TGN15,26..(DCB,THDCB)..(GEN,MA,PHL,PKN,TH)200808
main65501-0K902iKUN26..4FC..LA;TGN26..SR..ANCOM;TGN36..DCB..(ANCOM,SA);KUN36..DCB..5F..SR..(LA,SA);KUN35,TGN26,36..DCB..5F..DLX..(ANCOM,LA,SA);GGN25,KUN15,2#,LAN15,25,35,TGN16..DCB..(5F,5FC)..(ANCOM,LA,SA)200501-200812
SINGAPORE SPEC
65503APOST SUB-ASSY, SIDE PANEL FRONT END, RH
main65503-0K070iGGN25..5FC..SA;KUN26..LHD..DLX;TGN16..DCB..(SA,TH);GGN25..DCB..SR..(ANCOM,ARL,LA);GGN15,35,KUN16..DCB..(4FC,5FC)..SR;KUN26..(DCB,THDCB)..SR..(ARL,GEN,LA,PHL,SA,TH);KUN15,25,3#,LAN15,25,35,TGN15,26,36..(DCB,THDCB)..(ANCOM,GEN,LA,MA,PHL,PKN,SA,TH)200808
main65551-0K040iTGN16..DCB..(ARL,GCC);GGN15,25,KUN15,16,2#,TGN15,26..DCB..DLX..(ARL,GCC)..CBU200507-200808
SINGAPORE SPEC
65505POST SUB-ASSY, SIDE PANEL REAR END, RH
main65505-0K010iTGN16..5F..GCC..CBU;TGN15..(GCC,SA)..CBU;KUN15,25,TGN26..DCB..GCC;TGN15,16..LHD..SCB..(GEN,SA);TGN26..SCB..(ANCOM,GCC,SA)..CBU;GGN15,KUN1#,25,3#,LAN15,25,TGN10,11,36..(SCB,THSCB)..CBU200409-201202
main65505-0K040iGGN25..5FC..SA;KUN16..SMT,XTR;KUN26..LHD..DLX;TGN16..(DCB,SMT)..(SA,TH);GGN25..DCB..SR..(ANCOM,ARL,LA);GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SMT)..(GEN,PHL,SA,TH);GGN15,KUN15,TGN16..XTR..(ARL,GEN,TH);KUN26..(DCB,SMT,THDCB,XTR)..SR..(ARL,GEN,LA,PHL,SA,TH);GGN35,KUN25,3#,LAN15,25,35,TGN15,26,36..(DCB,SMT,THDCB,XTR)..(ANCOM,GEN,LA,MA,PHL,PKN,SA,TH)200808
SINGAPORE SPEC
65537APATCH, SIDE PANEL REINFORCEMENT, RH
65593APLATE, SIDE PANEL REAR END POST INSIDE, RH
main65593-0K010iGGN25..XTR;KUN26..IDN;TGN16..DCB..GEN;GGN15,KUN16..DCB..5F..SR; KUN16..DCB..ARL200808-201107
SINGAPORE SPEC
main65593-0K020iTGN15..SCB..GEN;TGN16..SCB..(SA,TH);TGN15..(GCC,SA)..CBU;TGN26..LHD..SCB..CBU;KUN15,TGN26..DCB..GCC;TGN16..(ARL,GCC)..CBU;GGN15,25,KUN16,2#..(DCB,SCB)..DLX..(ARL,GCC,TH)..CBU;KUN10,15,2#,3#,LAN15,25,TGN10,11,36..(SCB,THSCB)..(DLX,SR)..CBU200808
65631BPANEL, WHEEL HOUSE, RH
main65631-0K903iGGN15,KUN16..DCB..DLX;TGN16..(ARL,GCC,TH)..CBU;KUN26,36,TGN16..XTR..(GEN,SA);GGN15,KUN16..(SCB,SMT,XTR)..CBU;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15,26..(ARL,GCC,GEN,PHL,TH)..CBU;GGN25,KUN10,25,3#,TGN10,11,15,26..(DCB,SCB,SMT,THDCB,THSCB)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH)..CBU200808
SINGAPORE SPEC
65637LINER, REAR WHEEL HOUSE, RH
65816APANEL, REAR BODY SIDE, RH
main65816-0K903supersedes 65816-0K904iGGN25,KUN2#,36,TGN26,36..(DCB,THDCB)..SR..(ARL,GEN,MA,PHL,TH)200408-200809
main65816-0K905iTGN16..DCB..(ARL,GCC);GGN15,25,KUN15,16,2#,TGN15,26..DCB..DLX..(ARL,GCC)..CBU200808-201107
TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER)
TIRE & DISC WHEEL-255/70R15C 7J ALMINUM&TAIL GATE-FOR JDECK; TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER)&TAIL GATE-FOR JDECK
65826PANEL, REAR BODY SIDE, INNER RH
main65826-0K904iTGN26..LHD..SCB..CBU;TGN16..SCB..(GCC,SA,TH)..CBU;GGN15,KUN15,16,2#,3#,LAN15,25,TGN15,36..(SCB,THSCB)..(DLX,SR)..CBU200808
main65826-0K906iTGN16..DCB..(ARL,GCC);GGN15,25,KUN15,16,2#,TGN15,26..DCB..DLX..(ARL,GCC)..CBU200507-200808
main65826-0K907iKUN36..DCB..5F;TGN26..DCB..DLX..LA;GGN15,25,KUN25..DCB..SR;KUN26..(DCB,THDCB)..5F..SR;KUN26..4FC..SR..(ARL,GEN,LA,PHL,TH);KUN2#,35,TGN36..(DCB,THDCB)..5F..DLX..(ANCOM,GEN,LA,SA);KUN15,16,LAN15,25,35,TGN15,16,26,36..(DCB,THDCB)..(ANCOM,GEN,PHL,SA,TH)200408-200812
SINGAPORE SPEC
65863PANEL, REAR BODY SIDE, UPPER RH
main65863-0K010iTGN16..5F..GCC..CBU;TGN15..(GCC,SA)..CBU;KUN15,25,TGN26..DCB..GCC;TGN15,16..LHD..SCB..(GEN,SA);TGN26..SCB..(ANCOM,GCC,SA)..CBU;GGN15,KUN1#,25,3#,LAN15,25,TGN10,11,36..(SCB,THSCB)..CBU200409-201202
66153CHOOK, TAIL GATE LATCH, NO.1 RH
TAIL GATE-FOR JDECK; TIRE & DISC WHEEL-255/70R15C 7J ALMINUM&TAIL GATE-FOR JDECK; TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER)&TAIL GATE-FOR JDECK
main66153-71010iTGN15..SCB..GEN;TGN16..5F..GCC..CBU;TGN15..(GCC,SA)..CBU;KUN15,25,TGN26..DCB..GCC;KUN36,TGN16..SCB..(GEN,SA);TGN26..SCB..(ANCOM,GCC,SA)..CBU;GGN15,KUN1#,25,35,LAN15,25,TGN10,11,36..(SCB,THSCB)..CBU200409-201005
66301BHOOK SUB-ASSY, ROPE
76645EBRACKET, RR BODY MUDGUARD, RH
main76645-0K010iGGN25..5FC..SA;TGN26..LHD..CBU;KUN15,TGN16..XTR..DLX;GGN15,KUN16..DCB..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN16..(ARL,GCC,SA,TH)..CBU;GGN15,KUN16..DCB..(4FC,5FC)..SR;GGN15,KUN16..(SCB,SMT,XTR)..CBU;KUN26..(ARL,GEN,LA,PHL,SA,TH)..CBU;KUN15..(DCB,SCB,SMT)..(DLX,SR)..CBU;GGN35,KUN10,25,3#,LAN15,25,35,TGN10,11,15,36..(DLX,SR)..CBU200808
663240K010CUSHION, TAIL GATE SIDE
main66324-0K010
90119T0104
main90119-T0104
9014980020
main90149-80020
9015960603
main90159-60603
9015980060
main90159-80060
90189T0003
main90189-T0003
90189T0020
main90189-T0020
9046709166
main90467-09166
90467T0020
main90467-T0020
9090467036
main90904-67036
9090467037
main90904-67037
27 parts on this diagram · 12 diagrams in section
