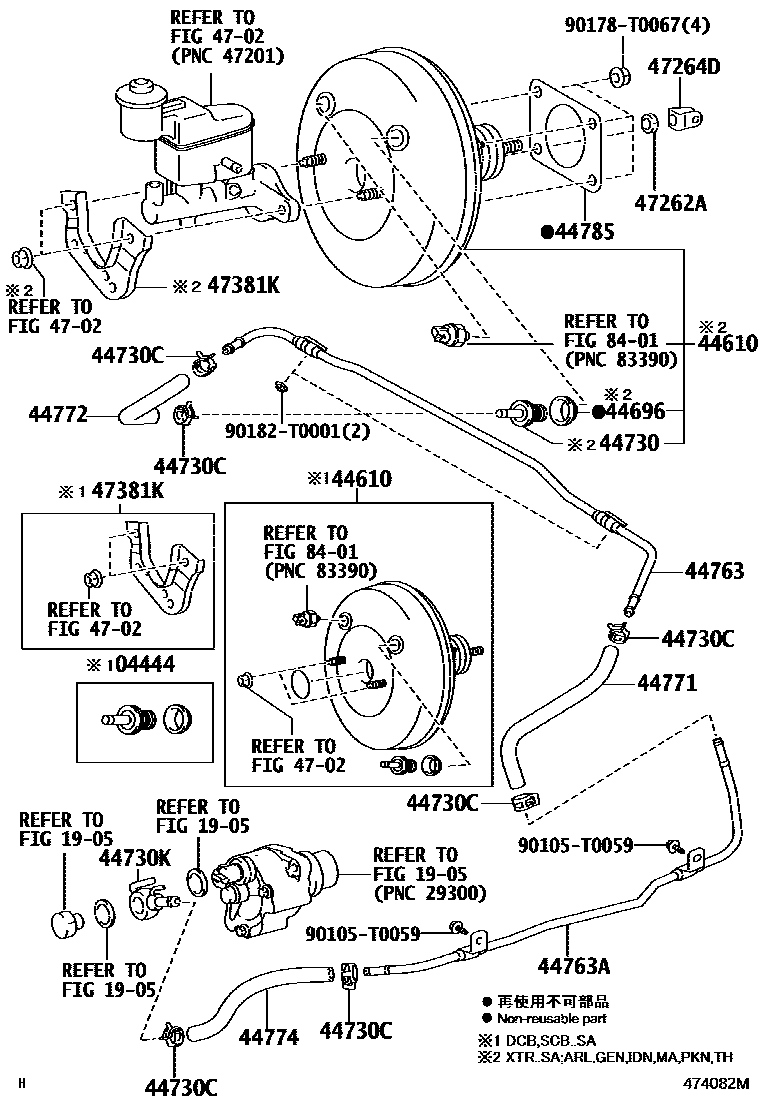

BRAKE BOOSTER & VACUUM TUBE

0001 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1W(VSC) 0013 1MALAYSIA SPEC & W/O(VSC)

04444VALVE KIT, BOOSTER CONTROL

main04444-02010iKUN25..LHD..SCB;KUN25..DCB..(LA,SA);GGN25,KUN15,26,3#,LAN15,25,35,TGN15,16,26,36..LA,SA200501-201108

1905VACUUM PUMP

→ Go to FIG 19-05

44610BOOSTER ASSY, BRAKE

main44610-09280iGGN25,35,TGN15,36..SA200504-201108

main44610-09290iKUN15,2#,3#,LAN15,25..LHD..(LA,SA)200501-200810

main44610-09310iGGN25,TGN16,26,36..LHD..(LA,SA)200504-200810

main44610-09330iKUN15,2#,3#,LAN15,25,35..RHD..(DCB,SCB)..SA200504-201108

main44610-0K010iTGN26..TH200501-201107

main44610-0K020iTGN16..5F..(GCC,GEN);GGN25,TGN10,11,15,26,36..ANCOM,GCC,GEN,PHL200501-201107

main44610-0K030iKUN26..DCB..ARL..CBU200808-201107

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH(ABS & EBD & VSC & BA)

main44610-0K030iKUN25..SR..MA;KUN16..XTR..TH;KUN16..DCB,SCB;KUN25..SCB..MA;KUN25..RHD..GEN;KUN26,LAN15..ARL,PKN;KUN15..RHD..(DCB,SCB,XTR)..(GEN,PKN,TH)200408-201202

main44610-0K040iKUN10,15,2#,35..LHD..(ANCOM,GCC,GEN,PHL)200411-200812

main44610-0K110iTGN26..TH200708-201107

main44610-0K120iKUN2#,36..TH200708-201107

main44610-0K120iKUN15..SMT..DCR;KUN2#,3#..5F..TH200808-201107

VSC-WITH

main44610-0K140iKUN26..4FC..TH200808-201107

MALAYSIA SPEC&VSC-WITHOUT

main44610-0K140iKUN26..4FC..TH200808-201107

VSC-WITH

44696GROMMET, CHECK VALVE

main90080-48050iKUN26..IDN;GGN25..SCB,XTR;TGN16..(DCB,SCB)..GEN;GGN15,KUN16..DCB..5F..SR200808-201107

VSC-WITH

main90080-48050iKUN26..THDCB;KUN25..SCB..MA;KUN16..DCB,SCB;KUN15..PHL..CBU;KUN25..ANCOM,GCC,GEN;KUN16,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN);KUN36,TGN10,26,36..(DCB,SCB,THDCB,XTR)..(DLX,SR)..(ANCOM,GCC,GEN,IDN,PHL,TH)200408-201202

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-22150iTGN16..ARL,GCC,TH;KUN26..ARL,GEN,PHL,TH;GGN15,KUN16..DCB..DLX;GGN15,KUN16..SCB,SMT,XTR;KUN26,36,TGN16..XTR..(GEN,SA);GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN10,15,3#,TGN10,11,15,36..ANCOM,GCC,GEN,IDN,PHL,TH;GGN25,KUN25,TGN26..(DCB,SCB,SMT,THDCB,THSCB)..(ANCOM,ARL,GCC,GEN,MA,PKN,TH)..CBU200408-201202

44730CCLIP(FOR VACUUM HOSE)

main90466-T0019iGGN15..5F..SR;GGN25..SCB,XTR200408-201202

44730KUNION, VACUUM HOSE(FOR VACUUM PUMP)

main90405-09180iLAN15,25,35200507-201108

main90405-T0003iKUN15..SR..SA200408-201202

44763TUBE, BOOSTER VACUUM

main44763-0K010iKUN25..SR..MA;KUN25..SCB..MA200408-201202

main44763-0K030iLAN15,25..LHD200507-201108

main44763-0K040iKUN25..MA200503-200706

44763ATUBE, HOSE TO HOSE, NO.1

main44763-0K020iKUN25..SR..MA;KUN25..SCB..MA200408-201202

main44763-0K050iKUN25..MA200503-200706

44771HOSE, VACUUM TUBE CONNECTOR

main44771-0K010iKUN25..RHD..SCB..SA200408-201202

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-0K010iKUN26,36..XTR..SA;GGN15,KUN16..DCB..DLX;GGN15,KUN16..SCB,SMT,XTR;KUN26..RHD..4FC..(ARL,GEN);KUN26..RHD..5F..(ARL,GEN,TH);GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15,3#,TGN10,16..RHD..(ARL,GEN,IDN,TH);GGN25,KUN25..RHD..(DCB,SCB,SMT)..(ARL,GEN,MA,PKN,TH)..CBU200408-201202

main44772-0K020iKUN15,2#,3#..RHD..(DCB,SCB)..SA200810-201108

*283 TYPE A:REF ILL.

main44772-0K020iKUN25..RHD..SCB..SA200504-200810

main44772-0K030iKUN26..DCB..5F..TH200808-201107

VSC-WITH

44774HOSE, UNION TO CONNECTOR TUBE

main44774-0K010iTGN16..5F..ARL;TGN10,15,16,26,36..RHD..(DCB,SCB,XTR)..(IDN,SA,TH)200501-201108

main44774-0K020iKUN26..THDCB;KUN16..DCB,SCB;KUN16,36..XTR..TH;KUN26..DCB..5F..SA;KUN25..LHD..SCB..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN25..SCB..(GEN,LA,MA);KUN35..DLX..(ANCOM,GEN,LA,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN25..(DCB,THDCB,THSCB)..(ANCOM,GCC,GEN,LA,SA)200408-201202

main44774-0K030iGGN15..5F..SR;GGN25..SCB,XTR200502-201108

44785GASKET, BRAKE BOOSTER

main44785-17010iKUN26..IDN;GGN25..SCB,XTR;TGN16..(DCB,SCB)..GEN;GGN15,KUN16..DCB..5F..SR200408-201202

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47262ANUT, MASTER CYLINDER PUSH ROD CLEVIS LOCK

main47262-0K010iTGN15..SA..CBU;GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN16,26,36..(DCB,SCB)..(LA,SA)200501-201204

main90016-AC101iTGN16..5F..TH200908-201107

(L)

main90179-10065iKUN26..DCB..5F..TH200808-201107

VSC-WITH

main94120-41000iKUN15..SR..SA200408-201202

main94120-41000iTGN16..5F..TH200908-201107

(J)

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-0K010iTGN16..ARL,GCC,TH;GGN15,KUN16..DCB..DLX;GGN15,KUN16..SCB,SMT,XTR;KUN26..4FC..(ARL,GEN,PHL);KUN26..5F..(ARL,GEN,PHL,TH);KUN26,36,TGN16..XTR..(GEN,SA);GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN10,15,3#,TGN10,11,15,36..ANCOM,GCC,GEN,IDN,PHL,TH;GGN25,KUN25,TGN26..(DCB,SCB,SMT,THDCB,THSCB)..(ANCOM,ARL,GCC,GEN,MA,PKN,TH)..CBU200408-201202

main47264-0K020iKUN25..RHD..SCB..SA200501-201204

main47264-0K050iKUN26..DCB..5F..TH200808-201107

VSC-WITH

47381KBRACKET, BRAKE BOOSTER TUBE CLAMP

main47381-09020iTGN15..SA..CBU;GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN16,26,36..(DCB,SCB)..(LA,SA)200501-201204

main47381-0K010iTGN16..ARL,GCC,TH;GGN15,KUN16..DCB..DLX;GGN15,KUN16..SCB,SMT,XTR;KUN26..4FC..(ARL,GEN,PHL);KUN26..5F..(ARL,GEN,PHL,TH);KUN26,36,TGN16..XTR..(GEN,SA);GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN10,15,3#,TGN10,11,15,36..ANCOM,GCC,GEN,IDN,PHL,TH;GGN25,KUN25,TGN26..(DCB,SCB,SMT,THDCB,THSCB)..(ANCOM,ARL,GCC,GEN,MA,PKN,TH)..CBU200408-201202

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90105T0059

main90105-T0059

90178T0067

main90178-T0067

90182T0001

main90182-T0001

21 parts on this diagram · 11 diagrams in section
