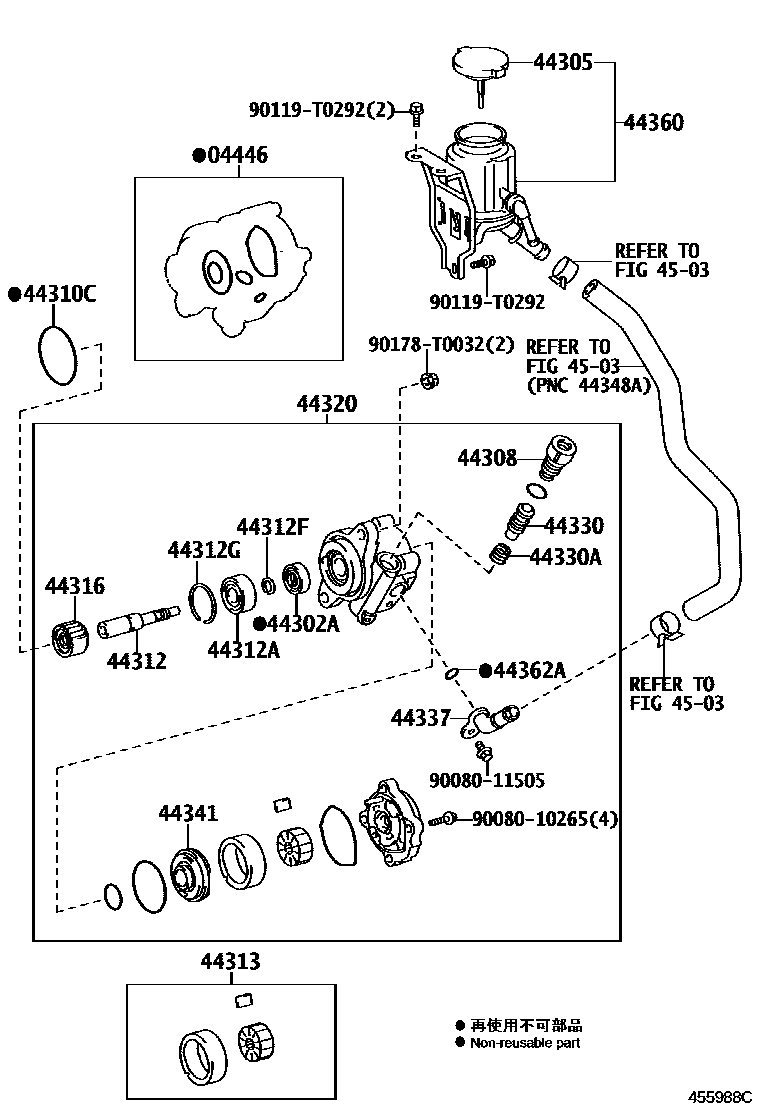

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1 0003 1 0004 1

04446GASKET KIT, POWER STEERING PUMP

main04446-06060iGGN15,25,TGN1#,26,36200501-200803

main04446-06110iTGN36..SCB;TGN16..XTR..TH;TGN26,36..DCB..DLX..LA;GGN15,25,TGN1#..5F,5FC;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA)200804-200812

main04446-0B030iLAN15,25,35200507-201009

main04446-0B040iKUN15..DCB;KUN10,16,2#,3#;KUN15..XTR..SR;KUN15..SCB..(GCC,GEN,SA)200408-200804

STEERING-POWER STEERING

main04446-0K010iKUN15..DCB;KUN26..THDCB;KUN25..SCB..MA;KUN16..DCB,SCB;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN15,16,36..XTR..SR..TH;KUN10,15..SCB..(GCC,GEN,200804-201202

44302HOUSING SUB-ASSY, VANE PUMP, FRONT

main44302-04050iLAN15,25,35..SA200810

44302ASEAL, OIL, NO.1(FOR VANE PUMP HOUSING)

main90316-T0001×2iKUN35..SCB..ANCOM200508-200812

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-0K020iKUN15..(SCB,XTR)..DLX..TH..CBU200408-200709

STEERING-POWER STEERING

main44305-0K040iGGN25..5FC..SA;KUN15..DCB,SMT;GGN25..ANCOM,ARL,LA;KUN15..(SCB,XTR)..(GCC,GEN,PHL,SA);GGN15,35,KUN10,16,2#,3#,LAN15,25,35..DLX,SR200808-201102

STEERING-POWER STEERING

main44305-0K041iKUN26..IDN;GGN25..SCB,XTR;GGN15,KUN16..DCB..5F..SR201103-201107

STEERING-POWER STEERING

sub44305-0K042

main44305-22040iTGN1#,26,36200501-200801

main44305-22060iTGN16..(DCB,SCB)..GEN200808-201107

sub44305-22061

44308UNION SUB-ASSY, PRESSURE PORT

main44308-0K010iTGN1#..5F;TGN16..XTR..TH200501-200810

main44308-0K020iKUN15..DCB;KUN16..DCB,SCB;KUN15,16..XTR..SR..TH;KUN10,15..SCB..(GCC,GEN,PKN,SA)200408-201202

main44308-0K030iLAN15200507-201009

main44308-0K040iGGN25..SCB,XTR200808-201107

main44308-0K050iKUN26..IDN200808-201107

main44308-0K060iLAN25,35200507-200810

main44308-0K070iGGN15200502-200808

44310CRING, O(FOR VANE PUMP)

main90301-T0014iKUN15..SR..SA200808-201108

44312SHAFT, VANE PUMP

main44312-06030iLAN15,25,35200507-201009

OD=17.999-18.004

main44312-06040iLAN15,25,35200507-201009

OD=17.994-17.999

main44312-0K010iKUN15..SR..SA200808-201108

44312ABEARING(FOR VANE PUMP SHAFT)

main90363-T0005×2iKUN35..SCB..ANCOM200508-200812

44312FRING, SNAP, NO.1(FOR VANE PUMP SHAFT BEARING)

main90520-T0001×2iKUN35..SCB..ANCOM200508-200812

44312GRING, SNAP, NO.2(FOR VANE PUMP SHAFT BEARING)

main90520-T0002iKUN16..4FC;KUN15..DCB,SMT;KUN16..DCB..ARL;KUN16..SCB,SMT,XTR;KUN15..SCB..(GCC,GEN,PHL,SA);KUN10,2#,3#..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH200808

44313ROTOR, VANE PUMP

main44313-09010×2iKUN35..SCB..ANCOM200508-200812

main44313-09020iLAN15..SA200810-201108

main44313-09030iTGN36..CBU;GGN25..5FC..SA;GGN15..SCB,XTR;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;GGN15,35..DCB..5FC..SR;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,200808

main44313-09040iLAN25,35200810-201108

44316GEAR, VANE PUMP

main44316-0K010iKUN26..IDN;KUN16..DCB..5F..TH200808-201107

STEERING-POWER STEERING

44320PUMP ASSY, VANE

main44310-0K010iTGN16..(DCB,SCB)..GEN200808-201107

main44310-0K020iKUN16..4FC;KUN15..DCB,SMT;KUN16..DCB..ARL;KUN16..SCB,SMT,XTR;KUN10,15..(SCB,XTR)..(GCC,GEN,PHL,SA)200808-201108

main44310-0K030iTGN36..SCB;TGN26,36..DCB..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA)200501-200812

main44310-0K040iKUN25..SCB..MA;KUN35..DCB..ANCOM;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN35..DLX..(GEN,LA,SA);KUN36..(DCB,SCB,XTR)..5F;KUN25..ANCOM,GCC,GEN,LA,SA;KUN26..(DCB,SCB200408-200812

main44310-0K050iGGN15200808-201107

main44310-0K060iGGN25,35..5FC..SA;GGN25..DCB..(ANCOM,ARL,LA)200808

main44320-0K010iLAN15..SA200810-201108

main44320-0K020iLAN25,35200507-200810

44330VALVE ASSY, FLOW CONTROL

main44330-04010iLAN15,25,35200507-201009

MARK A

main44330-04020iLAN15,25,35..SA200810-201108

MARK B

main44330-04030iLAN15,25,35..SA200810-201108

MARK C

main44330-04040iLAN15,25,35200507-201009

MARK D

main44330-04050iLAN15,25,35200507-201009

MARK E

main44330-04060iLAN15,25,35200507-201009

MARK F

main44330-0K010iTGN36..SCB;TGN26,36..DCB..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);GGN15,25,TGN26..ANCOM,ARL,GCC,GEN,SA,TH200501-200812

MARK A

main44330-0K020iTGN36..CBU;GGN25..5FC..SA;GGN15..SCB,XTR;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;GGN15,35..DCB..5FC..SR;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,200808

MARK B

main44330-0K030iGGN15..5F..SR;GGN25..SCB,XTR200808-201107

MARK C

main44330-0K040iGGN15..5F..SR;GGN25..SCB,XTR200808-201107

MARK D

main44330-0K050iTGN36..SCB;TGN26,36..DCB..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);GGN15,25,TGN26..ANCOM,ARL,GCC,GEN,SA,TH200501-200812

MARK E

main44330-0K060iTGN36..SCB;TGN26,36..DCB..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);GGN15,25,TGN26..ANCOM,ARL,GCC,GEN,SA,TH200501-200812

MARK F

main44330-0K130iKUN15..DCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15..SCB..(GCC,GEN,PKN,SA);KUN15,1200408-201202

MARK A

main44330-0K140iKUN26..IDN;KUN16..DCB..5F..TH;TGN16..(DCB,SCB)..GEN200808-201107

MARK B,STEERING-POWER STEERING

main44330-0K150iTGN15..IV3;KUN15..SR..SA200808-201108

MARK C

main44330-0K160iKUN26..IDN;KUN16..DCB..5F..TH;TGN16..(DCB,SCB)..GEN200808-201107

MARK D,STEERING-POWER STEERING

main44330-0K170iKUN26..IDN;KUN16..DCB..5F..TH;TGN16..(DCB,SCB)..GEN200808-201107

MARK E

main44330-0K180iKUN26..IDN;KUN16..DCB..5F..TH;TGN16..(DCB,SCB)..GEN200808-201107

MARK F

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90080-50247iLAN15,25,35..SA200810-201108

main90501-T0001iKUN26..THDCB;KUN25..SCB..MA;KUN16..DCB,SCB;KUN35..DCB..ANCOM;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN35..DLX..(GEN,LA,SA);KUN25..ANCOM,GCC,G200408-201202

44337UNION, POWER STEERING SUCTION PORT

main44337-06060iKUN26..IDN;GGN25..SCB,XTR;GGN15,KUN16..DCB..5F..SR200808-201107

STEERING-POWER STEERING

main44337-0K020iLAN15,25,35200507-201009

44341PLATE, VANE PUMP SIDE, FRONT

main44341-06010×2iKUN35..SCB..ANCOM200508-200812

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-0K010iKUN15..DCB;KUN26..THDCB;KUN25..SCB..MA;KUN35..DCB..ANCOM;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN35..DLX..(GEN,LA,SA);KUN15,16,36..XTR..SR..200408-201202

sub44360-0K011

main44360-0K030iGGN15..5F..SR;GGN25..SCB,XTR200808-201107

sub44360-0K031

44362ARING, O(FOR VANE PUMP OIL RESERVOIR)

main90080-30093×2iKUN35..SCB..ANCOM200508-200812

4503

9008010265

main90080-10265

9008011505

main90080-11505

90119T0292

main90119-T0292

90178T0032

main90178-T0032

24 parts on this diagram · 4 diagrams in section
