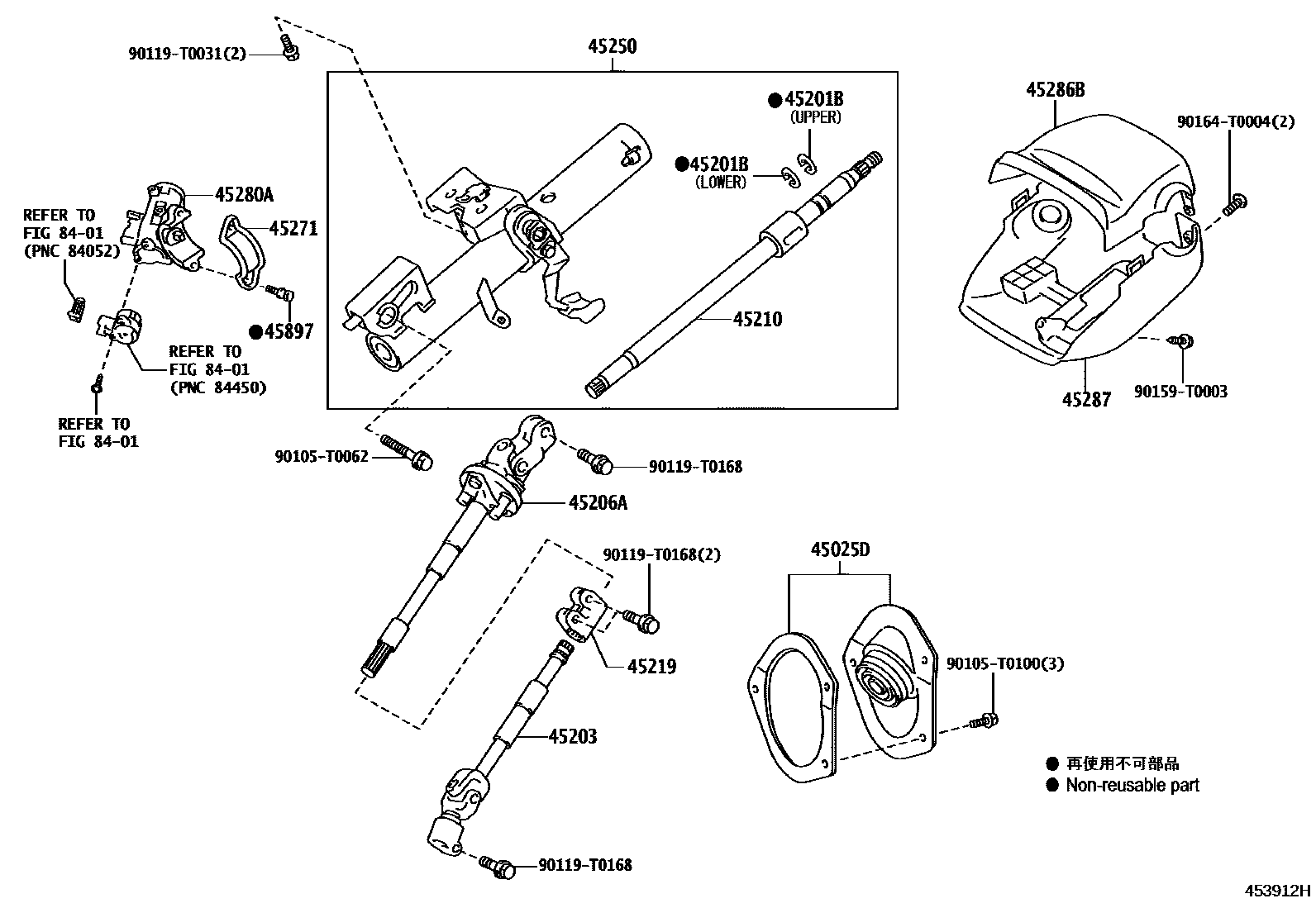

STEERING COLUMN & SHAFT

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-0K030iKUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN25..RHD..(GEN,SA);KUN16,36,TGN16..XTR..TH;KUN36..RHD..(DCB,SCB)..5F;KUN26..(DCB,SCB,XTR)..(ARL,TH);GGN15,25,LAN15,25,35,TGN15,26,36..RHD;KUN15..RHD..(DCB,SCB,XTR)..(GEN,PKN,TH);KUN15,35,TGN10,16..RHD..5F..DLX..(ARL,IDN,SA)200408-201202

main45025-0K040iTGN36..LHD..CBU;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN26..LHD..(GCC,GEN,LA,SA);GGN25,KUN10,15,2#,3#,LAN15,25,TGN1#..LHD200808

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042×2iKUN35..SCB..ANCOM200508-200812

T=1.20,UPPER

main90520-17269iGGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16,TGN10..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN10,2#,3#,LAN15,25,35,TGN11..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH)200808

T=1.20,LOWER

45203SHAFT SUB-ASSY, STEERING INTERMEDIATE, NO.2

main45203-0K010iGGN15,KUN16..DCB..5F..SR; KUN15..(SCB,XTR)..TH200808-201107

STEERING-POWER STEERING

main45203-0K020iKUN10,15,LAN15,TGN1#..LHD..5F200411-200810

main45203-0K030iGGN25..ARL;GGN25..5FC..SA;GGN35,KUN2#,3#,LAN25,35,TGN36..RHD200808

main45203-0K040×2iKUN25,35..DCB..ANCOM200507-200812

main45203-0K060iTGN10..IV3;KUN15..(SCB,XTR)..TH200808-201107

main45203-0K080iKUN15..PKN201106-201202

45206AYOKE SUB-ASSY, STEERING SLIDING W/COUPLING

main45206-0K010iKUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN25..GCC,GEN,LA,SA;KUN35,TGN36..SCB,THDCB;KUN16,36,TGN16..XTR..TH;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN35,TGN36..DCB..5F..DLX..(LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)200408-201106

main45206-0K040iKUN15..PKN201106-201202

45210SHAFT ASSY, STEERING MAIN

main45210-0K010iGGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16,TGN10..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN10,2#,3#,LAN15,25,35,TGN11..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH)200808

45219YOKE, STEERING SLIDING

main45219-0K010iTGN15..IV3;KUN15..SR..SA200808-201108

main45219-0K090iKUN15..PKN201106-201202

45250COLUMN ASSY, STEERING

main45250-0K010×2iKUN35..SCB..ANCOM200508-200812

45271CLAMP, STEERING COLUMN, UPPER

main45271-0K010×2iKUN35..SCB..ANCOM200508-200812

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-0K010supersedes 45280-0K020iKUN15,25..LHD..SA;TGN26..DCB..(GEN,SA);KUN25..(DCB,SCB)..GEN;KUN15,TGN15..(DLX,STD)..(GEN,PHL,PKN)..CBU;LAN15,25,35,TGN10,16..(GEN,IDN,PKN,SA)..CBU200408-201202

main45280-0K020iKUN15,35..SR..PHL;TGN36..ANCOM..IV3;KUN16..SCB,SMT,XTR;TGN26..5F..(GCC,LA);KUN25..RHD..SCB..SA;KUN35..ANCOM,GEN,LA,SA,TH;GGN15,KUN15..5F..DLX..(ARL,GCC);KUN15,25..(THDCB,THSCB,XTR)..DLX;KUN15..RHD..(DCB,SCB,SMT)..(SA,TH);TGN26..(SCB,THDCB)..(ANCOM,GEN)..CBU;TGN15,36..5F..(ANCOM,GCC,LA,SA)..CBU;GGN25,KUN16,TGN26..DCB..5F..(ANCOM,ARL);KUN25,TGN16..5F..(ANCOM,ARL,GCC,LA,MA,TH);KUN10,26,36,TGN10,11..5F..(ARL,GCC,GEN,LA,PHL,SA,TH)200808

main45280-0K030iTGN16..XTR..TH;KUN26..4FC..(ARL,GEN,LA,PHL,TH);GGN15,25,KUN16,25,TGN26,36..(4FC,5FC)..(ANCOM,ARL,GCC,MA,PHL,SA,TH)200408-200812

45286BCOVER, STEERING COLUMN, UPR

main45286-0K010-B0iKUN10,15,25,TGN1#,26..GCC200507-200808

DK.GRAY,TRIM1#,3#

main45286-0K010-E0iGGN15,25,KUN15,16,2#,36,TGN16,26,36..(DCB,XTR)..SR..(ARL,GCC,MA,PHL,TH)200408-200809

SANDAL WOOD,TRIM0#

main45286-0K010-E1iKUN35..SR..PHL;KUN25,35..(DCB,SMT)..(MA,TH);KUN15,16,26,36,TGN16..SR..(IDN,PHL,TH)200808-201109

ASH BROWN,TRIM4#

main45286-0K020-B0iKUN26..4FC..LA;KUN35,TGN36..SCB;TGN26..DCB..DLX..LA;TGN36..DCB..(ANCOM,SA);KUN26..DCB..5F..(LA,SA);KUN25,36..(DCB,SCB)..5F..(LA,SA);KUN35,TGN36..DCB..5F..DLX..(LA,SA);GGN25,KUN15,LAN15,25,35,TGN15,16,26..(DCB,SCB)..(ANCOM,PKN,SA)200501-201202

DK.GRAY,TRIM1#

main45286-0K020-E0iKUN25..RHD..DCB..SA;LAN15,25,TGN16,26..DCB..SA;GGN25,KUN26,36,LAN35,TGN36..SA200504-200810

SANDAL WOOD,TRIM0#

45287COVER, STEERING COLUMN, LWR

main45287-0K010-B0iKUN10,15,25,TGN1#,26..GCC200808-201107

DK.GRAY,TRIM1#,3#

main45287-0K010-E0iGGN15,25,KUN15,16,2#,36,TGN16,26,36..(DCB,XTR)..SR..(ARL,GCC,MA,PHL,TH)200408-200809

SANDAL WOOD,TRIM0#

main45287-0K010-E1iKUN35..SR..PHL;KUN25,35..(DCB,SMT)..(MA,TH);KUN15,16,26,36,TGN16..SR..(IDN,PHL,TH)200808-201109

ASH BROWN,TRIM4#

main45287-0K020-B0iKUN26..4FC..LA;KUN35,TGN36..SCB;TGN26..DCB..DLX..LA;TGN36..DCB..(ANCOM,SA);KUN26..DCB..5F..(LA,SA);KUN25,36..(DCB,SCB)..5F..(LA,SA);KUN35,TGN36..DCB..5F..DLX..(LA,SA);GGN25,KUN15,LAN15,25,35,TGN15,16,26..(DCB,SCB)..(ANCOM,PKN,SA)200501-201202

DK.GRAY,TRIM1#

main45287-0K020-E0iKUN25..RHD..DCB..SA;LAN15,25,TGN16,26..DCB..SA;GGN25,KUN26,36,LAN35,TGN36..SA200504-200810

SANDAL WOOD,TRIM0#

45897BOLT, STEERING LOCK SET

main45897-0K010×2iGGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16,TGN10..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN10,2#,3#,LAN15,25,35,TGN11..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH)200808

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90105T0062

main90105-T0062

90105T0100

main90105-T0100

90119T0031

main90119-T0031

90119T0168

main90119-T0168

90159T0003

main90159-T0003

90164T0004

main90164-T0004

19 parts on this diagram · 1 diagram in section
