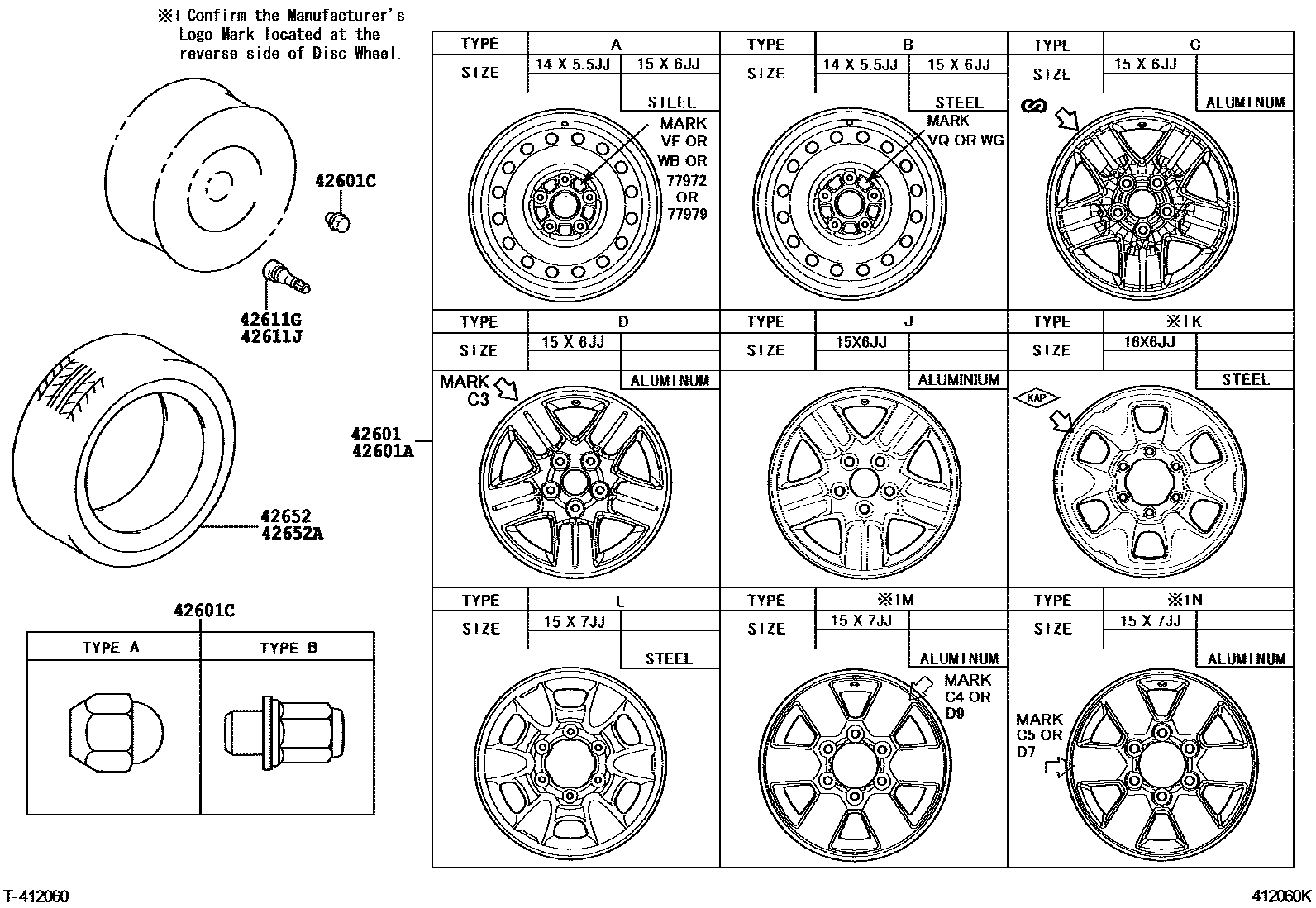

DISC WHEEL & WHEEL CAP
42601WHEEL, DISC
16X7J, #,TYPE R:REFER ILLUST.
15X6JJ, #,TIRE & DISC WHEEL-205/70R15C 6JJ,TYPE A:REFER ILLUST.; 15X6JJ, #,TYPE A:REFER ILLUST.
15X6JJ, #,TYPE C:REFER ILLUST.
15X6JJ, #,TYPE J:REFER ILLUST.
main42611-0K230×4supersedes 42611-0K220iKUN2#,36..XTR..TH;TGN26..(THDCB,XTR)..SR;KUN2#,TGN36..SR..(GEN,MA,PHL)200408-200809
15X7JJ, #,TYPE M:REFER ILLUST.
16X6JJ, #,TYPE K:REFER ILLUST.
16X7J, #,TYPE R:REFER ILLUST.
16X7JJ, #,TYPE P:REFER ILLUST.
16X7JJ, #,ECUADOR & COLOMBIA SPEC,TYPE P:REFER ILLUST.; 16X7JJ, #,TYPE P:REFER ILLUST.
16X7JJ, #,COLOMBIA SPEC,T/P AF:REFER ILLUST.; 16X7JJ, #,ECUADOR SPEC,T/P AF:REFER ILLUST.; 16X7JJ, #,T/P AF:REFER ILLUST.
16X7JJ, #,TYPE Q:REFER ILLUST.
15X7JJ, #,TYPE N:REFER ILLUST.
16X7JJ, #,TYPE P:REFER ILLUST.
16X7JJ, #,TYPE Q:REFER ILLUST.
14X5.5JJ, #,TYPE A:REFER ILLUST.
16X6J, #,TIRE & DISC WHEEL-215/65R16C 6J ALMINUM,TYPE V:REFER ILLUST.; 16X6J, #,TYPE V:REFER ILLUST.
16X6J, #,TIRE & DISC WHEEL-215/65R16C 6J ALMINUM,TYPE V:REFER ILLUST.; 16X6J, #,TYPE V:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-215/65R16C 6J ALMINUM,TYPE W:REFER ILLUST.; 17X7.5J, #,TYPE W:REFER ILLUST.
16X6J, #,TIRE & DISC WHEEL-215/65R16C 6J ALMINUM,TYPE W:REFER ILLUST.; 16X6J, #,TYPE W:REFER ILLUST.
15X7JJ, #,TYPE M:REFER ILLUST.
main42611-0K770×4iTGN26..DLX..LA;TGN36..4FC..ANCOM;TGN26..DLX..ANCOM..CBU;KUN25,35,TGN36..5F..DLX..(ANCOM,LA)200810-201204
16X6JJ, #,TYPE S:REFER ILLUST.
16X7JJ, #,TYPE Q:REFER ILLUST.
16X7JJ, #,T/P AF:REFER ILLUST.
17X7.5J, #,T/P AB:REFER ILLUST.
14X5.5JJ, #,TYPE A:REFER ILLUST.
15X6JJ, #,TIRE & DISC WHEEL-205/70R15C 6JJ,TYPE A:REFER ILLUST.; 15X6JJ, #,TYPE A:REFER ILLUST.
15X6JJ, #,TYPE D:REFER ILLUST.
15X6JJ, #,TYPE D:REFER ILLUST.
main42611-0K880×4iKUN2#,36..XTR..TH;TGN26..(THDCB,XTR)..SR;KUN2#,TGN36..SR..(GEN,MA,PHL)200408-200809
15X7JJ, #,TYPE N:REFER ILLUST.
14X5.5JJ, #,TYPE B:REFER ILLUST.
16X6J, #,TYPE S:REFER ILLUST.
15X6JJ, #,TYPE A:REFER ILLUST.
14X5.5JJ, #,TYPE B:REFER ILLUST.
main42611-0KB81×4supersedes 42611-0KB91iKUN15..(SCB,XTR)..DLX..TH;KUN15,TGN10,15,16..DLX..(ARL,GEN,IDN,PHL)200504-200808
14X5.5JJ, #,TYPE B:REFER ILLUST.
15X6JJ, #,TIRE & DISC WHEEL-205/70R15C 6JJ,TYPE B:REFER ILLUST.; 15X6JJ, #,TYPE B:REFER ILLUST.
main42611-0KB91×4iKUN15..(SCB,XTR)..TH;GGN15,KUN10,16,TGN10,11,15..ARL,GCC,IDN;KUN15,TGN16..(DLX,STD)..(ARL,GCC,GEN,PHL); LAN15,TGN15..GEN,SA;KUN15,TGN16..DLX..SA200808-201107
15X6JJ, #,TYPE B:REFER ILLUST.
15X6JJ, #,TYPE B:REFER ILLUST.
main42611-0KC01×4iKUN15..(SCB,XTR)..TH; TGN16..SR..GCC;KUN16,TGN16..DLX..TH;KUN15..(DCB,SMT)..DCR..TH200808-201107
15X6JJ, #,PAINT PROTECTION WAX/FILM-TOYOTA INNOVA&STEERING-POWER STEERING,TYPE B:REFER ILLUST.; 15X6JJ, #,STEERING-POWER STEERING,TYPE B:REFER ILLUST.; 15X6JJ, #,TYPE B:REFER ILLUST.
17X7.5J, #,T/P AC:REFER ILLUST.
17X7.5J, #,T/P AB:REFER ILLUST.
main42611-0KD40×4iGGN25,KUN26..SR..ARL;KUN25..LHD..DCB..GEN; KUN2#,3#..SMT;TGN26..SR..GEN; KUN26,36..XTR..SA;KUN26..DCB..(GEN,IDN)200808-201107
15X7J, #,TIRE & DISC WHEEL-255/70R15C 7J ALMINUM,TYPE Y:REFER ILLUST.; 15X7J, #,TYPE Y:REFER ILLUST.
15X7J, #,T/P AA:REFER ILLUST.
15X7J, #,TYPE Y:REFER ILLUST.
15X7J, #,TYPE Y:REFER ILLUST.
15X7J, #,EXPORT FROM SOUTH AFRICA&TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER),TYPE L:REFER ILLUST.; 15X7J, #,KENYA SPEC&TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER),TYPE L:REFER ILLUST.
16X7JJ, #,EXPORT FROM ARGENTINA,T/P AF:REFER ILLUST.; 16X7JJ, #,HIGH ALTITUDE COUNTRY SPEC,T/P AF:REFER ILLUST.; 16X7JJ, #,PERU SPEC,T/P AF:REFER ILLUST.; 16X7JJ, #,T/P AF:REFER ILLUST.
15X7J, #,MEXICO SPEC&TIRE & DISC WHEEL-255/70R15C 7J ALMINUM,T/P AD:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
16X7J, #,TYPE R:REFER ILLUST.
15X6JJ, #,TYPE A:REFER ILLUST.
15X6JJ, #,TYPE J:REFER ILLUST.
main42611-0K220supersedes 42611-0K240iGGN25,KUN2#..SR..(ARL,MA); KUN25..SCB..MA;KUN26..DLX..ARL;TGN26..LHD..DLX..(GCC,GEN,SA);GGN25,KUN25,35,LAN25,35..DLX..(ARL,GCC,GEN,SA)200808-201108
15X7J, #,TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER),TYPE L:REFER ILLUST.; 15X7J, #,TYPE L:REFER ILLUST.
15X7JJ, #,TYPE M:REFER ILLUST.
16X6JJ, #,TYPE K:REFER ILLUST.
16X7J, #,TYPE R:REFER ILLUST.
16X7JJ, #,TYPE P:REFER ILLUST.
16X7JJ, #,TYPE P:REFER ILLUST.
16X7JJ, #,T/P AF:REFER ILLUST.
16X7JJ, #,TYPE Q:REFER ILLUST.
15X7JJ, #,TYPE N:REFER ILLUST.
16X7JJ, #,TYPE P:REFER ILLUST.
16X7JJ, #,TYPE Q:REFER ILLUST.
14X5.5JJ, #,TYPE A:REFER ILLUST.
15X7JJ, #,TYPE M:REFER ILLUST.
main42611-0K770iTGN26..DLX..LA;TGN36..4FC..ANCOM;TGN26..DLX..ANCOM..CBU;KUN25,35,TGN36..5F..DLX..(ANCOM,LA)200810-201204
16X6JJ, #,TYPE S:REFER ILLUST.
16X7JJ, #,T/P AF:REFER ILLUST.
17X7.5J, #,T/P AB:REFER ILLUST.
14X5.5JJ, #,TYPE A:REFER ILLUST.
15X6JJ, #,TIRE & DISC WHEEL-205/70R15C 6JJ,TYPE A:REFER ILLUST.; 15X6JJ, #,TYPE A:REFER ILLUST.
15X6JJ, #,TYPE D:REFER ILLUST.
15X7JJ, #,TYPE N:REFER ILLUST.
14X5.5JJ, #,TYPE B:REFER ILLUST.
16X6J, #,TYPE S:REFER ILLUST.
16X6J,TIRE & DISC WHEEL-215/65R16C 6J ALMINUM,TYPE X:REFER ILLUST.; 16X6J,TYPE X:REFER ILLUST.
16X6J,TIRE & DISC WHEEL-215/65R16C 6J ALMINUM,TYPE X:REFER ILLUST.; 16X6J,TYPE X:REFER ILLUST.
15X6JJ, #,TYPE A:REFER ILLUST.
14X5.5JJ, #,TYPE B:REFER ILLUST.
main42611-0KB81supersedes 42611-0KB91iKUN15..(SCB,XTR)..DLX..TH;KUN15,TGN10,15,16..DLX..(ARL,GEN,IDN,PHL)200504-200808
14X5.5JJ, #,TYPE B:REFER ILLUST.
15X6JJ, #,TIRE & DISC WHEEL-205/70R15C 6JJ ALMINUM,TYPE B:REFER ILLUST.; 15X6JJ, #,TYPE B:REFER ILLUST.
main42611-0KB91iTGN16..DLX..GCC;KUN15,16,TGN16..SR..(PHL,TH);GGN15,KUN10,15,TGN10,11,15..ARL,GCC; TGN16..SCB..SR200504-200808
15X6JJ, #,TIRE & DISC WHEEL-205/70R15C 6JJ ALMINUM,TYPE B:REFER ILLUST.; 15X6JJ, #,TYPE B:REFER ILLUST.
15X6JJ, #,TIRE & DISC WHEEL-205/70R15C 6JJ,TYPE B:REFER ILLUST.; 15X6JJ, #,TYPE B:REFER ILLUST.
main42611-0KC01iKUN15..(SCB,XTR)..TH; TGN16..SR..GCC;KUN16,TGN16..DLX..TH;KUN15..(DCB,SMT)..DCR..TH200808-201107
15X6JJ, #,PAINT PROTECTION WAX/FILM-TOYOTA INNOVA&STEERING-POWER STEERING,TYPE B:REFER ILLUST.; 15X6JJ, #,STEERING-POWER STEERING,TYPE B:REFER ILLUST.; 15X6JJ, #,TYPE B:REFER ILLUST.
17X7.5J, #,T/P AC:REFER ILLUST.
17X7.5J, #,T/P AB:REFER ILLUST.
15X7J, #,TYPE Y:REFER ILLUST.
15X7J, #,T/P AA:REFER ILLUST.
15X7J, #,TYPE Y:REFER ILLUST.
15X7J, #,TIRE & DISC WHEEL-255/70R15C 7J ALMINUM&SRS AIR BAG-WITH(DRIVER & PASSENGER),TYPE L:REFER ILLUST.
16X7JJ, #,EXPORT FROM ARGENTINA,T/P AF:REFER ILLUST.; 16X7JJ, #,HIGH ALTITUDE COUNTRY SPEC,T/P AF:REFER ILLUST.; 16X7JJ, #,PERU SPEC,T/P AF:REFER ILLUST.; 16X7JJ, #,T/P AF:REFER ILLUST.
15X7J, #,TIRE & DISC WHEEL-255/70R15C 7J ALMINUM,T/P AD:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
TYPE A:REFER ILLUST.
main90942-01109×20iGGN15..DCB..DLX;KUN16..ARL..CBU;GGN15,TGN16..SR..(ARL,GCC); GGN25..XTR; KUN15..LHD..DCB..GEN; KUN16..DCB..5F..TH; KUN26..IDN200808-201107
TIRE & DISC WHEEL-205/70R15C 6JJ ALMINUM,TYPE B:REFER ILLUST.; TIRE & DISC WHEEL-215/65R16C 6J ALMINUM,TYPE B:REFER ILLUST.; TIRE & DISC WHEEL-255/70R15C 7J ALMINUM,TYPE B:REFER ILLUST.; TYPE B:REFER ILLUST.
42611GVALVE (FOR TUBELESS TIRE)
main90080-94031×4iKUN15,26,36..XTR..SA;GGN15,25,KUN1#,2#,3#,TGN1#,26..ARL,GCC,GEN,IDN,PHL,TH200808-201108
42611JVALVE (FOR TUBELESS TIRE SPARE)
main90080-94031iKUN15,26,36..XTR..SA;GGN15,25,KUN1#,2#,3#,TGN1#,26..ARL,GCC,GEN,IDN,PHL,TH200808-201108
main90080-94179iTGN26..LA;KUN26,36..DLX..LA;TGN26..DLX..ANCOM..CBU;GGN25,KUN25,35,TGN36..ANCOM,LA200810-201204
42652TIRE
main42652-0K010×4supersedes 42652-0K330iKUN15..(SCB,XTR)..DLX..TH;KUN15,TGN10,16..RHD..(ARL,GEN,IDN)200408-200808
195R14C-8PR,*B/S
195R14C-8PR,GOODYEAR
main42652-0K040×4supersedes 42652-0K720iKUN15..SCB..TH..CBU; KUN16..DLX..TH;KUN15..XTR..HDCR200408-200609
205/70R15C,*B/S; 205/70R15C,*B/S,TIRE & DISC WHEEL-205/70R15C 6JJ
255/70R15C,*B/S
265/70R16,*B/S
265/70R16,MICHELIN
255/70R15C,*B/S; 255/70R15C,*B/S,TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER)
255/70R15C,GOODYEAR; 255/70R15C,GOODYEAR,TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER)
205R16C-8PR,GOODYEAR
195R14C,*D/L
195R14C-8PR,*B/S
205/70R15C,*B/S
255/70R15C,*B/S
205/70R15C,MICHELIN; 205/70R15C,MICHELIN,TIRE & DISC WHEEL-205/70R15C 6JJ
255/70R15C,*B/S; 255/70R15C,*B/S,TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER)
main42652-0K520×4iKUN15..(SCB,XTR)..DCR..TH..CBU; KUN15..DCB..TH;KUN16,TGN16..TH;KUN15..XTR..HDCR200609-200808
205/70R15C,*B/S; 205/70R15C,*B/S,PAINT PROTECTION WAX/FILM-TOYOTA INNOVA&TIRE & DISC WHEEL-205/70R15C 6JJ; 205/70R15C,*B/S,TIRE & DISC WHEEL-205/70R15C 6JJ
195R14C
42652ATIRE (FOR SPARE)
main42652-0K010supersedes 42652-0K330iKUN15..(SCB,XTR)..DLX..TH;KUN15,TGN10,16..RHD..(ARL,GEN,IDN)200408-200808
195R14C-8PR,*B/S
195R14C-8PR,GOODYEAR
main42652-0K040supersedes 42652-0K720iGGN15;KUN15..SR..DCR..TH; KUN15,TGN10,16..RHD..(ARL,GEN,IDN)200408-200808
205/70R15C,*B/S; 205/70R15C,*B/S,TIRE & DISC WHEEL-205/70R15C 6JJ
main42652-0K050supersedes 42652-0K060iKUN2#,3#..(SMT,XTR)..(SA,TH);GGN25,KUN26..RHD..SR..(ARL,GEN,IDN)200808-201108
255/70R15C,*B/S
265/70R16,*B/S
265/70R16,MICHELIN
255/70R15C,*B/S; 255/70R15C,*B/S,TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER)
255/70R15C,GOODYEAR; 255/70R15C,GOODYEAR,TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER)
205R16C-8PR,GOODYEAR
195R14C,*D/L
195R14C-8PR,*B/S
205/70R15C,*B/S
255/70R15C,*B/S
205/70R15C,MICHELIN; 205/70R15C,MICHELIN,TIRE & DISC WHEEL-205/70R15C 6JJ
255/70R15C,*B/S; 255/70R15C,*B/S,TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER)
main42652-0K520iKUN15..(SCB,XTR)..DCR..TH..CBU; KUN15..DCB..TH;KUN16,TGN16..TH;KUN15..XTR..HDCR200609-200808
205/70R15C,*B/S; 205/70R15C,*B/S,PAINT PROTECTION WAX/FILM-TOYOTA INNOVA&TIRE & DISC WHEEL-205/70R15C 6JJ; 205/70R15C,*B/S,TIRE & DISC WHEEL-205/70R15C 6JJ
195R14C
7 parts on this diagram · 7 diagrams in section
