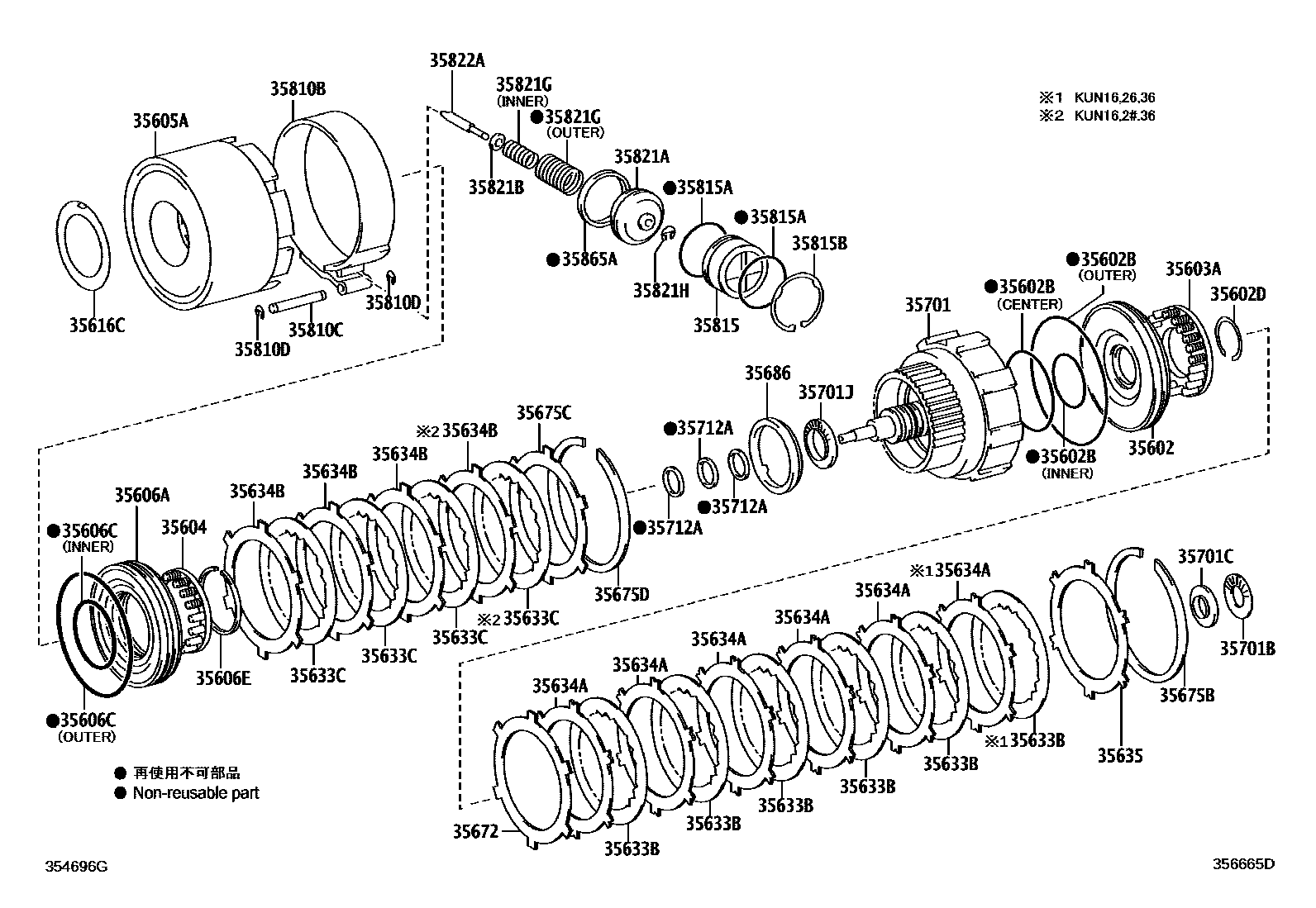

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)

0001 1A340E,A340F,A343E,A343F 0002 1A750E,A750F

35602PISTON SUB-ASSY, FRONT CLUTCH

main35602-14012iKUN16,26..4FC200408-200810

main35602-30062iKUN25,TGN16,26,36..4FC200808

35602BRING, O (FOR FORWARD CLUTCH PISTON)

main90301-39005iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

INNER

main90301-39012iGGN25..5FC..IV3200808-201107

INNER

main90301-72003iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

CENTER

main90301-99058iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

OUTER

main90301-99096iGGN15,35..5FC;GGN25..5FC..CBU200808

CENTER

main90301-99145iGGN15,35..5FC;GGN25..5FC..CBU200808

OUTER

35602DRING, SHAFT SNAP(FOR FORWARD CLUTCH PISTON RETURN SPRING)

main90520-35001iKUN16,2#,36,TGN16,26,36..4FC200808

main90520-35003iGGN15,35..5FC;GGN25..5FC..CBU200808

35603ASPRING SUB-ASSY, FORWARD CLUTCH RETURN

main35603-30011iKUN16,2#,36,TGN16,26,36..4FC200808

main35603-60020iGGN25..5FC..IV3200808-201107

35604SPRING SUB-ASSY, DIRECT CLUTCH RETURN

main35604-35010iKUN16,2#,36,TGN16,26,36..4FC200808

main35604-60020iGGN25..5FC..IV3200808-201107

35605ADRUM SUB-ASSY, DIRECT CLUTCH

main35605-22040iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH)200501-200812

main35605-30060iKUN16,2#..4FC200408-200810

35606APISTON SUB-ASSY, DIRECT CLUTCH

main35606-35010iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

main35652-60020iGGN15,25..5FC200502-200608

main35652-60021iGGN15,25..5FC200608-200812

35606CRING, O (FOR DIRECT CLUTCH PISTON)

main90301-65006iKUN16,2#,36,TGN16,26,36..4FC200808

INNER

main90301-74002iGGN15,25..5FC200502-200812

INNER

main90301-99058iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

OUTER

main90301-99149iGGN15,25..5FC200502-200812

OUTER

35606ERING, SHAFT SNAP (FOR DIRECT CLUTCH PISTON RETURN SPRING)

main90520-58001iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

main90520-64003iGGN25..5FC..IV3200808-201107

35616CWASHER, CLUTCH DRUM THRUST (FOR DIRECT CLUTCH DRUM)

main35616-30050iKUN16,2#,36,TGN16,26,36..4FC200808

35633BDISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)

main35633-60070×6iGGN15,25..5FC200502-200812

main35677-26010×6iKUN16,26,36..4FC200808

main35677-30170×5iKUN25,TGN16,26,36..4FC200808

35633CDISC, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)

main35667-40020×3iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH)200501-200812

35634APLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)

main35634-30110×5iKUN25,TGN16,26,36..4FC200808

T=2.3

main35634-32010×6iKUN16,26..4FC200408-200810

T=1.8

main35634-60020×5iGGN15,25..5FC200502-200812

T=1.8

35634BPLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)

main35647-22030×4iKUN16,2#..4FC200408-200810

T=2.3

35635FLANGE, FORWARD CLUTCH

main35635-30040iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

T=4.0,MARK 95

main35635-30050iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

T=3.8,MARK 94

main35635-30060iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

T=3.6,MARK 93

main35635-30070iKUN16,2#,36,TGN16,26,36..4FC200808

T=3.4,MARK 92

main35635-30080iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

T=3.2,MARK 91

main35635-30090iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

T=3.0,MARK 90

main35635-30100iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

T=4.2,MARK 96

main35635-30110iKUN16,2#,36,TGN16,26,36..4FC200808

T=4.4,MARK 97

main35635-60010iGGN15,25..5FC200502-200812

T=3.0,MARK 0

main35635-60020iGGN15,25..5FC200502-200812

T=3.1,MARK 1

main35635-60030iGGN15,25..5FC200502-200812

T=3.2,MARK 2

main35635-60040iGGN15,25..5FC200502-200812

T=3.3,MARK 3

main35635-60050iGGN15,35..5FC;GGN25..5FC..CBU200808

T=3.4,MARK 4

main35635-60060iGGN15,25..5FC200502-200812

T=3.5,MARK 5

main35635-60070iGGN25..5FC..IV3200808-201107

T=3.6,MARK 6

main35635-60080iGGN15,25..5FC200502-200812

T=3.7,MARK 7

main35635-60090iGGN25..5FC..IV3200808-201107

T=3.8,MARK 8

main35635-60100iGGN25..5FC..IV3200808-201107

T=3.9,MARK 9

main35635-60110iGGN15,25..5FC200502-200812

T=4.0,MARK A

35672PLATE, CLUTCH CUSHION

main35672-30010iKUN16,2#,36,TGN16,26,36..4FC200808

35675BRING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE)

main90520-99082iGGN25..5FC..IV3200808-201107

main90521-99001iKUN16,2#,36,TGN16,26,36..4FC200808

35675CFLANGE, DIRECT CLUTCH

main35675-30210iKUN16,2#,36,TGN16,26,36..4FC200808

T=3.5,MARK 55

main35675-30220iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

T=3.6,MARK 56

main35675-30230iKUN16,2#,36,TGN16,26,36..4FC200808

T=3.7,MARK 57

main35675-30240iKUN16,2#,36,TGN16,26,36..4FC200808

T=3.3,MARK 53

main35675-30250iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

T=3.4,MARK 54

main35675-30260iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

T=3.8,MARK 58

main35675-30270iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

T=4.0,MARK 60

main35675-30280iKUN16,2#..4FC200408-200810

T=4.2,MARK 62

35675DRING, HOLE SNAP (FOR DIRECT CLUTCH FLANGE)

main90520-99018iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

35686WASHER, CLUTCH DRUM THRUST (FOR INPUT SHAFT)

main35686-30010iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

35701SHAFT SUB-ASSY, INPUT

main35701-22050iTGN16,26,36..4FC200808

main35701-60030iKUN16,2#,36..4FC200808

main35701-60080iGGN15,25..5FC200502-200812

35701BBEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT REAR)

main90374-25005iKUN16,2#,36,TGN16,26,36..4FC200808

35701CRACE, THRUST BEARING (FOR INPUT SHAFT REAR)

main35789-30110iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

35701JBEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT FRONT)

main90374-33001iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

main90374-34011iGGN15,25..5FC200502-200812

35712ARING, INPUT SHAFT OIL SEAL

main35712-30020×3iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

main35712-60010×3iGGN25..5FC..IV3200808-201107

35810BBAND ASSY, 2ND COAST BRAKE

main35810-50020iKUN16,2#,36,TGN16,26,36..4FC200808

35810CPIN (FOR 2ND COAST BRAKE BAND)

main90249-07011iKUN16,2#,36,TGN16,26,36..4FC200808

35810DRING, E (FOR 2ND COAST BRAKE BAND PIN)

main96160-00500×2iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

35815COVER, 2ND COAST BRAKE

main35815-22010iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

35815ARING, O (FOR 2ND COAST BRAKE COVER)

main90301-48001×2iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

35815BRING, HOLE SNAP (FOR 2ND COAST BRAKE COVER)

main90521-60003iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

35821APISTON, 2ND COAST BRAKE

main35821-22020iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

35821BWASHER, PLATE (FOR 2ND COAST BRAKE PISTON)

main90201-06557iKUN16,2#,36,TGN16,26,36..4FC200808

35821GSPRING, COMPRESSION (FOR 2ND COAST BRAKE PISTON)

main90501-26024iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

OUTER

main90501-32037iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

INNER

35821HRING, E (FOR 2ND COAST BRAKE PISTON)

main96160-00500iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

35822AROD, 2ND COAST BRAKE PISTON

main35822-22010iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

L=78.4

main35822-22020iKUN16,2#,36,TGN16,26,36..4FC200808

L=79.9

35865ARING, 2ND COAST BRAKE PISTON OIL SEAL

main35865-30010iKUN16,2#,36,TGN16,26,36..4FC200808

37 parts on this diagram · 2 diagrams in section
