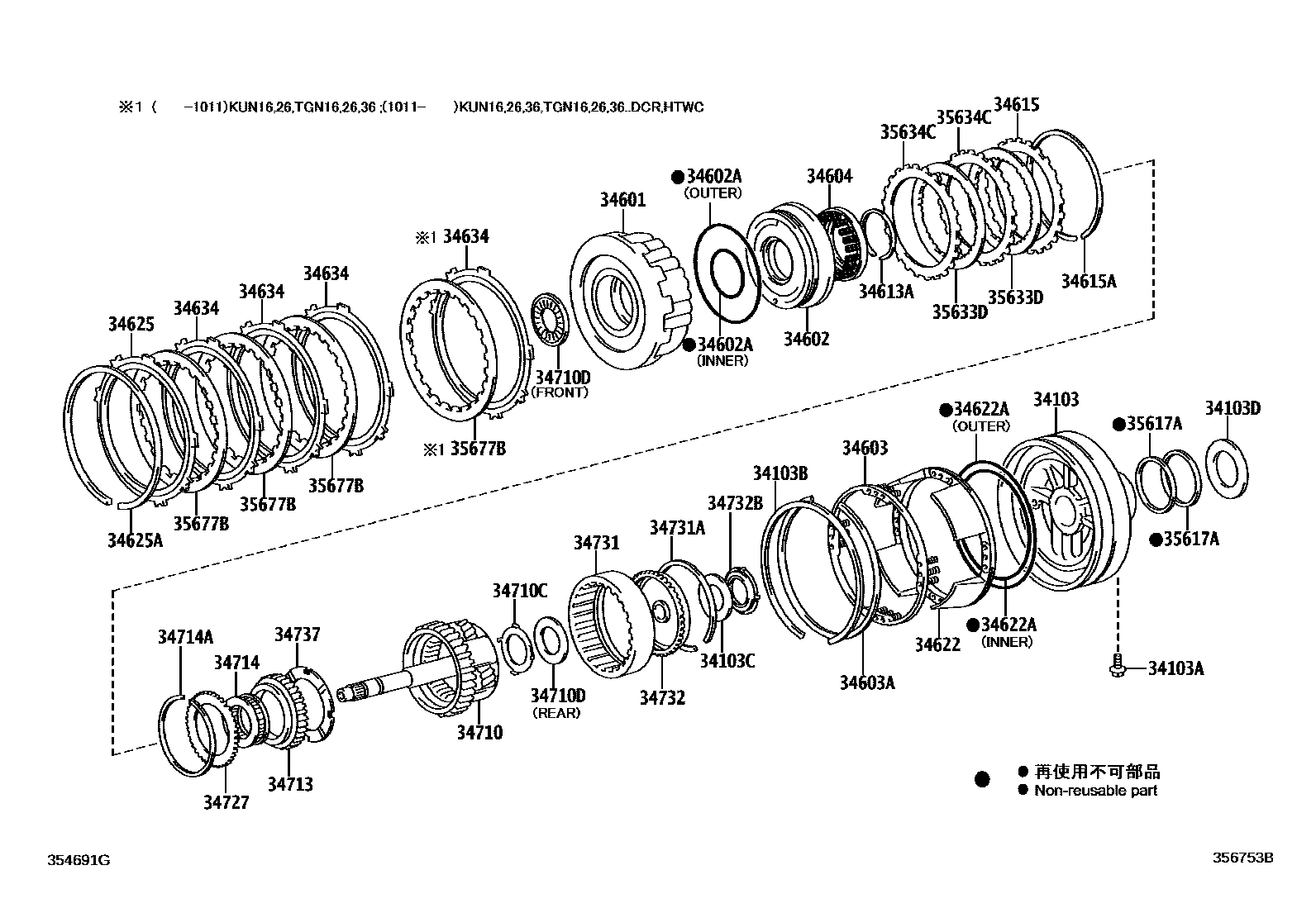

OVERDRIVE GEAR (ATM)

34103SUPPORT SUB-ASSY, OVERDRIVE

main34103-30020iKUN16,2#,36,TGN16,26,36..4FC200808

34103ABOLT (FOR OVERDRIVE SUPPORT)

main90105-08281×2iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

34103BRING, HOLE SNAP (FOR OVERDRIVE SUPPORT)

main90521-99033iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

34103CRACE, THRUST BEARING (FOR OVERDRIVE SUPPORT FRONT)

main35789-22060iKUN16,2#,36,TGN16,26,36..4FC200808

34103DRACE, THRUST BEARING (FOR OVERDRIVE SUPPORT REAR)

main35789-30090iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

34601DRUM SUB-ASSY, OVERDRIVE DIRECT CLUTCH

main34601-26020iKUN16,2#..4FC200408-200810

main34601-50020iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH)200501-200812

34602PISTON SUB-ASSY, OVERDRIVE DIRECT CLUTCH

main34602-30020iKUN16,2#,36,TGN16,26,36..4FC200808

34602ARING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON)

main90301-65006iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

INNER

main90301-99086iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

OUTER

34603SPRING SUB-ASSY, OVERDRIVE BRAKE RETURN

main34603-30030iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

34603ARING, HOLE SNAP (FOR OVERDRIVE BRAKE RETURN SPRING)

main90520-99039iKUN16,2#,36,TGN16,26,36..4FC200808

34604SPRING SUB-ASSY, OVERDRIVE CLUTCH RETURN

main34604-30010iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

34613ARING, SHAFT SNAP (FOR OVERDRIVE DIRECT CLUTCH RETURN SPRING)

main90520-58001iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

34615FLANGE, OVERDRIVE CLUTCH

main34615-22010iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

T=3.1

main34615-22020iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

T=3.2

main34615-22030iKUN16,2#,36,TGN16,26,36..4FC200808

T=3.3

main34615-50030iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

T=3.4

main34615-50040iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

T=3.5

main34615-50050iKUN16,2#,36,TGN16,26,36..4FC200808

T=3.6

34615ARING, HOLE SNAP (FOR OVERDRIVE CLUTCH FLANGE)

main90521-99001iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

34622PISTON, OVERDRIVE BRAKE

main34622-30090iKUN25..4FC200503-200809

main34622-30100iKUN16,26,36,TGN16,26,36..4FC200808

34622ARING, O (FOR OVERDRIVE BRAKE PISTON)

main90301-99088iKUN16,2#,36,TGN16,26,36..4FC200808

INNER

main90301-99090iKUN16,2#,36,TGN16,26,36..4FC200808

OUTER

34625FLANGE, OVERDRIVE BRAKE, NO.1

main34625-22030iKUN16,2#,36,TGN16,26,36..4FC200808

T=3.3,MARK 33

main34625-22040iKUN16,2#,36,TGN16,26,36..4FC200808

T=3.8,MARK 38

main34625-22050iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

T=3.9,MARK 39

main34625-22060iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

T=4.0,MARK 40

main34625-50020iKUN16,2#,36,TGN16,26,36..4FC200808

T=3.5,MARK 35

main34625-50030iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

T=3.6,MARK 36

main34625-50040iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

T=3.7,MARK 37

34625ARING, HOLE SNAP (FOR OVERDRIVE BRAKE FLANGE)

main90521-99027iKUN16,2#,36,TGN16,26,36..4FC200808

34634PLATE, OVERDRIVE BRAKE

main34634-30021×3iKUN25..4FC200503-200809

34710GEAR ASSY, OVERDRIVE PLANETARY

main34710-22031iKUN16,2#,36..4FC..(GEN,LA,MA,PHL,SA,TH)200808

main34710-60021iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH)200501-200812

main34710-71010iKUN26..4FC..ARL200808-201107

34710CRACE, THRUST BEARING(FOR OVERDRIVE PLANETARY GEAR)

main35789-30052iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

34710DBEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE PLANETARY GEAR)

main90374-31005iKUN16,2#,36,TGN16,26,36..4FC200808

FRONT

main90374-31008iKUN16,2#,36,TGN16,26,36..4FC200808

REAR

34713RACE, 1 WAY CLUTCH OUTER (FOR OVERDRIVE)

main34713-32010iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

34714CLUTCH, 1 WAY(FOR OVERDRIVE)

main35791-30060iKUN25,TGN16,26,36..4FC200808-200908

main35791-30130iKUN25,TGN16,26,36..4FC200908

main35791-50010iKUN16,26,36..4FC200808

34714ARING, HOLE SNAP(FOR 1 WAY CLUTCH)

main90521-99028iKUN16,2#,36,TGN16,26,36..4FC200808

34727PLATE, RETAINING (FOR OVERDRIVE)

main34727-32010iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

34731GEAR, OVERDRIVE PLANETARY RING

main34731-30030iKUN16,2#,36..4FC200808

main34731-50010iTGN16,26,36..4FC200808

34731ARING, HOLE SNAP (FOR OVERDRIVE PLANETARY RING GEAR)

main90521-99024iKUN16,2#,36..4FC200808

main90521-99118iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH)200501-200812

34732FLANGE, OVERDRIVE PLANETARY RING GEAR

main34732-22011iKUN16,2#..4FC200408-200810

main34732-40011iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH)200501-200812

34732BBEARING, THRUST(FOR OVERDRIVE PLANETARY RING GEAR FLANGE)

main90374-33002iKUN16,2#,36,TGN16,26,36..4FC200808

34737WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.3

main34737-30030iKUN16,2#..4FC200408-200810

main34737-50010iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH)200501-200812

35617ARING, CLUTCH DRUM OIL SEAL (FOR OVERDRIVE)

main35617-30020×2iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

35633DDISC, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH)

main35633-14010×2iKUN16,2#,36,TGN16,26,36..4FC200808

35634CPLATE, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH)

main34616-30010×2iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

T=2.0

35677BDISC, CLUTCH (FOR OVERDRIVE BRAKE)

main34633-60010×3iKUN25..4FC200503-200809

35 parts on this diagram · 1 diagram in section
