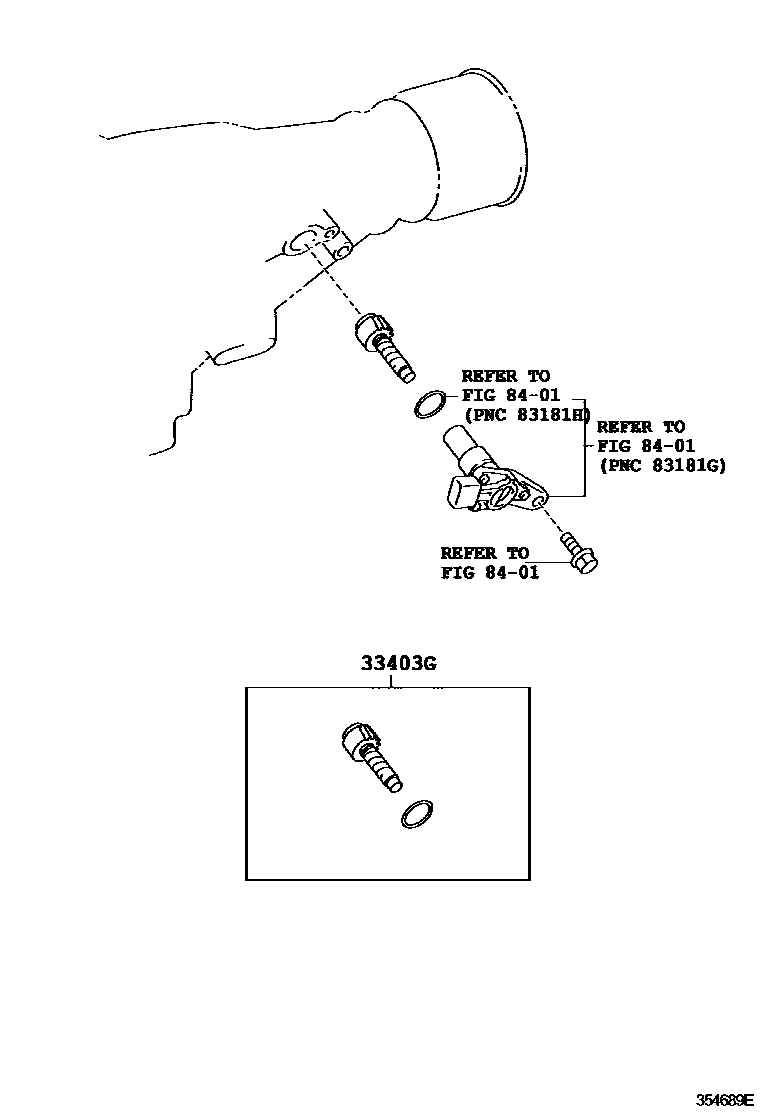

SPEEDOMETER DRIVEN GEAR (ATM)

0001 1A340E,A343E 0003 1A340F,A343F,A750F 0004 1A750E

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-29315iTGN26..XTR;TGN26..4FC..GCC200501-200808

N=32,MARK 32:10

main33403-39355iTGN26..4FC..LA200810-201009

N=31,MARK 31:10

main33403-39365iKUN25..4FC200503-200809

N=30,MARK 30:11

main33403-39515iKUN26..4FC..TH;KUN26..4FC..DLX200408-200808

N=29,MARK 29:11

main33403-39575iGGN25..RHD..5FC..SR200502-200810

N=27,MARK 27:11

main33403-39585iGGN25..5FC..DLX;KUN26..4FC..SR..(ARL,GEN,LA,PHL)200411-200810

N=28,MARK 28:11

main33403-79015iGGN25..ANCOM200507-200812

N=26,MARK 26:11

main33482-29205iTGN16,36..4FC..(ANCOM,ARL,GCC,TH)200808

N=19,MARK 19:6

main33482-39405iKUN36..4FC200810-201108

N=16,MARK 16:6

main33482-59015iKUN16..4FC200408-200808

N=17,MARK 17:6

main33482-59025iTGN36..4FC..LA200810-201009

N=18,MARK 18:6

main33482-79015iGGN15..5FC200808-201107

N=19,MARK 19:7

main33482-79025iGGN35200810-201108

N=17,MARK 17:7

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

2 parts on this diagram · 3 diagrams in section
