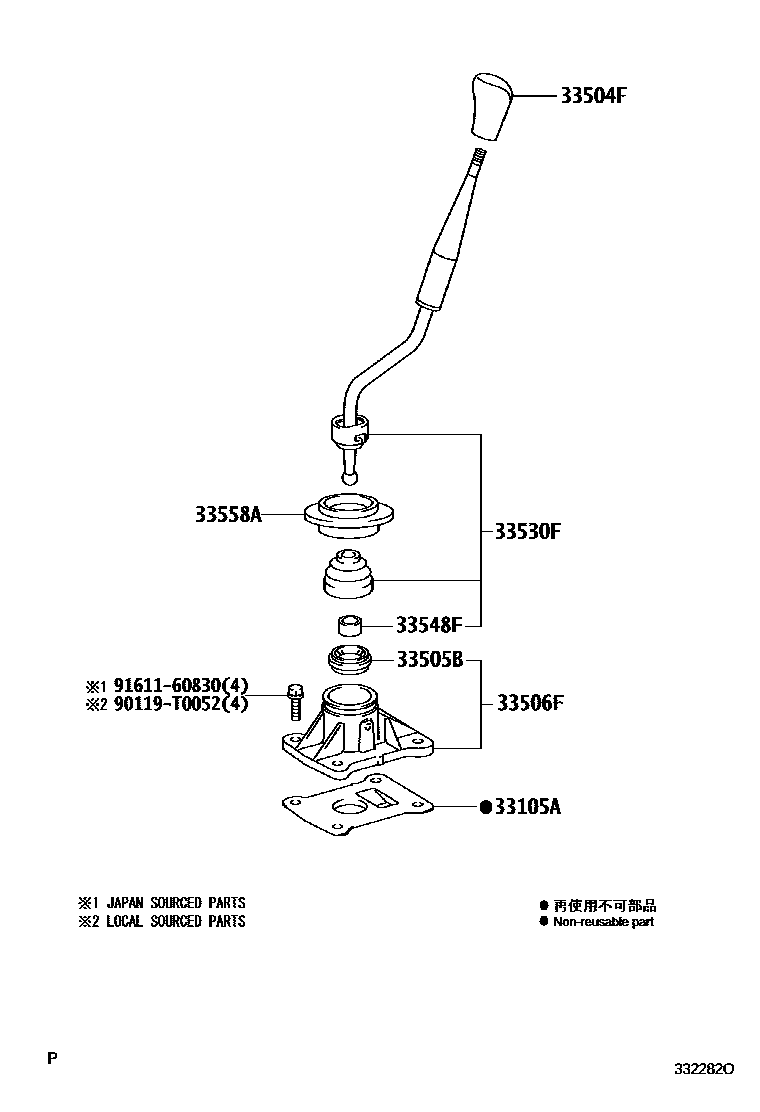

SHIFT LEVER & RETAINER

0001 1 0003 1 0004 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1

33105ADEFLECTOR SUB-ASSY, EXTENSION HOUSING OIL(MTM)

main33144-35030iGGN25,KUN2#,TGN26..5F..(ARL,GCC,GEN,PHL); KUN2#..XTR..TH200505-200808

TYPE B:REFER 33-01; TYPE C:REFER 33-01

main33144-35060iTGN15;KUN10,LAN15,35,TGN10..CBU;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH)200408-201202

main33144-60050iLAN25200810-201108

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-02070-B0iGGN25,KUN15,2#,3#,LAN15,25,35,TGN15,16,26,36..5F..SA200504-200810

DK.GRAY,TRIM1#

main33504-02070-E0iGGN25,KUN26,36,TGN36..5F..SA200504-200810

SANDAL WOOD,TRIM0#

main33504-0D050-B0iKUN15201112-201202

DK.GRAY,TRIM1#

main33504-0D050-E0iKUN15,16,2#,36..(DCB,XTR)..5F..SR..(LA,MA,PHL,TH)200408-200810

SANDAL WOOD,TRIM0#

main33504-0D050-E1iKUN35..SR..PHL;KUN25,35..(DCB,SMT)..5F..(MA,TH);KUN15,16,26,36,TGN16..5F..SR..(IDN,PHL,TH)200808-201109

ASH BROWN,TRIM4#

main33504-0D170-B0iGGN25,35,KUN26,36..DCB..(4FC,5FC)..(GEN,SA)201008-201108

DK.GRAY,TRIM1#

main33504-0K010-B0iTGN26..4FC..GCC200708-200808

DK.GRAY,TRIM1#,3#

main33504-0K010-E0iGGN15,25,KUN16,2#,TGN16,26,36..(DCB,XTR)..(4FC,5FC)..SR..(ARL,MA,PHL,SA,TH)200408-200810

SANDAL WOOD,TRIM0#

main33504-0K010-E1supersedes 33504-35060-E1iKUN26..4FC..PHL;KUN16,25,TGN16..4FC..SR200808-201109

ASH BROWN,TRIM4#

main33504-22140-B2iKUN26,3#,TGN36..RHD..5F..SR..(GEN,SA)200810-201108

DK.GRAY,TRIM1#

main33504-35060-B0iGGN25,35,KUN26,36..(4FC,5FC)..SA200810-201007

DK.GRAY,TRIM1#

main33504-22140-E4iKUN26..DCB..5F..(IDN,TH)200808-201107

SEAT COVER MATERIAL-LEATHER,ASH BROWN,TRIM4#

33505BSEAT SUB-ASSY, SHIFT LEVER

main33505-0K010iKUN16,36..5F;GGN15,KUN15,35,TGN11,16,36..5F..(HDCR,HTWC)201007-201204

TYPE D:REFER 33-01

main33505-35020iKUN15,LAN15,35,TGN15..DLX..SA; LAN25200810-201108

TYPE A:REFER 33-01

main33505-35030iKUN2#..5F;GGN25..5F..ARL;TGN26..ANCOM..CBU;TGN26..LHD..5F..(GCC,GEN,LA,SA); TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN26..LHD..5F..(LA,SA);KUN35,TGN16..LHD..DLX..(PHL,SA);KUN15,25,35..5F..HDCR..(ANCOM,LA,MA,SA,TH);KUN16,26,36,TGN36..(DCB,SCB,SMT,XTR)..5F..(ANCOM,GEN,IDN,LA,SA,TH)..CBU200808-201204

TYPE C:REFER 33-01; TYPE D:REFER 33-01

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33506-0K010iTGN26..ANCOM..CBU;TGN26..LHD..5F..(LA,SA);KUN25..5F..(ANCOM,LA,MA,SA,TH);KUN26..(DCB,SCB,SMT,XTR)..5F..(GEN,IDN,LA,SA,TH)200808-201204

TYPE C:REFER 33-01

main33506-0K020iGGN25,KUN2#,TGN26..5F..(ARL,GCC,GEN,PHL)200505-200808

TYPE B:REFER 33-01

main33506-27071iKUN10,15,LAN15,35,TGN10,15..DCR,DEFI,HTWC200408-200808

main33506-60060iKUN2#..5F..TH200608-200808

TYPE A:REFER 33-01

main33506-60110iLAN25200810-201108

main33506-71020iTGN10,15..GCC,IDN201105-201108

TYPE A:REFER 33-01

main33570-0K010iTGN16,36..5F..(ANCOM,LA,SA)200504-200808

main33570-0K020iKUN16,36..5F..TH;KUN15..DCB..HDCR200608-200808

TYPE B:REFER 33-01

main33570-0K030iKUN16,36..5F..TH;KUN15,35..HDCR..TH201006-201107

TYPE A:REFER 33-01

main33570-0K040iTGN36..SCB;TGN36..DCB..SA;KUN36..5F..(LA,SA);TGN36..DCB..DLX..LA;KUN35,TGN16..DLX..(ANCOM,LA,SA)200808-200812

main33570-71010iKUN16..XTR;KUN16,TGN16..ARL,GEN200408-200505

TYPE A:REFER 33-01

main33570-71030iKUN16,36..5F;TGN36..5F..CBU;TGN36..ANCOM..IV3;GGN15,KUN15,35,TGN11,16..5F..(HDCR,HTWC)200808-201007

TYPE D:REFER 33-01

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-0K010iTGN10,15..RHD200504-200609

main33530-0K012iTGN10,15..RHD200610-200612

main33530-0K013iTGN10..IDN200701-200808

main33530-0K020iTGN10,15..LHD200502-200511

main33530-0K021iTGN10,15..LHD200512-200604

main33530-0K022iTGN10,15..LHD200605-200612

main33530-0K023iTGN10,15..LHD200701-200808

main33530-0K030iKUN15..RHD..DCR200408-200511

main33530-0K031iKUN15..RHD..DCR200512-200604

main33530-0K032iKUN15..RHD..DCR200605-200612

main33530-0K033iKUN15..RHD..DCR..(GEN,TH)200701-200808

main33530-0K040iKUN10,15..LHD200411-200511

main33530-0K041iKUN10,15..LHD200512-200604

main33530-0K042iKUN10,15..LHD200605-200612

main33530-0K043iKUN10,15..LHD..(GCC,GEN,PHL)200701-200808

main33530-0K050iLAN15,35..RHD200507-200511

main33530-0K051iLAN15,35..RHD200512-200604

main33530-0K052iLAN15,35..RHD200605-200612

main33530-0K053iLAN15..PKN200701-200808

main33530-0K060iLAN15..LHD200507-200511

main33530-0K061iLAN15..LHD200512-200604

main33530-0K062iLAN15..LHD200605-200612

main33530-0K063iLAN15..LHD200701-200711

main33530-0K070iLAN25..RHD200507-200511

main33530-0K071iLAN25..RHD200512-200604

main33530-0K072iLAN25..RHD200605-200612

main33530-0K073iLAN25..RHD200701-200807

main33530-0K080iLAN25..LHD200507-200511

main33530-0K081iLAN25..LHD200512-200604

main33530-0K082iLAN25..LHD200605-200612

main33530-0K083iLAN25..LHD200701-200807

main33530-0K090iKUN3#..LHD200501-200609

main33530-0K092iKUN35..ANCOM,GEN200610-200807

main33530-0K100iKUN16,36..RHD..5F;KUN15,35..RHD..HDCR200408-200511

main33530-0K101iKUN16,36..RHD..5F;KUN15,35..RHD..HDCR200512-200604

main33530-0K102iKUN3#..SA200605-200711

main33530-0K110iTGN11,16,36..LHD..5F200502-200511

main33530-0K111iTGN11,16,36..LHD..5F200512-200604

main33530-0K112iTGN11,16,36..5F..(ANCOM,GCC,GEN)200605-200807

main33530-0K120iTGN16,36..RHD..5F200502-200511

main33530-0K121iTGN16,36..RHD..5F200512-200604

main33530-0K122iTGN36..SA200605-200711

main33530-0K130iKUN2#..LHD..5F200411-200511

main33530-0K131iKUN2#..LHD..5F200512-200604

main33530-0K132iKUN2#..LHD..5F200605-200807

main33530-0K140iKUN2#..RHD..5F200408-200511

main33530-0K141iKUN2#..RHD..5F200512-200604

main33530-0K142iKUN2#..RHD..5F200605-200807

main33530-0K150iTGN26..LHD200502-200511

main33530-0K151iTGN26..LHD200512-200604

main33530-0K152iTGN26..LHD..5F200605-200807

main33530-0K160iTGN26..SCB..SA200504-200511

main33530-0K161iTGN26..SCB..SA200512-200604

main33530-0K162iTGN26..SCB..SA200605-200807

main33530-0K170iGGN15..5F200502-200511

main33530-0K171iGGN15..5F200512-200604

main33530-0K172iGGN15..5F200605-200807

main33530-0K190iGGN25..5F200502-200511

main33530-0K191iGGN25..5F200512-200604

main33530-0K192iGGN25..5F200605-200807

main33530-0K210iKUN3#..LA200701-200808

main33530-0K220iTGN36..LA200701-200808

main33530-0K250iKUN3#..SA200711-200808

main33530-0K260iTGN36..SA200711-200808

main33530-0K280iTGN15..SA200711-200808

main33530-0K290iKUN15..RHD..SA200711-200808

main33530-0K300iKUN15..LHD..SA200711-200808

main33530-0K310iLAN15,35..RHD..SA200711-200808

main33530-0K320iLAN15..LHD200711-200808

main33530-0K330iTGN15..SA200808-200810

main33530-0K340iTGN10,15..LHD200808-201107

main33530-0K350iKUN15..RHD..SCB..(PKN,SA)200808-201202

main33530-0K360iKUN15..LHD..SA200808-200810

main33530-0K370iLAN15,35..RHD200808-201009

main33530-0K380iLAN15..LHD200810-201108

main33530-0K390iLAN25..RHD200810-201108

main33530-0K400iLAN25..LHD200808-200810

main33530-0K411iKUN36..RHD..5F;KUN16..DCB..ARL;KUN16..SCB,SMT,XTR;KUN15,35..RHD..HDCR200808-201108

main33530-0K421iKUN3#..LA200808-201110

main33530-0K431iTGN36..SA200808-200810

main33530-0K441iTGN16..(DCB,SCB)..GEN200808-201107

main33530-0K451iKUN26..IDN200808-201107

main33530-0K461iKUN2#..LHD..5F..(ANCOM,LA,SA)200808-200812

main33530-0K471iTGN26..SCB..SA200808-200810

main33530-0K481iTGN26..ANCOM..CBU;TGN26..LHD..5F..(GCC,GEN,LA,SA)200808

main33530-0K491iGGN15..5F200808-201107

main33530-0K501iGGN25..5F..SA200808-200810

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-04010iKUN3#..LA;TGN36..5F..DLX..LA..CBU200808-201110

33558ASEAL, SHIFT LEVER BOOT DUST, NO.1

main33558-71010iTGN36..DCB..SA;KUN15..XTR..DLX;KUN15..PHL..CBU;KUN16,36..XTR..TH;KUN36..(DCB,SCB)..5F..SR;KUN36,TGN36..DCB..5F..DLX;TGN16..5F..(ARL,GCC,GEN,SA);KUN35..DLX..(ANCOM,GEN,LA,SA);KUN15,TGN10,36..(SCB,XTR)..(DLX,SR)..(HDCR,HTWC);GGN15,KUN1#,LAN15,35,TGN11,15..(DCB,SCB)..5F..(ARL,GCC,GEN,PKN,SA,TH)200408-201202

90119T0052

main90119-T0052

9161160830

main91611-60830

9 parts on this diagram · 10 diagrams in section
