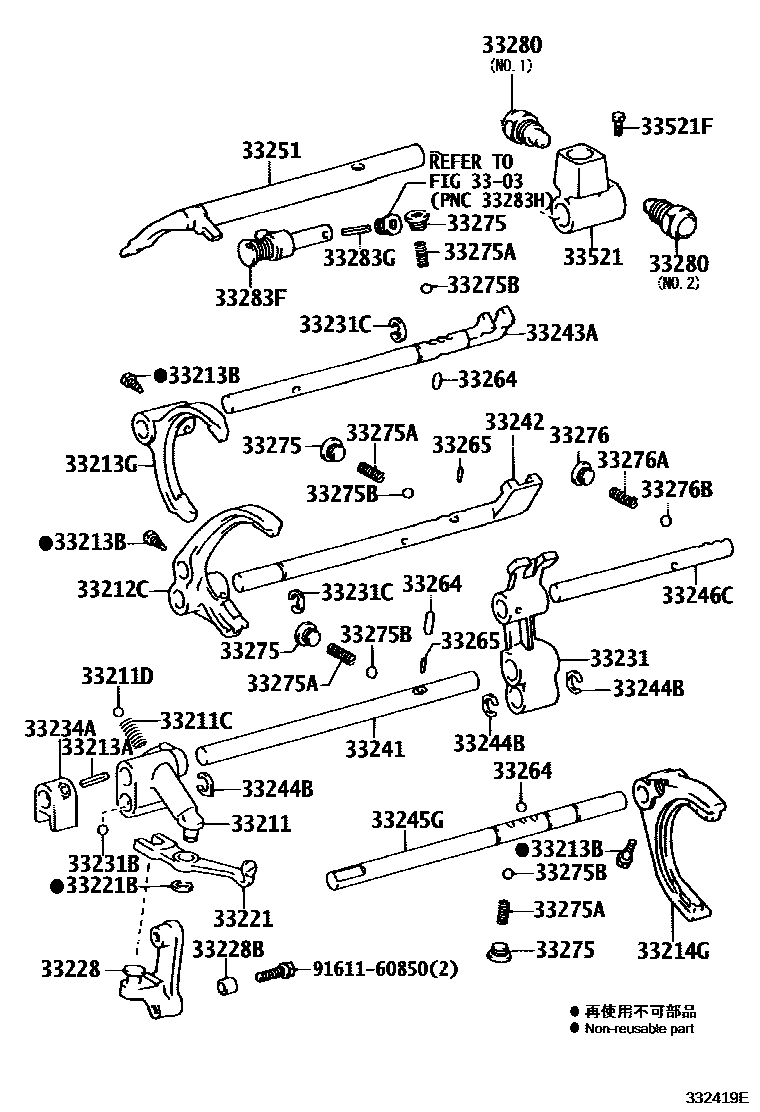

GEAR SHIFT FORK & LEVER SHAFT (MTM)

0001 1G50,G55,G58 0002 1R150,R150F,R151,R151F

3303

33211FORK, REVERSE SHIFT

main33211-0K010iKUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH)200408-200808

TYPE C:REFER 33-01

main33211-0K020iKUN15..SR..SA;KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,TH)200808-201108

main33211-0K030iKUN15..XTR..HDCR;GGN15,25,KUN16,2#,35,TGN11,16,26..5F..(ARL,GCC,GEN,PHL)200505-200808

TYPE B:REFER 33-01

main33211-0K040iGGN25..5F..ARL;TGN36..5F..CBU;KUN16,26,36..5F;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN26..LHD..5F..(GCC,GEN,LA,SA);GGN15,KUN15,25,35,TGN11,16..5F..(HDCR,HTWC)200808-201204

TYPE D:REFER 33-01

main33211-35050iKUN16,26,36..5F..TH;KUN15,25,35..HDCR..TH200808-201107

TYPE A:REFER 33-01

main33211-71010iKUN15,LAN15,25,35,TGN15..DLX..SA200810-201108

33211CSPRING, COMPRESSION(FOR REVERSE SHIFT FORK RETURN)

main90501-12166iGGN15,25..5F..ARL200408-200505

TYPE C:REFER 33-01

main90501-T0022iKUN26,36..XTR..SA;KUN16,26,36..5F..(ARL,GEN,IDN,PHL,TH);GGN15,25,KUN15,25,35,TGN11,16,26..5F..(HDCR,HTWC)..(ARL,GCC,GEN,PHL,TH)200902-201108

TYPE B:REFER 33-01

33211DBALL(FOR REVERSE SHIFT FORK)

main90360-10003×2iTGN11,16,26..5F..(ARL,GCC,GEN)200906-201204

OD=9.52,STEEL,TYPE C:REFER 33-01

33212CFORK, GEAR SHIFT, NO.1

main33212-0K010iKUN15..PHL..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH);KUN10,LAN15,TGN10,15..(GCC,GEN,IDN,PKN)..CBU200408-201202

main33212-35023iKUN15,LAN15,25,35,TGN15..SA200504-200810

33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)

main90254-05001×2iKUN10,15,LAN15,25,35,TGN10,15..(DCR,DEFI,HTWC)..(GCC,GEN,IDN,PHL,SA,TH)200808-201108

main90254-05016iKUN2#..5F200808-201204

TYPE D:REFER 33-01

33213BBOLT(FOR SHIFT FORK SET)

main90105-06077×2iKUN15..XTR..HDCR200408-200808

TYPE C:REFER 33-01

main90105-06143×3iKUN10,15,LAN15,25,35,TGN10,15..(DCR,DEFI,HTWC)..(GCC,GEN,IDN,PHL,SA,TH)200808-201108

33213GFORK, GEAR SHIFT, NO.2

main33213-0K010iKUN15..SR..SA;KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,TH)200808-201108

sub33213-0K011

main33213-35033iKUN15,LAN15,25,35,TGN15..DLX..SA200810-201108

sub33213-35034

main33213-35040iTGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN26..LHD..5F..(LA,SA);KUN35,TGN16..LHD..DLX..(PHL,SA);KUN15,25,35..5F..HDCR..(ANCOM,LA,MA,SA,TH);KUN16,26,36,TGN36..(DCB,SCB,S200808-201204

TYPE D:REFER 33-01

33214GFORK, GEAR SHIFT, NO.3

main33214-0K010iKUN15..SR..SA;KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,TH)200808-201108

main33214-35040iTGN10,15..GCC,IDN201105-201108

TYPE A:REFER 33-01

main33230-35011iKUN15..XTR..HDCR;GGN15,25,KUN16,35,TGN11,16,26..5F..(ARL,GCC,GEN)200505-200808

TYPE B:REFER 33-01

sub33230-35012

33221ARM, REVERSE SHIFT

main33221-0K010iKUN16,2#..XTR..TH200505-200808

TYPE C:REFER 33-01

main33221-0K020iKUN15..SR..SA;KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,TH)200808-201108

main33221-0K030iKUN26,36..XTR..SA;KUN16,26,36..5F..(ARL,GEN,IDN,PHL,TH);GGN15,25,KUN15,25,35,TGN11,16,26..5F..(HDCR,HTWC)..(ARL,GCC,GEN,PHL,TH)200808-201108

TYPE B:REFER 33-01

main33221-0K040iGGN25..5F..ARL;TGN36..5F..CBU;KUN16,26,36..5F;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN26..LHD..5F..(GCC,GEN,LA,SA);GGN15,KUN15,25,35,TGN11,16..5F..(HDCR,HTWC)200808-201204

TYPE D:REFER 33-01

main33221-35050iKUN15..DCB..HDCR;KUN16,2#,36..5F..TH200608-200808

TYPE A:REFER 33-01

main33221-71010iKUN15..SR..SA;KUN10,15..DCR..(GCC,GEN,PHL,TH)201103-201108

TYPE A:REFER 33-01

33221BRING, E(FOR REVERSE SHIFT ARM)

main96160-01000iTGN15;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH)200408-201202

33228BRACKET, REVERSE SHIFT ARM

main33228-0K010iTGN36..SCB;TGN36..DCB..SA;TGN16,26..ANCOM,SA;TGN26,36..DCB..DLX..LA200504-200812

main33228-0K020iKUN15..PHL..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH);KUN10,LAN15,TGN10,15..(GCC,GEN,IDN,PKN)..CBU200408-201202

main33228-0K030iKUN26,36..XTR..SA;KUN16,26,36..5F..(ARL,GEN,IDN,PHL,TH);GGN15,25,KUN15,25,35,TGN11,16,26..5F..(HDCR,HTWC)..(ARL,GCC,GEN,PHL,TH)200808-201108

TYPE B:REFER 33-01

main33228-0K040iGGN25..5F..ARL;TGN36..5F..CBU;KUN16,26,36..5F;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN26..LHD..5F..(GCC,GEN,LA,SA);GGN15,KUN15,25,35,TGN11,16..5F..(HDCR,HTWC)200808-201204

TYPE D:REFER 33-01

main33228-35030iKUN16,26,36..5F..TH;KUN15,25,35..HDCR..TH200808-201107

TYPE A:REFER 33-01

main33228-71010iKUN15,LAN15,25,35,TGN15..DLX..SA200810-201108

33228BPIN, RING(FOR REVERSE SHIFT ARM BRACKET)

main90253-11001×2iTGN15;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH)200408-201202

33231HEAD, REVERSE SHIFT

main33231-0K010iKUN15..SR..SA;KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,TH)200808

(L)

main33231-71010iKUN15,LAN15,25,35,TGN15..DLX..SA200810-201108

33231BBALL, REVERSE SHIFT RESTRICT

main90360-10003iTGN15;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH)200408-201202

33231CRING(FOR REVERSE SHIFT HEAD)

main90520-12006×2iTGN15;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH)200408-201202

33234AHEAD, GEAR SHIFT, NO.3

main33234-0K010iKUN15..PHL..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH);KUN10,LAN15,TGN10,15..(GCC,GEN,IDN,PKN)..CBU200408-201202

main33234-71010iKUN15,LAN15,25,35,TGN15..SA200504-200810

33241SHAFT, REVERSE SHIFT FORK

main33244-0K010iKUN25..SCB..MA;KUN36..5F..(LA,SA);KUN26..DCB..5F..(LA,SA);KUN25,35..DLX..(ANCOM,LA,SA);GGN25,KUN25..5F..SR..(MA,SA)200808-200812

main33244-0K020iKUN15..PHL..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH);KUN10,LAN15,TGN10,15..(GCC,GEN,IDN,PKN)..CBU200408-201202

main33244-0K030iKUN15..XTR..HDCR;GGN15,25,KUN16,2#,35,TGN11,16,26..5F..(ARL,GCC,GEN,PHL)200505-200808

TYPE B:REFER 33-01

main33244-0K040iGGN25..5F..ARL;TGN36..5F..CBU;KUN16,26,36..5F;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN26..LHD..5F..(GCC,GEN,LA,SA);GGN15,KUN15,25,35,TGN11,16..5F..(HDCR,HTWC)200808-201204

TYPE D:REFER 33-01

main33244-35090iKUN16,2#..XTR..TH;KUN16,2#,TGN16,26..5F..(ARL,GEN,PHL)200408-200505

TYPE A:REFER 33-01

sub33244-35091

main33244-71010iKUN15..SR..SA;KUN10,15..DCR..(GCC,GEN,PHL,TH)201103-201108

TYPE A:REFER 33-01

33242SHAFT, GEAR SHIFT FORK, NO.1

main33242-0K010iTGN11,16,26..5F..(ARL,GCC,GEN)200906-201204

TYPE C:REFER 33-01

main33242-0K020iKUN15..PHL..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH);KUN10,LAN15,TGN10,15..(GCC,GEN,IDN,PKN)..CBU200408-201202

main33242-0K030iKUN15..XTR..HDCR;GGN15,25,KUN16,2#,35,TGN11,16,26..5F..(ARL,GCC,GEN,PHL)200505-200808

TYPE B:REFER 33-01

main33242-0K040iGGN25..5F..ARL;TGN36..5F..CBU;KUN16,26,36..5F;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN26..LHD..5F..(GCC,GEN,LA,SA);GGN15,KUN15,25,35,TGN11,16..5F..(HDCR,HTWC)200808-201204

TYPE D:REFER 33-01

main33242-35070iKUN15..DCB..HDCR;KUN16,2#,36..5F..TH200608-200808

TYPE A:REFER 33-01

main33242-71010iKUN15,LAN15,25,35,TGN15..SA200504-200702

main33242-71030iKUN15,LAN15,25,35,TGN15..SA200702-200810

33243ASHAFT, GEAR SHIFT FORK, NO.2

main33243-0K010iTGN36..SCB;TGN36..DCB..SA;TGN16,26..ANCOM,SA;TGN26,36..DCB..DLX..LA200504-200812

sub33243-0K070

main33243-0K020iKUN15..SR..SA;KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,TH)200808-201108

main33243-0K030iKUN15..XTR..HDCR;GGN15,25,KUN16,2#,35,TGN11,16,26..5F..(ARL,GCC,GEN,PHL)200505-200808

TYPE B:REFER 33-01

main33243-0K040iGGN25..5F..ARL;TGN36..5F..CBU;KUN16,26,36..5F;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN26..LHD..5F..(GCC,GEN,LA,SA);GGN15,KUN15,25,35,TGN11,16..5F..(HDCR,HTWC)200808-201204

TYPE D:REFER 33-01

main33243-35100iKUN16,26,36..5F..TH;KUN15,25,35..HDCR..TH200808-201107

TYPE A:REFER 33-01

main33243-71010iKUN15,LAN15,25,35,TGN15..SA200504-200702

main33243-71020iKUN15,LAN15,25,35,TGN15..SA200702-200810

33244BRING, SHAFT SNAP (FOR SHIFT FORK SHAFT)

main90520-12006×3iKUN10,15,LAN15,25,35,TGN10,15..(DCR,DEFI,HTWC)..(GCC,GEN,IDN,PHL,SA,TH)200808-201108

33245GSHAFT, GEAR SHIFT FORK, NO.4

main33245-0K010iTGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN26..LHD..5F..(LA,SA);KUN35,TGN16..LHD..DLX..(PHL,SA);KUN15,25,35..5F..HDCR..(ANCOM,LA,MA,SA,TH);KUN16,26,36,TGN36..(DCB,SCB,S200808-201204

TYPE C:REFER 33-01

main33245-0K020iKUN15..SR..SA;KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,TH)200808-201108

main33245-0K030iKUN15..DCB..HDCR;KUN16,2#,36..5F..TH200608-200808

TYPE B:REFER 33-01

main33245-0K040iGGN25..5F..ARL;TGN36..5F..CBU;KUN16,26,36..5F;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN26..LHD..5F..(GCC,GEN,LA,SA);GGN15,KUN15,25,35,TGN11,16..5F..(HDCR,HTWC)200808-201204

TYPE D:REFER 33-01

main33245-35090iKUN15..DCB..HDCR;KUN16,2#,36..5F..TH200608-200808

TYPE A:REFER 33-01

main33245-71010iTGN10,15..GCC,IDN201105-201108

TYPE A:REFER 33-01

33246CSHAFT, GEAR SHIFT FORK, NO.5

main33246-0K010iKUN15..PHL..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH);KUN10,LAN15,TGN10,15..(GCC,GEN,IDN,PKN)..CBU200408-201202

main33246-71010iKUN15,LAN15,25,35,TGN15..DLX..SA200810-201108

33251LEVER, SHIFT & SELECT

main33251-0K010iTGN36..ANCOM..IV3;KUN35,TGN16..LHD..DLX..(PHL,SA);KUN15,35..HDCR..(ANCOM,LA,SA,TH);KUN16,36,TGN36..5F..(ANCOM,LA,SA,TH)..CBU200808-201204

TYPE C:REFER 33-01

sub33251-0K130

main33251-0K020iTGN26..5F..(GCC,GEN)200906-201204

TYPE C:REFER 33-01

sub33251-0K140

main33251-0K030iKUN15..PHL..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH);KUN10,LAN15,TGN10,15..(GCC,GEN,IDN,PKN)..CBU200408-201202

main33251-0K070iKUN16,36..5F;TGN36..5F..CBU;TGN36..ANCOM..IV3;GGN15,KUN15,35,TGN11,16..5F..(HDCR,HTWC)200808-201204

TYPE D:REFER 33-01

main33251-0K080iGGN25..5F..ARL;TGN26..ANCOM..CBU;TGN26..LHD..5F..(GCC,GEN,LA,SA)200808-201204

TYPE D:REFER 33-01

main33251-0K090iKUN36..XTR;KUN16,36..5F..(ARL,TH);GGN15,KUN15,35,TGN11,16..5F..(HDCR,HTWC)..(ARL,GCC,GEN,PHL,TH)200809-201108

TYPE B:REFER 33-01

main33251-0K100iGGN25,TGN26..5F..(ARL,GCC,GEN)200809-201107

TYPE B:REFER 33-01

main33251-24012iKUN16..XTR;KUN16,TGN16..ARL,GEN200408-200505

TYPE A:REFER 33-01

main33251-35152iTGN26..GEN200502-200505

TYPE A:REFER 33-01

main33251-71010iTGN10,15..GCC,IDN201105-201108

TYPE A:REFER 33-01

main33251-71020iLAN25200507-200707

main33251-71021iLAN25200810-201108

33264PIN, OR BALL, SHIFT INTERLOCK, NO.1

main90250-05029iKUN15..XTR..HDCR200408-200808

L=11.5,OD=4.8,TYPE C:REFER 33-01

main90250-T0022iKUN26,36..XTR..SA;KUN16,26,36..5F..(ARL,GEN,IDN,PHL,TH);GGN15,25,KUN15,25,35,TGN11,16,26..5F..(HDCR,HTWC)..(ARL,GCC,GEN,PHL,TH)200902-201108

L=11.5,OD=4.8,TYPE B:REFER 33-01

main90360-10003iTGN15;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH)200408-201202

OD=9.52,STEEL

main90361-10002iKUN10,15,LAN15,25,35,TGN10,15..(DCR,DEFI,HTWC)..(GCC,GEN,IDN,PHL,SA,TH)200808-201108

L=21.6,PIN

main90361-10003iKUN10,15,LAN15,25,35,TGN10,15..(DCR,DEFI,HTWC)..(GCC,GEN,IDN,PHL,SA,TH)200808-201108

L=13.6,OD=9.5

33265PIN, SHIFT INTERLOCK, NO.2

main90250-05020×2iKUN10,15,LAN15,25,35,TGN10,15..(DCR,DEFI,HTWC)..(GCC,GEN,IDN,PHL,SA,TH)200808-201108

L=11.1,OD=4.8

33275SEAT, SHIFT DETENT BALL SPRING, NO.1

main90341-12008×4iKUN10,15,LAN15,25,35,TGN10,15..(DCR,DEFI,HTWC)..(GCC,GEN,IDN,PHL,SA,TH)200808-201108

OD=18

33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)

main90501-14123iKUN15,LAN15,25,35,TGN15..SA200408-200702

L=20.2

main90501-14183×3iKUN15,LAN15,25,35,TGN15..SA200408-200702

L=33.5

main90501-16143×3iKUN15..XTR..HDCR200408-200808

L=33.8,TYPE C:REFER 33-01

main90501-16196iKUN15..DCB..GCC;KUN10,TGN10,15..(GCC,GEN,IDN)..CBU;KUN15..(DCB,SCB,XTR)..(DLX,SR)..DCR..(GEN,PHL,TH)200708-201202

L=19.1

main90501-16199×3iKUN25,35,TGN26,36..5F201203-201204

L=35.09,TYPE D:REFER 33-01,TYPE C:REFER 33-01

main90501-18134×3iKUN15..SR..SA;KUN10,15..DCR..(GCC,GEN,PHL,TH)201103-201108

L=28.8,TYPE A:REFER 33-01

main90501-T0021×3iKUN26,36..XTR..SA;KUN16,26,36..5F..(ARL,GEN,IDN,PHL,TH);GGN15,25,KUN15,25,35,TGN11,16,26..5F..(HDCR,HTWC)..(ARL,GCC,GEN,PHL,TH)200902-201108

L=33.8,TYPE B:REFER 33-01

sub90501-T0029

33275BBALL, SHAFT DETENT

main90360-10003×3iKUN15..XTR..HDCR200408-200808

TYPE C:REFER 33-01

33276SEAT, SHIFT DETENT BALL SPRING, NO.2

main90341-12008iKUN10,15,LAN15,25,35,TGN10,15..(DCR,DEFI,HTWC)..(GCC,GEN,IDN,PHL,SA,TH)200808-201108

33276ASPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL)

main90501-10061iKUN15,LAN15,25,35,TGN15..SA200408-200702

main90501-12219iKUN15..DCB..GCC;KUN10,TGN10,15..(GCC,GEN,IDN)..CBU;KUN15..(DCB,SCB,XTR)..(DLX,SR)..DCR..(GEN,PHL,TH)200708-201202

33276BBALL, SHIFT DETENT, NO.2

main90360-10003iTGN15;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH)200408-201202

33280PIN ASSY, REVERSE RESTRICT

main33280-35110iKUN16..XTR;KUN16,TGN16..ARL,GEN200408-200505

T/P C:SEE 33-01,NO.1

main33280-35120iKUN2#..XTR..TH;KUN2#,TGN26..5F..(ARL,GEN,PHL)200408-200505

T/P C:SEE 33-01,NO.1

main33280-35130iKUN16..XTR;KUN16,TGN16..ARL,GEN200408-200505

T/P C:SEE 33-01,NO.2

main33280-35140iKUN2#..XTR..TH;KUN2#,TGN26..5F..(ARL,GEN,PHL)200408-200505

T/P C:SEE 33-01,NO.2

main33280-71010iTGN15;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH)200408-201202

NO.1

main33280-71020iTGN15;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH)200408-201202

NO.2

33283FPIN, REVERSE RESTRICT

main33280-35040iTGN15;KUN10,LAN15,25,35,TGN10..CBU;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH)200408-201202

main33280-35100iKUN15..XTR..HDCR;GGN15,25,KUN16,2#,35,TGN11,16,26..5F..(ARL,GCC,GEN,PHL)200505-200808

TYPE B:REFER 33-01

33283GPIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)

main90254-05001iKUN15..XTR..HDCR;GGN15,25,KUN16,2#,35,TGN11,16,26..5F..(ARL,GCC,GEN,PHL)200505-200808

TYPE B:REFER 33-01

33521HOUSING, SHIFT LEVER

main33521-0K030iKUN36;KUN16..(DCB,SCB)..5F..TH;KUN15,35..(DCB,SCB,XTR)..HDCR200408-200808

TYPE C:REFER 33-01

sub33521-0K260

main33521-0K040iTGN26..ANCOM,SA;TGN26..DCB..DLX..LA200504-200812

sub33521-0K280

main33521-0K050iKUN2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH)200408-200808

TYPE C:REFER 33-01

sub33521-0K270

main33521-0K060iKUN15..PHL..CBU;KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH);KUN10,LAN15,TGN10,15..(GCC,GEN,IDN,PKN)..CBU200408-201202

main33521-0K080iKUN36..XTR;KUN16,36..5F..(ARL,TH);GGN15,KUN15,35,TGN11,16..5F..(HDCR,HTWC)..(ARL,GCC,GEN,PHL,TH)200808-201108

TYPE B:REFER 33-01

main33521-0K090iKUN26..XTR..SA;KUN2#..5F..(ARL,GCC,GEN,IDN,PHL,TH)200808-201108

TYPE B:REFER 33-01

main33521-0K100iGGN25,TGN26..5F..(ARL,GCC,GEN)200505-200808

TYPE B:REFER 33-01

main33521-0K110iKUN16,36..5F;TGN36..5F..CBU;TGN36..ANCOM..IV3;GGN15,KUN15,35,TGN11,16..5F..(HDCR,HTWC)200808-201204

TYPE D:REFER 33-01

main33521-0K120iGGN25..5F..ARL;TGN26..ANCOM..CBU;TGN26..LHD..5F..(GCC,GEN,LA,SA)200808-201204

TYPE D:REFER 33-01

main33521-35071iKUN15..SR..SA;KUN10,15..DCR..(GCC,GEN,PHL,TH)201103-201108

TYPE A:REFER 33-01

main33521-35250iKUN16,36..5F..TH;KUN15,35..HDCR..TH200808-201107

TYPE A:REFER 33-01

main33521-35260iTGN26..GEN200502-200505

TYPE A:REFER 33-01

main33521-35331iKUN2#..5F200808-201011

TYPE D:REFER 33-01

main33521-60090iLAN25200507-200810

33521FPIN OR BOLT (FOR SHIFT LEVER HOUSING)

main90109-08305iKUN16..XTR;KUN16,TGN16,26..ARL,GEN200408-200505

TYPE C:REFER 33-01

main90109-T0039iKUN15..SR..SA;KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,TH)200808-201108

(L)

9161160850

main91611-60850

38 parts on this diagram · 2 diagrams in section
