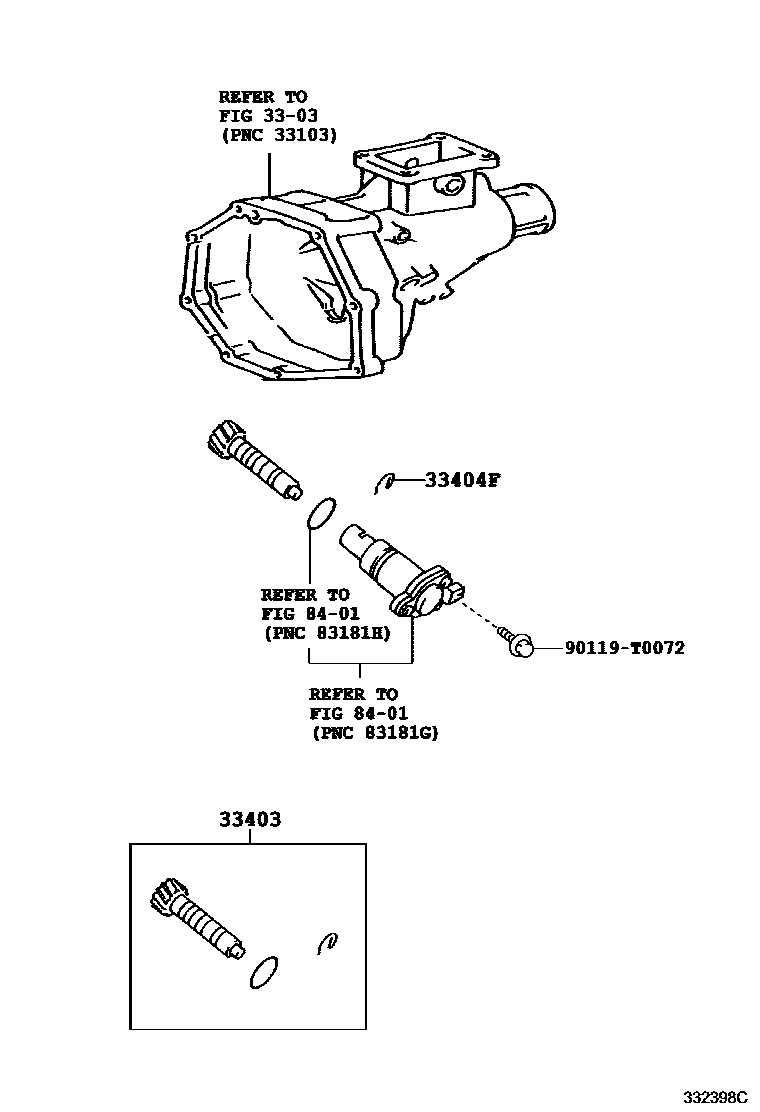

SPEEDOMETER DRIVEN GEAR (MTM)
3303EXTENSION HOUSING (MTM)
33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)
main33403-29315iTGN36..SCB;TGN36..DCB..SA;TGN16..5F..ARL..IV3;TGN26,36..DCB..DLX..LA;LAN25,TGN11,16..5F..CBU;TGN26..5F..(ANCOM,GCC,GEN,SA)200502-200812
N=32,MARK 32:10
N=19,MARK 19:6
N=21,MARK 21:6
N=31,MARK 31:10
main33403-39365iKUN25..5F..SR..MA;KUN25..(SCB,XTR)..(MA,TH);KUN16..(DCB,SCB,XTR)..5F..TH;KUN25,35..DLX..(GCC,GEN,LA,SA);GGN15,KUN15..(DCB,SCB)..5F..(HDCR,HTWC)200408-200812
N=30,MARK 30:11
N=29,MARK 29:11
N=27,MARK 27:11; N=27,MARK 27:11,TIRE & DISC WHEEL-255/70R15C 7JJ(OVER FENDER)
N=28,MARK 28:11
N=26,MARK 26:11
N=31,MARK 31:11,TIRE & DISC WHEEL-195R14C
33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)
main90468-12005iTGN36..SCB;KUN25..SCB..MA;KUN16,36..XTR..TH;TGN26,36..DCB..5F..DLX..LA;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN26..DCB..5F..(ARL,LA,PHL,SA,TH);KUN25,TGN36..RHD..(DCB,XTR)..5F..SR;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN16,36,TGN10..(DCB,SCB)..5F..(DLX,SR);KUN26..(SCB,THDCB,XTR)..5F..(ARL,GEN,TH);GGN25,KUN10,LAN15,25,35,TGN11,15,16,26..5F..(ANCOM,ARL,GCC,GEN,PKN,SA)200408-201202
8401SWITCH & RELAY & COMPUTER
90119T0072
main90119-T0072
5 parts on this diagram · 3 diagrams in section
