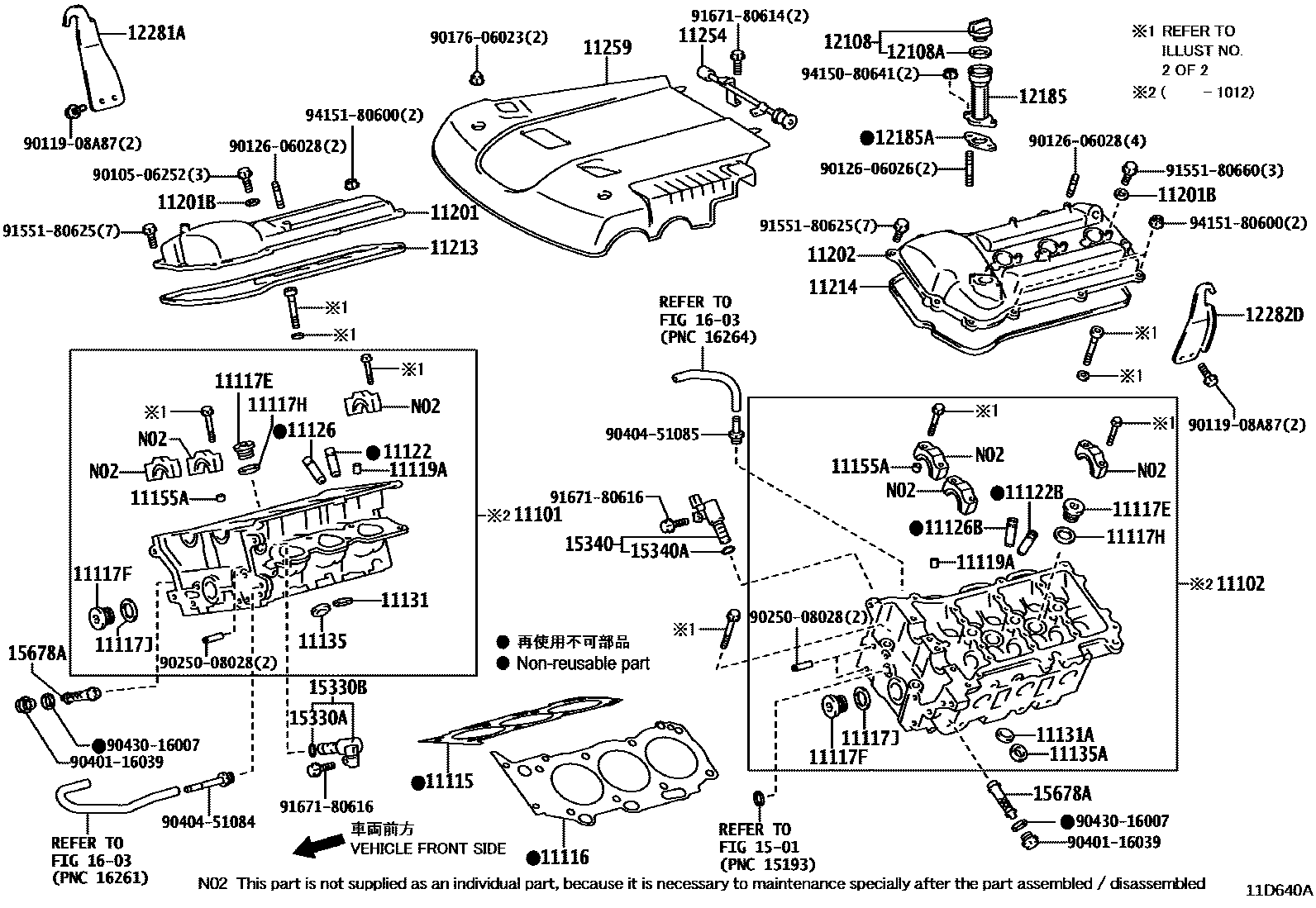

CYLINDER HEAD

0001 1 0002 1 0003 1 0004 1 0005 1

11101HEAD SUB-ASSY, CYLINDER

main11101-0C010i1TRFE..TGN15200502-200506

sub11101-0C011

main11101-0C010i1TRFE..TGN10,15200506-201108

*191

sub11101-0C011

main11101-0C030i2TRFE..TGN16,26,36..GEN,PHL,SA200501-200506

sub11101-0C031

main11101-0C030i2TRFE..TGN16..LHD..5F;2TRFE..TGN26..SR..GEN;2TRFE..TGN11,26,36..(DCB,SCB)..(GCC,GEN,PHL,SA)200506-200812

*191

sub11101-0C031

main11101-0C030i2TRFE..TGN26..SR..GEN;2TRFE..TGN11,16,36..ANCOM,GCC,GEN,SA;2TRFE..TGN26..LHD..(DCB,SCB)..(ANCOM,GCC,GEN,SA)..CBU200808-201204

(L)

sub11101-0C031

main11101-0C040i2TRFE..TGN16,26,36..ARL,LA,TH200501-200506

sub11101-0C041

main11101-0C040i2TRFE..TGN26..THDCB..DLX;2TRFE..TGN16,36..5F..(ARL,LA);2TRFE..TGN16,26..(DCB,XTR)..(LA,TH)200506-201110

*191

sub11101-0C041

main11101-0L050i2KDFTV..KUN25,35..THDCB200408-200906

*130

sub11101-0L051

main11101-0L050i2KDFTV..KUN25,35..LA200507-200608

*130,(L)

sub11101-0L051

main11101-0L050i2KDFTV..KUN10,15,25,35..(DCB,SCB,SMT,XTR)..(ANCOM,GCC,GEN,MA,PHL,TH)200808-200906

ECUADOR & COLOMBIA SPEC,*130

sub11101-0L051

main11101-0L051i2KDFTV..KUN15..XTR..TH;2KDFTV..KUN35..SR..(PHL,SA);2KDFTV..KUN35..DLX..(GEN,PHL,SA,TH);2KDFTV..KUN10,25..GCC,GEN,MA,PKN,SA;2KDFTV..KUN15..(DCB,SCB,SMT)..(GCC,GEN,PH201008-201204

*163 OR *184,(L)

sub11101-30071

main11101-0L051i2KDFTV..KUN15..PKN200906-201204

*130

sub11101-30071

main11101-0L051i2KDFTV..KUN25,35..LA201008-201110

(L)

sub11101-30071

main11101-0L060i1KDFTV..KUN26..THDCB..5F;1KDFTV..KUN26,36..(DCB,SCB)..5F..SA200408-201108

*130

sub11101-30081

main11101-0L060i1KDFTV..KUN26,36..LA200507-200608

*130,(L)

sub11101-30081

main11101-30070i2KDFTV..KUN25,35..LA200507-200810

*130,(J)

sub11101-30071

main11101-30070i2KDFTV..KUN15,25,35..SA200507-200812

*163 OR *184

sub11101-30071

main11101-30070i2KDFTV..KUN25,35..LA200810-200812

sub11101-30071

main11101-30071i2KDFTV..KUN15..XTR..TH;2KDFTV..KUN35..SR..(PHL,SA);2KDFTV..KUN35..DLX..(GEN,PHL,SA,TH);2KDFTV..KUN10,25..GCC,GEN,MA,PKN,SA;2KDFTV..KUN15..(DCB,SCB,SMT)..(GCC,GEN,PH201008-201204

*163 OR *184,(J)

main11101-30071i2KDFTV..KUN10,15;2KDFTV..KUN25,35..GCC,GEN,MA,PHL,SA200812-201008

*163 OR *184

main11101-30071i2KDFTV..KUN25,35..LA201008-201110

(J)

main11101-30080i1KDFTV..KUN26,36..LA200507-200810

*130,(J)

sub11101-30081

main11101-30080i1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16..XTR..TH;1KDFTV..KUN26,36..(DCB,SCB,THDCB,XTR)..(ARL,GEN,PHL,TH)200507-201010

*163 OR *184

sub11101-30081

main11101-30080i1KDFTV..KUN26,36..SA200507-200608

*163 OR *184,ENGINE NO.=7XXXXXX

sub11101-30081

main11101-30080i1KDFTV..KUN26,36..SA200608-201011

sub11101-30081

main11101-30081i1KDFTV..KUN16,26,36..ARL,GEN,IDN,PHL,SA,TH201010-201108

*163 OR *184

main11101-30081i1KDFTV..KUN26,36..LA201011-201110

main11101-39755i1GRFE..GGN15..SCB,XTR;1GRFE..GGN25..5FC..SA;1GRFE..GGN15..DCB..DLX;1GRFE..GGN15,35..DCB..5FC..SR;1GRFE..GGN25..DCB..(ANCOM,ARL,LA)200502-201204

main11101-54150i5LE..LAN15,25,35..SA200507-201108

main11101-75141i1TRFE..TGN10,15200506-200810

*125

sub11101-75142

main11101-75190i1TRFE..TGN15..SA200810-201005

*125

sub11101-0C010

main11101-75190i1TRFE..TGN15..SA200609-200810

sub11101-0C010

main11101-75200i2TRFE..TGN26..SR..GEN;2TRFE..TGN11,16,36..ANCOM,GCC,GEN,SA;2TRFE..TGN26..LHD..(DCB,SCB)..(ANCOM,GCC,GEN,SA)..CBU200609-201204

(J)

sub11101-75201

main11101-75240i2TRFE..TGN26,36..LA200810-201006

*125

sub11101-75241

11102HEAD, CYLINDER, LH

main11102-39235i1GRFE..GGN15,25200502-201204

sub11102-39236

11115GASKET, CYLINDER HEAD

main11115-0C010i1TRFE..TGN10,15200502-200712

(L)

sub11115-0C011

main11115-0C011i1TRFE..TGN10,15200712-201108

(L)

sub11115-0C030

main11115-0C020i2TRFE..TGN11,16,26,36200501-200712

sub11115-0C021

main11115-0C021i2TRFE..TGN36..SCB;2TRFE..TGN11,16..5F;2TRFE..TGN16..XTR..TH;2TRFE..TGN26,36..DCB..DLX..LA;2TRFE..TGN26..ANCOM,GCC,GEN,SA,TH;2TRFE..TGN36..DCB..(ANCOM,PHL,SA)200712-201204

(L)

main11115-0L010-A0i2KDFTV..KUN15..XTR..TH;2KDFTV..KUN35..SR..(PHL,SA);2KDFTV..KUN35..DLX..(GEN,PHL,SA,TH);2KDFTV..KUN10,25..GCC,GEN,MA,PKN,SA;2KDFTV..KUN15..(DCB,SCB,SMT)..(GCC,GEN,PH200408-201202

MARK A,*130:REFER R/M

sub11115-0L011

main11115-0L010-A0i2KDFTV..KUN25,35..LA;2KDFTV..KUN35..SR..TH200810-201110

MARK A,REFER REPAIR MANUAL

sub11115-0L011

main11115-0L010-A0i2KDFTV..KUN15..SR..SA;2KDFTV..KUN35..SR..PHL;2KDFTV..KUN10,15..GCC,GEN,PHL,TH;2KDFTV..KUN35..DLX..(ANCOM,PHL,TH);2KDFTV..KUN25..(DCB,SCB)..(ANCOM,GCC,GEN,MA,PKN)200707-201201

MARK A,*163 OR *184,RRM,(L)

sub11115-0L011

main11115-0L010-A0i2KDFTV..KUN25..TH200808-200908

MARK A,*163 OR *184,RRM,(L),*130:REFER R/M

sub11115-0L011

main11115-0L010-B0i2KDFTV..KUN25..TH200810-201110

MARK B,REFER REPAIR MANUAL

sub11115-0L011

main11115-0L010-B0i2KDFTV..KUN35..GEN,SA;2KDFTV..KUN15,25..DLX..SA;2KDFTV..KUN25..THDCB,THSCB200408-201202

MARK B,*130:REFER R/M

sub11115-0L011

main11115-0L010-B0i2KDFTV..KUN15..SR..SA;2KDFTV..KUN35..SR..PHL;2KDFTV..KUN10,15..GCC,GEN,PHL,TH;2KDFTV..KUN35..DLX..(ANCOM,PHL,TH);2KDFTV..KUN25..(DCB,SCB)..(ANCOM,GCC,GEN,MA,PKN)200707-201201

MARK B,*163 OR *184,RRM,(L)

sub11115-0L011

main11115-0L010-B0i2KDFTV..KUN25..TH200808-200908

MARK B,*130:REFER R/M,*163 OR *184,RRM,(L)

sub11115-0L011

main11115-0L010-C0i2KDFTV..KUN15..SR..SA;2KDFTV..KUN25,35..ANCOM200707-201201

MARK C,*163 OR *184,RRM,(L)

sub11115-0L011

main11115-0L010-C0i2KDFTV..KUN35..GEN,SA;2KDFTV..KUN15,25..DLX..SA;2KDFTV..KUN25..THDCB,THSCB200408-201202

MARK C,*130:REFER R/M

sub11115-0L011

main11115-0L010-C0i2KDFTV..KUN25..TH200810-201110

MARK C,REFER REPAIR MANUAL

sub11115-0L011

main11115-0L010-C0i2KDFTV..KUN25..TH200808-200908

MARK C,*130:REFER R/M,*163 OR *184,RRM,(L)

sub11115-0L011

main11115-0L010-D0i2KDFTV..KUN15,25,35..SA200408-201202

MARK D,*130:REFER R/M

sub11115-0L011

main11115-0L010-D0i2KDFTV..KUN25,35..LA;2KDFTV..KUN35..SR..TH200810-201110

MARK D,REFER REPAIR MANUAL

sub11115-0L011

main11115-0L010-D0i2KDFTV..KUN15..SR..SA;2KDFTV..KUN25,35..ANCOM200707-201201

MARK D,*163 OR *184,RRM,(L)

sub11115-0L011

main11115-0L010-D0i2KDFTV..KUN25..TH200808-200908

MARK D,*130:REFER R/M,*163 OR *184,RRM,(L)

sub11115-0L011

main11115-0L010-E0i2KDFTV..KUN15..SR..SA;2KDFTV..KUN35..SR..PHL;2KDFTV..KUN10,15..GCC,GEN,PHL,TH;2KDFTV..KUN35..DLX..(ANCOM,PHL,TH);2KDFTV..KUN25..(DCB,SCB)..(ANCOM,GCC,GEN,MA,PKN)200707-201201

MARK E,*163 OR *184,RRM,(L)

sub11115-0L011

main11115-0L010-E0i2KDFTV..KUN35..GEN,SA;2KDFTV..KUN15,25..DLX..SA;2KDFTV..KUN25..THDCB,THSCB200408-201202

MARK E,*130:REFER R/M

sub11115-0L011

main11115-0L010-E0i2KDFTV..KUN25..TH200808-200908

MARK E,*130:REFER R/M,*163 OR *184,RRM,(L)

sub11115-0L011

main11115-0L010-E0i2KDFTV..KUN25..TH200810-201110

MARK E,REFER REPAIR MANUAL

sub11115-0L011

main11115-0L011-A0i2KDFTV..KUN25,35201201-201204

MARK A,*163 OR *184,RRM,(L),*130:REFER R/M

main11115-0L011-B0i2KDFTV..KUN25,35201201-201204

MARK B,*163 OR *184,RRM,(L),*130:REFER R/M

main11115-0L011-C0i2KDFTV..KUN25,35201201-201204

MARK C,*163 OR *184,RRM,(L),*130:REFER R/M

main11115-0L011-D0i2KDFTV..KUN25,35201201-201204

MARK D,*130:REFER R/M,*163 OR *184,RRM,(L)

main11115-0L011-E0i2KDFTV..KUN25,35201201-201204

MARK E,*163 OR *184,RRM,(L),*130:REFER R/M

main11115-0L020-A0i1KDFTV..KUN16,26..ARL200408-201108

MARKA,*130:REFER R/M

sub11115-0L021

main11115-0L020-A0i1KDFTV..KUN26,36..LA200810-201110

MARKA,REFER REPAIR MANUAL

sub11115-0L021

main11115-0L020-B0i1KDFTV..KUN26,36..LA200810-201110

MARKB,REFER REPAIR MANUAL

sub11115-0L021

main11115-0L020-B0i1KDFTV..KUN26,36..XTR..SA;1KDFTV..KUN16,26,36..IDN,PHL,TH200408-201108

MARKB,*130:REFER R/M

sub11115-0L021

main11115-0L020-C0i1KDFTV..KUN26,36..XTR..SA;1KDFTV..KUN16,26,36..IDN,PHL,TH200408-201108

MARKC,*130:REFER R/M

sub11115-0L021

main11115-0L020-C0i1KDFTV..KUN26,36..LA200810-201110

MARKC,REFER REPAIR MANUAL

sub11115-0L021

main11115-0L020-D0i1KDFTV..KUN16,26,36..(DCB,SCB,XTR)..(LA,PHL,TH)200408-201108

MARKD,*130:REFER R/M

sub11115-0L021

main11115-0L020-D0i1KDFTV..KUN26,36..LA200810-201110

MARKD,REFER REPAIR MANUAL

sub11115-0L021

main11115-0L020-E0i1KDFTV..KUN26,36..LA200810-201110

MARKE,REFER REPAIR MANUAL

sub11115-0L021

main11115-0L020-E0i1KDFTV..KUN16,26,36..(DCB,SCB,XTR)..(LA,PHL,TH)200408-201108

MARKE,*130:REFER R/M

sub11115-0L021

main11115-30031-A0i1KDFTV..KUN26,36..SA200507-201007

MARK A,*163 OR *184,RRM

sub11115-30032

main11115-30031-A0i1KDFTV..KUN16,26..ARL200608-201007

MARK A,REFER REPAIR MANUAL

sub11115-30032

main11115-30031-B0i1KDFTV..KUN16,26,36..GEN,IDN,PHL,SA,TH200608-201007

MARK B,REFER REPAIR MANUAL

sub11115-30032

main11115-30031-B0i1KDFTV..KUN26,36..LA200507-201007

MARK B,*163 OR *184,RRM

sub11115-30032

main11115-30031-C0i1KDFTV..KUN16,26..ARL200507-201007

MARK C,*163 OR *184,RRM

sub11115-30032

main11115-30031-C0i1KDFTV..KUN16,26..ARL200608-201007

MARK C,REFER REPAIR MANUAL

sub11115-30032

main11115-30031-D0i1KDFTV..KUN26,36..SA200507-201007

MARK D,*163 OR *184,RRM

sub11115-30032

main11115-30031-D0i1KDFTV..KUN16,26..ARL200608-201007

MARK D,REFER REPAIR MANUAL

sub11115-30032

main11115-30031-E0i1KDFTV..KUN26,36..LA200507-201007

MARK E,*163 OR *184,RRM

sub11115-30032

main11115-30031-E0i1KDFTV..KUN16,26..ARL200608-201007

MARK E,REFER REPAIR MANUAL

sub11115-30032

main11115-30032-A0i1KDFTV..KUN16,26,36..(DCB,SCB,SMT,THDCB)..(GEN,IDN,PHL,SA,TH)201007-201108

MARK A,*163 OR *184,RRM

main11115-30032-A0i1KDFTV..KUN16,26..ARL201007-201107

MARK A,REFER REPAIR MANUAL

main11115-30032-A0i1KDFTV..KUN26..THDCB201007-201107

CHILE SPEC,MARK A,REFER REPAIR MANUAL

main11115-30032-B0i1KDFTV..KUN26,36..XTR..SA201007-201108

MARK B,*163 OR *184,RRM

main11115-30032-B0i1KDFTV..KUN26..THDCB201007-201107

CHILE SPEC,MARK B,REFER REPAIR MANUAL

main11115-30032-B0i1KDFTV..KUN26..THDCB201007-201107

MARK B,REFER REPAIR MANUAL

main11115-30032-C0i1KDFTV..KUN16,26..ARL201007-201107

CHILE SPEC,MARK C,REFER REPAIR MANUAL

main11115-30032-C0i1KDFTV..KUN16,26..ARL201007-201107

MARK C,REFER REPAIR MANUAL

main11115-30032-C0i1KDFTV..KUN16,26,36..(DCB,SCB,SMT,THDCB)..(GEN,IDN,PHL,SA,TH)201007-201108

MARK C,*163 OR *184,RRM

main11115-30032-D0i1KDFTV..KUN26..THDCB201007-201107

MARK D,REFER REPAIR MANUAL

main11115-30032-D0i1KDFTV..KUN16,26..ARL201007-201107

CHILE SPEC,MARK D,REFER REPAIR MANUAL

main11115-30032-D0i1KDFTV..KUN16,26,36..(DCB,SCB,SMT,THDCB)..(GEN,IDN,PHL,SA,TH)201007-201108

MARK D,*163 OR *184,RRM

main11115-30032-E0i1KDFTV..KUN26..THDCB201007-201107

CHILE SPEC,MARK E,REFER REPAIR MANUAL

main11115-30032-E0i1KDFTV..KUN16,26,36..(DCB,SCB,SMT,THDCB)..(GEN,IDN,PHL,SA,TH)201007-201108

MARK E,*163 OR *184,RRM

main11115-30032-E0i1KDFTV..KUN16,26..ARL201007-201107

MARK E,REFER REPAIR MANUAL

main11115-30040-A0i2KDFTV..KUN10,15,25..GCC,GEN,MA,PHL,TH200507-200702

MARK A,*163 OR *184,RRM

sub11115-30041

main11115-30040-B0i2KDFTV..KUN15,25,35..SA200507-200702

MARK B,*163 OR *184,RRM

sub11115-30041

main11115-30040-C0i2KDFTV..KUN25,35..ANCOM,LA200507-200702

MARK C,*163 OR *184,RRM

sub11115-30041

main11115-30040-D0i2KDFTV..KUN15,25,35..SA200507-200702

MARK D,*163 OR *184,RRM

sub11115-30041

main11115-30040-E0i2KDFTV..KUN10,15,25..GCC,GEN,MA,PHL,TH200507-200702

MARK E,*163 OR *184,RRM

sub11115-30041

main11115-30041-A0i2KDFTV..KUN15..SR..SA;2KDFTV..KUN25,35..ANCOM200707-201204

MARKA,*163 OR *184,RRM,(J)

main11115-30041-A0i2KDFTV..KUN10,15,25,35..GCC,GEN,MA,PHL,SA,TH200702-200707

MARKA,*163 OR *184,RRM

main11115-30041-B0i2KDFTV..KUN25..TH200707-201204

MARKB,*163 OR *184,RRM,(J)

main11115-30041-B0i2KDFTV..KUN10,15,25,35..GCC,GEN,MA,PHL,SA,TH200702-200707

MARKB,*163 OR *184,RRM

main11115-30041-C0i2KDFTV..KUN15..SR..SA;2KDFTV..KUN25,35..ANCOM200707-201204

MARKC,*163 OR *184,RRM,(J)

main11115-30041-C0i2KDFTV..KUN10,15,25,35..GCC,GEN,MA,PHL,SA,TH200702-200707

MARKC,*163 OR *184,RRM

main11115-30041-D0i2KDFTV..KUN15..XTR..TH;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN25,35..DLX..(GCC,GEN,SA);2KDFTV..KUN10,15..(DCB,SCB)..200707-201204

MARKD,*163 OR *184,RRM,(J)

main11115-30041-D0i2KDFTV..KUN10,15,25,35..GCC,GEN,MA,PHL,SA,TH200702-200707

MARKD,*163 OR *184,RRM

main11115-30041-E0i2KDFTV..KUN15..XTR..TH;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN25,35..DLX..(GCC,GEN,SA);2KDFTV..KUN10,15..(DCB,SCB)..200707-201204

MARKE,*163 OR *184,RRM,(J)

main11115-30041-E0i2KDFTV..KUN10,15,25,35..GCC,GEN,MA,PHL,SA,TH200702-200707

MARKE,*163 OR *184,RRM

main11115-31030i1GRFE..GGN15,25200502-200511

sub11115-31031

main11115-31031i1GRFE..GGN15..SCB,XTR;1GRFE..GGN25..5FC..SA;1GRFE..GGN15..DCB..DLX;1GRFE..GGN15,35..DCB..5FC..SR;1GRFE..GGN25..DCB..(ANCOM,ARL,LA)200511-201107

main11115-54130-B0i5LE..LAN15,25,35..SA200507-201108

MARK B

sub11115-54130

main11115-54130-D0i5LE..LAN15,25,35..SA200507-201108

MARK D

sub11115-54130

main11115-54130-F0i5LE..LAN15,25,35..SA200507-201108

MARK F

sub11115-54130

main11115-75041i1TRFE..TGN15..SA200609-200710

(J)

sub11115-75042

main11115-75042i1TRFE..TGN15..SA200710-201005

(J)

sub11115-75070

main11115-75050i2TRFE..TGN16,26,36..SA200609-200710

(J)

sub11115-75051

main11115-75051i2TRFE..TGN26,36..LA200710-201006

(J)

sub11115-75052

11116GASKET, CYLINDER HEAD, NO.2

main11116-31010i1GRFE..GGN15,25200502-200511

sub11116-31011

main11116-31011i1GRFE..GGN15..SCB,XTR;1GRFE..GGN25..5FC..SA;1GRFE..GGN15..DCB..DLX;1GRFE..GGN15,35..DCB..5FC..SR;1GRFE..GGN25..DCB..(ANCOM,ARL,LA)200511-201107

11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1

main90341-14015i2KDFTV..KUN10,15,25,35..GCC,GEN,MA,PHL,SA,TH200507-201108

*163 OR *184

main90341-14015i2KDFTV..KUN25..TH200812-201204

*163 OR *184,(J)

main90341-14015i1KDFTV..KUN26,36..LA200810-201110

main90341-14015i2KDFTV..KUN25,35..LA200812-201110

(J)

main90341-14015i1KDFTV,2KDFTV..KUN2#,3#..LA200507-200810

*130,(J)

main90341-20002i2TRFE..TGN36..SCB;2TRFE..TGN16..XTR..TH;1TRFE,2TRFE..TGN1#..5F;2TRFE..TGN26,36..DCB..DLX..LA;2TRFE..TGN26..ANCOM,GCC,GEN,SA,TH;2TRFE..TGN36..DCB..(ANCOM,PHL,SA)200501-201204

main90341-24011i1GRFE..GGN15,25200502-201204

main90341-T0005i2KDFTV..KUN15..XTR..TH;2KDFTV..KUN35..SR..(PHL,SA);2KDFTV..KUN35..DLX..(GEN,PHL,SA,TH);2KDFTV..KUN10,25..GCC,GEN,MA,PKN,SA;2KDFTV..KUN15..(DCB,SCB,SMT)..(GCC,GEN,PH200408-201204

*130

main90341-T0005i1KDFTV..KUN26,36..LA200507-200608

*130,(L)

main90341-T0005i2KDFTV..KUN15..PKN201008-201204

*163 OR *184,(L)

main90341-T0005i2KDFTV..KUN25,35..LA201008-201110

(L)

11117FPLUG, W/HEAD STRAIGHT SCREW, NO.2

main90341-27006i1GRFE..GGN15,25200502-201204

main90341-32002i2TRFE..TGN26,36..ANCOM200506-201204

(J)

main90341-32002i1TRFE..TGN10,15..GCC,IDN200808-201008

ECUADOR & COLOMBIA SPEC,(J)

main90341-32002i1TRFE,2TRFE..TGN15,16,26,36..SA200609-200810

main90341-T0009i1TRFE..TGN15..IV3200501-201204

(L)

11117HGASKET(FOR WATER HOLE)

main90430-20004i2TRFE..TGN26,36..LA200501-201006

main90430-20004i1TRFE..TGN10,15..GCC,IDN200808-201204

(J)

main90430-24013i1GRFE..GGN15,25200502-201204

main90430-T0010i2TRFE..TGN16..(DCB,SCB)..GEN200812-201204

(L)

11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)

main90430-27005i1GRFE..GGN15,25200502-201204

main90430-32004i2TRFE..TGN36..SCB;2TRFE..TGN16..XTR..TH;1TRFE,2TRFE..TGN1#..5F;2TRFE..TGN26,36..DCB..DLX..LA;2TRFE..TGN26..ANCOM,GCC,GEN,SA,TH;2TRFE..TGN36..DCB..(ANCOM,PHL,SA)200604-201204

main90430-33001i1TRFE,2TRFE..TGN1#,26,36200501-200604

11119APIN, STRAIGHT, NO.1

main90250-05021i1GRFE..GGN15..SCB,XTR;1GRFE..GGN25..5FC..SA;1GRFE..GGN15..DCB..DLX;1GRFE..GGN15,35..DCB..5FC..SR;1GRFE..GGN25..DCB..(ANCOM,ARL,LA)200502-201204

L=13.8,OD=5.0

11122BUSH, INTAKE VALVE GUIDE

main11122-20020i1GRFE..GGN15,25200502-201107

STD

sub11122-22040

main11122-30020i2KDFTV..KUN25..TH200808-201204

O/S 0.05,*163 OR *184

main11122-30020i2KDFTV..KUN15..XTR..TH;2KDFTV..KUN35..SR..(PHL,SA);2KDFTV..KUN35..DLX..(GEN,PHL,SA,TH);2KDFTV..KUN10,25..GCC,GEN,MA,PKN,SA;2KDFTV..KUN15..(DCB,SCB,SMT)..(GCC,GEN,PH200408-201204

O/S 0.05

main11122-54020i5LE..LAN15,25,35..SA200507-201108

STD

sub11122-17020

main11122-75020i2TRFE..TGN36..SCB;2TRFE..TGN16..XTR..TH;1TRFE,2TRFE..TGN1#..5F;2TRFE..TGN26,36..DCB..DLX..LA;2TRFE..TGN26..ANCOM,GCC,GEN,SA,TH;2TRFE..TGN36..DCB..(ANCOM,PHL,SA)200501-201204

STD

main11123-20020i1GRFE..GGN15..SCB,XTR;1GRFE..GGN25..5FC..SA;1GRFE..GGN15..DCB..DLX;1GRFE..GGN15,35..DCB..5FC..SR;1GRFE..GGN25..DCB..(ANCOM,ARL,LA)200502-201107

O/S 0.05

main11123-30020i2KDFTV..KUN25..TH200808-201204

STD,*163 OR *184

main11123-30020i1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..200408-201204

STD

main11123-54020i5LE..LAN15,25,35..SA200507-201108

O/S 0.05

sub11123-17020

main11123-75020i2TRFE..TGN16..XTR;2TRFE..TGN26..ANCOM..CBU;2TRFE..TGN36..ANCOM..IV3;1TRFE,2TRFE..TGN15,36..CBU;2TRFE..TGN26..LHD..(GCC,GEN,LA,SA);1TRFE,2TRFE..TGN10,11,16..ARL,GCC,200501-201204

O/S 0.05

11122BBUSH, INTAKE VALVE GUIDE, NO.2

main11122-20020i1GRFE..GGN15,25200502-201107

STD

sub11122-22040

main11123-20020i1GRFE..GGN15..5F..SR;1GRFE..GGN25..SCB,XTR200502-201107

O/S 0.05

11126BUSH, EXHAUST VALVE GUIDE

main11122-30020i2KDFTV..KUN15..XTR..TH;2KDFTV..KUN35..SR..(PHL,SA);2KDFTV..KUN35..DLX..(GEN,PHL,SA,TH);2KDFTV..KUN10,25..GCC,GEN,MA,PKN,SA;2KDFTV..KUN15..(DCB,SCB,SMT)..(GCC,GEN,PH200408-201204

O/S 0.05

main11122-30020i2KDFTV..KUN15..SR..SA;2KDFTV..KUN25,35..ANCOM200808-201204

O/S 0.05,*163 OR *184

main11122-54020i5LE..LAN15,25,35200507-201108

STD

sub11122-17020

main11122-75020i1TRFE..TGN15..IV3200501-201204

STD

main11123-30020i2KDFTV..KUN15..XTR..TH;2KDFTV..KUN35..SR..(PHL,SA);2KDFTV..KUN35..DLX..(GEN,PHL,SA,TH);2KDFTV..KUN10,25..GCC,GEN,MA,PKN,SA;2KDFTV..KUN15..(DCB,SCB,SMT)..(GCC,GEN,PH200808-201204

STD,*163 OR *184

main11123-30020i2KDFTV..KUN15..SR..SA;1KDFTV,2KDFTV..KUN10,16,26,36;2KDFTV..KUN25..(DCB,SCB,SMT)..(ANCOM,GCC,GEN,LA,MA,PKN,TH);2KDFTV..KUN15,35..(DCB,SCB,SMT,XTR)..(ANCOM,GCC,GEN,L200408-201204

STD

main11123-54020i5LE..LAN15,25,35..SA200507-201108

O/S 0.05

sub11123-17020

main11123-75020i2TRFE..TGN16..XTR;2TRFE..TGN26..ANCOM..CBU;2TRFE..TGN36..ANCOM..IV3;1TRFE,2TRFE..TGN15,36..CBU;2TRFE..TGN26..LHD..(GCC,GEN,LA,SA);1TRFE,2TRFE..TGN10,11,16..ARL,GCC,200501-201204

O/S 0.05

main11126-20020i1GRFE..GGN15..SCB,XTR;1GRFE..GGN25..5FC..SA;1GRFE..GGN15..DCB..DLX;1GRFE..GGN15,35..DCB..5FC..SR;1GRFE..GGN25..DCB..(ANCOM,ARL,LA)200502-201107

STD

main11127-20020i1GRFE..GGN15..SCB,XTR;1GRFE..GGN25..5FC..SA;1GRFE..GGN15..DCB..DLX;1GRFE..GGN15,35..DCB..5FC..SR;1GRFE..GGN25..DCB..(ANCOM,ARL,LA)200502-201107

O/S 0.05

11126BBUSH, EXHAUST VALVE GUIDE, NO.2

main11126-20020i1GRFE..GGN15..5F..SR;1GRFE..GGN25..SCB,XTR200502-201107

STD

main11127-20020i1GRFE..GGN15..5F..SR;1GRFE..GGN25..SCB,XTR200502-201107

O/S 0.05

11131SEAT, INTAKE VALVE

main11131-0C010i1TRFE..TGN10,15200502-201108

STD,(L)

main11131-0C020i2TRFE..TGN16..XTR;2TRFE..TGN36..CBU;2TRFE..TGN26..ANCOM..CBU;2TRFE..TGN36..ANCOM..IV3;2TRFE..TGN11,16..ARL,GCC,SA,TH;2TRFE..TGN26..LHD..(GCC,GEN,LA,SA)200501-201204

STD,(L)

main11131-31010i1GRFE..GGN15,25200502-201204

STD

main11131-75080i2TRFE..TGN16..LHD..5F;2TRFE..TGN26..SR..GEN;2TRFE..TGN11,26,36..(DCB,SCB)..(GCC,GEN,PHL,SA)200608-201204

STD,(J)

main11131-75080i2TRFE..TGN16,26,36..SA200609-200810

STD

main11131-75090i1TRFE..TGN15..SA200609-200810

STD

main11131-75090i1TRFE..TGN15..GEN,SA200506-201108

STD,(J)

main11132-31010i1GRFE..GGN15,25200502-201204

O/S 0.03

main11132-75080i2TRFE..TGN36..SCB;2TRFE..TGN11,16..5F;2TRFE..TGN16..XTR..TH;2TRFE..TGN26,36..DCB..DLX..LA;2TRFE..TGN26..ANCOM,GCC,GEN,SA,TH;2TRFE..TGN36..DCB..(ANCOM,PHL,SA)200501-201204

O/S 0.03

main11132-75090i1TRFE..TGN10,15200502-201108

O/S 0.03

11131ASEAT, INTAKE VALVE, NO.2

main11131-31010i1GRFE..GGN15,25200502-201204

STD

main11132-31010i1GRFE..GGN15..5F..SR;1GRFE..GGN25..SCB,XTR200502-201204

O/S 0.03

11135SEAT, EXHAUST VALVE

main11135-0C010i1TRFE..TGN10,15200502-201108

STD,(L)

main11135-0C020i2TRFE..TGN16..(DCB,SCB)..GEN200501-201204

STD,(L)

main11135-31030i1GRFE..GGN15..SCB,XTR;1GRFE..GGN25..5FC..SA;1GRFE..GGN15..DCB..DLX;1GRFE..GGN15,35..DCB..5FC..SR;1GRFE..GGN25..DCB..(ANCOM,ARL,LA)200502-201204

STD

main11135-75080i1TRFE..TGN10,15200506-201108

STD,(J)

sub11135-75150

main11135-75080i1TRFE..TGN15..SA200609-200810

STD

sub11135-75150

main11135-75100i2TRFE..TGN16..(DCB,SCB)..GEN200608-201204

STD,(J)

sub11135-75160

main11135-75100i2TRFE..TGN16,26,36..SA200609-200810

STD

sub11135-75160

main11136-31030i1GRFE..GGN15,25200502-201204

O/S 0.03

main11136-75080i1TRFE..TGN10,15200502-201108

O/S 0.03

sub11136-75150

main11136-75100i2TRFE..TGN16..(DCB,SCB)..GEN200501-201204

O/S 0.03

sub11136-75160

11135ASEAT, EXHAUST VALVE, NO.2

main11135-31030i1GRFE..GGN15,25200502-201204

STD

main11136-31030i1GRFE..GGN15,25200502-201204

O/S 0.03

11155APIN, RING W/HEAD

main90253-10004i2KDFTV..KUN15..PKN200812-201204

*163 OR *184,(J)

main90253-10004i1KDFTV..KUN16;1KDFTV..KUN26..XTR..ARL;1KDFTV..KUN26,36..(DCB,SCB,SMT,THDCB)..(ARL,GEN,IDN,PHL,SA,TH)200507-201108

*163 OR *184

main90253-10004i1KDFTV..KUN26,36..LA200810-201110

main90253-10004i2KDFTV..KUN25,35..LA200812-201110

(J)

main90253-10004i1KDFTV,2KDFTV..KUN2#,3#..LA200507-200810

*130,(J)

main90253-11021i1GRFE..GGN15,25200502-201204

main90253-T0001i2KDFTV..KUN15..SR..SA;2KDFTV..KUN25,35..ANCOM201008-201204

*163 OR *184,(L)

main90253-T0001i1KDFTV..KUN16,26;1KDFTV,2KDFTV..KUN15,25,3#..LA,SA200408-201204

*130

main90253-T0001i1KDFTV,2KDFTV..KUN2#,3#..LA200507-200608

*130,(L)

main90253-T0001i2KDFTV..KUN25,35..LA201008-201110

(L)

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-0C010i2TRFE..TGN36..SCB;2TRFE..TGN16..XTR..TH;1TRFE,2TRFE..TGN1#..5F;2TRFE..TGN26,36..DCB..DLX..LA;2TRFE..TGN26..ANCOM,GCC,GEN,SA,TH;2TRFE..TGN36..DCB..(ANCOM,PHL,SA)200501-201009

(L)

sub11201-0C011

main11201-0C011i2TRFE..TGN16..(DCB,SCB)..GEN201009-201204

(L)

sub11201-0C012

main11201-31220i1GRFE..GGN15,25200502-201107

sub11201-31310

main11201-75051i1TRFE,2TRFE..TGN15,16,26,36..LA,SA200609-200908

(J)

sub11201-75052

main11201-75052i2TRFE..TGN26,36..LA200908-201006

sub11201-75053

main11210-0L020i1KDFTV..KUN16,26..ARL200408-201202

*130

main11210-0L020i2KDFTV..KUN25,35201112-201204

*130,(L)

main11210-30110i2KDFTV..KUN25..TH200507-201204

*163 OR *184

main11210-30110i2KDFTV..KUN25,35201112-201204

*130,(J)

main11210-54051i5LE..LAN15,25,35200507-201108

11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)

main90210-06013i1GRFE..GGN15..5F..SR;1GRFE..GGN25..SCB,XTR200502-201107

11202COVER SUB-ASSY, CYLINDER HEAD, LH

main11202-31010i1GRFE..GGN15,25200502-201107

11213GASKET, CYLINDER HEAD COVER

main11213-05010i5LE..LAN15,25,35..SA200507-201108

(L)

main11213-0C010i2TRFE..TGN16..(DCB,SCB)..GEN200501-201204

(L)

sub11213-0C011

main11213-0L010i1KDFTV..KUN26..IDN,LA,PHL,TH;1KDFTV,2KDFTV..KUN15,26,36..XTR..SA;2KDFTV..KUN25..(DCB,SCB,SMT)..(ANCOM,GCC,GEN,LA,MA,PKN,TH);1KDFTV,2KDFTV..KUN1#,3#..(DCB,SCB,SMT,XT200507-201204

*163 OR *184,(L)

main11213-0L010i1KDFTV..KUN16,26..ARL200408-201202

*130

main11213-0L010i1KDFTV..KUN26..IDN,LA,PHL,TH;1KDFTV,2KDFTV..KUN15,26,36..XTR..SA;2KDFTV..KUN25..(DCB,SCB,SMT)..(ANCOM,GCC,GEN,LA,MA,PKN,TH);1KDFTV,2KDFTV..KUN1#,3#..(DCB,SCB,SMT,XT200808-201204

*130,(L)

main11213-30040i1KDFTV..KUN26..THDCB;1KDFTV..KUN16..XTR..TH;2KDFTV..KUN25..GCC,GEN;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15,25..LHD.200507-201204

*163 OR *184,(J)

main11213-30040i2KDFTV..KUN25,35201112-201204

*130,(J)

main11213-31030i1GRFE..GGN15,25200502-201107

main11213-54050i5LE..LAN15,25,35..SA200507-201108

(J)

main11213-75040i1TRFE,2TRFE..TGN15,16,26,36..SA200609-200808

(J)

sub11213-75041

main11213-75041i1TRFE,2TRFE..TGN15,16,26,36..SA200808-201006

(J)

11214GASKET, CYLINDER HEAD COVER, NO.2

main11214-0C010i2TRFE..TGN16..(DCB,SCB)..GEN200501-201204

(L)

sub11214-0C011

main11214-31010i1GRFE..GGN15,25200502-201107

main11214-75010i1TRFE,2TRFE..TGN15,16,26,36..SA200609-200808

(J)

sub11214-75011

main11214-75011i2TRFE..TGN26,36..LA200808-201006

(J)

sub11214-75012

11254BRACKET, V-BANK COVER, NO.1

main11254-31010i1GRFE..GGN15,25200502-201204

11259COVER, V-BANK

main11259-0P020i1GRFE..GGN15..5F..SR;1GRFE..GGN25..SCB,XTR200502-201107

12108CAP SUB-ASSY, OIL FILLER

main12180-0H020i2TRFE..TGN16..XTR;2TRFE..TGN26..ANCOM..CBU;2TRFE..TGN36..ANCOM..IV3;1TRFE,2TRFE..TGN15,36..CBU;2TRFE..TGN26..LHD..(GCC,GEN,LA,SA);1TRFE,2TRFE..TGN10,11,16..ARL,GCC,200408-201204

*130

main12180-0H020i2TRFE..TGN36..SCB;2TRFE..TGN16..XTR..TH;1TRFE,2TRFE..TGN1#..5F;2TRFE..TGN26,36..DCB..DLX..LA;2TRFE..TGN26..ANCOM,GCC,GEN,SA,TH;2TRFE..TGN36..DCB..(ANCOM,PHL,SA)200501-201204

(L)

main12180-21010i2KDFTV..KUN35..SCB..SA;1KDFTV..KUN26..DCB..5F..SA;1KDFTV,2KDFTV..KUN15,25,36..RHD..(DCB,SCB)..5F..SA200507-201204

*163 OR *184

main12180-21010i1TRFE,2TRFE..TGN15,16,26,36..SA200609-200701

(J)

main12180-28010i1GRFE..GGN15..5F..SR;1GRFE..GGN25..SCB,XTR200502-201107

main12180-28010i1TRFE,2TRFE..TGN15,16,26,36..LA,SA200701-200911

(J)

main12180-38010i2TRFE..TGN26,36..LA200911-201006

(J)

main12180-73011i5LE..LAN15,25,35200507-201108

12108AGASKET(FOR OIL FILLER CAP)

main12195-73010i5LE..LAN15,25,35200507-201108

main90080-43027i2TRFE..TGN16..(DCB,SCB)..GEN200501-201204

(L)

main90080-43027i1KDFTV..KUN16,26..ARL200408-201204

*130

main90430-35001i2TRFE..TGN26,36..LA200911-201006

(J)

main90430-37004i1TRFE,2TRFE..TGN15,16,26,36..SA200701-200911

(J)

main90430-37004i1GRFE..GGN15,25200502-201107

main90430-37140i1KDFTV,2KDFTV..KUN15,2#,3#..ANCOM,LA,SA200507-201204

*163 OR *184

main90430-37140i1TRFE,2TRFE..TGN15,16,26,36..SA200609-200701

(J)

12185HOUSING, OIL FILLER CAP

main12185-0P010i1GRFE..GGN15..SCB,XTR;1GRFE..GGN25..5FC..SA;1GRFE..GGN15..DCB..DLX;1GRFE..GGN15,35..DCB..5FC..SR;1GRFE..GGN25..DCB..(ANCOM,ARL,LA)200808-201107

(L)

main12185-50020i1GRFE..GGN15..SCB,XTR;1GRFE..GGN25..5FC..SA;1GRFE..GGN15..DCB..DLX;1GRFE..GGN15,35..DCB..5FC..SR;1GRFE..GGN25..DCB..(ANCOM,ARL,LA)200808-201107

(J)

main12185-50020i1GRFE..GGN15,25200502-200812

12185AGASKET, OIL FILLER CAP HOUSING

main12196-50010i1GRFE..GGN15,25200502-201107

12281AHANGER, ENGINE, NO.1

main12281-0C010i1TRFE..TGN15..IV3200504-201204

(L)

main12281-0C030i1TRFE,2TRFE..TGN1#,26..ARL,GCC,GEN,IDN,TH201008-201107

(L)

main12281-0C030i1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,PHL,TH200501-201008

main12281-31060i1GRFE..GGN15..SCB,XTR;1GRFE..GGN25..5FC..SA;1GRFE..GGN15..DCB..DLX;1GRFE..GGN15,35..DCB..5FC..SR;1GRFE..GGN25..DCB..(ANCOM,ARL,LA)200502-201107

main12281-75040i1TRFE,2TRFE..TGN15,16,26,36..SA200609-201006

(J)

sub12281-75050

12282DHANGER, ENGINE, NO.2

main12281-0C010i2TRFE..TGN36..SCB;2TRFE..TGN26,36..DCB..DLX..LA;2TRFE..TGN36..DCB..(ANCOM,SA);1TRFE,2TRFE..TGN15,16,26..ANCOM,SA200504-201204

(L)

main12281-0C030i1TRFE,2TRFE..TGN1#,26..ARL,GCC,GEN,IDN,TH200501-201008

main12281-0C030i1TRFE,2TRFE..TGN1#,26..ARL,GCC,GEN,IDN,TH201008-201107

(L)

main12281-75040i1TRFE,2TRFE..TGN15,16,26,36..SA200609-201006

(J)

sub12281-75050

main12282-31040i1GRFE..GGN15..SCB,XTR;1GRFE..GGN25..5FC..SA;1GRFE..GGN15..DCB..DLX;1GRFE..GGN15,35..DCB..5FC..SR;1GRFE..GGN25..DCB..(ANCOM,ARL,LA)200502-201107

main12282-67030i1KDFTV..KUN16,26,36;2KDFTV..KUN25,35..LA;2KDFTV..KUN35..SR..TH200408-201202

main12282-67030i2KDFTV..KUN15..SR..SA;2KDFTV..KUN35..SR..PHL;2KDFTV..KUN10,15..GCC,GEN,PHL,TH;2KDFTV..KUN35..DLX..(ANCOM,PHL,TH);2KDFTV..KUN25..(DCB,SCB)..(ANCOM,GCC,GEN,MA,PKN)200808-201204

*130

main12282-67030i2KDFTV..KUN15..SR..SA;2KDFTV..KUN35..SR..PHL;2KDFTV..KUN10,15..GCC,GEN,PHL,TH;2KDFTV..KUN35..DLX..(ANCOM,PHL,TH);2KDFTV..KUN25..(DCB,SCB)..(ANCOM,GCC,GEN,MA,PKN)200808-201204

*163 OR *184

main12282-67030i2KDFTV..KUN25..TH200808-200908

*163 OR *184,*130

1501

15330ARING, O(FOR CAM TIMING OIL CONTROL VALVE)

main90099-14137i2TRFE..TGN36..SCB;2TRFE..TGN16..XTR..TH;1TRFE,2TRFE..TGN1#..5F;2TRFE..TGN26,36..DCB..DLX..LA;2TRFE..TGN26..ANCOM,GCC,GEN,SA,TH;2TRFE..TGN36..DCB..(ANCOM,PHL,SA)200501-201204

15330BVALVE ASSY, CAM TIMING OIL CONTROL, RH

main15330-31010i1GRFE..GGN15,25200502-201107

15340VALVE ASSY, CAM TIMING OIL CONTROL, LH

main15340-31010i1GRFE..GGN15,25200502-201107

15340ARING, O(FOR CAM TIMING OIL CONTROL VALVE)

main90099-14137i1GRFE..GGN15..SCB,XTR;1GRFE..GGN25..5FC..SA;1GRFE..GGN15..DCB..DLX;1GRFE..GGN15,35..DCB..5FC..SR;1GRFE..GGN25..DCB..(ANCOM,ARL,LA)200502-201107

15678AFILTER, OIL CONTROL VALVE

main15678-0C010i2TRFE..TGN16..XTR;2TRFE..TGN26..ANCOM..CBU;2TRFE..TGN36..ANCOM..IV3;1TRFE,2TRFE..TGN15,36..CBU;2TRFE..TGN26..LHD..(GCC,GEN,LA,SA);1TRFE,2TRFE..TGN10,11,16..ARL,GCC,200501-201204

(L)

main15678-21010i1TRFE,2TRFE..TGN15,16,26,36..SA200609-201006

(J)

main15678-31010i1GRFE..GGN15..5F..SR;1GRFE..GGN25..SCB,XTR200502-201107

1603

9010506252

main90105-06252

9011908A87

main90119-08A87

9012606026

main90126-06026

9012606028

main90126-06028

9017606023

main90176-06023

9025008028

main90250-08028

9040116039

main90401-16039

9040451084

main90404-51084

9040451085

main90404-51085

9043016007

main90430-16007

9155180625

main91551-80625

9155180660

main91551-80660

9167180614

main91671-80614

9167180616

main91671-80616

9415080641

main94150-80641

9415180600

main94151-80600

54 parts on this diagram · 5 diagrams in section
