HEATING & AIR CONDITIONING - VACUUM PIPING

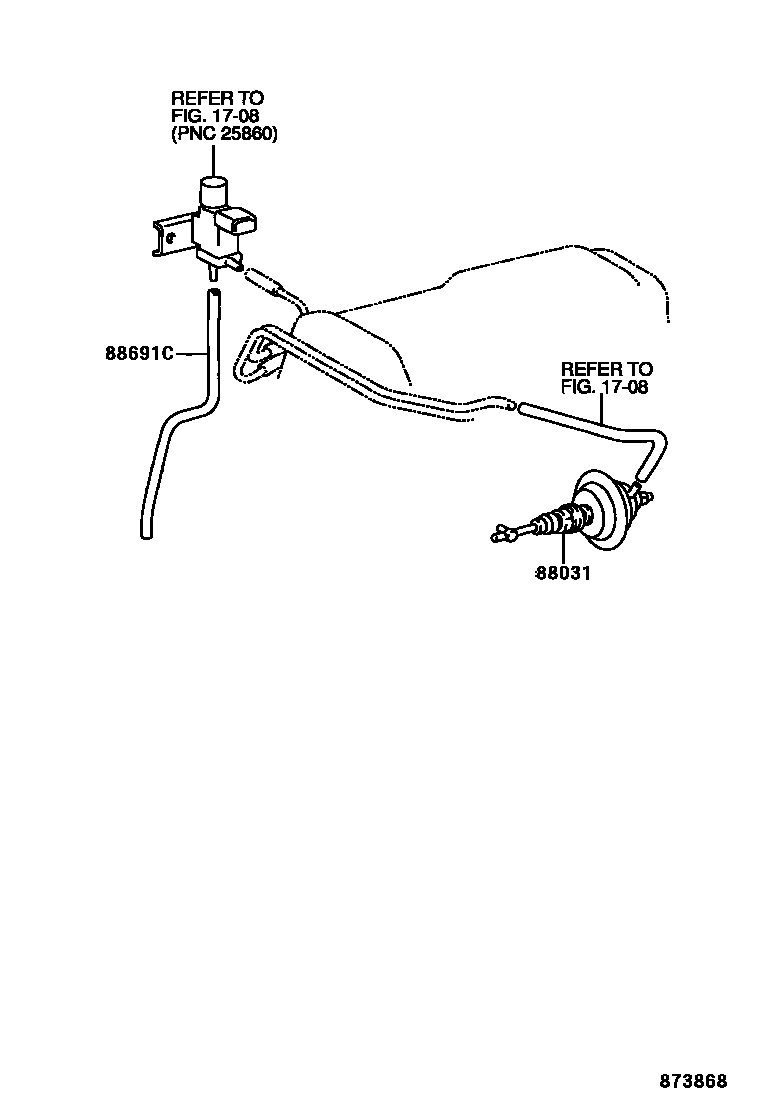

Parts diagram

88031ACTUATOR SET, IDLE-UP

main88031-35110i199708-200009

main88031-35130i199808-200404

88691CHOSE, VACUUM (FOR IDLE UP DEVICE), NO.1

main90999-92002i199708-200009

*H,L=290,MARK=#*; *H,L=50,MARK=#*

2 parts on this diagram · 2 diagrams in section
