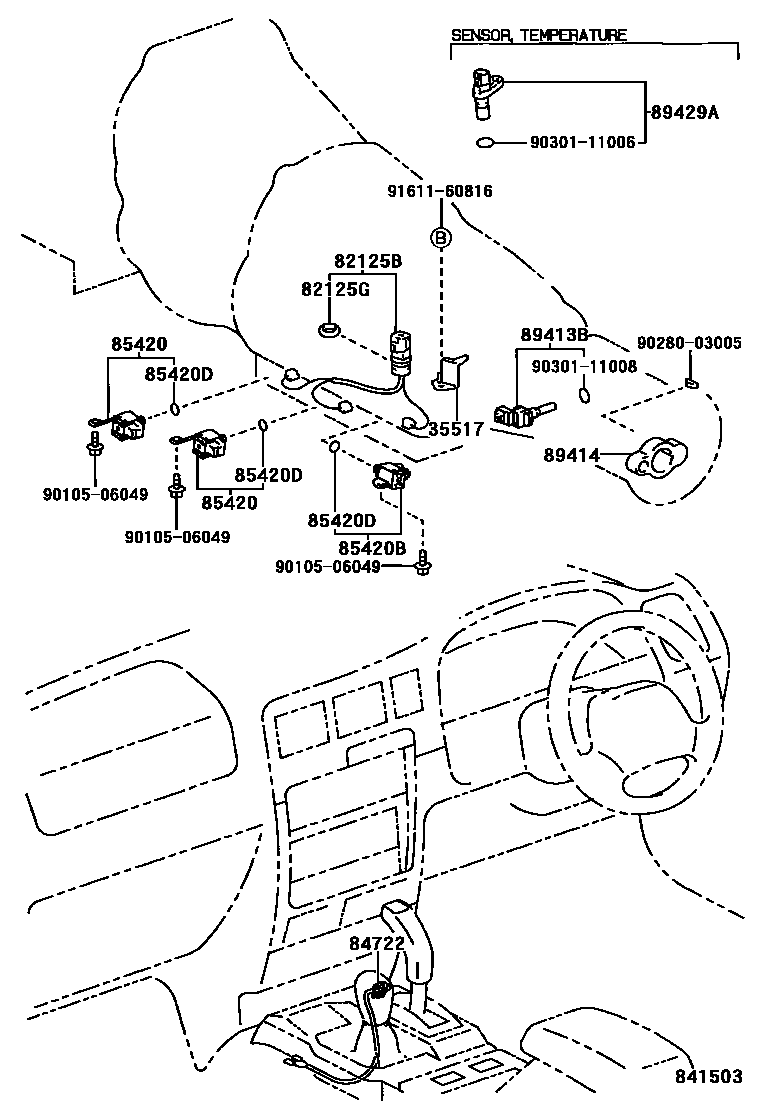

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0003 1 0004 1 0005 1 0006 1 0007 1

35517PLATE, TRANSMISSION WIRE LOCK

main35517-30010iRZN149,154..ATM..DLX199708-200203

82125BWIRE, TRANSMISSION

main82125-22240iVZN167,172..ATM200311-200502

main82125-30400iRZN149,154..ATM..DLX..(ARL,GEN)199708

main82125-60310iKDN190..MA200112-200503

82125GRING, O(FOR TRANSMISSION WIRE)

main96721-24018iRZN149,154..ATM..DLX..(ARL,GEN)199708

84722SWITCH, TRANSMISSION CONTROL

main84722-35150-B0iVZN167,172..ATM200309-200502

MD.MOON MIST,TRIM1#

main84722-35150-E0iKDN166..(DCB,XTR)..ATM200309-200408

SANDAL WOOD,TRIM4#

main84722-35170-B0iRZN149..EFI..GEN200009-200108

MD.MOON MIST,TRIM1#

main84722-35180-B0iLN152,RZN149,154..RHD..ATM199708-200109

MD.MOON MIST,TRIM1#

main84722-35180-E0iKDN190..(DCB,XTR)..TH200208-200408

SANDAL WOOD,TRIM4#

85420SOLENOID ASSY, TRANSMISSION

main35250-30050iKDN190,RZN149..(CO,TH)..CBU200206-200209

NO.1

main35250-30070iKDN190,RZN149..(CO,TH)..CBU200206-200209

NO.2

main35250-30120×2iRZN149,154..ATM..ARL200204-200308

DENSO

main35250-30130×2iRZN149,154..ATM..ARL200206-200308

AISIN

main85420-21090×2iRZN149,154..ATM..ARL200109-200204

DENSO

main85420-21100×2iRZN149,154..ATM..ARL200109-200206

AISIN

main85420-22150iKDN190200112-200206

DENSO, NO.1

main85420-22170iKDN190200112-200206

DENSO, NO.2

main85420-30160iLN152..ATM199806-200109

main85420-30200×2iRZN149,154..ATM199708-199809

DENSO

85420BSOLENOID ASSY, TRANSMISSION

main35250-50030iRZN149,154..ATM199708-199809

AISIN AW

main85420-30220iRZN149,154..ATM199708-199809

DENSO

main85420-30260iRZN149,154..ATM..DLX199809-200203

DENSO

main85420-30270iRZN149,154..ATM..DLX199809-200203

AISIN AW

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-06004×4iKDN190..TH200112-200411

main90301-11001iLN152..ATM199806-200108

NO.2

main90301-23001iLN152..ATM199806-200108

NO.1

89413BSENSOR, TRANSMISSION REVOLUTION

main89413-24010iKDN190..(DCB,XTR)..TH..CBU200109-200408

89414ROTOR, SENSOR

main89414-22010iKDN190..IV1200109-200208

main89414-35020iKDN166..(DCB,XTR)..ATM200208-200408

89429ASENSOR, TEMPERATURE

main89429-34010iKDN166..SRWGN200208-200411

main89429-35042iRZN149,154..ATM..DLX..(ARL,GEN)199708

9010506049

main90105-06049

9028003005

main90280-03005

9030111006

main90301-11006

9030111008

main90301-11008

9161160816

main91611-60816

15 parts on this diagram · 6 diagrams in section
