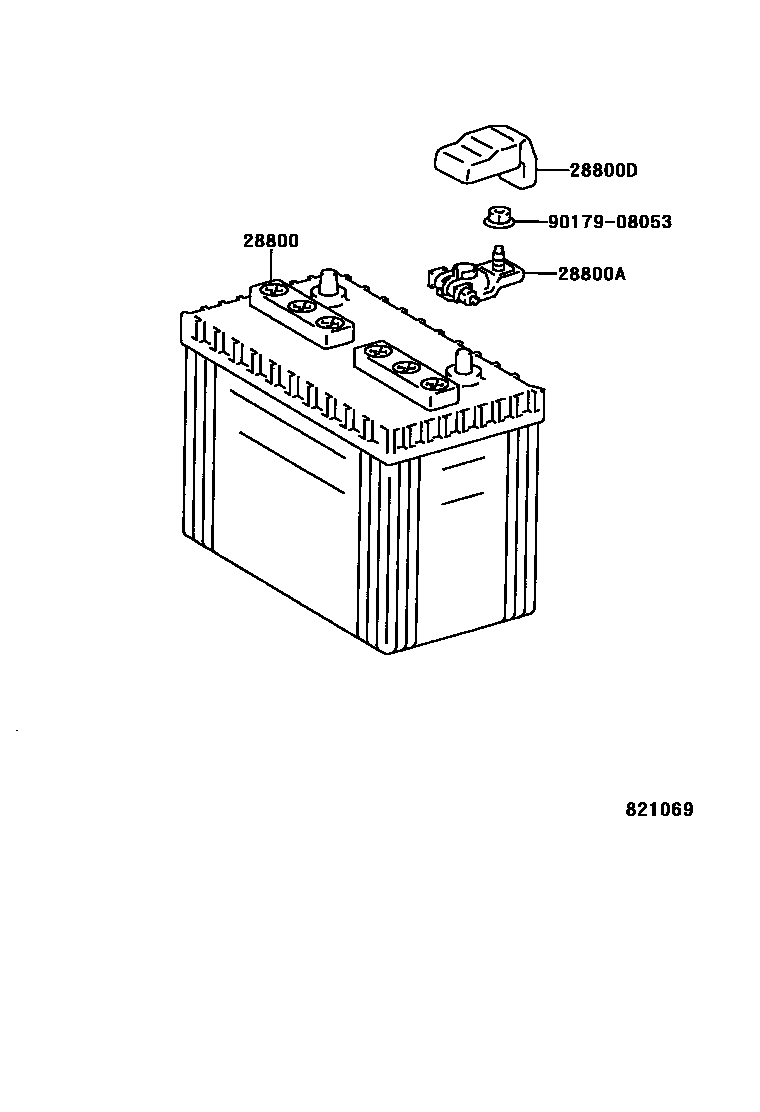

BATTERY & BATTERY CABLE

28800BATTERY

main28800-05120i1KZTE,5LE..KZN165,LN147,152,167,172..THDCB,THSCB,THXTR200109-200502

105D31R-HV

main28800-0C020i1RZE..RZN147..THSCB200109-200208

34B19L

main28800-0C030i3RZFE..RZN149,154,169,174..THDCB,THSCB,THXTR200010-200109

55D23L,GS

main28800-16041i1RZ#..RZN142,147..(DCB,SCB)..(ARL,GCC,GEN)200103-200603

34B19L,GS

main28800-16061i1RZ#..RZN142,147..(DCB,SCB)..(ARL,GCC,GEN)200108-200508

34B19L,MATSUSHITA

main28800-16071i1RZ#..RZN142,147..(DCB,SCB)..(ARL,GCC,GEN)200108-200508

34B19L,FURUKAWA

main28800-16170i1RZ#..RZN142,147..(DCB,SCB)..(ARL,GCC,GEN)200103-200603

34B19L,KOBE

main28800-17111i2KDFTV,3L..KDN165,LN166..MA200108-200502

80D26R,FURUKAWA

main28800-17121i3L..LN141,146,166,171,191..LHD200108-200508

80D26L,FURUKAWA

main28800-26050i1RZ#..RZN142,147..(DCB,SCB)..(ARL,GCC,GEN)199708-200103

34B19L

main28800-42020i2L..LN145,155..LHD..TH199806-200109

75D31L

main28800-42041i2RZFE..RZN148..GEN..CBU;2RZFE,3RZFE..RZN148,149..(DCB,SCB)..(ARL,CO,GCC);2RZFE,3RZFE,5VZFE..RZN144,154,16#,174,19#,VZN167,172..DCB,SCB,XTR200108-200511

55D23L,MATSUSHITA

main28800-42042i3RZFE..RZN149,154,169,174..THDCB,THSCB,THXTR199808-200010

55D23L,GS

main28800-42061i2RZFE..RZN148..GEN..CBU;2RZFE,3RZFE..RZN148,149..(DCB,SCB)..(ARL,CO,GCC);2RZFE,3RZFE,5VZFE..RZN144,154,16#,174,19#,VZN167,172..DCB,SCB,XTR200108-200511

55D23L,FURUKAWA

main28800-42090i2L..LN145..LHD..GEN199708-200103

75D26L,GS

main28800-42102i2L..LN145..LHD..GEN200108-200506

75D26L,FURUKAWA

main28800-42122i2L..LN145..LHD..GEN200103-200108

75D26L

main28800-46050i2L..LN145,150,155..RHD..TH199806-200103

75D31R,GS

main28800-48011i2L..LN145,150,155..RHD..TH199806-200103

75D31R,SHINKOBE

main28800-54020i3L..LN141,146,166,171,191..LHD200108-200508

80D26L,YUASA

main28800-54150i2L..LN140,145..RHD..(GEN,SA)199708-200103

75D26R

main28800-54232i2KDFTV,3L..KDN165,LN166..MA200108-200502

80D26R

main28800-54342i2L..LN140,145..RHD..(GEN,SA)200103-200603

75D26R,FURUKAWA

main28800-54410i1KZTE,5L#..KZN165,LN147,152,167,172..THDCB,THSCB,THXTR199808-200109

105D31R,GS

main28800-64010i3RZFE..RZN194..SADCB199708-200009

55D23L

main28800-64062i2KDFTV..KDN190..MA200303-200502

95D31R

main28800-64122i3L..LN141,146,166,171,191..LHD200103-200108

80D26L

main28800-64132i3RZF..RZN169..LHD..GEN199708-200009

80D26L

main28800-64151i3RZF..RZN169..LHD..GEN199708-200009

80D26L,MATSUSHITA

main28800-64251i3L..LN166..LHD..DCB..DSL..GEN200410-200411

105D31L,AFGHANISTAN SPEC,MATSUSHITA

main28800-67070i5LE..LN152..XTR..IV3;5L..LN152,167..(DCB,SCB,XTR)..(ARL,SA);1KZTE,5L#..KZN165,190,LN147,167,172,192..(DCB,SCB,XTR)..(ARL,SA)199708-200103

105D31R,GS

main28800-67123i1KZTE..KZN190..SR;1KZTE,5LE..KZN165,LN147,152,167,172,192..(DCB,SCB,XTR)..(ARL,SA)200109-200502

105D31R

main28800-70070i1RZ..RZN142,147..SA199708-200103

50D20L,GS

main28800-70091i1RZ..RZN142,147..SA200203-200504

50D20L,MATSUSHITA

main28800-70101i1RZ..RZN142,147..SA200103-200203

50D20L,FURUKAWA

main28800-76080i3L..LN141,146,166,171,191..LHD200103-200108

80D26L,MATSUSHITA

main28800-76090i3RZFE..RZN169..DCB..SA;2RZFE,3RZF..RZN144,149,154,169,193;3RZFE..RZN154,194..RHD..(DCB,SCB,XTR);3RZFE..RZN169..(DCB,SCB)..DLX..(ARL,SA);2RZFE,3RZFE..RZN148,149,168,174..(DCB,SCB,XTR)..DLX..(ARL,GEN)200103-200206

55D23L,MATSUSHITA

28800ATERMINAL, BATTERY POSITIVE

main90982-05034i1RZ#..RZN142,147..(DCB,SCB)..(ARL,GCC,GEN)199908-199909

main90982-05035i5LE..LN147..THDCB;5LE..LN147,167..THSCB..IV3;2L,5LE..LN150,167..(THDCB,XTR)..DLX;2L,5LE..LN145,152..(DCB,THXTR)..(ARL,TH)..CBU;5LE,3RZFE..LN172,RZN149,154..THDCB,THSCB,THXTR;1KDFTV,2KDFTV,2L..KDN145,15#,16#,190,LN155..TH..CBU200108-200407

main90982-05037i2Y..YN140199808-200010

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-35020i2L,3L,5L,1RZ#,2RZFE,3RZ#,2Y..LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140199708-199908

3 parts on this diagram · 1 diagram in section
