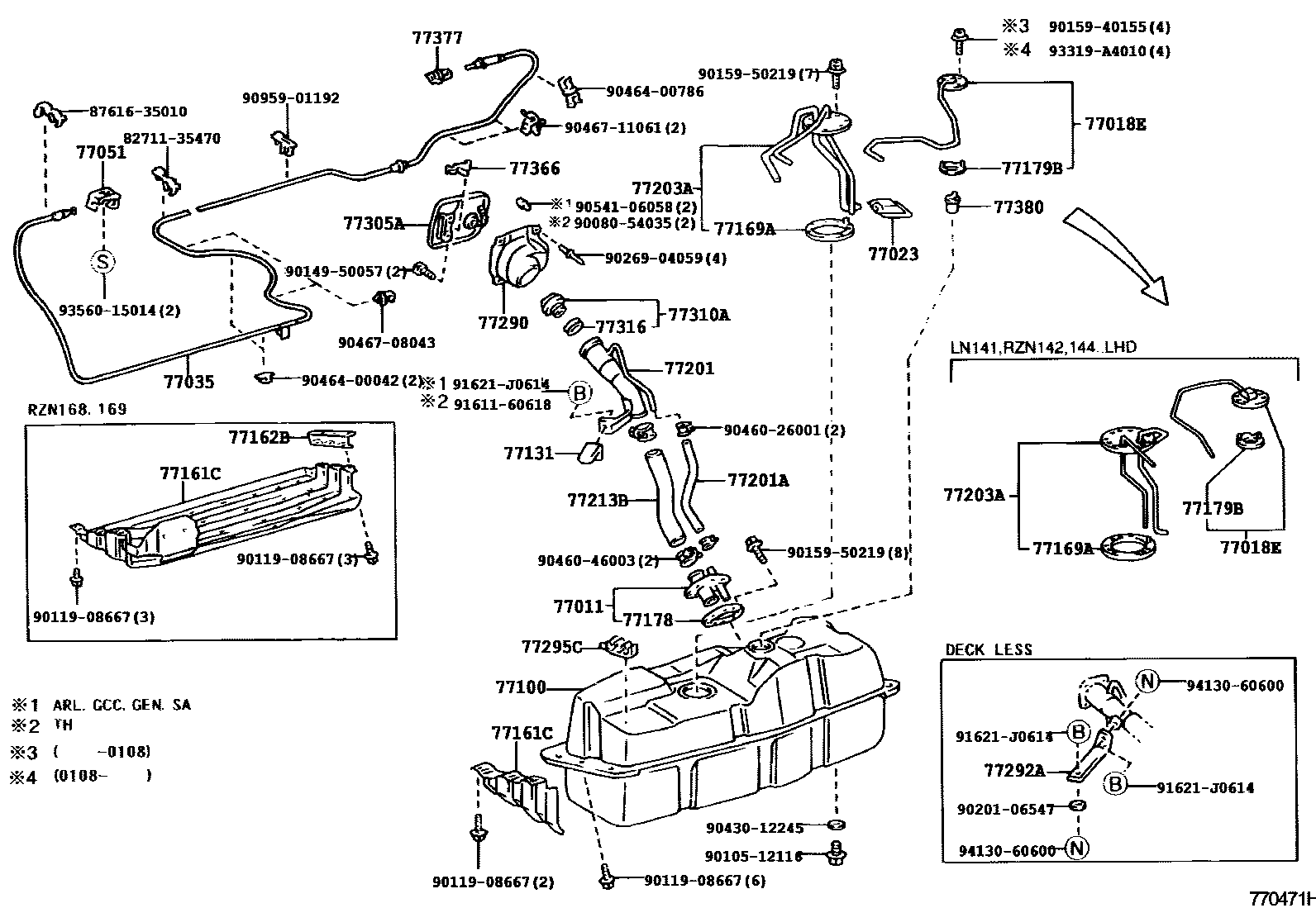

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-04020iLN145,166..RHD..GEN;RZN147..RHD..SCB..GEN200109-200511

(L)

main77011-04020iLN152,157..CBU;KZN165,LN147,152,167,172..THSCB,THXTR199806-200409

main77011-35200iLN140,RZN142..SA199708-200508

main77011-35210iLN167,192,RZN147,194..(DCB,SADCB)..SA199708-200402

main77011-35210iLN145,166..RHD..GEN;RZN147..RHD..SCB..GEN200109-200511

(J)

77018ETUBE SUB-ASSY, FUEL TANK EVAPORATION VENT

main77018-04020iLN152..DEFI..CBU;LN145,150,155..(SCB,XTR)..TH;LN147,167,RZN147,149,169..THSCB..(DEFI,EFI);LN152,157,172,RZN154,174..(SCB,THXTR)..(DEFI,EFI)199806-200409

main77018-35050iLN140,RZN142..SA199708-200508

main77018-35060iRZN169..SCB..CBR;LN145,166,171,RZN147,149,154..LHD..(SCB,XTR)..MTM199708-200511

main77018-35080iLN145..DCB..IV3;RZN149..DCB..GCC;RZN147,169..DCB..(GCC,GEN);RZN149..DCB..DLX..CBR..GEN;LN145,146,166,191,RZN193..LHD..DCB..(GCC,GEN)199708-200511

main77018-35100iYN140199808-200010

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-10010iYN140199808-200010

main77023-32030iRZN142,144,147,149,154,169..CBR199708-200508

main77023-32040iKZN190..SR;LN147..DCB;LN145..LHD..IV3;LN167..THDCB..SR;LN167..THSCB..CBU;LN145..(GEN,SA)..CBU;LN167..(DCB,SCB)..(ARL,SA);KZN165..DCB,SCB,THDCB,THSCB;KDN16#,190,LN19199708-200508

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-35100iLN167..DCB..SA;KZN165,190,RZN169,194..DCB..SR..SA199708-200506

main77035-35110iRZN149,169..LHD..DCB..CBR;LN145,146,166,191,RZN147,148,168,193..LHD..DCB..DLX..(GCC,GEN,TH)199708-200506

main77050-35080iLN141,RZN142,144199708-199901

sub77050-35081

main77050-35081iLN141,RZN142,144..LHD199901-200506

main77050-35090iLN145,166,RZN147,169..RHD..SCB..GEN199708-199901

sub77050-35091

main77050-35091iLN145,166,RZN147,169..RHD..SCB..GEN..CBU199901-200506

main77050-35100iLN145,166,RZN147,148,149,16#..LHD..SCB..CBU199708-199901

sub77050-35101

main77050-35101iLN145,166,RZN147,148,16#..LHD..SCB..GEN..CBU199901-200506

main77050-35110iLN172,RZN154,174..ARL..CBU199711-199804

sub77050-35111

main77050-35111iLN152,172,RZN154,VZN172..XTR..ARL..CBU199901-200502

main77050-35120iLN171,RZN154..GEN199711-199901

sub77050-35121

main77050-35121iLN171,RZN154..GEN199901-200506

main77050-35130iLN167,192..TH..CBU199806-199901

sub77050-35131

main77050-35131iKZN165,LN167,192..XTR..CBU199901-200104

main77050-35180iLN150,152,172,RZN154,174..RHD..CBU199804-199901

sub77050-35181

main77050-35181iLN150,152,172,RZN154,174..RHD..CBU199901-200502

PLANT NO. P11

77051LEVER SUB-ASSY, FUEL LID OPEN

main77051-35010iLN150,167..(THDCB,XTR)..DLX;LN147,152,172,RZN149,154..(THDCB,THXTR)..CBU;KDN145,150,151,16#,190,LN145..(DCB,XTR)..TH..CBU199708-200506

77100TANK ASSY, FUEL

main77001-3D907iRZN149,154..THSCB,THXTR199708-200511

main77001-3D908iLN145..LHD..IV3;LN147..SCB..IV3;LN150,152..XTR..DLX..CBU;LN145..SCB..(GEN,SA)..CBU;KDN15#,LN155,RZN147..(SCB,XTR)..(GCC,GEN,TH)199708-200508

main77001-3D909iLN140,141,RZN142200108-200508

main77001-3D910iRZN16#,174..(SCB,THSCB,THXTR,XTR)..EFI..(ARL,GEN)199708-200511

main77001-3D911iLN145,RZN147..SA200203-200504

4WD

main77001-3D911iKZN165..THSCB..SR;LN167,192..DEFI..SA;LN167..(SCB,THSCB)..ARL;KZN165,190,LN166,17#,RZN169..(SCB,THXTR,XTR)..(CBR,DEFI,DSL,TDE)..(ARL,GCC,GEN,SA)199708-200506

main77001-3D912iRZN148,16#,19#,VZN167..DCB,THDCB;RZN149..(DCB,THDCB)..(ARL,CO,GCC)199708-200511

main77001-3D914iLN167..DCB..DLX;KZN165..DCB,THDCB;KZN190,LN167..(DCB,THDCB)..SR..(ARL,SA);KDN165,190,LN145,146,147,166,191,RZN147..DCB..(ARL,GCC,GEN,MA)199708-200508

main77001-3D921iRZN144200108-200508

77131BRACKET, FUEL TANK FILLER PIPE SUPPORT

main77131-35060iKZN165,LN141,145,147,16#,17#,RZN14#,154,16#,174..(SCB,THSCB,THXTR,XTR)..(ARL,GCC,GEN)..CBU199708-200506

77161CPROTECTOR, FUEL TANK, LOWER

main77161-04010iLN147,152..THSCB,THXTR199903-200402

(L)

main77161-04010iLN147,152,RZN147,149,154..THSCB,THXTR200109-200408

main77161-04020iLN147,RZN149..THDCB..(DEFI,EFI)199903-200402

(L)

main77161-04020iLN147,RZN149..THDCB200109-200408

main77161-04030iKZN165,LN192..THDCB,XTR;LN167,172..THDCB,THSCB,THXTR200104-200408

main77161-35160iRZN148,149..SCB..EFI..GEN199708-200402

(J)

main77161-35160iLN147,152,RZN147,149,154..THSCB,THXTR199808-200511

main77161-35170iLN140,141,RZN142,144199708-200508

main77161-35180iRZN148,149..DCB..DLX..EFI..GEN199708-200402

(J)

main77161-35180iLN147,RZN149..THDCB199902-200511

main77161-35200iVZN167,172..ATM;KZN190,RZN194..SR;LN167..(DCB,SCB)..ARL;KZN165,LN172,192,RZN193..(DCB,SCB,XTR)..(ARL,GEN,SA)199708-200506

main77606-04010iRZN169,174..THDCB,THSCB,THXTR200109-200208

main77606-35030iRZN168..DLX..GEN199708-200511

77162BBRACKET, FUEL TANK REAR PROTECTOR

main77162-04010iLN167..THSCB..IV3;LN167,172..(THDCB,THXTR)..DLX200109-200408

main77162-35020iKZN165..SCB199708-200506

77169AGASKET, FUEL SUCTION TUBE SET

main77169-04020iKZN165..THSCB;KDN165,190..IV1;KDN15#,LN150,155;LN167..THSCB..CBU199901-200409

main77169-14010iRZN149,154..THSCB,THXTR199708-200511

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-04010iLN145..LHD..IV3;LN145,RZN149,154..(CO,GCC,GEN,SA)..CBU;KDN165,190,KZN165,190,LN146,147,152,16#,17#,19#,RZN147,148,16#,19#..(DCB,SCB,XTR)..(ARL,CO,GCC,GEN,MA,SA)200109-200511

(L)

main77178-04010iKZN165..XTR199901-200409

main77178-34010iLN145,RZN147..SA199708-200511

(J)

main77178-34010iLN152..CBU;LN147,150,167,192,RZN147,149,169..THSCB,XTR;LN145,152,155,157,172,RZN154,174..(SCB,THXTR)..(ARL,TH)199708-200508

main77178-34010iLN147,152..SCB,XTR200109-200305

***

77179BGASKET, FUEL TANK EVAPORATION VENT TUBE

main77179-0A010iLN152..DEFI..CBU;LN145,150,155..(SCB,XTR)..TH;LN147,167,RZN147,149,169..THSCB..(DEFI,EFI);LN152,157,172,RZN154,174..(SCB,THXTR)..(DEFI,EFI)199901-200409

main77179-26010iKZN165,LN145,RZN154,174..(DCB,THDCB,XTR)..(ARL,TH);KZN165,LN152,172,RZN147..(SCB,XTR)..DLX..(DEFI,EFI,TDE);LN147,167,192,RZN149,169..(DCB,SCB,THDCB,XTR)..(DEFI,EFI)199708-200511

sub77179-26011

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-04020iLN150;LN152..DEFI..CBU;LN172..THXTR..DEFI..CBU199808-200408

main77201-04030iRZN154,174..THXTR199808-200408

main77201-04050iLN147,152,167,172..(THSCB,THXTR)..DEFI..IV3199909-200408

main77201-04060iRZN147,149,169..THSCB..CBU200109-200408

main77201-04070iRZN149,169..THDCB..SR200109-200408

W(FUEL LID OPENER)

main77201-04080iRZN149,169..THDCB..DLX200109-200408

main77201-04090iKZN165,LN147,167..THDCB..SR;KDN145,16#,190,KZN165,LN145..DCB..(MA,TH)200109-200503

main77201-04090iLN147,167..THDCB..DLX200109-200502

W(FUEL LID OPENER)

main77201-04100iKZN165,LN147,167..THDCB..DLX200109-200408

main77201-04110iRZN147,149,169..THSCB..IV3200109-200408

main77201-04120iKZN165,LN167..THSCB..CBU200109-200208

main77201-35540iLN167,192..DEFI..SA;KZN190,LN140,145..SCB..SA199708-200508

sub77201-35600

main77201-35550iRZN148,168..DCB..DLX..GEN199708-200506

CHILE SPEC & W(FUEL LID OPENER)

main77201-35550iRZN148..SR200108-200309

CHINA SPEC

main77201-35550iRZN168..SR..GEN200108-200506

CHINA SPEC OR CHILE SPEC

main77201-35550iRZN149..DCB..CO;RZN149,16#,194,VZN167..DCB..SR..(ARL,CO,SA)199807-200511

main77201-35550iRZN149..DCB..SR..GCC;RZN149,169,VZN167..DCB..DLX..(ARL,GCC)199708-200508

W(FUEL LID OPENER)

main77201-35560iRZN148,168..DCB..DLX..GEN199708-200508

W(FUEL LID OPENER)

main77201-35560iRZN169..SR..GEN;LN16#..DCB..(MA,SA);KZN165,190,LN147,16#,RZN148,168..DCB..SR..(ARL,GEN,SA)199909-200506

main77201-35580iLN145,166..RHD..DCB..GEN..CBU199708-200508

sub77201-35520

main77201-35590iRZN149..SCB..EFI..GEN199708-200506

CHILE SPEC

main77201-35590iRZN147,149,169..(SCB,THSCB)..ARL..CBU199708-200511

main77201-35620iRZN148,168,193..DCB..DLX..GEN199708-200506

CHILE SPEC

main77201-35620iRZN149..DCB..SR..GCC;RZN149..DCB..DLX..(ARL,GCC);RZN148,16#,VZN167..DCB..DLX..(ARL,CO,GCC)199708-200511

main77201-35660iLN172..XTR..CBU199711-200506

main77201-35680iRZN154,174,VZN172..XTR..ARL199711-200502

main77201-35750iKZN165..SCB..IV3199708-200506

sub77201-35760

main77201-35770iRZN147,149,169..IV3199708-200511

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main77269-04010iKDN155,LN155;KZN165,LN167,RZN147,149,169..THSCB..CBU200109-200408

L=220

main77269-04020iKDN150,151,LN150;LN152,172,RZN154,174..THXTR..CBU200109-200408

L=240

main77269-04030iKZN165,LN147,167,172,RZN147,149,169..(THSCB,THXTR)..IV3200109-200408

L=200

main77269-04040iKZN165,LN147,167,RZN149,169..THDCB;KDN145,16#,190,KZN165,LN145..DCB..(MA,TH)200109-200503

L=260

main77269-35010iLN145..RHD..SCB..IV3199808-200511

L=200

main77269-35020iLN152,17#,RZN154,174,VZN172..XTR..DLX..CBU199711-200506

L=240

main95313-13022iKZN165..THSCB;LN147,167..SCB..IV3;LN147,157,167..(SCB,THSCB)..(ARL,TH)..CBU199708-200511

L=220

main95313-13026iKZN165,190,RZN169,194..DCB..SA199708-200511

77203ATUBE SUB-ASSY, FUEL SUCTION

main77203-04020iLN147,152..THSCB,THXTR199806-200409

main77203-04030iKZN165,LN167,172..THSCB,THXTR199808-200402

main77203-35520iRZN169,194..SCB..SA200010-200203

W(FUEL TANK=77L)

main77203-35520iRZN169..(SCB,THSCB)..ARL;RZN168,174..(SCB,THXTR,XTR)..CBU199708-200511

main77203-35530iRZN148,168,193..DCB199708-199911

main77203-35531iRZN169..SR..SA200010-200203

W(FUEL TANK=66L)

sub77203-35901

main77203-35531iVZN167..DCB199911-200511

sub77203-35901

main77203-35540iRZN148..SCB..GEN..CBU;RZN148,149..SCB..(ARL,CO,GCC);RZN147,154..(SCB,THSCB,XTR)..EFI199708-200511

main77203-35550iRZN142,144..CBR199708-200508

main77203-35560iLN140,141199708-200508

main77203-35570iRZN147..SA200010-200203

W(FUEL TANK=69L)

main77203-35570iRZN147,149,154..(SCB,XTR)..CBR..(GCC,GEN)199708-200508

main77203-35580iLN145..SA200010-200504

W(FUEL TANK=69L)

main77203-35580iLN145..LHD..IV3;LN147..SCB..IV3;LN145,152..(SCB,XTR)..(ARL,GEN)..CBU199708-200506

main77203-35590iRZN147..SA199708-200504

main77203-35600iLN16#,171..(SCB,XTR)..(ARL,GEN);KZN165,LN145,172..(SCB,XTR)..(ARL,SA)199708-200506

main77203-35600iKZN190,LN167,192..SCB..(DEFI,TDE)..SA200007-200504

W(FUEL TANK=77L)

main77203-35630iRZN147,149,169..DCB..CBR199708-200508

main77203-35640iKZN165,190,LN167..DCB..SA200007-200504

W(FUEL TANK=66L)

main77203-35640iLN167..SR..ARL;LN167..DCB..DLX..ARL;KZN165..(DCB,THDCB)..(ARL,TH);KDN165,190,LN145,146,147,166,191..DCB..(ARL,GCC,GEN,MA)199708-200508

main77203-35740iYN140199808-200010

main77203-35750iKZN190,LN167,192..SCB..SA199807-200504

main77203-35760iKZN165,190,LN167,192..DCB..SA199807-200504

main77203-35770iRZN169,194..SCB..SA199807-200504

main77203-35780iRZN169..SR199807-199911

main77203-35781iRZN169,194..DCB..SA199911-200504

sub77203-35900

main77203-35820iRZN144200108-200508

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-04030iKDN155,LN155;KZN165,LN167,RZN147,149,169..THSCB..CBU200109-200408

main77213-04040iKDN150,151,LN150;LN152,172,RZN154,174..THXTR..CBU200109-200408

main77213-04050iKZN165,LN147,167,RZN149,169..THDCB;KDN145,16#,190,KZN165,LN145..DCB..(MA,TH)200109-200503

main77213-04060iKZN165,LN147,167,172,RZN147,149,169..(THSCB,THXTR)..IV3200109-200408

main77213-35310iKZN190..SCB..SR;RZN149..SCB..(ARL,CO,GCC)..CBU;KZN165,LN140,141,145,16#,192,RZN142,144,147,148,16#,194,VZN167..SCB..(ARL,CO,GCC,GEN,MA,SA)..CBU199708-200511

main77213-35320iLN147,167..(DCB,THDCB)..ARL199708-200511

main77213-35330iLN152,17#,RZN154,174,VZN172..XTR..DLX..CBU199711-200506

main77213-35340iKZN165,LN167,192..XTR..(DEFI,TDE)199806-200109

main77213-35350iLN145..LHD..IV3;KZN165,LN147,167,172,RZN147,148,149,16#,VZN167..(SCB,XTR)..(ARL,CO)..IV3199808-200511

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-04010iKDN155,LN155;RZN149..THSCB..CBU200109-200408

main77290-04020iRZN174..THXTR200109-200408

W(GLOVE BOX W/KEY LOCK)

main77290-35030iRZN174199711-200506

main77290-35040iLN172,RZN154..XTR..ARL..CBU199711-200506

W(FUEL LID OPENER)

main77290-35040iLN152,VZN172..XTR200109-200502

W(GLOVE BOX W/KEY LOCK)

main77290-35050iRZN169..(SCB,THSCB)..(ARL,SA)..CBU;RZN147,148,168,194..(SCB,THSCB)..CBU;KZN165,RZN149..(SCB,THSCB)..DLX..(EFI,TDE)..CBU;KZN190,LN140,141,145,147,155,157,16#,192,RZN199708-200506

main77290-35060iRZN148,168..SCB..GEN..CBU;LN145,166,RZN147..RHD..SCB..GEN..CBU199708-200506

W(FUEL LID OPENER)

main77290-35060iLN192..DEFI..TH..CBU;KZN165,LN167..(SCB,THSCB,XTR)..SR..CBU199808-200503

77292ASTAY, FUEL TANK FILLAR UPPER PIPE

main77292-35200iKZN165..SCB..IV3199708-200506

77295CGROMMET, FUEL TUBE

main77295-35140iKZN165..SCB;RZN149..SR..GEN199708-200511

77305ALID SUB-ASSY, FUEL FILLER OPENING

main77305-35010iLN167,RZN149..DCB..(CO,SA);LN167,RZN169..SR..(ARL,GEN);KDN145,16#,190,KZN165,LN145,166..RHD..DCB..(MA,TH);KZN190,LN145,147,166,RZN148,149,168,VZN167..(DCB,THDCB)..S200012-200511

main77305-35010iLN147,167,RZN149,169..(DCB,THDCB)..(DSL,EFI)..ARL199708-200502

W(GLOVE BOX W/KEY)

main77305-35010iRZN169..DCB..SA;RZN149..DCB..CBR;LN166..DCB..DSL..(GCC,GEN);KZN165..(DCB,THDCB)..SR..(ARL,SA);LN145,RZN148,168..LHD..DCB..DLX..(GEN,TH);KZN190,LN145..RHD..DCB..DLX.199708-200508

W(FUEL LID OPENER)

main77305-35010iVZN167..DCB..DLX200208-200502

W(FUEL LID OPENER & GLOVE BOX W/KEY)

main77305-35020iRZN149..DCB..SR..GCC;RZN149..(DCB,THDCB)..DLX..(ARL,GCC);KZN165,LN145,146,147,16#,191,RZN147,148,16#,193,VZN167..(DCB,THDCB)..DLX..(ARL,CO,GCC,GEN)199708-200511

main77305-35040iLN17#,RZN154,174..CBU199711-200108

sub77305-35041

main77305-35041iLN152,17#,RZN154,174,VZN172..DLX..CBU200108-200506

main77305-35050iLN150,152,17#,RZN154,174..CBU199711-200108

W(FUEL LID OPENER)

sub77305-35051

main77305-35051iKDN150,151,LN150200109-200408

main77305-35051iRZN154..GEN;LN152,VZN172..ARL..CBU200108-200506

W(FUEL LID OPENER & GLOVE BOX W/KEY)

main77305-35051iRZN154..GEN;LN152,VZN172..ARL..CBU200108-200506

W(FUEL LID OPENER)

main77305-35060iKZN165..SCB..DLX..CBU;KZN190,LN140,141,145,147,155,157,16#,192,RZN14#,16#,194,YN140..(SCB,THSCB)..CBU199708-200105

sub77305-35061

main77305-35061iRZN169..(SCB,THSCB)..DLX..(ARL,SA)..CBU;KZN190,RZN149..(SCB,THSCB)..DLX..(EFI,TDE)..(ARL,GEN,SA)..CBU;LN147,167,RZN147,148,168,194..(SCB,THSCB)..(ARL,GCC,GEN,SA)..C200105-200511

main77305-35070iLN141,145,155,157,166,RZN14#,16#..SCB..MTM..(GCC,GEN,TH)..CBU199708-200105

W(FUEL LID OPENER)

sub77305-35071

main77305-35070iKZN165..(SCB,THSCB)..SR..CBU199909-200009

sub77305-35071

main77305-35071iLN166,RZN149..SCB..(CO,MA)200206-200511

main77305-35071iRZN148,168..SCB..CBU;LN141,145,155,157,166,RZN142,144,147,149,169..SCB..(CBR,DEFI,DSL)..(GCC,GEN,TH)..CBU200105-200508

W(FUEL LID OPENER)

77310ACAP ASSY, FUEL TANK

main77310-12150iLN145,167,192..DSL..IV1199803-200603

main77310-35070iRZN14#,154,16#,193..GCC,GEN199708-199803

sub77310-48010

main77310-35080iRZN147,149,154,169,174..ARL..CBU199708-199803

sub77310-12140

main77310-35110iLN14#,16#,17#,191..CBU199708-199803

sub77310-12150

main77310-48010iRZN19#;RZN169..DCB..SA;RZN169..DLX..SA;RZN149..SCB..EFI..GEN;RZN148,168..DLX..GEN..CBU;RZN142,144,147,149,154,169,YN140..CBR199803-200603

main77310-48020iRZN147,149,154,169,174..ARL..CBU199803-199903

77316GASKET, FUEL TANK CAP

main77316-16010iRZN149..SCB..EFI..GEN199708-200506

77366SPRING, FUEL FILLER OPENING LID HINGE

main77358-28030iKDN16#,190..SRWGN200208-200411

main77360-35030iRZN148,168..SCB..GEN..CBU;LN145,166,RZN147..RHD..SCB..GEN..CBU199708-200511

main77360-35050iRZN168..DCB..DLX..GEN;KZN165,190,RZN168..(DCB,THDCB)..SR;LN167,RZN149..(DCB,THDCB)..(ARL,CO,GCC,SA);KDN145,16#,190,LN145,146,147,166,191,RZN147,148,169,19#,VZN167..199708-200511

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-12050iLN166..SCB..MA199708-200506

77380VALVE ASSY, FUEL CUT OFF

main77380-26010iYN140;LN167,192,RZN147,194..(DCB,SADCB)..SA199708-200511

8271135470WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-35470

8761635010CLAMP, COOLING UNIT CASE

main87616-35010

9008054035

main90080-54035

9010512116

main90105-12116

9011908667

main90119-08667

9014950057

main90149-50057

9015940155

main90159-40155

9015950219

main90159-50219

9020106547

main90201-06547

9026904059

main90269-04059

9043012245

main90430-12245

9046026001

main90460-26001

9046046003

main90460-46003

9046400042

main90464-00042

9046400786

main90464-00786

9046708043

main90467-08043

9046711061

main90467-11061

9054106058

main90541-06058

9095901192

main90959-01192

9161160618

main91611-60618

91621J0614

main91621-J0614

93319A4010

main93319-A4010

9356015014

main93560-15014

9413060600

main94130-60600

49 parts on this diagram · 11 diagrams in section
