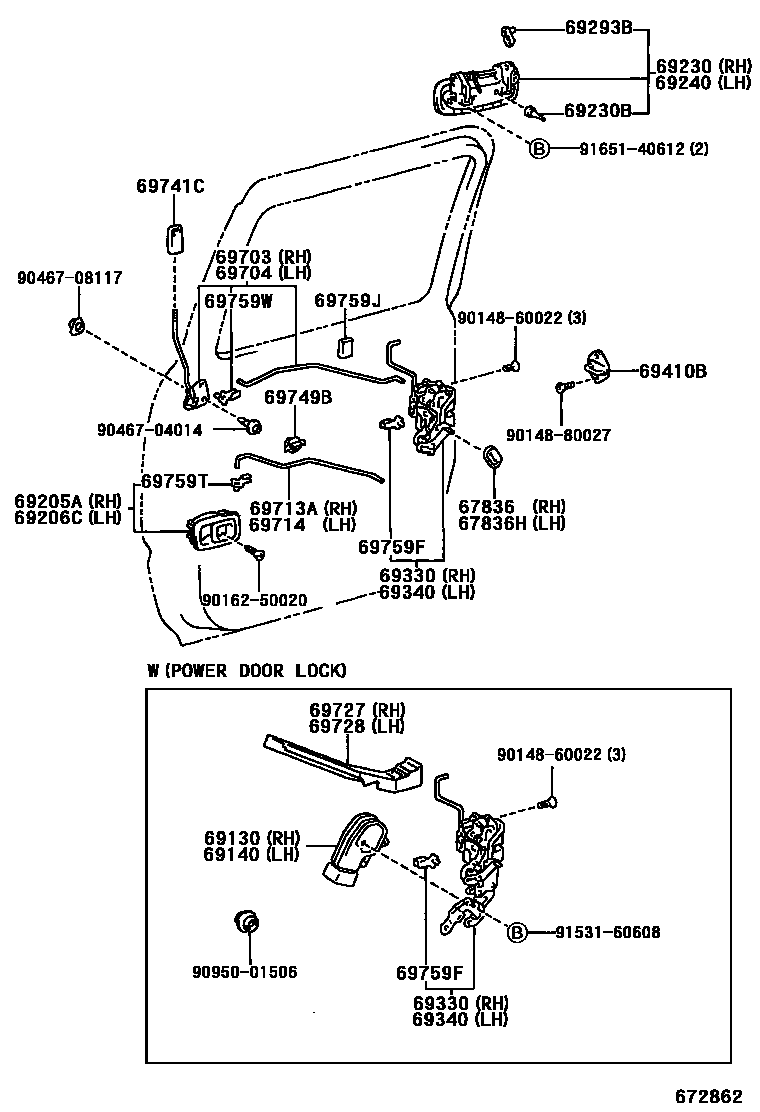

REAR DOOR LOCK & HANDLE

67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH

main67836-14010iLN167..THDCB..DLX;LN147,RZN149..THDCB;KDN145,16#,190,LN145..DCB..TH199708-200506

main67836-95D00iKDN16#,190..SRWGN200208-200411

67836HCOVER, REAR DOOR LOCK CHILD PROTECTION, LH

main67836-14010iLN146,166,RZN147,148,149,16#..DCB..(CO,GCC)199708-200506

main67836-95D00iKDN16#,190..SRWGN200208-200411

69130ACTUATOR ASSY, REAR DOOR LOCK, RH

main69130-35050iKZN165..DCB..IV3200407

SPECIAL EDITION(AUSTRALIA)

main69130-35050iLN166..DCB..GEN;RZN149..DCB..SR;RZN169..LHD..DCB..GEN;LN145,RZN147..LHD..DCB;RZN149..DCB..DLX..(ARL,GCC);LN146,147,167,191,RZN16#,193..DCB..(DSL,EFI)199708-200506

69140ACTUATOR ASSY, REAR DOOR LOCK, LH

main69140-35050iLN166..DCB..GEN;RZN149..DCB..SR;RZN169..LHD..DCB..GEN;LN145,RZN147..LHD..DCB;RZN149..DCB..DLX..(ARL,GCC);LN146,147,167,191,RZN16#,193..DCB..(DSL,EFI)199708-200506

main69140-35050iKZN165..DCB..IV3200407

SPECIAL EDITION(AUSTRALIA)

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-04020-B0iLN167..THDCB..SR;KZN165,RZN169..THDCB;KDN145,165,190,KZN165..DCB..TH200104-200404

MD.MOON MIST,TRIM1#

main69205-04020-E0iKDN145,16#,190..(DCB,SRWGN)..TH200110-200404

SANDAL WOOD,TRIM4#

main69206-10070-B1iKZN165,LN147,167,RZN149,169..THDCB..(DEFI,EFI,TDE)199708-200603

MD.MOON MIST,TRIM1#

sub69206-10070

main69206-10070-D0iLN146,166,RZN147,149,169..DCB..GCC199708-200508

RED,TRIM3#

sub69206-10070

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69205-10070-B1iKZN165,LN147,167,RZN149,169..THDCB..(DEFI,EFI,TDE)199708-200603

MD.MOON MIST,TRIM1#

sub69205-10070

main69205-10070-D0iLN146,166,RZN147,149,169..DCB..GCC199708-200508

RED,TRIM3#

sub69205-10070

main69206-04020-B0iLN167..THDCB..SR;KZN165,RZN169..THDCB;KDN145,165,190,KZN165..DCB..TH200104-200404

MD.MOON MIST,TRIM1#

main69206-04020-E0iKDN145,16#,190..(DCB,SRWGN)..TH200110-200404

SANDAL WOOD,TRIM4#

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-35070iLN145..DCB..TH199708-200009

PLATED

main69230-35080iLN147,167,RZN149,169..THDCB;LN145,167,192,RZN147,169..DCB..(SA,TH)199708-200010

NO PAINT REQ.

main69230-35140iRZN168..DLX..CO..CBU;LN146,166,RZN147,148,149,169..DCB..(CO,GCC)199908-200506

NO PAINT REQ.

main69230-35150iLN145..SR;LN167..THDCB..DLX;LN147,RZN149..THDCB;KDN145,16#,190,LN145..RHD..DCB..TH199908-200506

PLATED

69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)

main90541-04014iLN167..DCB..SA;KZN165,190,RZN169,194..DCB..SR..SA199708-200506

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-35070iLN145,146,147,16#,191,RZN147,148,149,16#,193..(DCB,THDCB)..(ARL,GCC,GEN,TH)199708-200009

*CR

main69240-35080iLN145,167,192,RZN147,169,194..(DCB,SADCB)..(SA,TH)199708-200010

BLACK

main69240-35140iKZN165..THDCB;LN167..SR..ARL;RZN169..(DCB,THDCB)..ARL199908-200506

BLACK

main69240-35150iLN145..SR;LN167..THDCB..DLX;LN147,RZN149..THDCB;KDN145,16#,190,LN145..RHD..DCB..TH199908-200506

*CR

69293BSNAP, REAR DOOR OUTSIDE HANDLE

main69293-12030iLN167..THDCB..DLX;LN147,RZN149..THDCB;KDN145,16#,190,LN145..DCB..TH199708-200506

RH

main69293-12040iLN145,146,147,16#,19#,RZN147,148,149,16#,193..DCB199708-200506

LH

69330LOCK ASSY, REAR DOOR, RH

main69330-35120iLN145,166,191,RZN147,148,16#,193..DCB..DLX..GEN199708-200506

main69330-35130iRZN168..SR..CO199708-200506

W(POWER DOOR LOCK)

main69330-35160iKZN165..THDCB..DLX;RZN169..(DCB,THDCB)..DLX..ARL199907-200502

main69330-35170iKZN165..DCB..SR..ARL;LN167..DCB..DLX..ARL;LN147,RZN149,VZN167..DCB..ARL199907-200502

W(POWER DOOR LOCK)

main69330-35170iKZN165..DCB..IV3200407

SPECIAL EDITION(AUSTRALIA)

mainC471001010iKDN16#,190..SRWGN200208-200411

69340LOCK ASSY, REAR DOOR, LH

main69340-35120iLN145,146,147,16#,19#,RZN147,148,149,16#,193..DCB,THDCB199708-200506

main69340-35130iRZN168..SR..CO199708-200506

W(POWER DOOR LOCK)

main69340-35160iLN145,146,147,16#,19#,RZN147,148,149,16#,193..DCB,THDCB199907-200502

main69340-35170iLN166..DCB..GEN;RZN149..DCB..SR;LN145,RZN147,169..LHD..DCB..(GEN,TH);RZN147,149..(DCB,THDCB)..DLX..(ARL,GCC,SA);LN146,147,167,19#,RZN148,16#,193..(DCB,THDCB)..(DSL,199907-200502

W(POWER DOOR LOCK)

main69340-35170iKZN165..DCB..IV3200407

SPECIAL EDITION(AUSTRALIA)

mainC474001010iKDN16#,190..SRWGN200208-200411

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-87001iLN167..THDCB..DLX;LN147,RZN149..THDCB;KDN145,16#,190,LN145..DCB..TH199708-200506

69703LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH

main69703-35040iLN146,166,RZN147,148,149,16#..DCB..(CO,GCC)199708-200506

69704LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH

main69704-35040iKZN165..THDCB;LN167..SR..ARL;KZN165..DCB..TH;RZN169..(DCB,THDCB)..ARL199708-200506

69713ALINK, REAR DOOR LOCK REMOTE CONTROL, RH

main69713-35050iLN146,166,RZN147,148,149,16#..DCB..(CO,GCC)199708-200506

mainC408501021iKDN16#,190..SRWGN200208-200411

69714LINK, REAR DOOR LOCK REMOTE CONTROL, LH

main69714-35050iKZN165..THDCB;LN167..SR..ARL;KZN165..DCB..TH;RZN169..(DCB,THDCB)..ARL199708-200506

mainC408601021iKDN16#,190..SRWGN200208-200411

69727PROTECTOR, REAR DOOR INSIDE LOCKING LINK, RH

main69727-35020iKZN165..THDCB;LN167..SR..ARL;KZN165..DCB..TH;RZN169..(DCB,THDCB)..ARL199708-200503

69728PROTECTOR, REAR DOOR INSIDE LOCKING LINK, LH

main69728-35020iRZN148,149,168..DCB..CO199708-200503

69741CKNOB, REAR DOOR LOCK CONTROL

main69741-12040iKZN165,190,LN167,RZN169,194..DCB..SA200203-200208

main69741-12040-B1iLN146,166,RZN147,148,149,16#..DCB..(CO,GCC)199708-200506

MD.MOON MIST,TRIM1#

sub69741-12040

main69741-12040-D0iLN146,166,RZN147,149,169..DCB..GCC199708-200108

RED,TRIM3#

sub69741-12040

69749BCLAMP, REAR DOOR LOCK LINK

main69749-12030iKDN16#,190..SRWGN200208-200411

main69749-12070iLN167..DCB..DLX..ARL;KZN165,LN147,RZN149,VZN167..DCB..ARL199708-200506

69759FSNAP, REAR DOOR LOCK CONTROL LINK

main69759-20020iKDN16#,190..SRWGN200208-200411

RH,NATURAL

main69759-20030iKDN16#,190..SRWGN200208-200411

LH,BLUE

main69759-20040iKDN165,190,LN166..DCB..MA200108-200506

LH

main69759-20040iKZN165..THDCB..SR;LN145..LHD..DLX..TH;RZN169..(DCB,THDCB)..DLX..ARL;LN167,RZN149,169..(DCB,THDCB)..(CBR,DSL);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);LN167,RZN149199708

LH,YELLOW

main69759-20050iLN167..DCB..DLX..ARL;KZN165,LN147,RZN149,VZN167..DCB..ARL200108-200506

RH

main69759-20050iKZN165..THDCB..SR;LN145..LHD..DLX..TH;RZN169..(DCB,THDCB)..DLX..ARL;LN167,RZN149,169..(DCB,THDCB)..(CBR,DSL);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);LN167,RZN149199708

RH,BROWN

main69759-24030iKDN16#,190..SRWGN200208-200411

RH,RED

main69759-24040iKDN16#,190..SRWGN200208-200411

LH,PINK

69759JSILENCER, DOOR LOCK LINK

main69759-04090iKZN165..DCB..TH;LN167..THDCB..SR;KZN165,RZN169..THDCB200109-200408

main69759-12060iRZN149,169..DCB..CBR;LN166,RZN148,168..DCB..DLX;RZN169..(DCB,THDCB)..(ARL,SA);RZN149..(DCB,THDCB)..EFI..(ARL,GEN);KZN165,190,LN145,146,147,167,19#,RZN147,19#..DCB,S199708-200506

main69759-95500iKDN16#,190..SRWGN200208-200411

69759TSNAP, REAR DOOR INSIDE HANDLE

main69759-20060iLN167..DCB..DLX..ARL;KZN165,LN147,RZN149,VZN167..DCB..ARL199708-200501

LH

main69759-20070iRZN169..DCB;RZN149..DCB..(CO,GCC);KZN190,LN167..DCB..SR..(ARL,SA);KDN165,190,KZN165,LN145,146,16#,191,RZN147,148,168,19#..DCB..(CO,GCC,GEN,MA,SA)199708-200501

RH

69759WSNAP, REAR DOOR LOCK CONTROL LINK

main69759-20020iLN146,166,RZN147,148,149,16#..DCB..(CO,GCC)199708-200506

RH,NATURAL

main69759-20030iLN145,166,191,RZN147,148,16#,193..DCB..GEN199708-200506

LH,BLUE

main69759-24080iLN145,166,191,RZN147,148,16#,193..DCB..GEN199708-200506

LH,YELLOW

main69759-24090iKDN165,190,LN166..DCB..MA199708-200506

RH,BROWN

9014860022

main90148-60022

9014880027

main90148-80027

9016250020

main90162-50020

9046704014

main90467-04014

9046708117

main90467-08117

9095001506

main90950-01506

9153160608

main91531-60608

9165140612

main91651-40612
