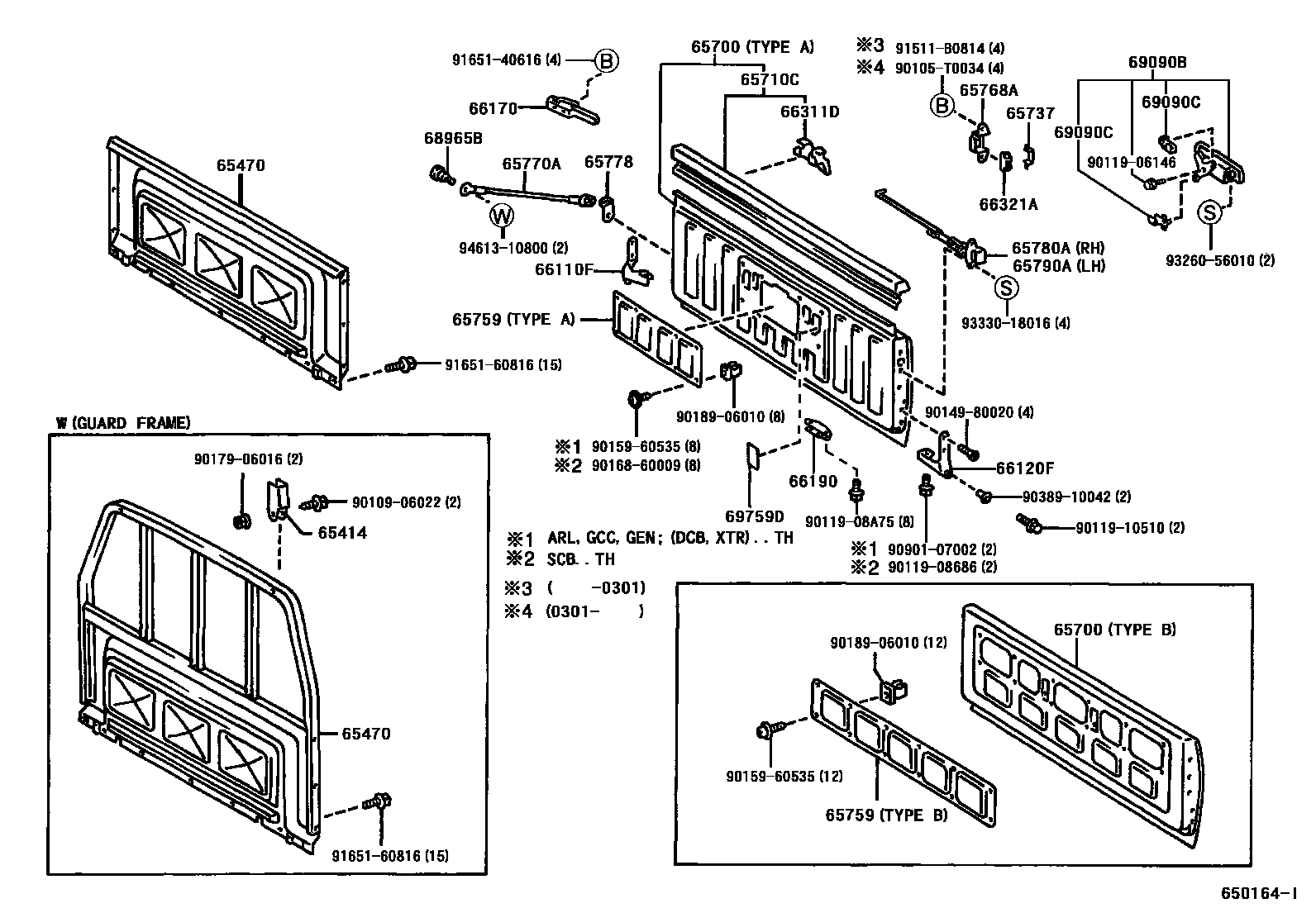

REAR BODY GUARD FRAME & TAIL GATE
65414STOPPER, GUARD FRAME
main65414-89102×2iRZN168..SR..GEN;RZN168..DLX..CBU;LN147..DCB,THDCB;RZN149..(ARL,CO,GCC)..CBU;KDN165,190,KZN165,LN141,145,146,16#,191,RZN142,144,147,148,169,193,VZN167..(ARL,CO,GCC,GEN,MA)..CBU200108
65470BOARD ASSY, HEADER
main65470-04060iKZN165..THDCB..SR;LN147,167,RZN149,169..THDCB;KDN145,16#,190,KZN165,LN145..DCB..TH200109-200502
W(GUARD FRAME & INNER HOOK)
main65470-35050iRZN169..DCB..CBR;LN145,146,147,16#,191,RZN147,148,149,168,193..DCB..(ARL,GCC,GEN)..CBU199708-199810
W(GUARD FRAME)
main65470-35060iKZN165..DCB..SR..ARL;RZN168..DCB..DLX..GEN;LN147,167,RZN149,169..DCB..DLX..ARL; RZN149..DCB..ARL;LN145..LHD..DCB..GEN;RZN169..DCB..DLX..ARL;KZN165,RZN148,16#..DCB..SR..(ARL,CO,GEN);LN147,16#,VZN167..DCB..(CBR,DEFI,EFI)..(ARL,GEN)200108
W(INNER HOOK)
W(GUARD FRAME & INNER HOOK)
main65470-35110iLN141,145,RZN142,147,148,168..SCB..(GCC,GEN)..CBU; RZN148,149..(SCB,THSCB)..(ARL,CO,GCC)..CBU;KZN165,LN16#,RZN144,147,169,VZN167..(SCB,THSCB)..(DEFI,DSL,EFI,TDE)..(ARL,GCC,GEN,MA)..CBU200108
W(GUARD FRAME)
main65470-35170iRZN149..(SCB,THSCB)..ARL..CBU;LN145,152,16#,17#,RZN142,147,148,154,16#,174,VZN172..(SCB,THSCB,THXTR,XTR)..(ARL,GEN)..CBU200108-200506
65700GATE ASSY, REAR BODY TAIL
TYPE A:REFER TO ILLUSTRATION, COLOMBIA SPEC & W(TOYOTA MARK); TYPE A:REFER TO ILLUSTRATION, W(TOYOTA MARK)
TYPE A:REFER TO ILLUSTRATION
main65700-35110iLN141,146,166,RZN142,144,147,149,169..GCC; RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU;RZN148,168..DLX..GEN..CBU200108
TYPE A:REFER TO ILLUSTRATION, W(TOYOTA MARK)
main65700-35120iLN141,146,166,RZN142,144,147,149,169..GCC; RZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU;RZN148,168..DLX..GEN..CBU200108
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION, COLOMBIA SPEC & W(TOYOTA MARK)
TYPE A:REFER TO ILLUSTRATION, COLOMBIA SPEC
TYPE A:REFER TO ILLUSTRATION, W(TOYOTA MARK)
TYPE A:REFER TO ILLUSTRATION
main65700-89151iRZN169..DCB..ARL;RZN149..DCB..SR..GCC;LN166,RZN169..LHD..DCB..GEN;LN167,17#,RZN154,168,174..(DCB,THXTR,XTR)..DLX..CBU199805-199810
TYPE B:REFER TO ILLUSTRATION
65710CRAIL ASSY, TAIL GATE TOP
main65710-35010iRZN169..DLX..ARL..CBU;KZN165..(THDCB,THSCB)..DLX..CBU;LN167,RZN147..(SCB,THSCB)..ARL..CBU200109-200208
main65710-89115iRZN147..LHD..GEN;RZN169..DLX..GEN; RZN147..RHD..GEN;LN145,166,191,RZN142,148,168,193..DLX..GEN..CBU200108-200506
NEW ZEALAND SPEC
65737STOP, TAIL GATE
main65737-04010×2iLN167..TH..CBU;LN167..(THDCB,THSCB)..CBU;LN145,172,RZN154,174..(DCB,THXTR)..(ARL,TH)..CBU;KZN165,LN147,150,152,192,RZN147,149,169..(THDCB,THSCB,XTR)..CBU200104-200109
65759COVER, TAIL GATE SERVICE HOLE
main65759-04030iKZN165,RZN147..THSCB..CBU;LN145,155,157..SCB..TH..CBU;LN147,167,RZN149,169..(THDCB,THSCB)..CBU199806-200109
TYPE A:REFER TO ILLUSTRATION
main65759-04040iLN147,RZN149..THDCB..SR;LN152,172,RZN154..THXTR..CBU;KDN145,150,151,16#,190,LN145,150..(DCB,XTR)..TH..CBU200109-200408
TYPE B:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
main65759-89105iRZN168..DCB..DLX;KZN165..DCB..SR..ARL;LN147,167,172,RZN149,154,169,174..(DCB,XTR)..DLX..ARL..CBU200108-200110
TYPE B:REFER TO ILLUSTRATION
65768ASTRIKER, TAIL GATE LOCK
main65768-04010×2iLN167..THDCB..DLX;LN147,152,172,RZN149,154..(THDCB,THSCB,THXTR)..CBU;KDN145,150,151,16#,190,LN145,150..(DCB,XTR)..TH..CBU200109-200408
main65768-89102×2iLN147..DCB..DLX;RZN149,169..(DCB,SCB)..DLX..ARL..CBU;LN167,RZN148,168..(DCB,SCB)..DLX..(ARL,GEN)..CBU;KZN165,LN172,RZN147,154,174..(DCB,SCB,XTR)..ARL..CBU; RZN149..DCB..SR..GCC;RZN148,149,168..CO..CBU200108
65770ASTAY ASSY, TAIL GATE
main65770-04020×2iLN167..THDCB..DLX;LN147,152,172,RZN149,154..(THDCB,THSCB,THXTR)..CBU;KDN145,15#,16#,190,LN145,150,155..(DCB,SCB,XTR)..TH..CBU200109-200408
main65770-35010×2iLN167..DCB..DLX..ARL;KZN165,RZN149,VZN167..(DCB,SCB)..ARL..CBU;LN147,152,172,RZN154,VZN172..(DCB,XTR)..ARL..CBU200108-200502
65778STOPPER, TAIL GATE STAY
main65778-35010×2iLN145..SCB..CBU;LN167..DSL..CBU;LN145..LHD..DCB..DLX;LN150,152,RZN194..SR;LN145..RHD..DCB..GEN..CBU;LN167..DCB..DLX..DEFI..ARL;RZN169..DLX..(ARL,SA)..CBU;RZN149..DLX..EFI..(ARL,GEN)..CBU;KZN165..(THDCB,THSCB,XTR)..SR..CBU;LN167..(SCB,THDCB,THSCB)..DLX..DEFI..CBU;LN192,RZN144,149,154,169..(CBR,DEFI,DSL)..CBU;KZN165,RZN154..(DCB,SCB,THXTR,XTR)..(ARL,SA)..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH)..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)..CBU199708
65780ALOCK ASSY, TAIL GATE, RH
main65780-04020iLN167..THDCB..DLX;LN147,152,172,RZN149,154..(THDCB,THSCB,THXTR)..CBU;KDN145,150,151,16#,190,LN145,150..(DCB,XTR)..TH..CBU200109-200408
main65780-35030iLN166..LHD..DCB..GEN;RZN149..DCB..SR..GCC;RZN147,149,169..EFI..(ARL,GEN)..CBU;KZN165,LN147,167,17#,RZN148,154,168,174..(ARL,GEN)..CBU199908-200104
65790ALOCK ASSY, TAIL GATE, LH
main65790-04020iLN167..THDCB;LN167..TH..CBU;LN145,172,RZN154,174..(DCB,THXTR)..(ARL,TH)..CBU;KZN165,LN147,150,152,192,RZN149,169..(THDCB,XTR)..CBU200104-200109
main65790-04030iLN147,RZN149..THDCB..SR;LN152,172,RZN154..THXTR..CBU;KDN145,150,151,16#,190,LN145,150..(DCB,XTR)..TH..CBU200109-200408
main65790-35040iRZN169..DCB..ARL;RZN149..DCB..SR..GCC;RZN169..LHD..DCB..GEN;LN167,17#,RZN154,168,174..(DCB,XTR)..CBU199708-199805
main65790-35050iLN152,172,RZN154,VZN172..XTR..ARL..CBU;KZN165,LN147,RZN149,VZN167..DCB..SR..ARL200108-200502
66110FHINGE ASSY, TAIL GATE, RH
66120FHINGE ASSY, TAIL GATE, LH
main66120-89102iLN145..SCB..CBU;LN167..DSL..CBU;LN145..LHD..DCB..DLX;LN150,152,RZN194..SR;LN145..RHD..DCB..GEN..CBU;LN167..DCB..DLX..DEFI..ARL;RZN169..DLX..(ARL,SA)..CBU;RZN149..DLX..EFI..(ARL,GEN)..CBU;KZN165..(THDCB,THSCB,XTR)..SR..CBU;LN167..(SCB,THDCB,THSCB)..DLX..DEFI..CBU;LN192,RZN144,149,154,169..(CBR,DEFI,DSL)..CBU;KZN165,RZN154..(DCB,SCB,THXTR,XTR)..(ARL,SA)..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH)..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)..CBU199708
66170LATCH ASSY, REAR BODY TAIL GATE
main66170-89106×2iLN147,167,RZN149..DCB..ARL;LN141,145,146,166,191,RZN14#,16#,193..(GCC,GEN)..CBU199708-199810
66190HINGE ASSY, TAIL GATE, CENTER
main66190-35010×2iLN145,155,157..SCB..(SA,TH)..CBU;KZN165,190,LN140,167,192,RZN142,147,169,194,YN140..SA199807-200203
66311DHOOK, ROPE
main66311-89109×2iRZN149,169..CBR;KZN165..DCB..DLX;RZN169..ARL..CBU;RZN149..EFI..(ARL,GEN)..CBU;KZN165,RZN144..(SCB,THSCB)..(CBR,TDE)..CBU;LN141,145,146,147,16#,191,RZN142,147,148,168,193..DLX..(ARL,GCC,GEN)..CBU199708-200109
66321ABUMPER, GATE RUBBER
main66321-04030×2iLN167..THDCB..DLX;LN147,152,172,RZN149,154..(THDCB,THSCB,THXTR)..CBU;KDN145,150,151,16#,190,LN145,150..(DCB,XTR)..TH..CBU200109-200408
main66321-89109×2iLN147..DCB..DLX;RZN149,169..(DCB,SCB)..DLX..ARL..CBU;LN167,RZN148,168..(DCB,SCB)..DLX..(ARL,GEN)..CBU;KZN165,LN172,RZN147,154,174..(DCB,SCB,XTR)..ARL..CBU; RZN149..DCB..SR..GCC;RZN148,149,168..CO..CBU200108
68965BSHAFT, TAIL GATE STAY
main68965-04010×4iKZN165..TH..CBU;LN167..THDCB..SR;LN167..THSCB..CBU;KZN165,RZN147,169,174..(THDCB,THSCB,THXTR)..CBU200109-200208
main68965-35010×4iLN167..SCB..CBU;RZN169..DCB..SA;LN167..DCB..DLX..ARL;RZN154,194..RHD..(DCB,SCB,XTR);RZN169..(DCB,SCB)..DLX..(ARL,SA)..CBU;RZN149..(DCB,SCB)..DLX..EFI..(ARL,GEN)..CBU;KZN165,RZN144,149,154,169..(DCB,SCB,XTR)..(CBR,TDE)..(ARL,GCC,GEN,SA)..CBU;KZN190,LN14#,166,17#,19#,RZN142,147,148,168,174,193..(DCB,SCB,XTR)..DLX..(ARL,GCC,GEN,SA)..CBU200104
69090BHANDLE ASSY, TAIL GATE
main69090-89101iRZN149..DCB..SR..GCC;RZN149,169..DCB..ARL;RZN169..LHD..DCB..GEN;LN147,167,17#,RZN154,168,174..(DCB,XTR)..CBU199708-199805
CHROME PLATED PACKAGE
69090CSNAP, TAIL GATE HANDLE
main69759-20100iLN167..SR..ARL;KZN165..TH..CBU;RZN169..ARL..CBU;LN167,RZN147..(SCB,THSCB)..ARL..CBU;KZN165,RZN174..(THDCB,THSCB,THXTR,XTR)..ARL..CBU200108-200208
RED
main69759-20110iRZN169..LHD..GEN;RZN149..DCB..SR..GCC;RZN147,169..ARL..CBU;LN147,167,17#,RZN148,149,154,168,174..DLX..(ARL,GEN)..CBU199708-199805
BLACK
69759DSILENCER, TAIL GATE LOCK LINK
main69759-04070×2iLN167..THDCB..DLX;LN147,152,172,RZN149,154..(THDCB,THSCB,THXTR)..CBU;KDN145,150,151,16#,190,LN145,150..(DCB,XTR)..TH..CBU200109-200408
main69759-35020×2iLN167..DCB..DLX..ARL;KZN165,RZN149,VZN167..(DCB,SCB)..ARL..CBU;LN147,152,172,RZN154,VZN172..(DCB,XTR)..ARL..CBU200108-200502
90105T0034
main90105-T0034
9010906022
main90109-06022
9011906146
main90119-06146
9011908686
main90119-08686
9011908A75
main90119-08A75
9011910510
main90119-10510
9014980020
main90149-80020
9015960535
main90159-60535
9016860009
main90168-60009
9017906016
main90179-06016
9018906010
main90189-06010
9038910042
main90389-10042
9090107002
main90901-07002
91511B0814
main91511-B0814
9165140616
main91651-40616
9165160816
main91651-60816
9326056010
main93260-56010
9333018016
main93330-18016
9461310800
main94613-10800
40 parts on this diagram · 1 diagram in section
