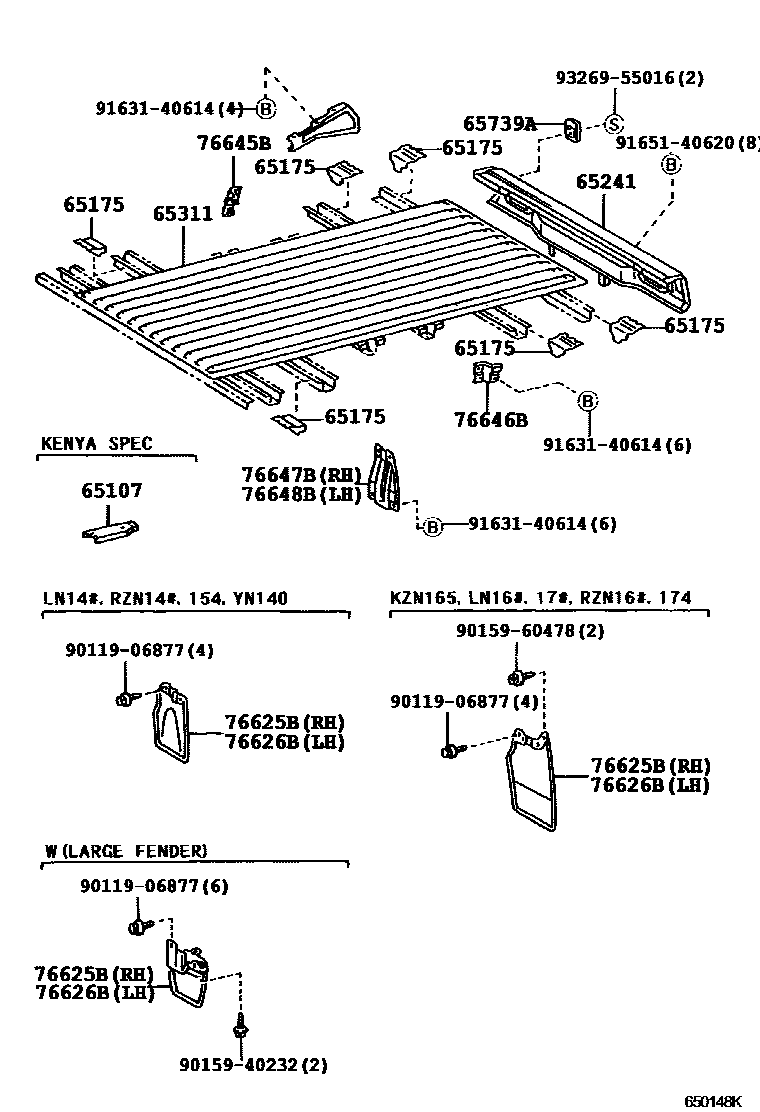

REAR BODY FLOOR & FENDER

0001 1 0003 1

65107BRACKET SUB-ASSY, MOUNTING, NO.4

main65107-89101×2iLN166..RHD;LN145,RZN147..RHD..SCB..GEN199708-199807

65175GUSSET, NO.3 CROSS SILL

main65175-35010×6iRZN169..LHD..DCB..CBR..GEN;RZN148,149,168..DCB..DLX..GEN;LN145,166..RHD..DCB..GEN..CBU; RZN169..LHD..SCB..CBR..GEN;RZN148,149,168..SCB..GEN..CBU;LN145,166..RHD..SCB..GEN..CBU199909

65241SILL, REAR CROSS

main65240-35050iKZN165..THDCB..SR;KZN165..(DCB,SCB)..ARL..CBU;LN147,167,RZN147,149,169..DLX..ARL..CBU; LN145,166,171,191,RZN142,147,148,149,168,193..DLX..GEN..CBU; LN166..GCC200109

main65240-35060iRZN149..SR..GEN;RZN147,169..LHD..GEN199712-200009

CHINA SPEC

main65240-35070iRZN148..GEN..CBU;RZN168..DCB..GEN200108-200304

CHINA SPEC

main65240-35090iLN145..LHD..TH;KZN165..SR..ARL;LN166..SCB..GEN;LN167..THDCB..SR;RZN169..(ARL,GCC,GEN)..CBU;LN167,RZN149,VZN167..(DCB,SCB,THSCB)..(ARL,CO,GCC)..CBU;KDN165,190,LN141,145,RZN142,144,147,148,168..(CO,GCC,GEN,MA)..CBU;LN146,147,152,166,17#,191,RZN154,174,193,VZN172..(DCB,THXTR,XTR)..(ARL,GCC,GEN,MA)..CBU200108

W(STEP BUMPER)

main65240-35100iRZN149..SR..GEN;RZN147,169..LHD..GEN199712-200009

CHINA SPEC & W(STEP BUMPER)

main65240-35110iRZN148..DLX..GEN..CBU;RZN168..DCB..DLX..GEN200009

CHINA SPEC & W(STEP BUMPER)

65311PANEL, FLOOR, CENTER

main65311-04050iRZN154..ARL;LN17#,RZN174..CBU;LN152,RZN154..(CBR,DEFI)..CBU199711-200109

main65311-35050iKZN165..THDCB..SR;LN145..LHD..DLX..TH;RZN149,169..(DCB,THDCB)..DLX..ARL;KZN165,LN145,166..RHD..DCB..(ARL,GEN)..CBU;LN147,167,RZN148,168..(DCB,THDCB)..DLX..(ARL,GEN); LN167..SR..ARL;LN167..DCB..DLX..ARL;RZN149..DCB..(ARL,CO,GCC);KZN165,RZN169..(DCB,THDCB)..(ARL,GCC,GEN)..CBU;KDN145,16#,190,LN145,146,147,166,191,RZN147,148,168,193,VZN167..DCB200108

main65311-89128iLN140,141,RZN142,144200108

main65311-89129iKZN190..SCB..SR;RZN149..(SCB,THSCB)..(ARL,CO,GCC)..CBU;KZN165,LN145,16#,192,RZN147,148,16#,194,VZN167..(SCB,THSCB)..(ARL,CO,GCC,GEN,MA,SA)..CBU200108

65739ABUMPER, TAIL GATE

main65739-04020×2iLN145..RHD..TH;KDN145,15#,LN150,155;LN147,152,167,172,RZN149,154..(THDCB,THSCB,THXTR)..CBU200305-200408

main65739-89103×2iKZN165..THDCB..SR;KZN165..(DCB,SCB)..ARL..CBU;LN147,167,RZN147,149,169..DLX..ARL..CBU; RZN169..DLX..SA;RZN147,149..GEN,SA;KZN190,LN167,171,192,RZN142..(SCB,XTR)..(GEN,SA);LN145,166,191,RZN148,168,193..DLX..(GCC,GEN)..CBU200109-200203

76625BMUDGUARD, REAR BODY, RH

main76607-35050iKZN165,190,RZN169,194..DCB..SR..SA200108-200504

W(LARGE FENDER)

main76607-35060iKZN165,VZN167..DCB..SR..ARL200109-200502

W(LARGE FENDER)

main76625-04120iLN145,15#..TH..CBU;LN147,RZN147,149,154..(THDCB,THSCB,THXTR)..CBU200104-200109

main76625-04130iKZN165,LN167,192..(THDCB,THSCB,XTR)..CBU;LN172,RZN169,174..(THDCB,THSCB,THXTR)..CBU200104-200109

main76625-35140iLN167..DCB..SR..ARL;RZN169..(DCB,SCB)..ARL..CBU;LN167,RZN174..(SCB,XTR)..ARL..CBU200108-200208

main76625-35150iLN140,145,RZN142,147..SA200108-200504

76626BMUDGUARD, REAR BODY, LH

main76608-35050iLN166,RZN169..DCB..(CBR,EFI)..GEN; LN166..DCB..DSL..GEN200108-200506

NEW ZEALAND SPEC & W(LARGE FENDER); W(LARGE FENDER)

main76608-35060iKZN165..THDCB..SR;LN167,RZN169..SR..ARL200109-200208

W(LARGE FENDER)

main76626-04120iRZN147..THSCB..CBU200109-200208

main76626-04130iLN167,172..(THDCB,THXTR)..DLX..CBU200109-200408

main76626-35140iLN16#,17#,19#,RZN16#,174,193..(ARL,GCC,GEN,SA)..CBU199808-199812

main76626-35150iRZN149..(DCB,SCB)..ARL..CBU;LN147,152,RZN154..(DCB,XTR)..ARL..CBU200108-200502

76645BBRACKET, REAR BODY MUDGUARD, RH

main76645-35020iKZN165,190,RZN194..SR..SA;LN140,145,167,192,RZN142,147,169..SA200108-200504

76646BBRACKET, REAR BODY MUDGUARD, LH

main76646-35010iRZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU;RZN148,149,168..DLX..GEN..CBU200203

76647BSUPPORT, REAR BODY MUDGUARD, RH

main76647-35050iLN145,166,171,191,RZN142,147,148,149,168,193..DLX..GEN..CBU; LN145..LHD..DLX..TH;LN147,RZN149..DLX..ARL..CBU;KZN165,LN141,146,16#,172,RZN142,147,154..(ARL,GCC)..CBU200310

76648BSUPPORT, REAR BODY MUDGUARD, LH

main76648-35040iLN167..SR..ARL;KZN165..DCB..TH;RZN169..ARL..CBU;LN167,RZN147..(SCB,THSCB)..ARL..CBU;KZN165,RZN174..(THDCB,THSCB,THXTR,XTR)..ARL..CBU200108-200208

9011906877

main90119-06877

9015940232

main90159-40232

9015960478

main90159-60478

9163140614

main91631-40614

9165140620

main91651-40620

9326955016

main93269-55016

17 parts on this diagram · 2 diagrams in section
