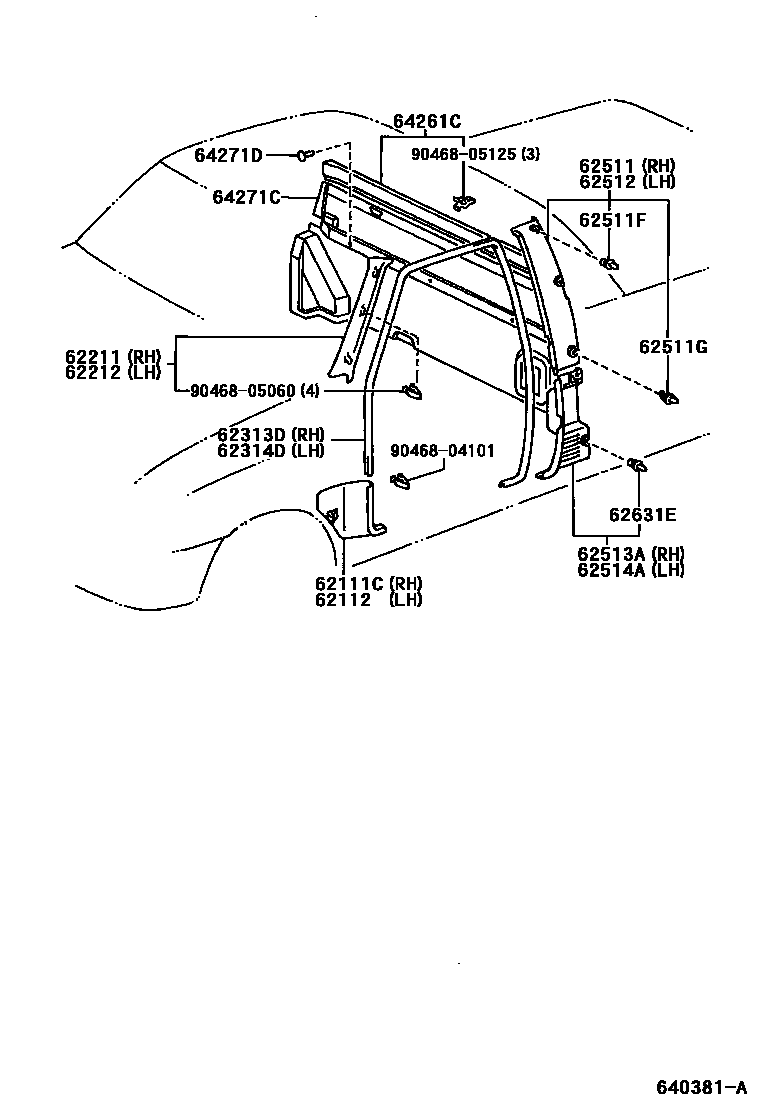

INSIDE TRIM BOARD

0001 1 0002 1 0003 1

62111CBOARD, COWL SIDE TRIM, RH

main62111-35020-B0iLN167..THDCB..DLX;LN147,167..THSCB..IV3;LN147,152..(THDCB,THXTR)..CBU;LN172,RZN149,154..THDCB,THSCB,THXTR200108-200502

MD.MOON MIST,TRIM1#

main62111-35020-D0iLN141,146,166,RZN142,144,147,149,169..GCC199708-200108

RED,TRIM3#

main62111-35040-B0iKZN165..THDCB..SR200109-200208

MD.MOON MIST,TRIM1#

62112BOARD, COWL SIDE TRIM, LH

main62112-35040-B0iLN167..THDCB..DLX;LN147,167..THSCB..IV3;LN147,152..(THDCB,THXTR)..CBU;LN172,RZN149,154..THDCB,THSCB,THXTR200108-200502

MD.MOON MIST,TRIM1#

main62112-35040-D0iLN141,146,166,RZN142,144,147,149,169..GCC199708-200108

RED,TRIM3#

main62112-35050-B0iKZN165..THDCB..SR200109-200208

MD.MOON MIST,TRIM1#

62211GARNISH, FRONT PILLAR, RH

main62211-04080-B0iLN145,15#..TH..CBU;KZN165,LN147,152,167,172,RZN147,149,154,169,174..THDCB,THSCB,THXTR200104-200109

MD.MOON MIST,TRIM1#

main62211-04080-E0iKDN145,150,151200110-200403

SANDAL WOOD,TRIM4#

main62211-35050-B0iKZN165,190,LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA199708-200104

MD.MOON MIST,TRIM1#

main62211-35050-D0iLN141,146,166,RZN142,144,147,149,169..GCC199708-200108

RED,TRIM3#

62212GARNISH, FRONT PILLAR, LH

main62212-04090-B0iKDN145,150200109-200208

MD.MOON MIST,TRIM1#

main62212-04090-E0iKDN145,150,151200110-200403

SANDAL WOOD,TRIM4#

main62212-35050-B0iKZN165,190,RZN194..SR..SA;LN140,145,167,192,RZN142,147,169..SA200108-200207

MD.MOON MIST,TRIM1#

main62212-35050-D0iLN141,146,166,RZN142,144,147,149,169..GCC199708-200108

RED,TRIM3#

62313DTRIM, FRONT DOOR OPENING, RH

main62313-04040-B0iKDN155,LN155;KZN165,LN147,167,RZN147,149,169..THSCB200109-200403

MD.MOON MIST,TRIM1#

main62313-04050-B0iKZN165,LN145..DCB..TH;KZN165,LN147,167,RZN149,169..THDCB200109-200403

MD.MOON MIST,TRIM1#

main62313-04050-E0iKDN145,16#,190..DCB..TH200110-200403

SANDAL WOOD,TRIM4#

main62313-04060-B0iKZN165,LN150..XTR..CBU;LN152,172,RZN154,174..THXTR200109-200403

MD.MOON MIST,TRIM1#

main62313-04060-E0iKDN150,151,16#,190..XTR..CBU200110-200403

SANDAL WOOD,TRIM4#

main62313-35010-B0iLN167,192,RZN147,194..(DCB,SADCB)..SA199708-200010

TYPE A:REFER TO ILLUSTRATION,MD.MOON MIST,TRIM1#

main62313-35010-D0iLN146,166,RZN147,149,169..DCB..GCC199708-200108

TYPE A:REFER TO ILLUSTRATION,RED,TRIM3#

main62313-35020-B0iKZN165,LN147,167,RZN147,149,169..SCB..DLX..(DEFI,EFI,TDE)..ARL199708-200109

MD.MOON MIST,TRIM1#

main62313-35020-D0iLN141,RZN142,144,147,149,169..SCB..GCC199708-200108

RED,TRIM3#

main62313-35021-B0iKZN165,LN147,167,RZN149,VZN167..SCB..ARL200312-200501

MD.MOON MIST,TRIM1#

main62313-35021-D0iLN141,RZN142,144,147,149,169..SCB..GCC200312

RED,TRIM3#

main62313-35030-B0iLN152,172..ARL199711-200009

MD.MOON MIST,TRIM1#

main62313-35040-B0iKZN190..DCB..SR;RZN149..DCB..(ARL,CO,GCC);KDN165,190,KZN165,LN145,146,147,16#,191,RZN147,148,16#,19#,VZN167..DCB..(ARL,CO,GCC,GEN,MA,SA)200108-200308

TYPE B:REFER TO ILLUSTRATION,MD.MOON MIST,TRIM1#

main62313-35040-D0iLN146,166,RZN147,149,169..DCB..GCC200108-200308

TYPE B:REFER TO ILLUSTRATION,RED,TRIM3#

main62313-35041-B0iRZN149..DCB..(CO,GCC);KDN165,190,KZN165,190,LN145,146,16#,191,RZN147,148,16#,19#..DCB..(CO,GCC,GEN,MA,SA)200312

TYPE B:REFER TO ILLUSTRATION,MD.MOON MIST,TRIM1#

main62313-35041-D0iLN146,166,RZN147,149,169..DCB..GCC200312

TYPE B:REFER TO ILLUSTRATION,RED,TRIM3#

main62313-35050-B0iLN152,17#,RZN154,VZN172..XTR200308-200312

MD.MOON MIST,TRIM1#

main62313-35051-B0iLN152,172,RZN154,VZN172..XTR..ARL200312-200501

MD.MOON MIST,TRIM1#

62314DTRIM, FRONT DOOR OPENING, LH

main62313-04040-B0iKDN155,LN155;KZN165,LN147,167,RZN147,149,169..THSCB200109-200403

MD.MOON MIST,TRIM1#

main62313-35020-B0iLN145..LHD..IV3;RZN148,149..SCB..(ARL,CO,GCC);LN145,RZN148..SCB..(GEN,SA)..CBU;KZN165,190,LN140,141,147,16#,192,RZN142,144,147,16#,194,VZN167..SCB200308-200312

MD.MOON MIST,TRIM1#

main62313-35020-D0iLN141,RZN142,144,147,149,169..SCB..GCC200108-200308

RED,TRIM3#

main62313-35021-B0iLN145,166,RZN147..RHD..SCB..GEN; RZN148,149,168..SCB..GEN200404

MD.MOON MIST,TRIM1#

main62313-35021-D0iLN141,RZN142,144,147,149,169..SCB..GCC200312

RED,TRIM3#

main62314-04020-B0iKZN165,LN145..DCB..TH;KZN165,LN147,167,RZN149,169..THDCB200109-200403

MD.MOON MIST,TRIM1#

main62314-04020-E0iKDN145,16#,190..DCB..TH200110-200403

SANDAL WOOD,TRIM4#

main62314-04030-B0iKZN165,LN150..XTR..CBU;LN152,172,RZN154,174..THXTR200109-200403

MD.MOON MIST,TRIM1#

main62314-04030-E0iKDN150,151,16#,190..XTR..CBU200110-200403

SANDAL WOOD,TRIM4#

main62314-35010-B0iKZN165,190,RZN169,194..DCB..SA199708-200203

TYPE A:REFER TO ILLUSTRATION,MD.MOON MIST,TRIM1#

main62314-35010-D0iLN146,166,RZN147,149,169..DCB..GCC199708-200108

TYPE A:REFER TO ILLUSTRATION,RED,TRIM3#

main62314-35030-B0iLN152,172,RZN154,174..XTR..(DEFI,EFI)..ARL199711-200109

MD.MOON MIST,TRIM1#

main62314-35040-B0iKZN190..DCB..SR;RZN149..DCB..(ARL,CO,GCC);KDN165,190,KZN165,LN145,146,147,16#,191,RZN147,148,16#,19#,VZN167..DCB..(ARL,CO,GCC,GEN,MA,SA)200108-200308

TYPE B:REFER TO ILLUSTRATION,MD.MOON MIST,TRIM1#

main62314-35040-D0iLN146,166,RZN147,149,169..DCB..GCC200108-200308

TYPE B:REFER TO ILLUSTRATION,RED,TRIM3#

main62314-35041-B0iRZN149..DCB..(CO,GCC);KDN165,190,KZN165,190,LN145,146,16#,191,RZN147,148,16#,19#..DCB..(CO,GCC,GEN,MA,SA)200312

TYPE B:REFER TO ILLUSTRATION,MD.MOON MIST,TRIM1#

main62314-35041-D0iLN146,166,RZN147,149,169..DCB..GCC200312

TYPE B:REFER TO ILLUSTRATION,RED,TRIM3#

main62314-35050-B0iLN152..XTR..ARL..CBU;LN17#,RZN154,174,VZN172..XTR200108-200308

MD.MOON MIST,TRIM1#

main62314-35051-B0iLN171,RZN154..GEN200312-200506

MD.MOON MIST,TRIM1#

62511BOARD, QUARTER INSIDE TRIM, RH

main62511-35070-B0iLN141,RZN142,144,147..SCB..DLX..GCC; RZN148,168..SCB..GEN..CBU;LN145,166,RZN147..RHD..SCB..GEN..CBU200208

MD.MOON MIST,TRIM1#

main62511-35070-D0iRZN144,149..SCB..SR199708-200108

RED,TRIM3#

main62511-35080-B0iRZN154..CBR;RZN154..ARL;LN152,17#,RZN174..DLX199711-200109

MD.MOON MIST,TRIM1#

main62511-35090-B0iLN171,RZN154..GEN199805-200108

W(SPEAKER),MD.MOON MIST,TRIM1#

main62511-35100-B0iRZN154..GEN;LN171,RZN174;LN152..THXTR..CBU;LN172,RZN154..THXTR200108-200506

W(REAR SEAT BELT),MD.MOON MIST,TRIM1#

main62511-35120-B0iKDN145,165,190..DCB200108-200208

MD.MOON MIST,TRIM1#

main62511-35120-D0iRZN149..DCB..SR..GCC199708-200108

W(REAR SEAT BELT),RED,TRIM3#

main62511-35120-E0iKDN145,16#,190..DCB..TH200110-200408

SANDAL WOOD,TRIM4#

main62511-35130-B0iRZN149..SR..GEN;RZN16#..LHD..DCB..GEN199708-199805

MD.MOON MIST,TRIM1#

main62511-35140-B0iLN171,RZN154..GEN199805-200108

W(REAR SEAT BELT & SPEAKER),MD.MOON MIST,TRIM1#

62511FRETAINER (FOR QUARTER INSIDE TRIM BOARD)

main67771-12050×4iRZN144..SR;RZN149..SCB;LN145,147,16#,RZN142,147,148,16#..SCB..(ARL,GEN); RZN149..DCB..SR;RZN169..LHD..DCB..GEN;LN147,167,RZN149,16#..DCB..(DSL,EFI)199708-199805

main67771-30070×2iKDN16#,190..SRWGN200208-200402

TYPE A:REFER ILLUST.

main67771-32090×14iKDN16#,190..SRWGN200208-200402

TYPE B:REFER ILLUST.

main67771-89110×12iKZN165,LN150,152,167,192..XTR..CBU199812-200109

62511GCLIP (FOR QUARTER INSIDE TRIM BOARD)

main90467-09158×2iRZN144..SR;RZN149..SCB;LN145,147,16#,RZN142,147,148,16#..SCB..(ARL,GEN)199708-199805

62512BOARD, QUARTER INSIDE TRIM, LH

main62512-35070-B0iLN141,RZN142,144,147..SCB..DLX..GCC; RZN148,168..SCB..GEN..CBU;LN145,166,RZN147..RHD..SCB..GEN..CBU200208

MD.MOON MIST,TRIM1#

main62512-35070-D0iRZN169..SCB..GCC;RZN144,149..SCB..SR200108

RED,TRIM3#

main62512-35080-B0iLN152..XTR..ARL..CBU;LN172,RZN154,VZN172..XTR..ARL200108-200501

MD.MOON MIST,TRIM1#

main62512-35090-B0iLN171,RZN154..GEN199805-200108

W(SPEAKER),MD.MOON MIST,TRIM1#

main62512-35100-B0iRZN154..CBR;RZN154..ARL;LN152,17#,RZN174..DLX199711-200109

W(REAR SEAT BELT),MD.MOON MIST,TRIM1#

main62512-35120-B0iKZN165,LN166,RZN148,149,16#,194..DCB..SR..(GCC,GEN,SA); KZN165,RZN169,194..DCB..SA;KZN190,RZN148,168..DCB..DLX..(GEN,SA)200108

W(REAR SEAT BELT),MD.MOON MIST,TRIM1#

main62512-35120-D0iRZN149..DCB..SR..GCC200108

W(REAR SEAT BELT),RED,TRIM3#

main62512-35120-E0iKDN145,16#,190..DCB..TH200110-200408

SANDAL WOOD,TRIM4#

main62512-35130-B0iLN166,RZN148,16#..SR..GEN200108-200506

MD.MOON MIST,TRIM1#

main62512-35140-B0iLN171,RZN154..GEN199805-200108

W(REAR SEAT BELT ANCHOR & SPEAKER),MD.MOON MIST,TRIM1#

62513APANEL, QUARTER TRIM, LOWER RH

main62513-04010-B0iKDN155,LN155;KZN165,LN147,167,RZN147,149,169..THSCB200109-200403

MD.MOON MIST,TRIM1#

main62513-35010-B0iLN147,167..SCB..IV3;KZN165,RZN149,VZN167..SCB..ARL200108-200501

MD.MOON MIST,TRIM1#

main62513-35010-D0iLN141,RZN142,144,147,149,169..SCB..GCC199708-200108

RED,TRIM3#

62514APANEL, QUARTER TRIM, LOWER LH

main62514-04010-B0iKDN155,LN155;KZN165,LN147,167,RZN147,149,169..THSCB200109-200403

MD.MOON MIST,TRIM1#

main62514-35010-B0iLN147,167..SCB..IV3;KZN165,RZN149,VZN167..SCB..ARL200108-200501

MD.MOON MIST,TRIM1#

main62514-35010-D0iLN141,RZN142,144,147,149,169..SCB..GCC200108

RED,TRIM3#

62631ERETAINER, QUATER TRIM

main67771-12050×4iKZN165..SCB;KZN165..THSCB..SR;RZN169..(SCB,THSCB)..DLX..(ARL,SA);LN140,RZN147,148,168,194..(SCB,THSCB)..(ARL,GCC,GEN,SA);KZN190,RZN149..(SCB,THSCB)..DLX..(EFI,TDE)..(ARL,GEN,SA);LN141,145,147,155,157,16#,192,RZN142,144,149,169,YN140..(SCB,THSCB)..(CBR,DEFI,DSL)..(ARL,GCC,GEN,SA,TH)..(CBU,IV3)199708

64261CGARNISH, BACK PANEL, UPPER

main64261-35030-B0iLN152..XTR..ARL..CBU;LN172,RZN154,VZN172..XTR..ARL200108-200501

MD.MOON MIST,TRIM1#

main64261-35040-B0iLN141,RZN142,144,147..SCB..DLX..GCC; RZN148,168..DLX..GEN..CBU;LN145,166,RZN147..RHD..SCB..GEN..CBU200208

MD.MOON MIST,TRIM1#

main64261-35040-D0iRZN144,149..SR..GCC199708-200108

RED,TRIM3#

main64261-35040-E0iKDN145,16#,190..DCB..TH200110-200408

SANDAL WOOD,TRIM4#

64271CTRIM, BACK PANEL

main64270-04020-B0iLN152,172,RZN154,174..THXTR199808-200109

MEDIUM MOONMIST,TRIM1#

main64270-04030-B1iLN152,172,RZN154,174..THXTR200109-200502

MOONMIST,TRIM1#

main64270-35080-B1iLN152,17#,RZN154,174..XTR..DLX199711-200108

MEDIUM MOONMIST,TRIM1#

main64270-35090-B2iLN152..XTR..ARL..CBU;LN17#,RZN154,174,VZN172..XTR200108-200506

MD.MOON MIST,TRIM1#

main64271-35010-B0iRZN169..(SCB,THSCB)..ARL;RZN148,168..SCB..GEN..CBU;LN145..RHD..SCB..GEN..CBU;KZN165,LN166,RZN194..RHD..SCB;LN147,167,RZN147,149..RHD..(SCB,THSCB)..(ARL,GEN)200108-200208

MEDIUM MOONMIST,TRIM1#

main64271-35010-D0iRZN169..SCB..GCC;RZN144,149..SCB..SR200108-200508

RED,TRIM3#

64271DCLIP(FOR BACK PANEL TRIM)

main90467-05027-B0×3iLN141,RZN142,144,147..SCB..DLX..GCC200208

MD.MOON MIST,TRIM10

main90467-05027-B3×3iKZN165,LN147,167,RZN147,149,169..SCB..ARL; RZN148,168..SCB..CBU;LN145,166,RZN147..RHD..SCB..GEN..CBU200108-200109

LT.BLUISH GRAY,TRIM1#; LT.BLUISH GRAY,TRIM10

main90467-05027-D0×3iRZN169..SCB..GCC;RZN144,149..SCB..SR199805-200108

RED,TRIM3#

9046804101

main90468-04101

9046805060

main90468-05060

9046805125

main90468-05125

19 parts on this diagram · 3 diagrams in section
