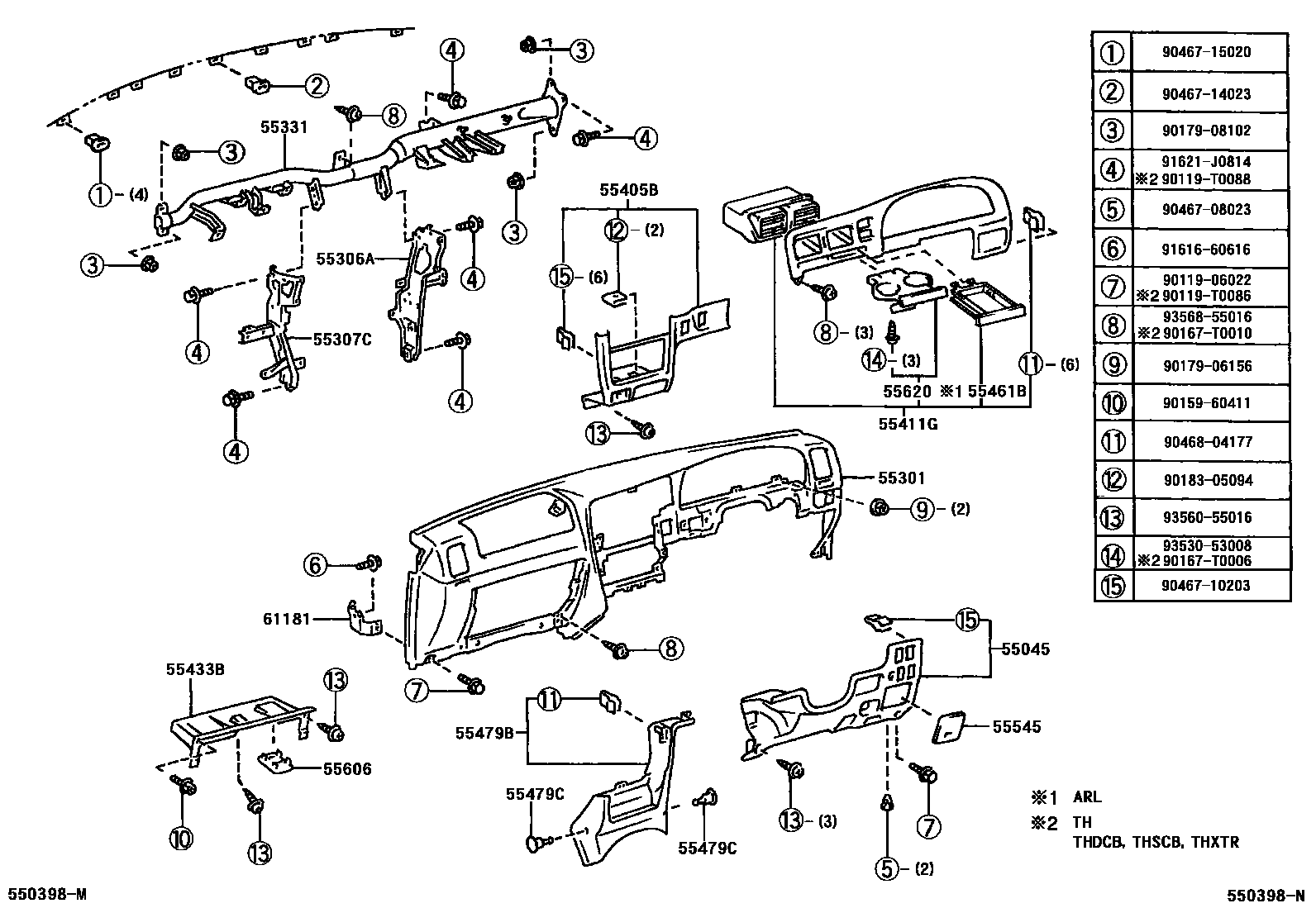

INSTRUMENT PANEL & GLOVE COMPARTMENT
55045PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER
main55045-35040-B0iLN167..SR..ARL;RZN147,169..ARL;LN167..(SCB,THSCB)..ARL..CBU;KZN165,RZN174..(THDCB,THSCB,THXTR,XTR)..ARL200108-200208
MD.MOON MIST,TRIM1#
MD.MOON MIST,TRIM1#
RED,TRIM3#
MD.MOON MIST,TRIM1#
RED,TRIM3#
55301PANEL SUB-ASSY, INSTRUMENT
main55301-35090-B0iKZN190..SR;RZN194..DCB;RZN169..SCB..SR;LN167,192,RZN142..SA; RZN169..DLX..SA;LN140,145,RZN147,194..SCB..SA200108-200504
MD.MOON MIST,TRIM1#; W(HEATER & BOOST VENTILATOR),MD.MOON MIST,TRIM1#
main55301-35100-B0iLN167..IV3;RZN149..SR..ARL;KZN165..(DCB,SCB)..ARL;LN147,152,172,VZN167,172;LN167..(DCB,THDCB)..DLX..ARL; RZN149,154..DLX..ARL200109-200502
W(*80,DRIVER SIDE & PASSENGER SIDE & HEATER & BOOST VENTILATOR),MD.MOON MIST,TRIM1#; W(*80,DRIVER SIDE & PASSENGER SIDE),MD.MOON MIST,TRIM1#
main55301-35110-B0iKZN165..THDCB,THSCB;LN167,RZN169..SR..ARL;LN167..(SCB,THSCB)..ARL..CBU; RZN147,169,174..DLX..ARL200108-200208
W(INSTRUMENT PANEL UPPER BOX & HEATER & BOOST VENTILATOR),MD.MOON MIST,TRIM1#; W(INSTRUMENT PANEL UPPER BOX),MD.MOON MIST,TRIM1#
main55301-35120-B0iRZN149..CBR..GCC;RZN148,149..MTM..DLX..GEN..CBU;LN145,166,RZN168,193..LHD..DLX..(GCC,GEN,TH);LN141,146,155,171,191,RZN142,144,147,154,169..LHD..(CBR,DSL); RZN149..SR..GEN;RZN148..GEN..IV3;RZN149..EFI..GEN199708
MD.MOON MIST,TRIM1#; W(HEATER & BOOST VENTILATOR),MD.MOON MIST,TRIM1#
RED,TRIM3#; W(HEATER & BOOST VENTILATOR),RED,TRIM3#
W(*80,DRIVER SIDE & PASSENGER SIDE & HEATER & BOOST VENTILATOR),MD.MOON MIST,TRIM1#; W(*80,DRIVER SIDE & PASSENGER SIDE),MD.MOON MIST,TRIM1#
W(*80,DRIVER SIDE & PASSENGER SIDE & HEATER & BOOST VENTILATOR),RED,TRIM3#; W(*80,DRIVER SIDE & PASSENGER SIDE),RED,TRIM3#
W(INSTRUMENT PANEL UPPER BOX & HEATER & BOOST VENTILATOR),MD.MOON MIST,TRIM1#; W(INSTRUMENT PANEL UPPER BOX),MD.MOON MIST,TRIM1#
W(INSTRUMENT PANEL UPPER BOX & HEATER & BOOST VENTILATOR),RED,TRIM3#; W(INSTRUMENT PANEL UPPER BOX),RED,TRIM3#
W/O(HEATER),MD.MOON MIST,TRIM1#
W/O(HEATER),RED,TRIM3#
W(*80,DRIVER SIDE & PASSENGER SIDE),MD.MOON MIST,TRIM1#; W/O(HEATER) & W(*80,DRIVER SIDE & PASSENGER SIDE),MD.MOON MIST,TRIM1#
W(*80,DRIVER SIDE & PASSENGER SIDE),RED,TRIM3#; W/O(HEATER) & W(*80,DRIVER SIDE & PASSENGER SIDE),RED,TRIM3#
W(INSTRUMENT PANEL UPPER BOX),MD.MOON MIST,TRIM1#; W/O(HEATER) & W(INSTRUMENT PANEL UPPER BOX),MD.MOON MIST,TRIM1#
W(INSTRUMENT PANEL UPPER BOX),RED,TRIM3#; W/O(HEATER) & W(INSTRUMENT PANEL UPPER BOX),RED,TRIM3#
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
W(ANTI-THEFT DEVICE)
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
main55307-04040iLN152..CBU;LN167..DCB..TH;KZN165,LN147,150,167,192,RZN147,149,169..THDCB,THSCB,XTR;LN145,152,155,157,172,RZN154,174..RHD..(SCB,THXTR)..(ARL,TH)199808-200109
main55307-35040iLN152..XTR..IV3;RZN169..DCB..SA;RZN169..(DCB,SCB)..DLX..(ARL,SA);KZN165,LN167..SCB..DLX..(DEFI,TDE);LN167,RZN169..RHD..(DCB,SCB)..(CBR,DSL);KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;KZN190,LN140,145,147,166,172,192,RZN142,147,149,154,174,YN140..RHD..(DCB,SCB,XTR)..DLX..(ARL,GEN,SA)199708
55331REINFORCEMENT, INSTRUMENT PANEL
main55330-04050iLN152..CBU;LN147,150,167,192,RZN147,149,169..THDCB,THSCB,XTR;LN145,152,155,157,172,RZN154,174..RHD..(SCB,THXTR)..(ARL,TH)199806-199908
main55330-35070iLN140,145,147,152,16#,172,192,RZN147,149,154,169,174,194,YN140..RHD..(DCB,SCB,XTR)..(ARL,GEN,SA)199708-199908
main55330-35071iLN147,167..SCB..IV3;LN167..DCB..DLX..ARL;LN147,152..(DCB,XTR)..ARL..CBU;KZN165,LN172,RZN149,154,VZN167,172..(DCB,SCB,XTR)..ARL200108-200501
55405BPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER
main55405-04040iLN167..THDCB..DLX;LN167..THSCB..IV3;LN147,152,172,RZN149,154..THDCB,THSCB,THXTR;KDN145,15#,16#,190,LN145,150,155..RHD..(DCB,SCB,XTR)..TH..CBU200109-200408
55411GPANEL, INSTRUMENT CLUSTER FINISH, NO.1
W(CARD HOLDER)
main55404-35110iLN141,146,166,RZN142,147..GCC; RZN144,169..GCC;RZN149..SCB..GCC;RZN168..DLX..CO..CBU;RZN148,149..DCB..(CO,GCC)200108
W(CUP HOLDER & HEATER); W(CUP HOLDER)
W(HEATER)
main55404-35170iLN152..XTR..IV3;KZN165..SR..(ARL,SA);KZN190,LN172,192..(SCB,THXTR,XTR)..DLX..(DEFI,TDE);LN147,152,167..(DCB,SCB,THDCB,THSCB,THXTR)..DLX..DEFI199811-200102
W(CUP HOLDER)
W(CUP HOLDER)
main55404-35190iRZN148..DLX..GEN..CBU;LN145,166,171,191,RZN142,147,168,193..LHD..DLX..GEN; RZN169..LHD..GEN;LN166,RZN148,168..SR..GEN200108-200506
W(HEATER)
main55404-35200iLN167..SCB..IV3;KZN165..DCB..ARL;LN167..DCB..DLX..ARL;RZN149..DCB..ATM..ARL;RZN149..(DCB,SCB)..MTM..ARL;LN147,152,172,RZN154,VZN167,172..(DCB,SCB,XTR)..ARL200109-200501
W(CARD HOLDER)
W(*80,DRIVER SIDE & PASSENGER SIDE); W/O(HEATER)
W(CUP HOLDER); W/O(HEATER) & W(CUP HOLDER)
55433BPANEL, INSTRUMENT PANEL FINISH, LOWER NO.2
55461BBOX, INSTRUMENT PANEL, CENTER
main55461-35040iLN167..DCB..SR;RZN169..(DCB,SCB)..ARL;LN167,RZN174..(SCB,XTR)..ARL..CBU200109-200208
55479BCOVER, INSTRUMENT, LOWER CENTER
MD.MOON MIST,TRIM1#
MD.MOON MIST,TRIM1#
RED,TRIM3#
COLD SPEC,MD.MOON MIST,TRIM1#
55479CCLIP(FOR INSTRUMENT LOWER COVER)
main90467-07041×2iLN145..GEN..CBU;LN145..LHD..IV3;LN145,155..LHD..TH;KZN165,LN147,152,16#,17#,191,RZN142,147,148,149,154,16#,193,VZN167,172..(DCB,SCB,XTR)..(ARL,CO,GEN,MA)200210-200303
main90467-07041-B5×2iLN145,166..RHD..GEN;RZN147..RHD..SCB..GEN;RZN148,149,168..DLX..GEN200210-200212
MD.MOON MIST,TRIM1#
RED,TRIM3#
SANDAL WOOD,TRIM4#
RED,TRIM3#
SANDAL WOOD,TRIM4#
main90467-07076-P4×2iLN141,146,166,RZN14#,16#..CO,GCC; LN145,166..RHD..GEN;RZN147..RHD..SCB..GEN;RZN148,149,168..DLX..GEN200303
MD.MOON MIST,TRIM1#
55545COVER, FUSE BOX OPENING
main55545-04080-B0iLN167..THDCB..DLX;LN167..THSCB..IV3;KDN155,LN145,150,155..RHD..TH;LN147,152,172,RZN149,154..THDCB,THSCB,THXTR200109-200408
MD.MOON MIST,TRIM1#
SANDAL WOOD,TRIM4#
main55545-35010-B0iLN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU200108-200506
MD.MOON MIST,TRIM1#
RED,TRIM3#
55606COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1
W(*80,DRIVER SIDE)
main55606-60010iLN167..THDCB..DLX;LN167..THSCB..IV3;LN147,152,172,RZN149,154..(THDCB,THSCB,THXTR)..DLX200109-200408
55620HOLDER ASSY, INSTRUMENT PANEL CUP
main55620-34010iRZN148..GEN..CBU;LN145,166,171,191,RZN142,147,154,16#,193..LHD..DLX..GEN; RZN149..SCB..GCC;RZN168..DLX..CO..CBU;RZN148,149..DCB..(CO,GCC);LN141,146,166,RZN142,144,147,169..GCC200108
61181BRACKET, INSTRUMENT PANEL SIDE
main61181-35010iRZN149..EFI..GEN;LN145,166,RZN148,168,193..LHD..DLX..(GCC,GEN,TH);LN141,146,155,171,191,RZN142,144,147,149,154,169..LHD..(CBR,DSL)199708
9011906022
main90119-06022
90119T0086
main90119-T0086
90119T0088
main90119-T0088
9015960411
main90159-60411
90167T0006
main90167-T0006
90167T0010
main90167-T0010
9017906156
main90179-06156
9017908102
main90179-08102
9018305094
main90183-05094
9046708023
main90467-08023
9046710203
main90467-10203
9046714023
main90467-14023
9046715020
main90467-15020
9046804177
main90468-04177
9161660616
main91616-60616
91621J0814
main91621-J0814
9353053008
main93530-53008
9356055016
main93560-55016
9356855016
main93568-55016
34 parts on this diagram · 4 diagrams in section
