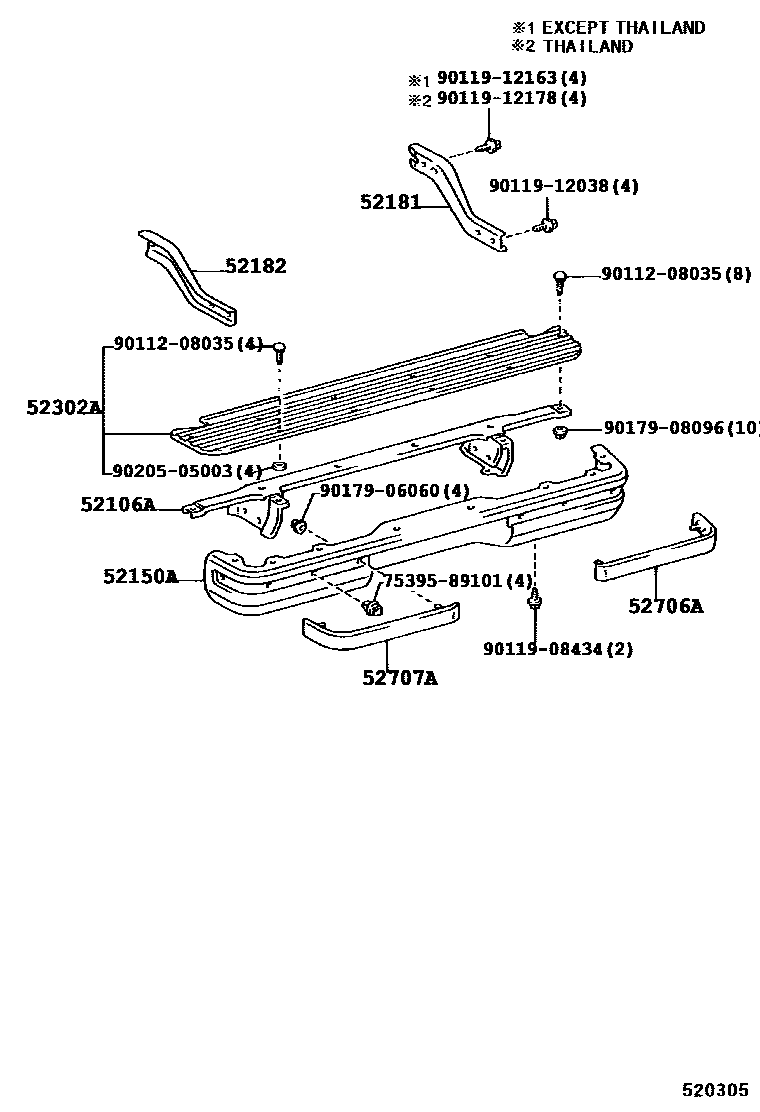

REAR BUMPER & BUMPER STAY

0001 1FLAT STEP BUMPER 0002 1STEP BUMPER 0004 1

52106AREINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-35010iRZN149..SR;RZN149..DLX..GCC;LN141,146,RZN142,144,147..GCC199708-200108

52150ABUMPER ASSY, REAR

main52105-04040iLN167..THDCB..DLX;LN145,155..LHD..DLX..TH;KDN151,16#,190..(DCB,XTR)..TH..CBU;LN147,152,172,RZN149,154..(THDCB,THSCB,THXTR)..CBU200109-200408

main52105-04050iKDN16#,190,LN145..(DCB,XTR)..SR..CBU200109-200408

CHROME PLATED

main52105-04060iRZN169..THDCB;KZN165,LN167..THDCB..SR200109-200208

CHROME PLATED

main52105-35180iRZN149..CO;LN141,146,166,RZN142,147,148,16#..DLX..(CO,GCC)..CBU200108

GRAY METALLIC

main52105-35190iRZN142,147,149..GEN;LN147,167,RZN149,169..DCB..ARL;LN145,166,191,RZN148,16#,193..GCC,GEN199708-199711

CHROME PLATED

main52105-35200-F0iLN166,RZN148,16#..SR..GEN200108-200506

CHAMPAGNE M.M.,587

main52105-35210iLN145..DCB..IV3;LN145..LHD..IV3;RZN142,147,149..CBR..GEN;KZN165..SR..(ARL,TH)..CBU;LN145,166,RZN148,16#..(GCC,GEN)..CBU;LN145,RZN149,169..(DCB,THDCB)..(ARL,TH);LN147,167,171,19#,RZN154,193..(DCB,THDCB,THXTR,XTR)..MTM..(ARL,GEN,TH)..CBU199711-200104

CHROME PLATED

main52105-35320iRZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU;RZN148,168..DLX..GEN..CBU; RZN168..SR..CO;LN166,RZN169..GCC200109

CHROME PLATED

main52105-89111iLN141,146,RZN142,144,147,149..GCC200108

W(FLAT STEP BUMPER)

52181ARM, REAR BUMPER, RH

main52181-04010iLN167..THDCB..DLX;LN145,155..LHD..TH;KDN16#,190..DCB..TH;LN147,RZN149..(THDCB,THSCB)..CBU200109-200408

main52181-04020iKDN151,16#,190..XTR..CBU;LN152,172,RZN154..THXTR..CBU200109-200408

main52181-35040iLN145..LHD..IV3;LN145,166,191,RZN147,148,16#,193..GEN..CBU200108-200506

main52181-35050iRZN142..LHD;LN140,141,RZN144..CBR,DSL199708-200203

main52181-35060iLN171,RZN154..GEN200108-200506

52182ARM, REAR BUMPER, LH

main52182-04010iLN167..DCB..TH;LN145,155..LHD..TH;KZN165,LN147,167,RZN149,169..(THDCB,THSCB)..CBU200104-200109

main52182-04020iKDN151,16#,190..XTR..CBU;LN152,172,RZN154..THXTR..CBU200109-200408

main52182-35040iLN145..LHD..IV3;LN145,166,191,RZN147,148,16#,193..GEN..CBU200108-200506

main52182-35050iRZN142..LHD;LN140,141,RZN144..CBR,DSL199708-200203

main52182-35060iRZN174..XTR200108-200208

52302ASTEP SUB-ASSY, REAR BUMPER

main52302-89101iRZN149..SR;RZN149..DLX..GCC;LN141,146,RZN142,144,147..GCC199708-200108

52706AMOULDING SUB-ASSY, REAR BUMPER SIDE, RH

main52706-89101iRZN149..SR;RZN149..DLX..GCC;LN141,146,RZN142,144,147..GCC199708-200108

52707AMOULDING SUB-ASSY, REAR BUMPER SIDE, LH

main52707-89101iRZN149..SR;RZN149..DLX..GCC;LN141,146,RZN142,144,147..GCC199708-200108

7539589101CLIP, BACK DOOR MOULDING, NO.1

main75395-89101

9011208035

main90112-08035

9011908434

main90119-08434

9011912038

main90119-12038

9011912163

main90119-12163

9011912178

main90119-12178

9017906060

main90179-06060

9017908096

main90179-08096

9020505003

main90205-05003

16 parts on this diagram · 3 diagrams in section
