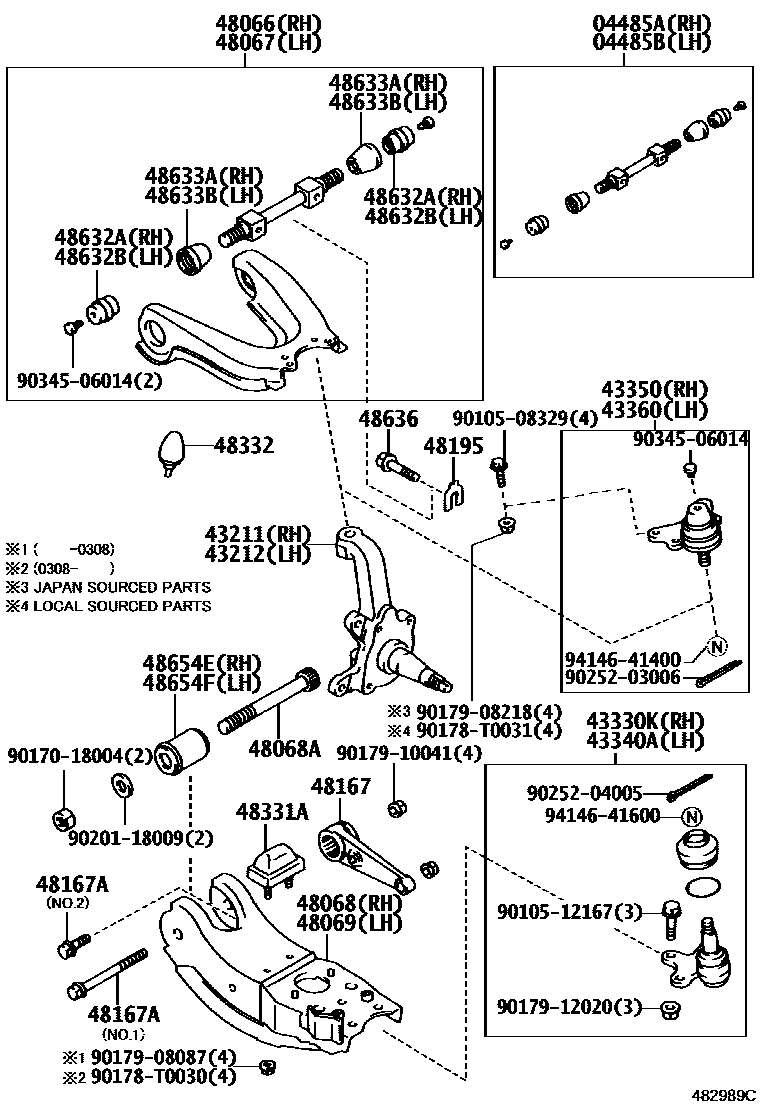

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1 0003 1

04485ASHAFT KIT, FRONT SUSPENSION UPPER ARM, RH

main04485-35020iLN147..DEFI;RZN147..(SCB,THSCB)..(ARL,SA);LN140,145,150,155,RZN142,149..ARL,SA,TH199708-200109

main04485-35040iKZN165..SCB..DLX;KZN165,LN172..(DCB,THXTR)..(DEFI,TDE)..CBU;KZN190,LN167,172,192,RZN169,174,194..(DCB,SCB,XTR)..(DEFI,EFI,TDE)..(ARL,SA)199708-200109

main04485-35050iLN152,RZN154..DLX..CBU200108-200506

04485BSHAFT KIT, FRONT SUSPENSION UPPER ARM, LH

main04485-35020iRZN149..SR..GEN199708-200008

main04485-35040iLN167..ARL,TH;KZN165,LN172,192..THSCB,THXTR,XTR199708-200009

main04485-35050iLN152,RZN154..(DEFI,EFI)..ARL199711-200109

43211KNUCKLE, STEERING, RH

main43201-04030iLN167,172..THDCB,THSCB,THXTR200305-200502

main43201-34010iLN167..ARL,TH;KZN165,LN172..THSCB,THXTR,XTR199708-200009

sub90304-76005

main43201-34011iRZN169..CBR;LN166,171..LHD200107-200108

main43201-34020iLN167..ARL,TH;KZN165,LN172..THSCB,THXTR,XTR199708-200009

W(ABS)

sub90304-76005

main43201-34021iKZN165,LN167,172,RZN169,174..ARL,TH200107-200109

W(ABS)

main43201-35030iLN192..DEFI..TH199708-200109

main43201-35060iLN192..TH199806-200009

W(ABS)

main43211-04020iLN147,152,RZN149,154..THDCB,THSCB,THXTR200305-200502

main43211-35200iLN147..DCB;LN147..SCB..IV3;LN145..LHD..IV3;RZN148,149..(DCB,SCB)..(ARL,CO,GCC);LN145,152,RZN148..(DCB,SCB,XTR)..(ARL,GEN,SA)..CBU;LN140,141,146,RZN142,144,147,154..200108-200511

main43211-35210iLN141,146,RZN142,144,147,149..GCC199708-200108

W(ABS)

43212KNUCKLE, STEERING, LH

main43202-04030iLN167,172..THDCB,THSCB,THXTR200305-200502

main43202-34010iLN167..ARL,TH;KZN165,LN172..THSCB,THXTR,XTR199708-200009

sub90304-76005

main43202-34011iRZN168..DLX..GEN200107-200402

main43202-34020iLN167..SA199708-200010

W(ABS)

sub90304-76005

main43202-34021iLN167..THSCB..IV3;LN167,172..(THDCB,THXTR)..DLX200108-200305

W(ABS)

main43202-35020iKZN190,LN192,RZN194..(DCB,SCB)..(DEFI,EFI,TDE)199708-200203

main43202-35050iLN192..DEFI..TH199806-200109

W(ABS)

main43212-04020iLN147,152,RZN149,154..THDCB,THSCB,THXTR200305-200502

main43212-35160×2iLN140,145,RZN142,147..SCB..SA199708-200203

main43212-35170iLN147,152199708-200009

W(ABS)

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-09170iLN147,152,RZN147,149,154..THDCB,THSCB,THXTR200109-200502

main43330-39265iRZN168200508-200511

main43330-39315iLN167,192..SA;RZN194..SADCB199708-200010

sub43330-39835

main43330-39445iLN140,145,RZN142,147..SCB..SA199708-200203

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-09170iLN147,152,RZN149,154..THDCB,THSCB,THXTR200208-200502

main43330-39445iLN147..DCB;LN147..SCB..IV3;LN145..LHD..IV3;RZN147..(DCB,SCB)..(ARL,GCC,GEN);RZN148,149..(DCB,SCB)..(ARL,CO,GCC);LN141,145,146,152,RZN142,144,148,154..(DCB,SCB,XTR).200108-200511

main43340-39245iLN166,RZN169..GCC199708-200108

main43340-39565iRZN168200508-200511

43350JOINT ASSY, FRONT UPPER BALL, RH

main43350-09030iLN147,152,RZN147,149,154..THDCB,THSCB,THXTR200109-200502

main43350-39085iLN167..ARL,TH;KZN165,LN172,192..THSCB,THXTR,XTR199708-200009

main43350-39125iLN147..THDCB,THSCB;LN147,152,157..(DCB,SCB,XTR)..DEFI;LN145,150,155,RZN147,149,154..(DCB,SCB,THDCB,THSCB,XTR)..(ARL,TH)199708-200109

main43350-39165iRZN168200508-200511

43360JOINT ASSY, FRONT UPPER BALL, LH

main43350-09030iLN147,152,RZN147,149,154..THDCB,THSCB,THXTR200109-200502

main43350-39125iRZN149..SR..GEN199708-200008

main43360-39085iLN166,RZN169..GCC199708-200108

main43360-39115iRZN168200508-200511

48066ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH

main48066-04010iLN167..TH;LN167,172,RZN174..THDCB,THSCB,THXTR;KZN165,LN192,RZN169..THDCB,THSCB,XTR200103-200109

main48066-04030iLN147,RZN149..THDCB,THSCB200305-200502

main48066-34030iLN152,RZN154..(DEFI,EFI)..ARL199711-200109

W(ABS)

main48066-35050iLN145,150,155..TH199708-200109

main48066-35080iRZN154..GEN199711-200108

main48066-35100iLN166..LHD..GEN;LN171,RZN169..GEN199708-200108

main48066-35130iLN147199708-200009

W(ABS)

48067ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH

main48066-04030iLN147,RZN149..THDCB,THSCB200305-200502

main48066-34030iLN152,RZN154..ARL200109-200502

W(ABS)

main48066-35050iLN145,150,155..TH199708-200109

main48066-35080iLN152..IV3199711-200009

main48066-35130iLN141,146,RZN142,144,147,149..GCC199708-200108

W(ABS)

main48067-04010iLN167..TH;LN167,172,RZN174..THDCB,THSCB,THXTR;KZN165,LN192,RZN169..THDCB,THSCB,XTR200103-200109

main48067-35040iKZN165..DCB..SR..ARL199708-200109

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-35090iKZN165..SCB..DLX;KZN165..(DCB,THDCB,XTR)..(ARL,TH);LN167,172,192,RZN169,174..(DEFI,EFI)..(ARL,TH)199708-200109

main48605-35180iRZN149..SR..GEN199708-200008

main48605-35181iRZN147..ARL,SA;LN140,145,147,152,RZN142,149,154..(DCB,SCB,XTR)..(ARL,SA)200109-200504

48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)

main90114-18003×2iKDN155,LN155200108-200409

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-35090iKZN165..SCB199708-200008

main48606-35180iLN140,145,RZN142,147..SCB..SA199708-200203

main48606-35181iRZN148,149..DLX..GEN200209-200402

48167ARM, TORQUE

main48167-04020×2iLN147,152,RZN149,154..THDCB,THSCB,THXTR200109-200502

main48167-35040×2iRZN147..SCB..ARL200108-200208

48167ABOLT(FOR TORQUE ARM SETTING)

main90105-10087×2iLN147,152,157199708-200009

NO.1

main90105-T0017×2iKDN145,15#,LN145,150..TH200301-200408

NO.2

main91512-81025×2iLN145..LHD..IV3;LN145,RZN142,147,148,154..GEN..CBU200108-200506

NO.2

48195SHIM, CAMBER ADJUST

main90565-12004iLN150..DLX;KDN145,150,151,LN145..(DCB,XTR)..TH200108-200408

T=4.0

main90565-12008iYN140;RZN147..DCB..SA199708-200010

T=1.6

main90565-12009iLN147,152,157..DEFI;LN145,150,155,RZN147,149,154..ARL,TH199708-200109

T=1.2

48331ABUMPER, FRONT SPRING, NO.1

main48304-04050×2iLN147,152,157..DEFI;LN145,150,155,RZN147,149,154..ARL,TH199808-200109

(L)

main48304-35160×2iYN140;RZN147..DCB..SA199708-200010

48332BUMPER, FRONT SPRING, NO.2

main48332-04040×4iRZN148,149..DLX..EFI..GEN199808-200402

(L)

main48332-35020×4iLN141,146,RZN14#..CO,GCC200108

48632ABUSH, FRONT SUSPENSION UPPER ARM, RH

main48632-26010iKZN165..SCB199708-200008

FRONT

main48632-30012×6iLN140,145,RZN142,147..SCB..SA199708-200203

main48632-35020×2iLN152..IV3199711-200009

main48635-26010iKZN165,LN167,192..(THSCB,XTR)..SR199708-200009

REAR

48632BBUSH, FRONT SUSPENSION UPPER ARM, LH

main48632-26010iRZN169..CBR;LN166,171..LHD199708-200108

FRONT

main48632-30012×2iLN145..RHD..SCB..IV3199708

main48632-35020×2iLN152,RZN154..(DEFI,EFI)..ARL199711-200109

main48635-26010iKZN190,LN192,RZN194..(DCB,SCB)..(DEFI,EFI,TDE)199708-200203

REAR

48633ASEAL, FRONT SUSPENSION UPPER ARM PIVOT DUST, RH

main48633-35010×2iLN145,150,155..TH199708-200109

48633BSEAL, FRONT SUSPENSION UPPER ARM PIVOT DUST, LH

main48633-35010×2iRZN149..SR..GEN199708-200008

48636BOLT, UPPER ARM SET

main90105-12080×4iRZN149..SR..GEN199708-200008

48654EBUSH, FRONT LOWER ARM, NO.1 RH

main48061-35011×2iLN166..RHD..GEN199708

main48654-04020iLN145,150,155..TH;LN152,157..DEFI..CBU199806-200109

main48654-35100iRZN149..GCC;LN145..DCB..IV3;RZN147..LHD..SCB;RZN149..DLX..CBR..GEN;RZN147..DCB..(GCC,GEN);LN141,145,146,RZN142,144,154..LHD..(GCC,GEN)199708-200108

48654FBUSH, FRONT LOWER ARM, NO.1 LH

main48061-35011×2iLN166..RHD..GEN199708

main48654-04020iLN145,150,155..TH;LN152,157..DEFI..CBU199806-200109

main48654-35100iLN147..DCB;LN147..SCB..IV3;LN145..LHD..IV3;RZN148,149..(DCB,SCB)..(ARL,CO,GCC);LN140,141,146,RZN142,144,147,154..DCB,SCB,XTR;LN145,152,RZN148..(DCB,SCB,XTR)..(ARL,G200108

9010508329

main90105-08329

9010512167

main90105-12167

9017018004

main90170-18004

90178T0030

main90178-T0030

90178T0031

main90178-T0031

9017908087

main90179-08087

9017908218

main90179-08218

9017910041

main90179-10041

9017912020

main90179-12020

9020118009

main90201-18009

9025203006

main90252-03006

9025204005

main90252-04005

9034506014

main90345-06014

9414641400

main94146-41400

9414641600

main94146-41600

40 parts on this diagram · 3 diagrams in section
