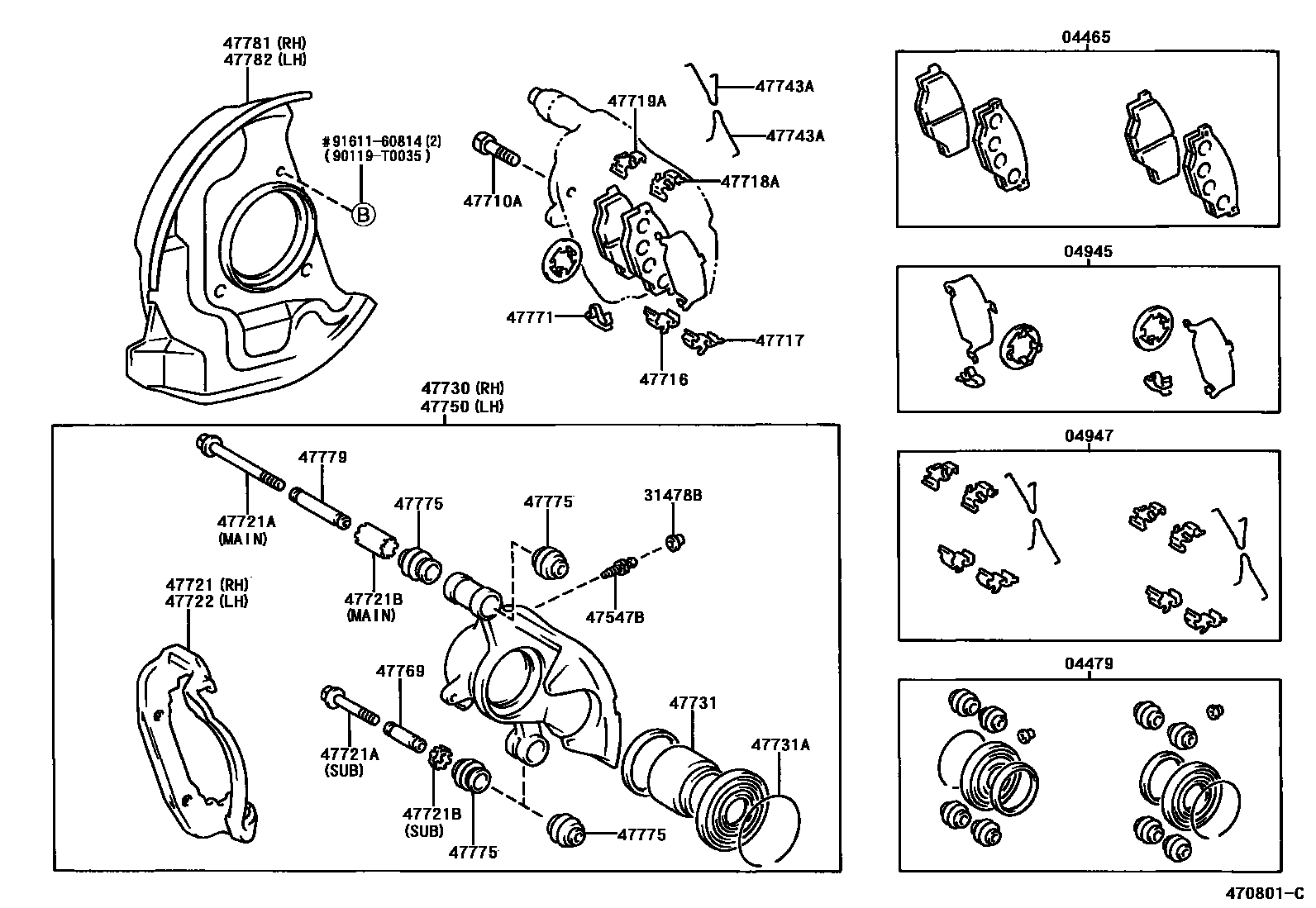

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-04060iKDN145,150,151,LN145,150,155..TH;LN147,152,RZN149,154..THDCB,THSCB,THXTR200210-200502

MARK SUMITOMO PS509H

main04465-35020iYN140;RZN147..DCB..SA199708-200010

MARK SUMITOMO PS509

main04465-35260iKZN165,190,LN167,192,RZN169,194..(DCB,SCB)..(DEFI,EFI,TDE)..SA199708-200203

MARK SUMITOMO PS534

main04465-35320iLN145..RHD..GEN;RZN148,149..DLX..GEN;RZN147..RHD..SCB..GEN200312

MARK SUMITOMO PS509

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-04030iKDN145,15#,LN145,150,155..TH;LN147,152,RZN147,149,154..THDCB,THSCB,THXTR200109-200502

main04479-35010iRZN169..CBR;LN166,171,191,RZN193..LHD199708-200108

main04479-35050iLN140,145,RZN142,147..SCB..SA199708-200203

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-04020iKDN155200109-200408

main04945-26070iLN150..SR;LN145..DCB..GEN;LN152..DEFI..TH;RZN154..XTR..ARL;LN145..LHD..DLX..TH;LN152..XTR..DEFI..IV3;LN145,152..(SCB,XTR)..DSL;RZN149..(DCB,SCB)..DLX..EFI..(ARL,GEN);LN147,RZN147,148..(DCB,SCB)..DLX..(ARL,GCC,GEN,SA);LN140,141,146,155,157,RZN142,144,149,154,YN140..CBR,DEFI,DSL199708-200312

main04945-26071iLN145..RHD..GEN..CBU;RZN147..RHD..SCB..GEN;RZN148..DLX..GEN..CBU; RZN149..GEN;LN145..RHD..IV3;RZN148..GEN..IV3200312

PLANT NO.P11

main04945-35040iKZN190..SR;LN167,192..ARL,SA;KDN16#,190,KZN165,LN166,17#,191,RZN16#,174,19#,VZN167,172200108-200511

04947FITTING KIT, DISC BRAKE, FRONT

main04947-04030iKDN155200109-200408

main04947-26030iLN152..XTR..IV3;RZN154..XTR..ARL;RZN149..(DCB,SCB)..DLX..EFI..(ARL,GEN);LN147,RZN147,148..(DCB,SCB)..DLX..(ARL,GCC,GEN,SA);LN140,141,145,146,RZN142,144,149,154,YN140..(CBR,DSL)..(GCC,GEN,SA)199708

main04947-60050iKZN190..SR;LN167,192..ARL,SA;KDN16#,190,KZN165,LN166,17#,191,RZN16#,174,19#,VZN167,172200108-200511

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iKZN190..SR;LN147..THDCB;LN150,192..DLX;LN147..THSCB..IV3;RZN147,149..THDCB,THSCB;LN145,152..(DCB,THXTR)..(ARL,TH)..CBU;LN167,RZN154..(DCB,SCB,THDCB,THSCB,THXTR)..(ARL,SA);KDN145,15#,16#,190,KZN165,LN155,166,17#,191,RZN16#,174,19#,VZN167,172200108

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12010×2iLN150..SR;RZN154..ARL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;RZN149..DLX..EFI..(ARL,GEN);LN152,RZN149..(CBR,DEFI)..(GCC,GEN,TH);LN145,152,RZN144,154..(SCB,THXTR,XTR)..(CBR,DSL);LN140,141,146,147,155,157,RZN142,147,148,YN140..DLX..(ARL,GCC,GEN,SA,TH)199708

main47547-20030×2iKZN190..SR;LN167,192..ARL,SA;KDN16#,190,KZN165,LN166,17#,191,RZN16#,174,19#,VZN167,172200108

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90101-12144×2iLN167..THSCB..IV3;KDN16#,190..TH..CBU;LN167,172..(THDCB,THXTR)..DLX200108-200308

*12-1.25PX38-23

main90101-T0002×4iKDN16#,190..TH;LN167,172..THDCB,THSCB,THXTR200308-200502

*12-1.25PX38-23

main90119-12058×4iLN150..SR;RZN154..ARL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;RZN149..DLX..EFI..(ARL,GEN);LN152,RZN149..(CBR,DEFI)..(GCC,GEN,TH);LN145,152,RZN144,154..(SCB,THXTR,XTR)..(CBR,DSL);LN140,141,146,147,155,157,RZN142,147,148,YN140..DLX..(ARL,GCC,GEN,SA,TH)199708

*12-1.25PX31-20

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-26040×2iLN150..SR;RZN154..ARL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;RZN149..DLX..EFI..(ARL,GEN);LN152,RZN149..(CBR,DEFI)..(GCC,GEN,TH);LN145,152,RZN144,154..(SCB,THXTR,XTR)..(CBR,DSL);LN140,141,146,147,155,157,RZN142,147,148,YN140..DLX..(ARL,GCC,GEN,SA,TH)199708

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47716-26040×2iLN147..SCB..IV3;RZN149..(DCB,SCB)..ARL;LN147,152,RZN154..(DCB,XTR)..ARL..CBU200108-200502

47718APLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE)

main47717-26010×2iRZN147..ARL200108-200208

47719APLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE)

main47717-26010×2iRZN147..SCB..ARL200108-200208

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-26050iLN141,146,RZN14#..CO,GCC200207

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90080-11308×2iLN147,152,RZN149,154..THDCB,THSCB,THXTR200109-200502

*10-1.25PX63.7-30

main90080-11309×2iRZN147..THSCB200109-200208

*10-1.25PX93.7-30

main90119-10014×2iLN14#,15#,RZN14#,154,YN140..DCB,SCB,XTR199708-200108

*10-1.25PX65.5-30

main90119-10249×2iLN141,146,RZN14#..CO,GCC200207

*10-1.25PX95.5-30

47721BCOLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90387-16004×2iLN14#,15#,RZN14#,154,YN140199708-200108

SUB

main90387-16005×2iLN145..LHD..IV3;LN145,RZN142,147,148,154..GEN..CBU200207-200506

MAIN

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-26050iRZN147..THSCB200108-200208

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-04050iLN147,152,RZN147,149,154..THDCB,THSCB,THXTR199808-200109

main47730-35130iLN150..SR;LN145..SCB;LN145..DCB..GEN;LN145..LHD..DLX..TH;LN140,141,146,147,152,155,157,RZN14#,154,YN140..DCB,SCB,XTR199708

main47730-35140iKZN190..SR;LN167,192..ARL,SA;KDN16#,190,KZN165,LN166,17#,191,RZN16#,174,19#,VZN167,172200108

47731PISTON, FRONT DISC BRAKE

main47731-04050×2iKDN145,15#,LN145,150,155..TH;LN147,152,RZN147,149,154..THDCB,THSCB,THXTR200109-200502

main47731-35050×8iKZN190..SR;LN167,192..ARL,SA;KDN16#,190,KZN165,LN166,17#,191,RZN16#,174,19#,VZN167,172200108

main47731-40010×2iLN14#,152,RZN14#,154,YN140..(DCB,SCB,XTR)..(ARL,GCC,GEN,SA)199708-200108

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90520-86005×2iLN150..SR;RZN154..ARL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;RZN149..DLX..EFI..(ARL,GEN);LN152,RZN149..(CBR,DEFI)..(GCC,GEN,TH);LN145,152,RZN144,154..(SCB,THXTR,XTR)..(CBR,DSL);LN140,141,146,147,155,157,RZN142,147,148,YN140..DLX..(ARL,GCC,GEN,SA,TH)199708

main90522-48044×8iKZN165..XTR;LN192,RZN194;KZN165..SCB..DLX;KZN165..SR..(ARL,SA);LN167,RZN169..CBR,DSL;RZN169..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN190,LN166,17#,191,RZN168,174,193..DLX..(ARL,GCC,GEN,SA)199708

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-04010×4iRZN147..THSCB200109-200208

main47743-40020×4iRZN154..XTR..ARL;RZN147,148..(DCB,SCB)..DLX;RZN149..(DCB,SCB)..EFI..(ARL,GEN);LN14#,15#,RZN142,144,149,154,YN140..(DCB,SCB,XTR)..(CBR,DEFI,DSL)199708-200109

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-04050iLN147,152,RZN147,149,154..THDCB,THSCB,THXTR199808-200109

main47750-35130iLN150..SR;LN145..SCB;LN145..DCB..GEN;LN145..LHD..DLX..TH;LN140,141,146,147,152,155,157,RZN14#,154,YN140..DCB,SCB,XTR199708

main47750-35140iKZN165..XTR;LN192,RZN194;KZN165..SCB..DLX;KZN165..SR..(ARL,SA);LN167,RZN169..CBR,DSL;RZN169..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN190,LN166,17#,191,RZN168,174,193..DLX..(ARL,GCC,GEN,SA)199708

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-04010×2iLN155200109-200409

main47769-35020×2iLN147,152,RZN149,154..(DCB,SCB,XTR)..ARL200207-200502

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-35010×2iLN140,145,RZN142,147..SA200108-200504

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-04010×8iKDN145,15#,LN145,150..TH200109-200408

main47775-40010×8iLN145,15#..TH199806-200109

(J)

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-04010×2iLN145,15#..TH199806-200109

(L)

main47779-40010×2iLN140,145,RZN142,147..SA200207-200504

47781COVER, DISC BRAKE DUST, FRONT RH

main47703-35062iKZN165..XTR;LN192,RZN194;KZN165..SCB..DLX;KZN165..SR..(ARL,SA);LN167,RZN169..CBR,DSL;RZN169..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN190,LN166,17#,191,RZN168,174,193..DLX..(ARL,GCC,GEN,SA)199708

main47703-35110iRZN149..ARL;RZN147,154..ARL,GCC;LN141,146,147,150,152,RZN142,144,149..(CBR,DEFI,DSL)..(ARL,GCC,TH)199708-200109

W(ABS)

main47781-35140iLN147..IV3;LN145..LHD..IV3;LN150,152..DLX..CBU;RZN148,149..ARL,CO,GCC;LN145,RZN148..(GEN,SA)..CBU;LN145,147..(DCB,THDCB)..(ARL,TH);KDN150,155,LN140,141,146,155,RZN142,144,147,154200108

47782COVER, DISC BRAKE DUST, FRONT LH

main47704-35062iKZN165..XTR;LN192,RZN194;KZN165..SCB..DLX;KZN165..SR..(ARL,SA);LN167,RZN169..CBR,DSL;RZN169..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN190,LN166,17#,191,RZN168,174,193..DLX..(ARL,GCC,GEN,SA)199708

main47704-35110iRZN149..ARL;RZN147,154..ARL,GCC;LN141,146,147,150,152,RZN142,144,149..(CBR,DEFI,DSL)..(ARL,GCC,TH)199708-200109

W(ABS)

main47782-35140iLN147..IV3;LN145..LHD..IV3;LN150,152..DLX..CBU;RZN148,149..ARL,CO,GCC;LN145,RZN148..(GEN,SA)..CBU;LN145,147..(DCB,THDCB)..(ARL,TH);KDN150,155,LN140,141,146,155,RZN142,144,147,154200108

90119T0035

main90119-T0035

9161160814

main91611-60814
