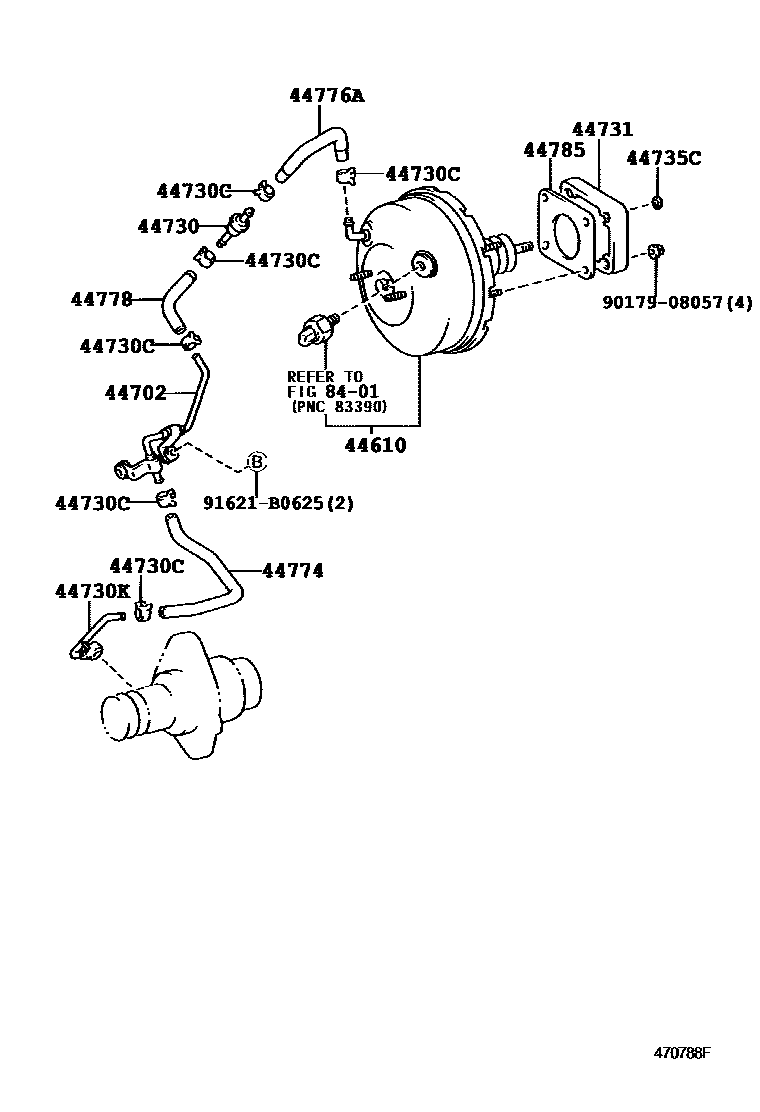

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

44610BOOSTER ASSY, BRAKE

main44610-04080iLN147..(THDCB,THSCB)..DLX; LN152..THXTR;LN147..THDCB..SR200109-200502

W(ABS)

main44610-3D710iLN147,172..DLX;LN147..DCB..SR;KDN165,190,LN152,16#,192..(DCB,SCB,THDCB,THSCB,XTR)..(ARL,MA,SA)200109-200504

main44610-3D730iLN141,145,146,155,166,171,191..LHD..DSL199708-200109

main44610-3D750iRZN194,VZN167,172;RZN149,169..SR..ARL;RZN169..RHD..DCB..GEN;RZN169..RHD..SCB..(GEN,SA)200108-200506

main44610-3D760iRZN142,147..LHD199708-200108

main44610-3D770iRZN142,147..GCC; RZN148..GEN..CBU;RZN154,16#,193..LHD;RZN144,148,149..CO,GCC200108

W(ABS)

main44610-3D800iRZN142,147,YN140..RHD199708

main44610-3D860iKZN165..(THDCB,THSCB,XTR)..SR;KZN165,190..(DCB,SCB)..(ARL,SA)199909-200203

main44610-3D890iKDN166200208-200411

44702TUBE SUB-ASSY, AIR, NO.1

main44702-35010iLN152..IV3;LN167..DSL..(ARL,SA);LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN140,145,147,166,172,192..RHD..DLX..(ARL,GEN,SA)199708

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-10010iKZN190..SR;KDN145,150,151,16#,190,KZN165,RZN142,147,149,154,169,174,194,VZN167,172..RHD200108-200506

main44730-30040iRZN148..GEN..CBU;RZN148,149..CO,GCC;RZN142,144,147,154,16#,193..LHD200108

main44730-35010iLN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN152,167..DEFI..TH;LN145..LHD..DLX..TH;LN167..DCB..DLX..DEFI..ARL;LN145,152..(SCB,THXTR,XTR)..DSL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN140,141,146,147,155,157,166,17#,191..DLX..(ARL,GCC,GEN,SA,TH)199708

44730CCLIP(FOR VACUUM HOSE)

main90467-16002×2iRZN142,144,147,149,154,169..LHD..CBR199708-200108

main96133-41500×4iLN145,150,155..RHD..TH200109-200409

44730KUNION, VACUUM HOSE(FOR VACUUM PUMP)

main90405-09149iLN155..RHD200109-200409

W(AIR CONDITIONER)

main90405-09150iLN145,150,155..RHD..TH199806-200009

main90405-09175iKZN165..(THDCB,THSCB,XTR)..SR;KZN165,190..(DCB,SCB)..(ARL,SA)199909-200203

main90405-09183iLN167..(DCB,THDCB)..ARL200009-200109

SAUDI ARABIA SPEC

main90405-09184iLN152..IV3;LN155..LHD;LN167..DCB..DLX..ARL;LN167,192..(SCB,THDCB,THSCB)..DLX..DEFI;LN140,145,147,166,17#,191..DLX..(ARL,GEN,SA)200009-200208

44731BRACKET, BRAKE BOOSTER, FRONT

main44731-04020iLN147,152..THDCB,THSCB,THXTR200109-200502

main44731-35090iKZN190..SR;RZN154,16#,193;RZN148..GEN..CBU;KDN166,KZN165,RZN144,148,149,174,194,VZN167,172..ARL,CO,GCC,SA,TH; RZN142,147..ARL,GCC200108

W(ABS)

main44731-35130iLN145..LHD..IV3;LN145,155..LHD..TH;LN145..(GEN,SA)..CBU;LN147,152..(DCB,XTR)..ARL..CBU;KDN165,190,LN140,141,146,16#,17#,19#,RZN142,147..ARL,GCC,GEN,MA,SA200108

44735CRING, BOOSTER BRACKET STOPPER

main44735-30010×2iLN147..IV3;RZN147..THSCB;LN147..DCB,THDCB;LN145,155..LHD..TH;RZN147..RHD..SCB..CBR;LN145..RHD..(GEN,SA)..CBU;LN140,16#,172,192,RZN142..RHD..DLX200108-200109

44774HOSE, UNION TO CONNECTOR TUBE

main44774-35070iLN147..IV3;LN147..DCB,THDCB;LN145,152..RHD..(ARL,GEN,SA)..CBU;LN140,16#,172,192..RHD..(ARL,GEN,MA,SA)200108-200506

main44774-35100iRZN147..ARL199708-200109

main44774-35110iRZN142,147..RHD..CBR200108-200506

main44774-35120iRZN149,154,169,174,194..RHD200108-200506

main44774-35130iYN140199808-200010

main44774-35150iLN141,145,146,155,166,171,191..LHD200108

main44774-35160iKZN165..(THDCB,THSCB,XTR)..SR;KZN165,190..(DCB,SCB)..(ARL,SA)199909-200203

main44774-35181iKDN145,15#200110-200408

main44774-35210iKDN16#,190200110-200503

main44774-35230iVZN167,172200208-200502

44776AHOSE, VACUUM RESERVOIR TO BRAKE BOOSTER

main44776-35030iLN152..IV3;LN167..DSL..(ARL,SA);LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN140,145,147,166,172,192..RHD..DLX..(ARL,GEN,SA)199708

44778HOSE, CONNECTOR TO CHECK VALVE

main44778-35060iLN167..SR..ARL;LN167..(SCB,THSCB)..ARL..CBU200108-200208

44785GASKET, BRAKE BOOSTER

main44785-04010×2iLN147,152..THDCB,THSCB,THXTR; LN167..THSCB..IV3;LN167,172..(THDCB,THXTR)..DLX200109-200502

W(ABS)

main44785-35020iKDN145,151200310-200408

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9017908057

main90179-08057

91621B0625

main91621-B0625

14 parts on this diagram · 8 diagrams in section
