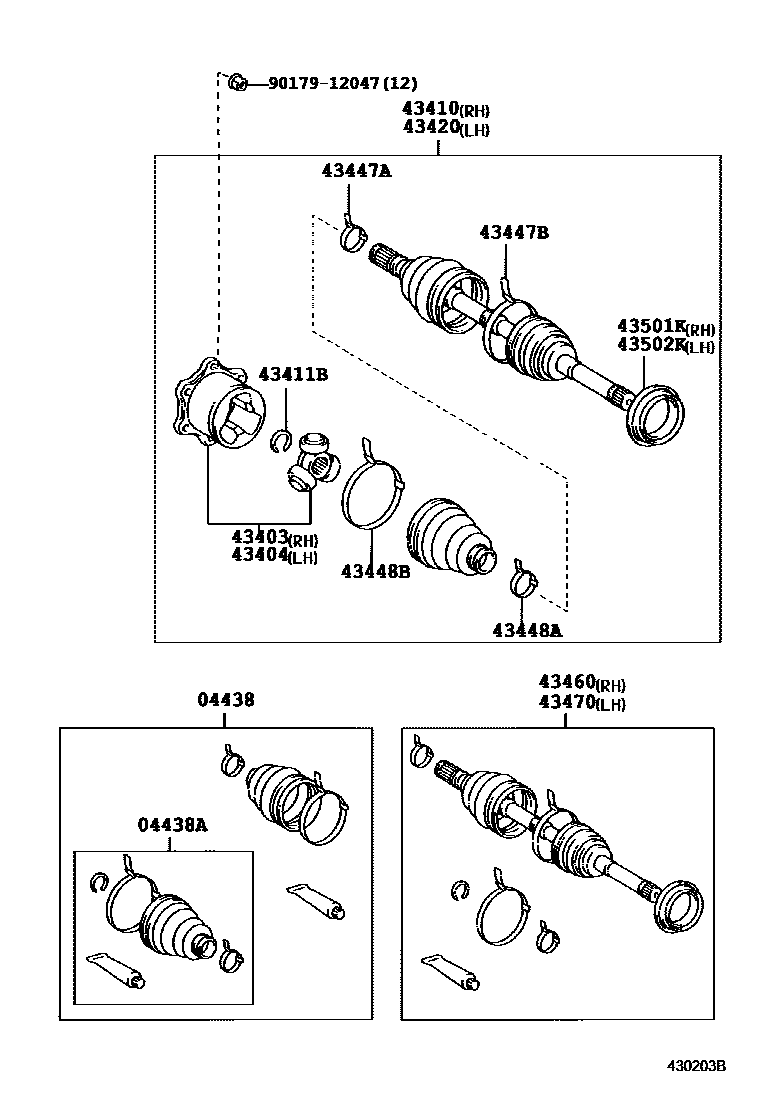

FRONT DRIVE SHAFT

04438BOOT KIT, FRONT DRIVE SHAFT

main04428-35010×2iKDN165,KZN165,LN16#,17#,RZN16#,VZN167,172..(DCB,SCB,XTR)..(ARL,GCC,GEN,MA,SA)200309-200508

sub04428-35012

main04438-04040×2iKDN16#,KZN165..TH;KZN165,LN167,172,RZN169,174..THDCB,THSCB,THXTR200109-200502

main04438-35022×2iKDN165,KZN165,LN16#,17#,RZN16#,174,VZN167,172..(DCB,SCB,XTR)..(ARL,GCC,GEN,MA,SA)200108-200309

04438ABOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT

main04438-04030×2iKDN16#,KZN165..TH;KZN165,LN167,172,RZN169,174..THDCB,THSCB,THXTR200109-200502

main04438-35012×2iLN167..IV1199708-200008

main04438-35070×2iLN166,RZN168..GEN200508

sub04438-25010

43403JOINT SET, FRONT AXLE INBOARD, RH

main43403-35020iKZN165,LN16#,17#,RZN16#,174..CBU,IV3200008-200009

sub43403-26010

43404JOINT SET, FRONT AXLE INBOARD, LH

main43403-35020iKZN165,LN16#,17#,RZN16#,174199708-200008

sub43403-26010

43410SHAFT ASSY, FRONT DRIVE, RH

main43430-04051iKDN16#,KZN165..TH;KZN165,LN167,172,RZN169,174..THDCB,THSCB,THXTR200109-200502

sub43430-35023

main43430-35012iKZN165..SA200007-200107

W/O(ABS)

sub90316-60004

main43430-35021iRZN169..SR;RZN169..ARL,GCC;KZN165,LN16#,172,RZN174..(ARL,GCC,SA,TH)..(CBU,IV3)200008-200009

W(ABS)

sub90316-60004

main43430-35022iRZN169..DCB..SA;RZN168..DLX..GEN;LN167,RZN169..SCB..DLX..SA;KZN165,LN166..RHD..(GEN,SA)200109

sub43430-35023

43411BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)

main90520-29028×2iKZN165,LN16#,17#,RZN16#,174199708-200008

43420SHAFT ASSY, FRONT DRIVE, LH

main43430-04051iKDN16#,KZN165..TH;KZN165,LN167,172,RZN169,174..THDCB,THSCB,THXTR200109-200502

sub43430-35023

main43430-35012iLN167,RZN169..CBU,IV3;KZN165,LN166,17#,RZN168,174..ARL,GCC,GEN200008-200009

sub90316-60004

main43430-35021iRZN169..SR;LN167..DEFI;RZN169..ARL,GCC;KZN165,LN166,172,RZN174..ARL,GCC,SA,TH200009-200107

W(ABS)

sub90316-60004

main43430-35022iKDN165,KZN165,LN16#,17#,RZN16#,174,VZN167,172..(DCB,SCB,XTR)..(ARL,GCC,GEN,MA,SA)200108

sub43430-35023

43447ACLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main90949-01221×2iLN166..RHD;RZN168..DLX;RZN169..DLX..SA200108-200109

43447BCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main90949-01135×2iLN166..RHD..GEN;RZN168..DLX..GEN200203

43448ACLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main90949-01221×2iLN167..DEFI;KZN165,LN166,17#,RZN16#,174200009-200107

43448BCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main90949-01222×2iLN167..DEFI;KZN165,LN166,17#,RZN16#,174200009-200107

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-09A50iKDN16#,KZN165..TH;KZN165,LN167,172,RZN169,174..THDCB,THSCB,THXTR200109-200502

main43460-39027iLN167..IV1199708-200008

sub90316-60004

main43460-39046iLN167..IV1199708-200008

W(ABS)

sub90316-60004

main43460-39175iLN167..DCB..DLX..ARL;RZN169..DLX..(ARL,SA);KZN165..(SCB,XTR)..(IV1,IV3);KZN165..(THDCB,XTR)..SR..CBU;LN167..(SCB,THDCB,THSCB)..DLX;LN167,RZN169..(DCB,XTR)..SR..(SA,200107-200508

main43460-39275iKDN165,KZN165,LN16#,17#,RZN16#,VZN167,172..(DCB,SCB,XTR)..(ARL,GCC,GEN,MA,SA)200309-200508

sub43460-39276

43470SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH

main43460-09A50iKDN16#,KZN165..TH;KZN165,LN167,172,RZN169,174..THDCB,THSCB,THXTR200109-200502

main43460-39027iRZN169;LN167..DEFI..SA;LN167..DEFI..IV1;LN167..(ARL,TH)..(CBU,IV3);KZN165,LN166,17#,RZN168,174..ARL,GCC,GEN,TH199708-200107

sub90316-60004

main43460-39046iKZN165..SA200007-200107

sub90316-60004

main43460-39175iKDN165,KZN165,LN16#,17#,RZN16#,174,VZN167,172..(DCB,SCB,XTR)..(ARL,GCC,GEN,MA,SA)200108-200309

main43460-39275iLN166,RZN168..GEN200508

sub43460-39276

43501KSEAL, DUST (FOR FRONT AXLE HUB RH)

main90304-76002iLN167..ARL,TH;KZN165,LN172..THSCB,THXTR,XTR199708-200009

W(ABS)

sub90316-60004

main90304-76003iLN167,172..DEFI;KZN165..SCB..DLX;LN166,171,RZN16#,174;KZN165..(DCB,THDCB,XTR)..(ARL,TH)199708-200107

main90304-76005iLN166..RHD..GEN200107

43502KSEAL, DUST (FOR FRONT AXLE HUB LH)

main90304-76002iLN167..ARL,TH;KZN165,LN172..THSCB,THXTR,XTR199708-200009

W(ABS)

sub90316-60004

main90304-76003iKZN165..SA200007-200107

W/O(ABS)

main90304-76005iRZN169..CBR;LN166,171..LHD200107-200108

9017912047

main90179-12047

16 parts on this diagram · 1 diagram in section
