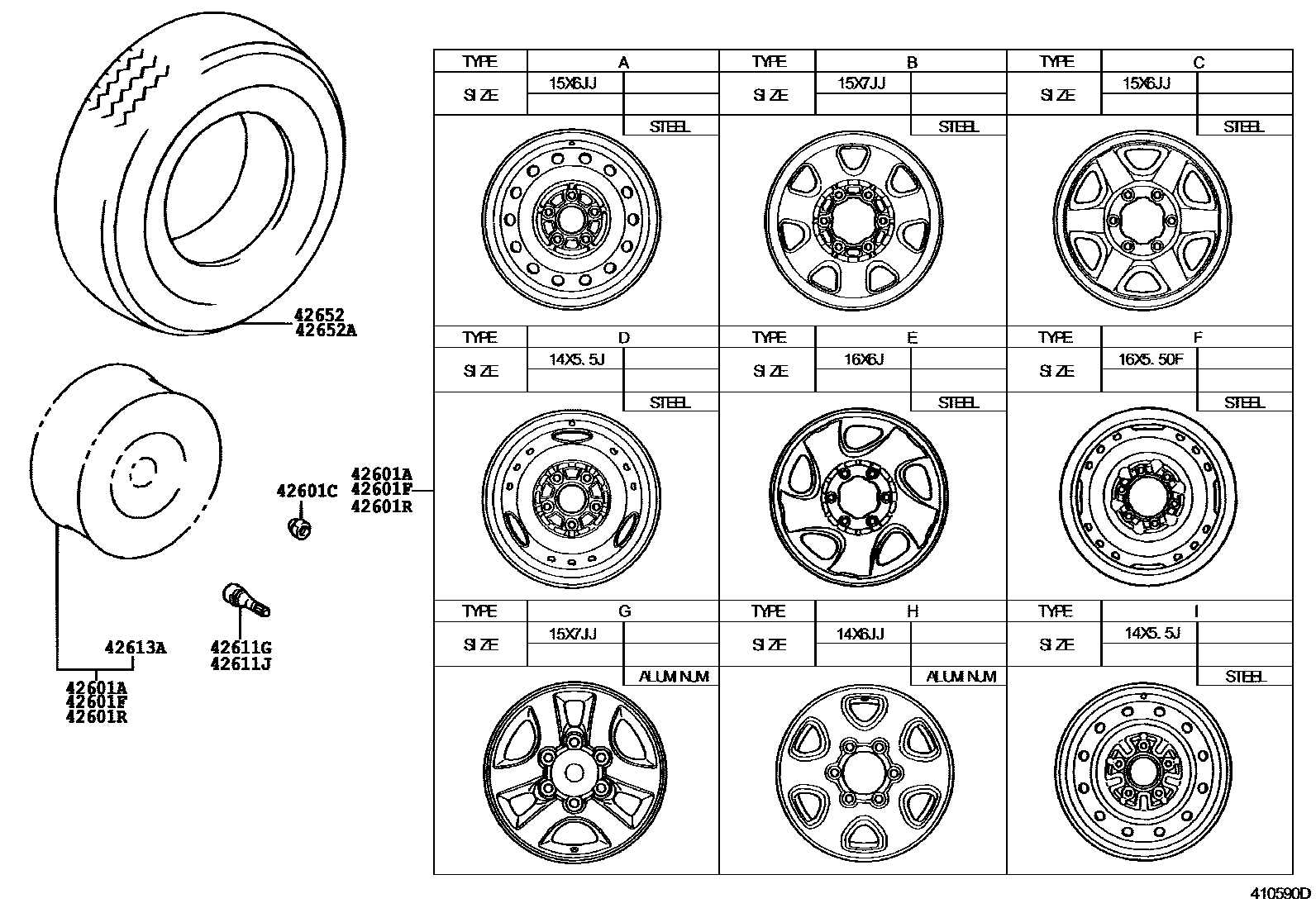

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1 0004 1

42601AWHEEL, DISC (FOR SPARE)

main42601-04160iLN147,152,RZN147,149,154..(THDCB,THSCB,THXTR)..(DEFI,EFI)199808-200109

14X5.5J,TYPE D:REF.ILL.,(L)

main42601-26321iLN141,146,RZN142,144,147,149..GCC199808-200108

15X6JJ SILVER, #,TYPE A:REFER ILLUST.

main42601-26440iLN141,146,RZN144,148,149..MTM..(CO,GCC)200108

15X6JJ BLACK, #,TYPE A:REFER ILLUST.

main42601-35142-03iLN145..DCB..IV3;LN145..LHD..GEN199708-200108

4.5J-14,SILVER M.,TYPE K:REFER ILLUST.

main42601-35620iLN166,RZN169..DCB..GEN200108-200506

15X7JJ, #,TYPE B:REFER ILLUST.

main42601-35640-03iRZN169..SA;LN167,192..SCB..SA199807-199904

15X6JJ,SILVER M.

main42601-35650iLN167,192..SCB..SA199904-200010

15X6JJ, #,TYPE C:REFER ILLUST.

main42601-35700iKZN165..(DCB,THDCB)..SR..ARL;RZN169..(DCB,THDCB)..DLX..ARL;LN16#,RZN169..(DCB,THDCB)..DLX..(CBR,DEFI,DSL)..(ARL,GEN)199708

15X7JJ,CHROME,TYPE B:REFER ILLUST.

main42601-35760iRZN149..SR..GEN199708-200008

14X5.5J,TYPE D:REFER ILLUST.

main42601-35770iLN166,RZN16#..CO,GCC200408

16X6J,TYPE E:REFER ILLUST.

main42601-35780iKZN165..(DCB,THDCB)..SR..ARL;LN167,172,RZN169,174..(DCB,THDCB,THXTR,XTR)..(DEFI,EFI)..ARL199708-200109

16X6J,CHROME,TYPE E:REFER ILLUST.

main42601-35790iRZN154..GEN199711-200108

14X5.5J,TYPE I:REFER ILLUST.

main42601-35820iLN166..RHD..GEN200210

16X6JJ SILVER,FOR PAKISTAN GOVERNMENT

main42610-60281iLN166..RHD..GEN199708

5.50F-16,TYPE F:REFER ILLUST.

main42611-04090iKZN165,LN167,RZN169..THDCB..SR200109-200208

15X7JJ,TYPE J:REFER ILLUST.

main42611-04100iKZN165,LN167,RZN169..THDCB..SR200109-200208

15X7JJ,TYPE G:REFER ILLUST.

main42611-35210iLN167,RZN169..DCB..SR..ARL200109-200208

15X7JJ,TYPE G:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-01051×20iLN141,146,RZN14#..MTM..(CO,GCC); RZN148..DLX..GEN..CBU200108

TYPE A:REFER ILLUST.

main90942-01075×24iKZN190,RZN194..SR;LN167,192,RZN169..DLX..SA200108-200504

TYPE C:REFER ILLUST.

main90942-01082×20iRZN147..SCB..ARL; RZN147..THSCB200108-200208

TYPE B:REFER ILLUST.

main90942-01095×24iKDN16#,190..(DCB,XTR)..TH..CBU200108-200408

TYPE D:REFER ILLUST.

42601FWHEEL, DISC (FOR FRONT)

main42601-04160×2iLN147,152,RZN147,149,154..(THDCB,THSCB,THXTR)..(DEFI,EFI)199808-200109

14X5.5J,TYPE D:REF.ILL.,(L)

main42601-26321×2iLN141,146,RZN142,144,147,149..GCC199808-200108

15X6JJ SILVER, #,TYPE A:REFER ILLUST.

main42601-26440×2iLN141,146,RZN144,149..GCC199708-199808

15X6JJ BLACK, #,TYPE A:REFER ILLUST.

main42601-35142-03×2iLN145..GEN..CBU;LN145..LHD..IV3200108-200506

4.5J-14,SILVER M.,TYPE C:REFER ILLUST.

main42601-35620×2iLN166,RZN169..DCB..GEN200108-200506

15X7JJ, #,TYPE B:REFER ILLUST.

main42601-35640-03×2iRZN169..SA;LN167,192..SCB..SA199807-199904

15X6JJ,SILVER M.,TYPE C:REFER ILLUST.

main42601-35650×2iRZN169..SA;KZN190,LN167,192..SCB..(DEFI,TDE)..SA199904-200203

15X6JJ, #,TYPE C:REFER ILLUST.

main42601-35700×2iKZN165,LN167,RZN169..THDCB..SR200109-200208

15X7JJ,CHROME,TYPE B:REFER ILLUST.

main42601-35760×2iYN140;RZN147..DCB..SA199708-200010

14X5.5J,TYPE D:REFER ILLUST.

main42601-35770×2iVZN167..DCB;RZN169..(DCB,SCB)..ARL;KZN165,LN167,172,RZN168,174,193,VZN172..(DCB,SCB,XTR)..(ARL,GEN)200108-200502

16X6J,TYPE E:REFER ILLUST.

main42601-35780×2iLN167..(DCB,THDCB)..ARL;KZN165,LN172..THSCB,THXTR,XTR199708-200009

16X6J,CHROME,TYPE E:REFER ILLUST.

main42601-35790×2iRZN154..GEN199711-200108

14X5.5J,TYPE I:REFER ILLUST.

main42601-35820×2iLN166..RHD..GEN200210

16X6JJ SILVER,FOR PAKISTAN GOVERNMENT

main42610-60281×2iLN167,172..ARL199708-200009

5.50F-16,TYPE F:REFER ILLUST.

main42611-04090×2iKZN165,LN167,RZN169..THDCB..SR200109-200208

15X7JJ,TYPE J:REFER ILLUST.

main42611-04100×2iKZN165,LN167,RZN169..THDCB..SR200109-200208

15X7JJ,TYPE G:REFER ILLUST.

main42611-35210×2iLN166,RZN169..DCB..GEN200108-200506

15X7JJ,TYPE G:REFER ILLUST.

42601RWHEEL, DISC (FOR REAR)

main42601-04160×2iLN147,152,RZN147,149,154..(THDCB,THSCB,THXTR)..(DEFI,EFI)199808-200109

14X5.5J,TYPE D:REF.ILL.,(L)

main42601-26321×2iLN141,146,RZN142,144,147,149..GCC199808-200108

15X6JJ SILVER, #,TYPE A:REFER ILLUST.

main42601-26440×2iLN141,146,RZN144,149..GCC199708-199808

15X6JJ BLACK, #,TYPE A:REFER ILLUST.

main42601-35142-03×2iLN145..GEN199708

4.5J-14,SILVER M.,TYPE K:REFER ILLUST.

main42601-35620×2iVZN167..SR;KDN165,190,LN166..DCB..MA200208

15X7JJ, #,TYPE B:REFER ILLUST.

main42601-35640-03×2iRZN169..SA;LN167,192..SCB..SA199807-199904

15X6JJ,SILVER M.,TYPE C:REFER ILLUST.

main42601-35650×2iLN167,192..SCB..SA199904-200010

15X6JJ, #,TYPE C:REFER ILLUST.

main42601-35700×2iKZN165..(DCB,THDCB)..SR..ARL;RZN169..(DCB,THDCB)..DLX..ARL;LN16#,RZN169..(DCB,THDCB)..DLX..(CBR,DEFI,DSL)..(ARL,GEN)199708

15X7JJ,CHROME

main42601-35760×2iRZN149..SR..GEN199708-200008

14X5.5J,TYPE D:REFER ILLUST.

main42601-35770×2iLN166..SCB..GEN;LN166,VZN167..DCB;KZN165,LN167,17#,191,RZN16#,174,193,VZN172..ARL,CO,GCC,GEN200109

16X6J,TYPE E:REFER ILLUST.

main42601-35780×2iKZN165..(DCB,THDCB)..SR..ARL;LN167,172,RZN169,174..(DCB,THDCB,THXTR,XTR)..(DEFI,EFI)..ARL199708-200109

16X6J,CHROME,TYPE E:REFER ILLUST.

main42601-35790×2iLN145,RZN154..LHD..(DCB,XTR)..GEN200108

14X5.5J,TYPE I:REFER ILLUST.

main42601-35820×2iLN166..RHD..GEN200210

16X6JJ SILVER,FOR PAKISTAN GOVERNMENT

main42610-60281×2iLN166..SCB..MA;LN167..DLX..ARL;RZN169..(DCB,SCB)..DLX..ARL;KZN165,LN166,172,191,RZN174,VZN167,172..(DCB,SCB,THXTR,XTR)..DLX..(ARL,GEN)200108

5.50F-16,TYPE F:REFER ILLUST.

main42611-04090×2iKZN165,LN167,RZN169..THDCB..SR200109-200208

15X7JJ,TYPE J:REFER ILLUST.

main42611-04100×2iKZN165,LN167,RZN169..THDCB..SR200109-200208

15X7JJ,TYPE G:REFER ILLUST.

main42611-35210×2iRZN169..DCB..DLX..GEN;KDN165,190,LN166..DCB..(GEN,MA);KZN165,LN167,RZN169,VZN167..DCB..SR..(ARL,GEN)200109

15X7JJ,TYPE G:REFER ILLUST.

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iRZN149,154..DLX..CBR..GEN; RZN169..DCB..GEN;LN166..LHD..DCB..GEN199708-200108

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iLN167,192,YN140..SA;RZN147,194..(DCB,SADCB)..SA199708-200010

42613ARING, DISC WHEEL SIDE

main42613-60051×5iKZN165..SCB..DLX;RZN169..DLX..ARL;KZN165..DCB..DLX..CBU;LN16#,172,191,RZN174..DLX..(ARL,GEN)199708

42652TIRE

main42605-04010×4iLN167..THSCB..IV3;LN167,172..(THDCB,THXTR)..DLX200109-200404

205R16C 6PR

main42605-35081×4iLN167..SCB..IV3;LN167..DCB..DLX..ARL;KZN165,LN172,VZN167,172..(DCB,SCB,XTR)..DLX200109-200502

205R16C 6PR

main42605-35220×4iKZN165,LN167,172,RZN16#,174,193..(DSL,EFI,TDE)..(ARL,GEN)199708-200005

205R16C-104R

main42605-35221×4iLN167,172..THDCB,THSCB,THXTR200305-200404

205R16R/F

main42605-35240×2iLN145..GEN199708-200603

6.00-14-6PR

main42605-35250×2iLN145..GEN199708-200603

6.50-14-8PR

main42605-35291×4iRZN168..CO;LN166..DCB;LN166..SCB..GEN;LN171,191,RZN169..GCC,GEN200108-200408

205R16C-6PR

main42605-35292×4iLN166..RHD..GEN200409-200603

205R16C-6PR

main42605-35300×4iLN145,RZN142,147,149..GEN199708-199803

185R14-C8PR *B/S

main42605-35301×4iLN145..DCB..IV3;LN145..LHD..IV3;LN145,RZN142,147,149..MTM..GEN..CBU199803-200408

185R14-C8PR *B/S

main42605-35302×4iLN145..RHD..GEN..CBU;RZN147..RHD..SCB..GEN200409-200603

185R14-C8PR *B/S

main42605-35310×4iLN145..RHD..GEN..CBU;RZN147..RHD..SCB..GEN199708

185R14-C8PR *D/L

main42605-35320×4iLN145..LHD..IV3;LN145,RZN142,147..GEN..CBU200108-200305

185R14-C8PR *Y/H

main42605-35321×4iLN145..LHD..IV3;LN145,RZN142,147..GEN..CBU200305-200506

185R14C *Y/H

main42605-35330×2iLN145200508-200603

6.00-14-6PR,*O/T

main42605-35340×2iLN145200508-200603

6.00-14-6PR,*Y/H

main42605-35350×2iLN145200508-200603

6.00-14-6PR,*D/L

main42605-35360×2iLN145200508-200603

6.00-14-6PR,*T/Y

main42605-35370×2iLN145200508-200603

6.50-14-8PR,*O/T

main42605-35380×2iLN145200508-200603

6.50-14-8PR,*Y/H

main42605-35390×2iLN145200508-200603

6.50-14-8PR,*D/L

main42605-35400×2iLN145200508-200603

6.50-14-8PR,*T/Y

main42652-04270×4iRZN147..THSCB200109-200208

195R14C-8PR

main42652-04280×4iKZN165..TH200110-200404

255/70R15

main42652-35401×4iLN145..LHD..GEN200108-200305

185R14C-8PR *D/L

main42652-35402×4iLN145..LHD..GEN200305-200312

185R14C *D/L

main42652-35403×4iLN145..LHD..GEN200312-200506

185R14C *D/L

main42652-35770×4iRZN169..SA;KZN190,LN167,192..SCB..SA199807-200203

215R15-6

main42652-35890×4iRZN149..DLX..GEN199708-199908

195R15-6PR

main42652-35891×4iRZN148,149..CO200108

195/80R15 *Y/H

main42652-3D011×4iLN145..LHD..GEN200108-200312

185R14C-8PR *B/S

main42652-3D012×4iLN145..LHD..GEN200312-200506

185R14C-8PR *B/S

main42652-3D021×4iLN145..LHD..GEN200108-200312

185R14C-8PR *Y/H

main42652-3D022×4iLN145..LHD..GEN200312-200506

185R14C-8PR *Y/H

main42652-3D030×4iKZN165,VZN167..DCB..SR..ARL200109-200502

225/70R15

main42652-3D032×4iLN166..RHD..DCB..GEN200409-200603

225/70R15

main42652-3D040×4iRZN169..SA;KZN190,LN167,192..SCB..SA199807-200203

215R15-6PR

main42652-3D080×4iLN141,146,RZN142,144,147,149..GCC199808-200108

195R15C 103/101R

main42652-3D100×4iRZN149,154..(DCB,SCB,XTR)..(ARL,GEN);LN140,145,147,152,RZN147,YN140..(DCB,SCB,XTR)..(ARL,SA)199903-200005

195R14C-8PR

main42652-3D101×4iLN152..XTR..IV3;RZN149,154..CBR..GEN;LN140,145,147,RZN142,147,149,154,YN140..(DCB,SCB,XTR)..DLX..(ARL,SA)200005-200203

195R14C-8PR

main42652-3D130×4iKDN165,190,LN166,RZN169..DCB..(GEN,MA)200108-200312

255/70R15C *B/S

main42652-3D131×4iKDN165,190,LN166,RZN169..DCB..(GEN,MA)200312-200408

255/70R15C *B/S

main42652-3D132×4iKDN165,190,LN166..DCB..MA200408-200503

255/70R15C *B/S

main98665-70164×4iLN166..SCB..MA200108-200503

7.00-16-8PR

42652ATIRE (FOR SPARE)

main42605-04010iKZN165,LN167,172,RZN169,174..(THDCB,THSCB,THXTR)..DLX200109-200404

205R16C 6PR

main42605-35081iKZN165,LN167,172,RZN169,174,VZN167,172..(DCB,SCB,XTR)..DLX..ARL200109-200502

205R16C 6PR

main42605-35220iKZN165,LN167,172,RZN16#,174,193..(DSL,EFI,TDE)..(ARL,GEN)199708-200005

205R16C-104R

main42605-35221iLN167,172..THDCB,THSCB,THXTR200305-200404

205R16R/F

main42605-35250iLN145..GEN..CBU;LN145..LHD..IV3200108-200506

6.50-14-8PR

main42605-35291iRZN168..CO;LN166..DCB;LN166..SCB..GEN;LN171,191,RZN169..GCC,GEN200108-200408

205R16C-6PR

main42605-35292iLN166..RHD..GEN200409-200603

205R16C-6PR

main42605-35300iLN145,RZN142,147,149..GEN199708-199803

185R14-C8PR *B/S

main42605-35301iLN145..DCB..IV3;LN145..LHD..IV3;LN145,RZN142,147,149..MTM..GEN..CBU199803-200408

185R14-C8PR *B/S

main42605-35302iLN145..RHD..GEN..CBU;RZN147..RHD..SCB..GEN200409-200603

185R14-C8PR *B/S

main42605-35310iLN145..LHD..IV3;LN145,RZN142,147..GEN..CBU200108-200408

185R14-C8PR *D/L

main42605-35320iLN145..LHD..IV3;LN145,RZN142,147..GEN..CBU200108-200305

185R14-C8PR *Y/H

main42605-35321iLN145..LHD..IV3;LN145,RZN142,147..GEN..CBU200305-200408

185R14C *Y/H

main42605-35370iLN145200508-200603

6.50-14-8PR,*O/T

main42605-35380iLN145200508-200603

6.50-14-8PR,*Y/H

main42605-35390iLN145200508-200603

6.50-14-8PR,*D/L

main42605-35400iLN145200508-200603

6.50-14-8PR,*T/Y

main42652-04270iLN147,152,RZN147,149,154..THDCB,THSCB,THXTR200109-200404

195R14C-8PR

main42652-04280iKDN16#,190..TH..CBU200109-200404

255/70R15

main42652-35401iLN145..LHD..GEN200108-200305

185R14C-8PR *D/L

main42652-35402iLN145..LHD..GEN200305-200312

185R14C *D/L

main42652-35403iLN145..LHD..GEN200312-200506

185R14C *D/L

main42652-35770iRZN169..SA;KZN190,LN167,192..SCB..SA199807-200203

215R15-6

main42652-35890iRZN149..DLX..GEN199708-199908

195R15-6PR

main42652-35891iRZN148,149..CO;RZN148..GEN..CBU200108

195/80R15 *Y/H

main42652-3D011iLN145..LHD..GEN200108-200312

185R14C-8PR *B/S

main42652-3D012iLN145..LHD..GEN200312-200506

185R14C-8PR *B/S

main42652-3D021iLN145..LHD..GEN200108-200312

185R14C-8PR *Y/H

main42652-3D022iLN145..LHD..GEN200312-200506

185R14C-8PR *Y/H

main42652-3D030iKZN165,LN167,RZN169,VZN167..DCB..SR..ARL200109-200408

225/70R15

main42652-3D032iLN166..RHD..DCB..GEN200409-200603

225/70R15

main42652-3D040iRZN169..SA;KZN190,LN167,192..SCB..SA199807-200203

215R15-6PR

main42652-3D080iLN141,146,RZN142,144,147,149..GCC199808-200108

195R15C 103/101R

main42652-3D100iRZN149,154..(DCB,SCB,XTR)..(ARL,GEN);LN140,145,147,152,RZN147,YN140..(DCB,SCB,XTR)..(ARL,SA)199903-200005

195R14C-8PR

main42652-3D101iLN152..XTR..IV3;RZN149,154..CBR..GEN;LN140,145,147,RZN142,147,149,154,YN140..(DCB,SCB,XTR)..DLX..(ARL,SA)200005-200203

195R14C-8PR

main42652-3D130iKDN165,190,LN166,RZN169..DCB..(GEN,MA)200108-200312

255/70R15C *B/S

main42652-3D131iKDN165,190,LN166,RZN169..DCB..(GEN,MA)200312-200408

255/70R15C *B/S

main42652-3D132iKDN165,190,LN166,RZN169..DCB..(GEN,MA)200408-200506

255/70R15C *B/S

main98665-70164iLN166,191..DSL..GEN199708-200603

7.00-16-8PR

9 parts on this diagram · 4 diagrams in section
