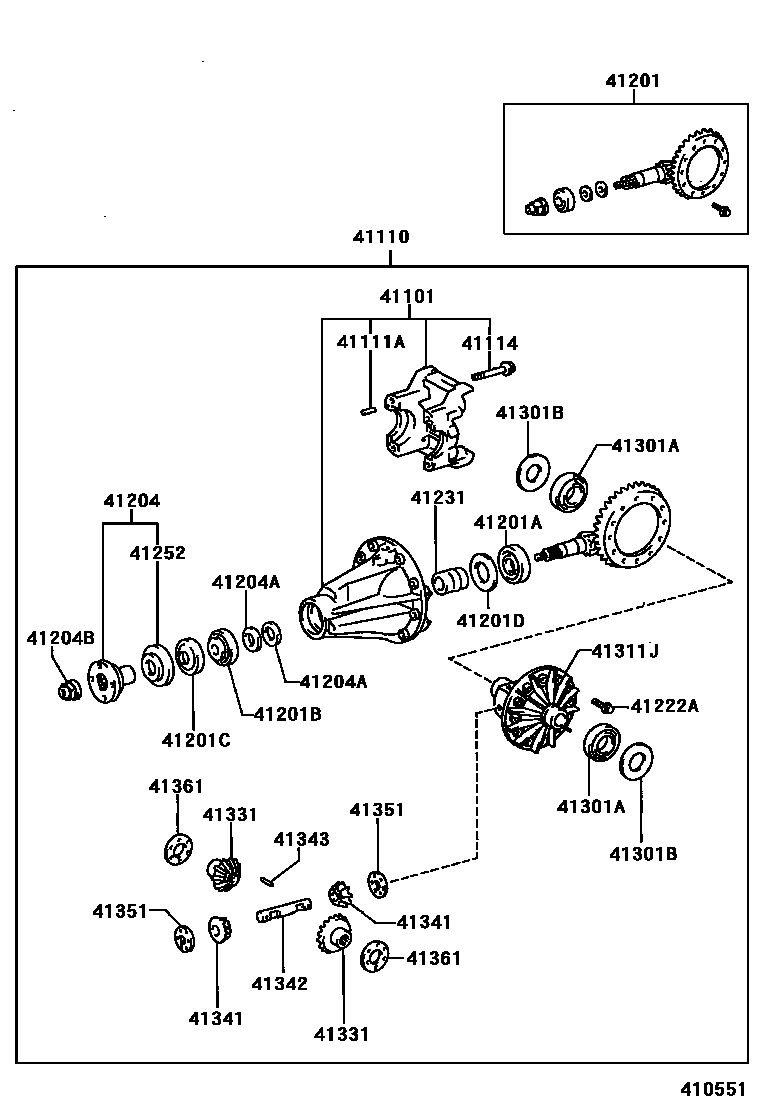

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1 0004 1 0005 1 0009 1LIMITED SLIP DIFFERENTIAL 0015 1REAR DIFFERENTIAL LOCK 0017 1

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-34030iLN141,146,RZN142,144,147,149..GCC199708-200108

main41101-35031iRZN149,154..ATM..ARL;LN145,150,155,RZN147..ARL,TH;LN147,152,157,167,172,192..DEFI..(ARL,TH)199708-200108

main41101-35150iKZN165..SA;RZN169..SCB..SR; RZN169..DCB..SA200203-200504

W(REAR DIFFERENTIAL LOCK)

main41101-35170iRZN148..IV3;RZN169..CBR;RZN168,193..DLX;RZN169..DCB..SA;KZN165..(SCB,THSCB)..SR;KZN190,RZN169..SCB..DLX..SA199708-200206

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-25240iRZN148..DLX..CBU199908-200206

*FGR=41:11=3.727,W(LSD)

main41110-26440iRZN148..CBU199906-200103

*FGR=43:10=4.300

main41110-34030iLN141,146199708-199812

*FGR=49:12=4.083

main41110-34031iLN141,146200108-200508

*FGR=49:12=4.083

main41110-34070iRZN142,147..GCC199708-200108

*FGR=49:11=4.455

main41110-34200iRZN144,149..GCC200108-200508

*FGR=49:13=3.769

main41110-35202iLN152..MTM..DSL;LN152..DEFI..IV3;LN152..MTM..DEFI..TH;LN140,145,147,RZN142,147..DLX..(ARL,GEN,SA)199708-200603

*FGR=41:10=4.100

main41110-35212iLN145,150,155..TH200109-200409

*FGR=43:10=4.300

main41110-35222iLN167,192..IV1199708-200008

*FGR=41:9=4.555

main41110-35312iLN167,172..ARL; LN167,192..XTR200009-200109

*FGR=41:9=4.555; *FGR=41:9=4.555,W(REAR DIFFERENTIAL LOCK)

main41110-35431iLN147,152..ARL199708-200009

*FGR=41:10=4.100,W(LSD)

main41110-35481iLN157..DEFI;RZN149,154..ATM..ARL199708-200108

*FGR=41:11=3.727

main41110-35870iKZN165..TH200007-200108

*FGR=41:11=3.727

main41110-3D010iRZN169..DCB..SA; RZN169..SCB..SR200203-200504

*FGR=41:9=4.555; *FGR=41:9=4.555,W(REAR DIFFERENTIAL LOCK)

main41110-3D040iRZN168; RZN169,193..GEN199708-200108

*FGR=43:10=4.300,W(LSD)

main41110-3D050iKDN165200110-200503

*FGR=43:11=3.909

main41110-3D060iVZN167,172200208-200502

*FGR=41:10=4.100

main41110-3D240iKDN166,RZN149..RHD;RZN148,154..(ARL,GEN)..CBU;KZN165..(DCB,SCB,THDCB,THSCB)..(ARL,TH)200108-200506

*FGR=41:11=3.727,W(LSD)

main41110-3D250iRZN149..ARL;RZN148,154..(ARL,GEN)..CBU200108-200506

*FGR=41:11=3.727

main41110-3D260iRZN168..DLX..GEN200108-200603

*FGR=41:9=4.555

main41110-3D270iLN167..SR..SA199807-200002

*FGR=41:9=4.555

main41110-3D290iKZN165..SA200203-200504

*FGR=43:10=4.300

41111APIN, STRAIGHT (FOR REAR DIFFERENTIAL CARRIER)

main90250-04091×4iLN141,146,RZN142,144,147,149..GCC199708-200108

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main90105-12053×4iRZN148..DLX..GEN..CBU199906-200603

main90901-05003×4iLN141,146,RZN142,144,147,149..GCC200108-200508

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-29526iLN145,150,155..TH200109-200201

*FGR=43:10=4.300

main41201-29537iLN16#,172..ARL,MA,SA; LN166..GCC200201-200502

*FGR=41:9=4.555; *FGR=41:9=4.555,W(LSD)

main41201-29655iRZN149,154..GEN199708-199908

*FGR=41:11=3.727

main41201-29656iRZN148..CBU;RZN149,154..ATM..ARL200201-200204

*FGR=41:11=3.727

main41201-29675iRZN148..CBU199908-200101

*FGR=41:11=3.727,W(LSD)

main41201-29796iLN145,150,155..TH200201-200409

*FGR=43:10=4.300

main41201-29805iLN167,172,192..DEFI..(ARL,TH)199708-200108

*FGR=41:9=4.556

main41201-29856iRZN16#,174,193199708-199806

*FGR=43:10=4.300

main41201-39676iLN147,152,RZN147..MTM..(DEFI,EFI)199708-200108

*FGR=41:10=4.100

main41201-39677iLN145..GEN..CBU;LN145..LHD..IV3;KDN145,150,LN147,152,RZN142,147..ARL,GEN,TH200201-200506

*FGR=41:10=4.100

main41201-69425iLN167..SR..SA199807-200002

*FGR=39:8=4.875

main41201-69455iRZN169..DLX..SA199807-200203

*FGR=41:9=4.556

main41201-69456iRZN169..SR..SA200203-200504

*FGR=41:9=4.555

main41201-80004iRZN16#..GCC,GEN200502-200508

*FGR=43:10=4.300

main41201-80015iLN16#,171200502-200508

*FGR=41:9=4.556

main41201-80032iLN141,146199708-199812

*FGR=49:12=4.083

main41201-80034iRZN142,147..GCC199708-200108

*FGR=49:11=4.456

main41201-80064iRZN144,149..GCC199708-200108

*FGR=49:13=3.769

main41201-80099iKZN190..SCB200009-200203

*FGR=41:11=3.727

main41201-80100iKDN165200110-200201

*FGR=43:11=3.909

main41201-80104iRZN148..CBU199906-200103

*FGR=43:10=4.300

main41201-80105iRZN169..SA199807-200203

*FGR=41:9=4.555

main41201-80109iKDN165200502-200503

*FGR=43:11=3.909

main41201-80143iLN141,146200108-200508

*FGR=49:12=4.083

main41201-80160iKZN165..SA200010-200203

*FGR=43:10=4.300

main41201-80174iKZN165,RZN149,154..MTM..(ARL,GEN,TH)200201-200204

*FGR=41:11=3.727

main41201-80176iKZN165..SA200203-200204

*FGR=41:11=3.727

main41201-80177iKDN165200201-200502

*FGR=43:11=3.909

main41201-80179iVZN167,172200208-200502

*FGR=41:10=4.100

main41201-80181iRZN148..DLX; RZN168..DLX200201-200206

*FGR=43:10=4.300; *FGR=43:10=4.300,W(LSD)

main41201-80189iRZN149..ARL;RZN148,154..(ARL,GEN)..CBU200204-200506

*FGR=41:11=3.727,W(LSD)

main41201-80348iKZN165200502-200504

*FGR=41:11=3.727

main41201-80396iRZN148..GEN200502-200506

*FGR=41:11=3.727

main41201-80484iLN16#,171200502-200508

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90366-35044iRZN149,154..GEN199708-199908

main90366-35087iRZN169..SR..ARL;RZN169..SCB..SR;RZN154,169..GCC,GEN;RZN149,168..MTM..SR..(ARL,GEN);KDN151,16#,190,KZN165,VZN167,172;RZN149,154,169,174..(THDCB,THSCB,THXTR)..MTM..DLX200108-200508

main90366-40068iLN141,146,RZN142,144,147,149..GCC200108-200508

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90366-30022iLN157;RZN149,154..ATM..ARL; LN166..RHD;LN145..DCB..TH;LN145..RHD..DCB..CBU;LN147,152,167,172,192..DEFI;LN140,150,155,RZN142..SA,TH;LN145,RZN147..RHD..(SCB,THSCB)199708-200108

main90366-30067iKZN165..SCB..DLX;KZN165..(DCB,THDCB,XTR)..(ARL,TH);RZN149,154,169,174..(THDCB,THSCB,THXTR)..MTM199808-200108

main90366-30078iRZN149,154..GEN199708-199908

main90368-34007iLN141,146,RZN142,144,147,149..GCC200108-200508

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90311-38047iRZN169..SA;RZN148..IV3;RZN149..EFI..GEN;KZN165..(SCB,THSCB)..SR;LN167,RZN169..(CBR,DSL)..(CBU,IV3);KZN165,LN167,192,RZN147..(CBR,DEFI,TDE)..(GEN,SA);LN145,147,166,191,RZN168,193..DLX..(DSL,EFI)..(ARL,GCC,GEN,SA);KZN190,LN140,152,17#,192,RZN142,YN140..(SCB,THXTR,XTR)..(CBR,DSL,TDE)..(ARL,GEN,SA,TH)..(CBU,IV3)199708-200201

main90311-41009iRZN149..ARL;RZN169..SR..SA;LN145..LHD..IV3;RZN169..ARL,GCC,GEN;RZN142,147..ARL,GEN;LN145,RZN148..(GEN,TH)..CBU;KDN145,150,151,16#,190,KZN165,LN147,15#,16#,17#,191,RZN154,168,174,193,VZN167,172..ARL,GCC,GEN,MA,SA,TH200201-200508

main90311-44006iLN141,146,RZN142,144,147,149..GCC199708-199806

main90311-44007iLN141,146,RZN142,144,147,149..GCC199806-200108

41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)

main90201-35497iLN167,192..IV1199708-200008

OD=47,T=1.70

main90201-35498iRZN149,154..GEN199708-199908

OD=47,T=1.73

main90201-35499iRZN149,154..GEN199708-199908

OD=47,T=1.76

main90201-35500iKDN155200108-200408

OD=47,T=1.79

main90201-35501iKDN155200108-200408

OD=47,T=1.82

main90201-35502iKZN165..SCB..DLX;KZN165..(DCB,THDCB,XTR)..(ARL,TH);LN147,152,157,167,172,192..DEFI..(ARL,TH);LN145,150,155,RZN147,149,154,169,174..ARL,TH199708-200108

OD=47,T=1.85

main90201-35503iLN167,192..IV1199708-200008

OD=47,T=1.88

main90201-35504iRZN148..DLX..GEN..CBU199906-200603

OD=47,T=1.91

main90201-35505iRZN148..DLX..GEN..CBU199906-200603

OD=47,T=1.94

main90201-35506iLN167,192..IV1199708-200008

OD=47,T=1.97

main90201-35507iKDN155200108-200408

OD=47,T=2.00

main90201-35508iRZN148..DLX..GEN..CBU199906-200603

OD=47,T=2.03

main90201-35509iRZN148..DLX..GEN..CBU199906-200603

OD=47,T=2.06

main90201-35510iLN147..IV3;RZN169..SR..SA;LN145..LHD..IV3;RZN169..ARL,GCC,GEN;LN167,RZN149..ARL,SA;LN145,152,RZN148..(ARL,GEN)..CBU;LN145,147..(DCB,THDCB)..(ARL,TH);LN150,RZN142,147..DLX..(ARL,GEN,TH);KDN145,150,151,16#,190,KZN165,LN155,166,17#,191,RZN154,168,174,193,VZN167,172..ARL,GCC,GEN,MA,SA,TH200108-200508

OD=47,T=2.09

main90201-35511iRZN148..DLX..GEN..CBU199906-200603

OD=47,T=2.12

main90201-35512iKDN155200108-200408

OD=47,T=2.15

main90201-35513iKDN155200108-200408

OD=47,T=2.18

main90201-35514iRZN148..DLX..GEN..CBU199906-200603

OD=47,T=2.21

main90201-35515iKDN155200108-200408

OD=47,T=2.24,MARK 01

main90201-35516iLN147..IV3;RZN169..SR..SA;LN145..LHD..IV3;RZN169..ARL,GCC,GEN;LN167,RZN149..ARL,SA;LN145,152,RZN148..(ARL,GEN)..CBU;LN145,147..(DCB,THDCB)..(ARL,TH);LN150,RZN142,147..DLX..(ARL,GEN,TH);KDN145,150,151,16#,190,KZN165,LN155,166,17#,191,RZN154,168,174,193,VZN167,172..ARL,GCC,GEN,MA,SA,TH200108-200508

OD=47,T=2.27,MARK 02

main90201-35517iKZN165..SCB..DLX;KZN165..(DCB,THDCB,XTR)..(ARL,TH);LN147,152,157,167,172,192..DEFI..(ARL,TH);LN145,150,155,RZN147,149,154,169,174..ARL,TH199708-200108

OD=47,T=2.30,MARK 03

main90201-35518iRZN149,154..GEN199708-199908

OD=47,T=2.33,MARK 04

main90201-70001iLN141,146,RZN142,144,147,149..GCC200108-200508

T=1.87,MARK 87

main90201-70002iLN141,146,RZN142,144,147,149..GCC200108-200508

T=1.88,MARK 88

main90201-70003iLN141,146,RZN142,144,147,149..GCC199708-200108

T=1.89,MARK 89

main90201-70004iLN141,146,RZN142,144,147,149..GCC200108-200508

T=1.90,MARK 90

main90201-70005iLN141,146,RZN142,144,147,149..GCC199708-200108

T=1.91,MARK 91

main90201-70006iLN141,146,RZN142,144,147,149..GCC200108-200508

T=1.92,MARK 92

main90201-70007iLN141,146,RZN142,144,147,149..GCC199708-200108

T=1.93,MARK 93

main90201-70008iLN141,146,RZN142,144,147,149..GCC200108-200508

T=1.94,MARK 94

main90201-70009iLN141,146,RZN142,144,147,149..GCC200108-200508

T=1.95,MARK 95

main90201-70010iLN141,146,RZN142,144,147,149..GCC200108-200508

T=1.96,MARK 96

main90201-70011iLN141,146,RZN142,144,147,149..GCC199708-200108

T=1.97,MARK 97

main90201-70012iLN141,146,RZN142,144,147,149..GCC200108-200508

T=1.98,MARK 98

main90201-70013iLN141,146,RZN142,144,147,149..GCC200108-200508

T=1.99,MARK 99

main90201-70014iLN141,146,RZN142,144,147,149..GCC199708-200108

T=2.00,MARK 00

main90201-70015iLN141,146,RZN142,144,147,149..GCC199708-200108

T=2.01,MARK 01

main90201-70016iLN141,146,RZN142,144,147,149..GCC199708-200108

T=2.02,MARK 02

main90201-70017iLN141,146,RZN142,144,147,149..GCC200108-200508

T=2.03,MARK 03

main90201-70018iLN141,146,RZN142,144,147,149..GCC200108-200508

T=2.04,MARK 04

main90201-70019iLN141,146,RZN142,144,147,149..GCC199708-200108

T=2.05,MARK 05

main90201-70020iLN141,146,RZN142,144,147,149..GCC199708-200108

T=2.06,MARK 06

main90201-70021iLN141,146,RZN142,144,147,149..GCC199708-200108

T=2.07,MARK 07

main90201-70022iLN141,146,RZN142,144,147,149..GCC199708-200108

T=2.08,MARK 08

main90201-70023iLN141,146,RZN142,144,147,149..GCC200108-200508

T=2.09,MARK 09

main90201-70024iLN141,146,RZN142,144,147,149..GCC200108-200508

T=2.10,MARK 10

main90201-70025iLN141,146,RZN142,144,147,149..GCC200108-200508

T=2.11,MARK 11

main90201-70026iLN141,146,RZN142,144,147,149..GCC199708-200108

T=2.12,MARK 12

main90201-70027iLN141,146,RZN142,144,147,149..GCC200108-200508

T=2.13,MARK 13

main90201-70028iLN141,146,RZN142,144,147,149..GCC199708-200108

T=2.14,MARK 14

main90201-70029iLN141,146,RZN142,144,147,149..GCC200108-200508

T=2.15,MARK 15

main90201-70030iLN141,146,RZN142,144,147,149..GCC199708-200108

T=2.16,MARK 16

main90201-70031iLN141,146,RZN142,144,147,149..GCC199708-200108

T=2.17,MARK 17

main90201-70032iLN141,146,RZN142,144,147,149..GCC199708-200108

T=2.18,MARK 18

main90201-70033iLN141,146,RZN142,144,147,149..GCC200108-200508

T=2.19,MARK 19

main90201-70034iLN141,146,RZN142,144,147,149..GCC199708-200108

T=2.20,MARK 20

main90201-70035iLN141,146,RZN142,144,147,149..GCC200108-200508

T=2.21,MARK 21

main90201-70036iLN141,146,RZN142,144,147,149..GCC200108-200508

T=2.22,MARK 22

main90201-70037iLN141,146,RZN142,144,147,149..GCC199708-200108

T=2.23,MARK 23

main90201-70038iLN141,146,RZN142,144,147,149..GCC199708-200108

T=2.24,MARK 24

main90201-70039iLN141,146,RZN142,144,147,149..GCC199708-200108

T=2.25,MARK 25

main90201-70040iLN141,146,RZN142,144,147,149..GCC200108-200508

T=2.26,MARK 26

main90201-70041iLN141,146,RZN142,144,147,149..GCC200108-200508

T=2.27,MARK 27

main90201-70042iLN141,146,RZN142,144,147,149..GCC200108-200508

T=2.28,MARK 28

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-34010iLN141,146,RZN142,144,147,149..GCC199708-200108

main41204-35040iRZN149,154..GEN199708-199908

main41204-35080iRZN148..DLX..CBU199906-200201

W(REAR DIFFERENTIAL LOCK)

main41204-35081iRZN169..DCB..SA;RZN169..DLX..SA;RZN148,149,168..DLX..GEN;KZN190,LN167,RZN147..RHD..SCB..DLX..(GEN,SA);KZN165,LN140,145,166,192,RZN142..RHD..(GEN,SA)200201-200405

main41204-35082iLN145,166..RHD..GEN;RZN147..RHD..SCB..GEN200405-200603

41204AWASHER, PLATE (FOR REAR DRIVE PINION)

main90201-35006×2iLN141,146,RZN142,144,147,149..GCC199708-200108

41204BNUT (FOR REAR DRIVE PINION)

main90177-22003iRZN169..DCB..SA;RZN169..DLX..SA;RZN148,149,168..DLX..GEN;KZN190,LN167,RZN147..RHD..SCB..DLX..(GEN,SA);KZN165,LN140,145,166,192,RZN142..RHD..(GEN,SA)200201-200603

OD=39.5

main90179-20018iRZN169..SA;RZN148..IV3;RZN149..EFI..GEN;KZN165..(SCB,THSCB)..SR;LN167,RZN169..(CBR,DSL)..(CBU,IV3);KZN165,LN167,192,RZN147..(CBR,DEFI,TDE)..(GEN,SA);LN145,147,166,191,RZN168,193..DLX..(DSL,EFI)..(ARL,GCC,GEN,SA);KZN190,LN140,152,157,17#,192,RZN142,YN140..(SCB,THXTR,XTR)..(CBR,DSL,TDE)..(ARL,GEN,SA,TH)..(CBU,IV3)199708-200201

OD=37

main90179-24012iLN141,146,RZN142,144,147,149..GCC200108-200508

OD=34.6

41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-35020×5iKZN165..SCB..DLX;KZN165..(DCB,THDCB,XTR)..(ARL,TH);LN147,152,157,167,172,192..DEFI..(ARL,TH);LN145,150,155,RZN147,149,154,169,174..ARL,TH199708-200108

main41222-60010×5iKZN165..SA;RZN169..SCB..SR; RZN169..DCB..SA200203-200504

W(REAR DIFFERENTIAL LOCK)

41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

main90101-11353×10iLN147..IV3;RZN169..SR..SA;LN145..LHD..IV3;RZN169..ARL,GCC,GEN;LN167,RZN149..ARL,SA;LN145,152,RZN148..(ARL,GEN)..CBU;LN145,147..(DCB,THDCB)..(ARL,TH);LN150,RZN142,147..DLX..(ARL,GEN,TH);KDN145,150,151,16#,190,KZN165,LN155,166,17#,191,RZN154,168,174,193,VZN167,172..ARL,GCC,GEN,MA,SA,TH200108-200508

main90901-05002×12iLN141,146,RZN142,144,147,149..GCC199708-200108

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-24010iVZN167,172200208-200502

main41231-34010iLN141,146,RZN142,144,147,149..GCC200108-200508

main41231-40011iLN167,192..IV1199708-200008

41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

main41252-34010iLN141,146,RZN142,144,147,149..GCC200108-200508

main41252-35020iLN192..DEFI..SA;LN192..(SCB,XTR)..DSL..CBU;LN167..DSL..(ARL,TH)..(CBU,IV3);LN167,RZN149..DLX..(DEFI,DSL,EFI)..(GEN,SA);LN152,157,RZN142,147..(CBR,DSL)..(ARL,GEN,SA,TH);LN140,145,147,166,17#,191,YN140..DLX..(CBR,DSL)..(ARL,GCC,GEN,SA)199708-200201

main41252-35040iRZN169..CBR;LN167..SR..SA;RZN168,193..DLX199708-200201

W(REAR DIFFERENTIAL LOCK)

main41252-35041iRZN169..DCB..SA;RZN169..DLX..SA;RZN148,149,168..DLX..GEN;KZN190,LN167,RZN147..RHD..SCB..DLX..(GEN,SA);KZN165,LN140,145,166,192,RZN142..RHD..(GEN,SA)200201-200603

41301CASE SUB-ASSY, REAR DIFFERENTIAL

main41301-60060iLN167..SR..SA;KZN165,RZN169..SA199807-200203

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90366-50007iRZN169..DLX..SA;KZN165,LN167..SR..SA199807-200203

main90366-51001×2iLN141,146,RZN142,144,147,149..GCC199708-200108

main90366-75001iRZN169..SR199807-200108

W(REAR DIFFERENTIAL LOCK),LH

main90368-45066×2iRZN149,154..GEN199708-199908

main90368-50024×2iLN147..SR;LN145..LHD..IV3;RZN142,147..ARL,GEN;RZN149,154..ATM..ARL;LN145,152,166,171,191,RZN148..(ARL,GCC,GEN)..CBU200108-200508

W(LSD)

41301BWASHER(FOR REAR DIFFERENTIAL TAPERED ROLLER BEARING)

main90201-70064×2iLN141,146,RZN142,144,147,149..GCC200108

T=2.58

main90201-70065×2iLN141,146,RZN142,144,147,149..GCC199708-200108

T=2.60

main90201-70066×2iLN141,146,RZN142,144,147,149..GCC200108

T=2.62

main90201-70067×2iLN141,146,RZN142,144,147,149..GCC200108

T=2.64

main90201-70068×2iLN141,146,RZN142,144,147,149..GCC199708-200108

T=2.66

main90201-70069×2iLN141,146,RZN142,144,147,149..GCC199708-200108

T=2.68

main90201-70070×2iLN141,146,RZN142,144,147,149..GCC199708-200108

T=2.70

main90201-70071×2iLN141,146,RZN142,144,147,149..GCC200108

T=2.72

main90201-70072×2iLN141,146,RZN142,144,147,149..GCC199708-200108

T=2.74

main90201-70073×2iLN141,146,RZN142,144,147,149..GCC200108

T=2.76

main90201-70074×2iLN141,146,RZN142,144,147,149..GCC200108

T=2.78

main90201-70075×2iLN141,146,RZN142,144,147,149..GCC200108

T=2.80

main90201-70076×2iLN141,146,RZN142,144,147,149..GCC200108

T=2.82

main90201-70077×2iLN141,146,RZN142,144,147,149..GCC200108

T=2.84

main90201-70078×2iLN141,146,RZN142,144,147,149..GCC200108

T=2.86

main90201-70079×2iLN141,146,RZN142,144,147,149..GCC199708-200108

T=2.88

main90201-70080×2iLN141,146,RZN142,144,147,149..GCC200108

T=2.90

main90201-70081×2iLN141,146,RZN142,144,147,149..GCC199708-200108

T=2.92

main90201-70082×2iLN141,146,RZN142,144,147,149..GCC200108

T=2.94

main90201-70083×2iLN141,146,RZN142,144,147,149..GCC199708-200108

T=2.96

main90201-70084×2iLN141,146,RZN142,144,147,149..GCC199708-200108

T=2.98

main90201-70085×2iLN141,146,RZN142,144,147,149..GCC200108

T=3.00

main90201-70086×2iLN141,146,RZN142,144,147,149..GCC200108

T=3.02

main90201-70087×2iLN141,146,RZN142,144,147,149..GCC199708-200108

T=3.04

main90201-70088×2iLN141,146,RZN142,144,147,149..GCC200108

T=3.06

main90201-70089×2iLN141,146,RZN142,144,147,149..GCC200108

T=3.08

main90201-70090×2iLN141,146,RZN142,144,147,149..GCC199708-200108

T=3.10

main90201-70091×2iLN141,146,RZN142,144,147,149..GCC200108

T=3.12

main90201-70092×2iLN141,146,RZN142,144,147,149..GCC199708-200108

T=3.14

main90201-70093×2iLN141,146,RZN142,144,147,149..GCC200108

T=3.16

main90201-70094×2iLN141,146,RZN142,144,147,149..GCC199708-200108

T=3.18

main90201-70095×2iLN141,146,RZN142,144,147,149..GCC199708-200108

T=3.20

main90201-70096×2iLN141,146,RZN142,144,147,149..GCC199708-200108

T=3.22

main90201-70097×2iLN141,146,RZN142,144,147,149..GCC200108

T=3.24

main90201-70098×2iLN141,146,RZN142,144,147,149..GCC199708-200108

T=3.26

main90201-70099×2iLN141,146,RZN142,144,147,149..GCC199708-200108

T=3.28

main90201-70100×2iLN141,146,RZN142,144,147,149..GCC200108

T=3.30

main90201-70101×2iLN141,146,RZN142,144,147,149..GCC200108

T=3.32

main90201-70102×2iLN141,146,RZN142,144,147,149..GCC200108

T=3.34

main90201-70103×2iLN141,146,RZN142,144,147,149..GCC200108

T=3.36

main90201-70104×2iLN141,146,RZN142,144,147,149..GCC200108

T=3.38

main90201-70105×2iLN141,146,RZN142,144,147,149..GCC200108

T=3.40

main90201-70106×2iLN141,146,RZN142,144,147,149..GCC199708-200108

T=3.42

main90201-70107×2iLN141,146,RZN142,144,147,149..GCC200108

T=3.44

main90201-70108×2iLN141,146,RZN142,144,147,149..GCC199708-200108

T=3.46

main90201-70109×2iLN141,146,RZN142,144,147,149..GCC199708-200108

T=3.48

41311JCASE, REAR DIFFERENTIAL

main41311-34010iLN141,146,RZN142,144,147,149..GCC200108

41331GEAR, REAR DIFFERENTIAL SIDE

main41039-34060iRZN169..SA;LN167..SR..SA199807-200005

W(REAR DIFFERENTIAL LOCK),LH,RH

main41039-34070×2iRZN148..CBU199908-200005

W(LSD)

main41331-34010×2iLN141,146,RZN142,144,147,149..GCC199708-199912

main41331-34011×2iLN141,146,RZN142,144,147,149..GCC200108-200312

main41331-34012×2iLN141,146,RZN142,144,147,149..GCC200312

main41331-35011×2iRZN148..DLX..GEN..CBU199906-200603

41341PINION, REAR DIFFERENTIAL

main41341-34010×2iLN141,146,RZN142,144,147,149..GCC199708-199912

main41341-34011×2iLN141,146,RZN142,144,147,149..GCC200108-200312

main41341-34012×2iLN141,146,RZN142,144,147,149..GCC200312-200508

main41341-35020×2iKDN155200108-200408

NO.1

41342SHAFT, REAR DIFFERENTIAL PINION

main41342-34010iLN141,146,RZN142,144,147,149..GCC199708-199912

main41342-34011iLN141,146,RZN142,144,147,149..GCC200108

main41342-39610iLN167..SA200108-200504

41343PIN, REAR DIFFERENTIAL PINION SHAFT

main90250-06058iLN141,146,RZN142,144,147,149..GCC199708-200108

main90250-06085iLN167,192..IV1199708-200008

41351WASHER, REAR DIFFERENTIAL PINION THRUST

main41351-30052×2iLN167..DEFI..TH;LN147,152,157,192..DEFI..(ARL,TH);LN145,150,155,RZN147,149,154..ARL,TH199708-200108

main41351-30060×4iLN147..DLX200109-200502

W(REAR DIFFERENTIAL LOCK)

main41351-34010×2iLN141,146,RZN142,144,147,149..GCC200108-200508

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-14200×6iLN167,192..IV1199708-200008

T=1.80

main41361-14210×2iKZN165..SR..ARL;LN152..XTR..DSL..IV3199811-200109

T=1.70,MARK N,W(LSD)

main41361-34010×2iLN141,146,RZN142,144,147,149..GCC200108-200508

T=1.50

main41361-34020×2iLN141,146,RZN142,144,147,149..GCC200108-200508

T=1.55

main41361-34030×2iLN141,146,RZN142,144,147,149..GCC200108-200508

T=1.60

main41361-34040×2iLN141,146,RZN142,144,147,149..GCC200108-200508

T=1.65

main41361-34050×2iLN141,146,RZN142,144,147,149..GCC199708-200108

T=1.70

main41361-34060×2iLN141,146,RZN142,144,147,149..GCC199708-200108

T=1.75

main41361-34070×2iLN141,146,RZN142,144,147,149..GCC200108-200508

T=1.80

main41361-34080×2iLN141,146,RZN142,144,147,149..GCC200108-200508

T=1.85

main41361-34090×2iLN141,146,RZN142,144,147,149..GCC200108-200508

T=1.90

main41361-35160×6iLN166..GCC200009-200109

T=1.8,W(LSD)

main41361-35161×6iRZN147..RHD..SCB..GEN;LN145,166..RHD..GEN..CBU200302-200603

T=1.8,W(LSD)

main41361-35310×2iKZN165..TH200007-200108

T=0.9

main41361-35320×2iKDN151200208-200408

T=1.0

main41361-35330×2iKZN165..TH200007-200108

T=1.1

main41361-35340×2iKDN151200208-200408

T=1.2

main41361-35350iKZN165,RZN169..SR..SA200203-200504

T=1.3,W(REAR DIFFERENTIAL LOCK),RH,ID=46

main41361-40021×2iRZN149,154..GEN199708-199908

T=1.6

main41361-60290×2iKZN165,RZN169..SR..SA200203-200504

T=0.90,W(REAR DIFFERENTIAL LOCK),RH & LH,ID=54

main41361-60300×2iRZN169..SR199807-200108

T=1.00,W(REAR DIFFERENTIAL LOCK)

main41361-60310×2iRZN169..DLX..SA;KZN165,LN167..SR..SA199807-200203

T=1.10,W(REAR DIFFERENTIAL LOCK)

main41361-60320×2iKZN165,RZN169..SR..SA200203-200504

T=1.20,W(REAR DIFFERENTIAL LOCK),RH & LH,ID=54

main41361-60330×2iRZN169..SR199807-200108

T=1.30,W(REAR DIFFERENTIAL LOCK)

main41362-40021×2iRZN169..CBR;RZN169..DCB..SA;RZN148..GEN..IV3;RZN149,168..DLX..EFI..GEN;LN167,192..(SCB,XTR)..DSL..(SA,TH)..CBU;LN167,192,RZN169..SCB..DLX..(DEFI,EFI)..SA;LN152,157,166,RZN193..(DSL,EFI)..(ARL,GCC,GEN,TH);LN140,145,147,171,191,RZN142,147,YN140..(CBR,DSL)..(ARL,GEN,SA)199708-200603

T=1.7

main41363-40021×2iKDN155200108-200408

T=1.8

26 parts on this diagram · 7 diagrams in section
