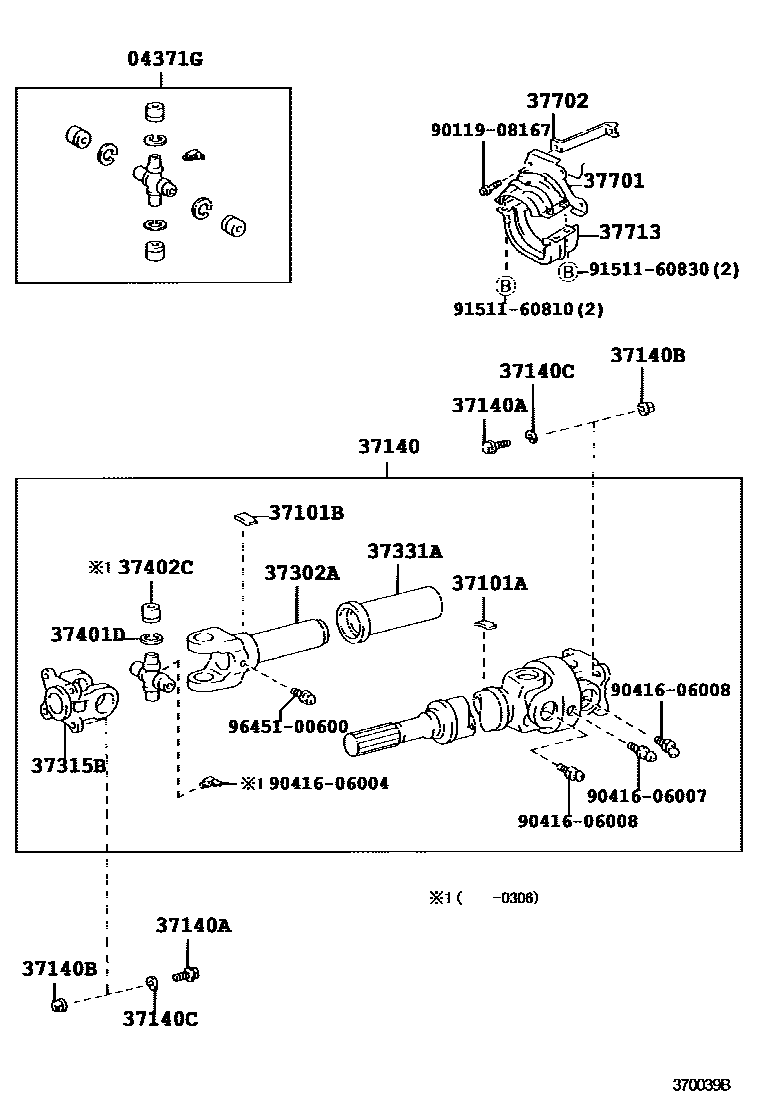

PROPELLER SHAFT & UNIVERSAL JOINT

0001 1FRONT 0002 1FRONT 0003 1FRONT 0004 1REAR 0005 1REAR 0007 1REAR 0008 1 0009 1REAR 0010 1REAR 0011 1REAR

04371GSPIDER KIT, FRONT PROPELLER SHAFT UNIVERSAL JOINT

main04371-35031iLN16#,17#,RZN16#,174199708-199712

main04371-35050iKZN165,LN16#,17#,RZN16#,174199712-200008

main04371-35051iLN167..DSL..(CBU,IV3);RZN169..DLX..(ARL,SA);LN167..DCB..DLX..DEFI..ARL;KZN165..(SCB,XTR)..(IV1,IV3);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN166,17#,RZN168,174..DLX..(ARL,GCC,GEN);KZN165..(THDCB,THSCB,XTR)..SR..(CBU,IV3);LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,RZN169..(DCB,SCB)..(CBR,TDE)..(ARL,GCC,GEN,SA)..CBU200008-200305

main04371-60070iLN166,RZN169..GCC200108-200508

37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)

main90937-01132iKZN165..SCB;LN167,192..IV1;RZN149..SR..GEN199708-200008

10G,L=20.7

main90937-01136iLN166..RHD..GEN;LN145..RHD..DCB..GEN..CBU;LN145,RZN147..RHD..SCB..GEN;RZN148,149,168..DLX..EFI..GEN199708

20G,L=41.4

main90937-01147iKZN165..SCB..DLX;KZN165..(DCB,THDCB,XTR)..(ARL,TH);LN147,152,157,167,172,192..DEFI..(ARL,TH);LN145,150,155,RZN147,149,154,169,174..ARL,TH199708-200109

2G,T=2.0

main90937-01148iKZN190,RZN194..SR200108-200305

4G,T=2.0

main90937-01149iRZN142..GEN;KZN165,LN167,RZN169..SA200108-200504

6G,L=12.4

main90937-01150iLN166..RHD..GEN;LN145..RHD..DCB..GEN..CBU;LN145,RZN147..RHD..SCB..GEN;RZN148,149,168..DLX..EFI..GEN199708

8G,L=16.6

main90937-01151iKDN16#,190..SRWGN200108-200411

12G,L=24.9

main90937-01152iLN166..RHD..GEN;LN145..RHD..DCB..GEN..CBU;LN145,RZN147..RHD..SCB..GEN;RZN148,149,168..DLX..EFI..GEN199708

14G,L=29.0

main90937-01153iKZN165..TH200110-200208

16G,L=33.2

main90937-01154iRZN142..GEN;KZN165,LN167,RZN169..SA200108-200504

18G,L=37.3

main90937-01155iLN145..LHD..IV3;LN145,166,171,191,RZN147,148,154,16#,193..GEN..CBU200108-200506

22G,L=45.6

main90937-01156iKZN165..SCB;LN167,192..IV1;RZN149..SR..GEN199708-200008

24G,L=49.7

main90937-01157iRZN169..CBR;RZN149..GCC;LN145..DCB..IV3;RZN147..LHD..SCB;RZN149..DLX..CBR..GEN;RZN147..DCB..(GCC,GEN);LN141,145,146,166,171,191,RZN142,144,154,193..LHD..(GCC,GEN)199708-200108

26G,L=53.9

main90937-01158iRZN142..GEN;KZN165,LN167,RZN169..SA200108-200504

28G,L=58.1

main90937-01201iLN147,167..SCB..IV3;LN167..DCB..DLX..ARL;LN147,152..(DCB,XTR)..ARL..CBU;KDN165,190,KZN165,LN172,RZN149,154,VZN167,172..(DCB,SCB,XTR)..(ARL,MA)200108-200502

30G,T=4.5,L=27.4

main90937-01202iRZN169..CBR;LN166,171..LHD199708-200108

32G,T=4.5,L=29.2

main90937-01203iKDN16#,190..SRWGN200108-200411

34G,T=4.5,L=31.0

main90937-01204iLN147..DCB,SCB199805-200009

36G,T=4.5,L=32.9

main90937-01205iLN147..THDCB;LN147,167..THSCB..IV3;LN150,167..(THDCB,XTR)..DLX;LN172,RZN149,154..THDCB,THSCB,THXTR;LN145,152..(DCB,THXTR)..(ARL,TH)..CBU;KDN145,15#,16#,190,LN155..(DCB,SCB,XTR)..TH..CBU200108-200408

38G,T=4.5,L=34.7

main90937-01206iRZN147,149,154..(DCB,SCB,XTR)..ARL199805-200109

40G,T=4.5,L=36.5

main90937-01207iLN167,192,RZN147..SCB..(CBR,DEFI)..SA;KZN165,190,LN140,145,RZN169,194..(DCB,SCB)..SA199708-200203

42G,T=4.5,L=38.4

main90937-01208iRZN147,149,154..(DCB,SCB,XTR)..ARL199805-200109

44G,T=4.5,L=40.2

main90937-01209iLN147..THDCB,THSCB;LN157,167..(ARL,TH)..(CBU,IV3);KZN165,LN152,172,192..(THSCB,THXTR,XTR)..(CBU,IV3)199708-200009

46G,T=4.5,L=42.0

main90937-01210iLN167,192,RZN147..SCB..(CBR,DEFI)..SA;KZN165,190,LN140,145,RZN169,194..(DCB,SCB)..SA199708-200203

48G,T=4.5,L=43.8

main90937-01211iLN147,167..SCB..IV3;LN167..DCB..DLX..ARL;LN147,152..(DCB,XTR)..ARL..CBU;KDN165,190,KZN165,LN172,RZN149,154,VZN167,172..(DCB,SCB,XTR)..(ARL,MA)200108-200502

50G,T=4.5,L=45.7

main90937-01396iLN166,RZN169..GCC; LN166..RHD..GEN;RZN168..DLX..GEN200403

16G,T=4.5,L=14.6

main90937-01397iLN166,RZN169..GCC; LN166..RHD..GEN;RZN168..DLX..GEN200403

18G,T=4.5,L=16.4

main90937-01398iLN166,RZN169..GCC; LN166..RHD..GEN;RZN168..DLX..GEN200403

20G,T=4.5,L=18.3

main90937-01399iLN166,RZN169..GCC; LN166..RHD..GEN;RZN168..DLX..GEN200403

22G,T=4.5,L=20.1

main90937-01400iLN166,171,RZN16#..GEN200403-200506

24G,T=4.5,L=21.9

main90937-01401iKDN165,KZN165,LN167,172,VZN167,172..(DCB,SCB,XTR)..(ARL,MA)200403-200502

26G,T=4.5,L=23.7

main90937-01402iLN166..MA200403-200503

28G,T=4.5,L=25.6

37101BPIECE, BALANCE, NO.2 (FOR PROPELLER SHAFT)

main90937-01184iLN166..RHD..GEN;RZN168..DLX..GEN199708

4G,T=1.6

main90937-01191iKZN165..TH200110-200208

8G,T=1.6

main90937-01192iLN167..IV1;KZN165..SCB199708-200008

12G,T=4.5

main90937-01193iKDN16#..SRWGN200108-200411

16G,T=4.5

main90937-01194iKZN165..SCB..DLX;KZN165..(DCB,THDCB,XTR)..(ARL,TH);LN167,172,RZN169,174..(DEFI,EFI)..(ARL,TH)199708-200109

20G,T=4.5

main90937-01198iLN166..MA200108-200503

24G,T=4.5,L=25.1

main90937-01199iLN167..SA199708-200010

28G,T=6,L=22.7

main90937-01200iKZN165..TH200110-200208

32G,T=6,L=24.3

main90937-01268iKZN165,LN167,RZN169..(DEFI,EFI,TDE)..SA199708-200203

36G,L=23.1,T=8.0

main90937-01269iLN167..THSCB..IV3;KDN16#..(DCB,XTR)..TH..CBU;LN167,172..(THDCB,THXTR)..DLX200108-200408

40G,L=25.6

main90937-01270iKDN16#..SRWGN200108-200411

44G,L=22.6

main90937-01271iLN167..SA199708-200010

48G,L=24.6

main90937-01272iLN166..MA200108-200503

52G,L=26.7

main90937-01273iKDN165..IV1;RZN169..ARL;LN167..SR..ARL;LN167..(SCB,THSCB)..ARL..CBU;KZN165,RZN174..(THDCB,THSCB,THXTR,XTR)..ARL200108-200208

56G,L=28.7

main90937-01274iLN167..SA199708-200010

60G,L=28.7

37140SHAFT ASSY, PROPELLER, FRONT

main37140-35060iLN166,171..GEN200108-200506

main37140-35071iRZN169..ARL;LN167..SR..ARL;LN167..(SCB,THSCB)..ARL..CBU;KZN165,RZN174..(THDCB,THSCB,THXTR,XTR)..ARL200108-200208

main37140-35210iVZN167,172..MTM200208-200502

37140ABOLT (F0R FRONT PROPELLER SHAFT)

main90105-10085×8iLN166,171..GEN; RZN16#..GEN200108-200506

37140BNUT (F0R FRONT PROPELLER SHAFT)

main90179-10059×8iLN167..DEFI..(SA,TH);KZN165..(THDCB,THSCB,XTR)..SR;LN167,RZN169..(CBR,DSL)..(CBU,IV3);LN167,RZN169..DLX..(DEFI,EFI)..ARL;KZN165,LN172,RZN174..(DCB,SCB,THXTR,XTR)..ARL200008-200203

37140CWASHER (F0R FRONT PROPELLER SHAFT)

main90204-10002×8iLN167..THSCB..IV3;KDN16#..(DCB,XTR)..TH..CBU;LN167,172..(THDCB,THXTR)..DLX200108-200408

37302AYOKE SUB-ASSY, FR PROPELLER SHAFT UNIVERSAL J0INT SLEEVE

main37302-35050iLN166,171,RZN16#..GEN200108-200506

37315BY0KE, FRONT PROPELLER SHAFT UNIVERSAL J0INT FLANGE

main37315-35040iKZN165,LN16#,17#,RZN16#,174199708-200006

main37315-35070iLN166..RHD..GEN;RZN168..DLX..GEN200203

37331ACOVER SUB-ASSY, FRONT PROPELLER SHAFT SLIDING SHAFT DUST

main37305-35020iLN167..IV1199708-200008

37401DRING, SNAP (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING)

main90520-25039×4iKDN165..IV1;RZN169..ARL;LN167..SR..ARL;KZN165..THDCB,THSCB;LN167..(SCB,THSCB)..ARL..CBU200108-200208

T=2.29,MARK 1

main90520-25040×8iRZN174200109-200208

T=2.31,MARK 2

main90520-25041×4iLN167..IV1200006-200008

T=2.33,NO MARK

main90520-25042×4iKDN165..IV1;RZN169..ARL;LN167..SR..ARL;KZN165..THDCB,THSCB;LN167..(SCB,THSCB)..ARL..CBU200108-200208

T=2.35,BROWN

main90520-25043×4iKDN165..IV1;RZN169..ARL;LN167..SR..ARL;KZN165..THDCB,THSCB;LN167..(SCB,THSCB)..ARL..CBU200108-200208

T=2.37,BLUE

main90520-25044×8iRZN174200109-200208

T=2.39,MARK 6

main90520-25045×4iLN167..SCB..IV3;LN167..DCB..DLX..ARL;KDN165,KZN165,LN172,VZN167,172..(DCB,SCB,XTR)..(ARL,MA)200108-200502

T=2.41,MARK 7

main90520-25046×4iKZN165..XTR;RZN169..DCB..SA;RZN168..DLX..GEN;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN17#..(SCB,THXTR,XTR)..DLX;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN167,RZN169..(CBR,DEFI)..(GCC,GEN,TH);LN16#..DSL..(ARL,GCC,GEN,SA,TH)..(CBU,IV3);KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU200006-200603

T=2.43,MARK 8

main90520-25047×8iRZN174200109-200208

T=2.45,MARK 9

main90520-25048×4iLN166..MA200108-200503

T=2.47,MARK 10

main90520-25049×4iLN166,RZN169..GCC200108

T=2.49,MARK A

main90520-25050×8iRZN174200006-200109

T=2.51,MARK B

main90520-25051×4iKZN165..TH200110-200208

T=2.53,MARK C

main90520-25052×4iKDN16#..SRWGN200108-200411

T=2.55,MARK D

main90520-25053×4iLN166,171,RZN16#..GEN200108-200506

T=2.57,MARK E

main90520-25054×4iLN166..MA200108-200503

T=2.19,MARK D

main90520-25055×4iLN167..IV1200006-200008

T=2.21,MARK E

main90520-25056×4iLN166..MA200108-200503

T=2.23,MARK F

main90520-25057×4iLN167..SCB..IV3;LN167..DCB..DLX..ARL;KDN165,KZN165,LN172,VZN167,172..(DCB,SCB,XTR)..(ARL,MA)200108-200502

T=2.25,MARK G

main90520-25058×4iLN166,171,RZN16#..GEN200108-200506

T=2.27,MARK H

main90520-26038×4iLN16#,17#,RZN16#199708-199712

T=2.125,MARK 1

main90520-26040×4iLN16#,17#,RZN16#199708-199712

T=2.175,MARK 2

main90520-26041×8iRZN174199711-199712

T=2.225,MARK 3

main90520-26042×8iRZN174199711-199712

T=2.275,MARK 4

main90520-26043×8iRZN174199711-199712

T=2.325,MARK 5

main90520-26044×8iRZN174199711-199712

T=2.375,MARK 6

main90520-26045×4iLN16#,17#,RZN16#199708-199712

T=2.425,MARK 7

main90520-26046×8iRZN174199711-199712

T=2.475,MARK 8

main90520-26050×4iKZN165,LN16#,17#,RZN16#,174199712-200006

T=2.44-2.46

main90520-26051×4iKZN165,LN16#,17#,RZN16#,174199712-200006

T=2.46-2.48

main90520-26052×4iKZN165,LN16#,17#,RZN16#,174199712-200006

T=2.28-2.30

main90520-26053×4iKZN165,LN16#,17#,RZN16#,174199712-200006

T=2.30-2.32

main90520-26054×4iKZN165,LN16#,17#,RZN16#,174199712-200006

T=2.32-2.34

main90520-26055×4iKZN165,LN16#,17#,RZN16#,174199712-200006

T=2.34-2.36

main90520-26056×4iKZN165,LN16#,17#,RZN16#,174199712-200006

T=2.36-2.38

main90520-26057×4iKZN165,LN16#,17#,RZN16#,174199712-200006

T=2.38-2.40

main90520-26058×4iKZN165,LN16#,17#,RZN16#,174199712-200006

T=2.40-2.42

main90520-26059×4iKZN165,LN16#,17#,RZN16#,174199712-200006

T=2.42-2.44

main90520-26062×8iKZN165,LN16#,17#,RZN16#; RZN174199806-200006

T=2.18-2.20

main90520-26063×8iKZN165,LN16#,17#,RZN16#; RZN174199806-200006

T=2.20-2.22

main90520-26064×4iKZN165,LN16#,17#,RZN16#; RZN174199806-200006

T=2.22-2.24

main90520-26065×4iKZN165,LN16#,17#,RZN16#; RZN174199806-200006

T=2.24-2.26

main90520-26066×4iKZN165,LN16#,17#,RZN16#; RZN174199806-200006

T=2.26-2.28

main90520-26067×4iKZN165,LN16#,17#,RZN16#; RZN174199806-200006

T=2.48-2.50

main90520-26068×8iKZN165,LN16#,17#,RZN16#; RZN174199806-200006

T=2.50-2.52

main90520-26069×8iKZN165,LN16#,17#,RZN16#; RZN174199806-200006

T=2.52-2.54

37402CBEARING, FRONT PROPELLER SHAFT UNIVERSAL JOINT SPIDER

main37402-30011×8iKDN166..ATM200208-200306

main37402-30021×4iLN167..IV1199708-200008

RED PAINTED

37701COVER SUB-ASSY, PROPELLER SHAFT DUST

main37701-04010iLN167..THDCB..SR;LN167..THSCB..CBU;RZN169,174..THDCB,THSCB,THXTR200109-200208

main37701-35071iRZN169..DCB..SA;RZN168..DLX..GEN;LN167,RZN169..SCB..DLX..SA200110

main37701-35100iLN166,171..DSL..GEN199708

main37701-35110iKZN165..TH;KDN165..IV1;KZN165..THDCB,THSCB200109-200208

37702STAY SUB-ASSY, PROPELLER SHAFT DUST COVER

main37702-35030iLN166..MA200108-200503

37713COVER, PROPELLER SHAFT DUST, NO.2

main37713-04010iLN167..THDCB..SR;LN167..THSCB..CBU;RZN169,174..THDCB,THSCB,THXTR200109-200208

main37713-35041iLN166..MA200108-200503

main37713-35070iRZN169..DCB..SA;RZN168..DLX..GEN;LN167,RZN169..SCB..DLX..SA200110

9011908167

main90119-08167

9041606004

main90416-06004

9041606007

main90416-06007

9041606008

main90416-06008

9151160810

main91511-60810

9151160830

main91511-60830

9645100600

main96451-00600

22 parts on this diagram · 10 diagrams in section
