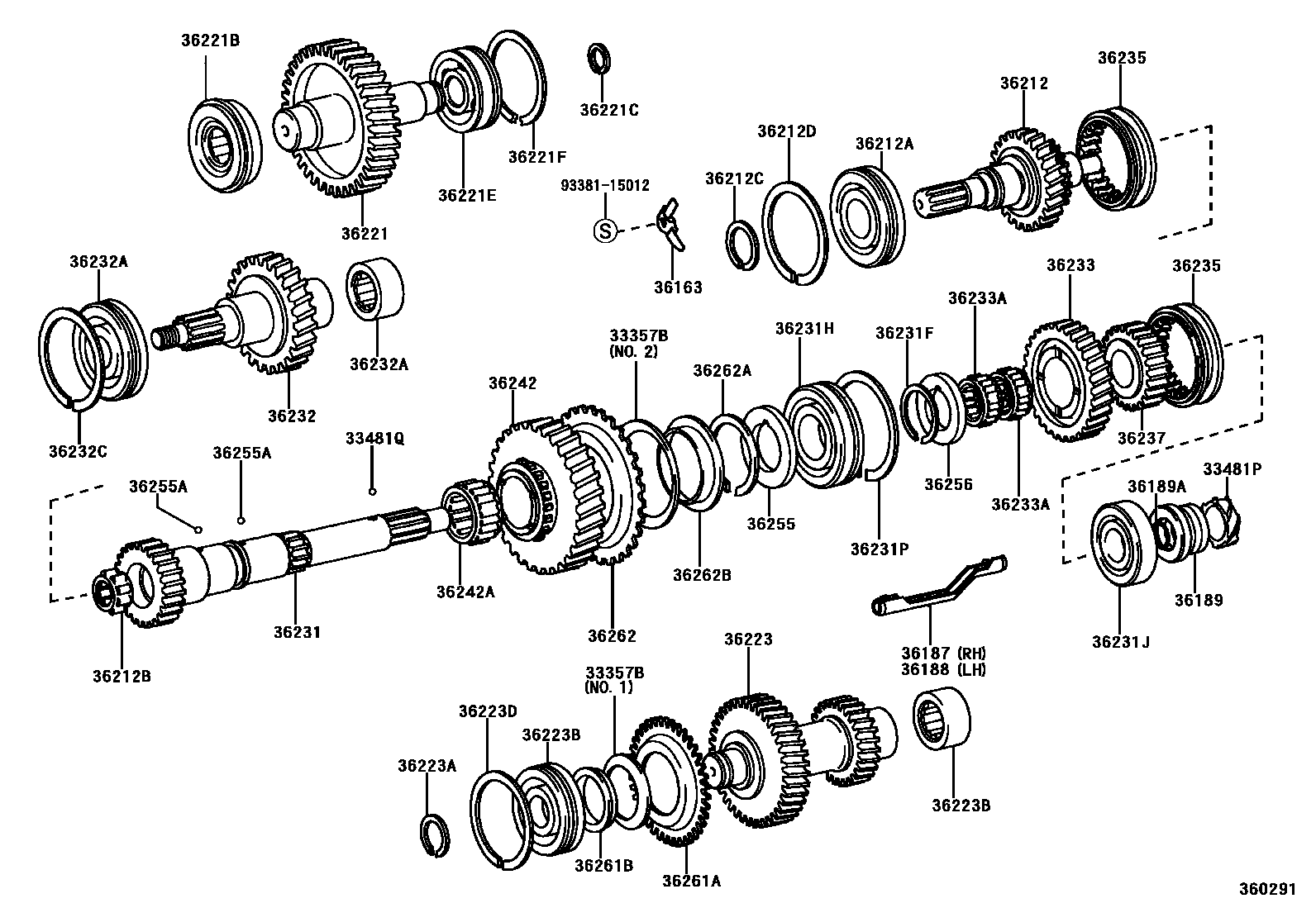

TRANSFER GEAR

0001 1 0002 1 0004 1W(AUTOMATIC DISCONNECTING DIF

33357BSPRING, SUB GEAR THRUST

main33357-35010iLN166,171..GEN,MA200108

NO.1

main33357-35021iLN166,171..GEN,MA200108

NO.2

33481PGEAR, SPEEDOMETER DRIVE (FOR TRANSFER)

main33481-22010iLN166,171..GEN,MA200108-200506

N=6,MARK 6X18-20

main33481-35111iVZN167,172..MTM..DLX200108-200501

N=11

main33481-35121iLN167..SR..SA199807-200002

N=8

main33481-35151iLN167..DSL;LN166,172..ARL,GCC;LN167,RZN169..(DEFI,EFI)..(SA,TH);LN167,RZN168..DLX..(DEFI,EFI)..(ARL,GEN)200002-200203

N=10

main33481-35200iKZN165..(DCB,SCB)..ARL200109-200501

N=11

33481QKEY OR BALL, SPEEDOMETER DRIVE GEAR (FOR TRANSFER)

main90360-05012iRZN169..DLX..ARL;LN167,RZN169..CBR,DSL;KZN165..(THDCB,THSCB,XTR)..SR;LN167,RZN169..(DEFI,EFI)..(SA,TH);LN167,RZN168..DLX..(DEFI,EFI)..(ARL,GEN);KZN165,LN166,172,RZN174..(DCB,SCB,THXTR,XTR)..(ARL,GCC,SA)199708-200203

main90360-06004iLN166,171..GEN,MA200108-200506

36163STOPPER, TRANSFER FRONT BEARING

main36163-35010iLN166,171..DSL..GEN199708

36187PIPE, TRANSFER OIL SUPPLY, RH

main36187-35010iLN166,171..DSL..GEN199708

36188PIPE, TRANSFER OIL SUPPLY, LH

main36188-35010iLN166,171..DSL..GEN199708

36189SCREW, TRANSFER OIL PUMP

main36189-35010iLN166,171..DSL..GEN199708

36189ARING, O (FOR TRANSFER OIL PUMP SCREW)

main96711-24028iLN166,171..GEN,MA200108

36212GEAR, TRANSFER INPUT

main36212-35012iLN166,171..DSL..GEN199708

36212ABEARING, RADIAL BALL (FOR TRANSFER INPUT GEAR)

main90363-35009iLN166,171..DSL..GEN199708

36212BBEARING, NEEDLE ROLLER (FOR TRANSFER INPUT GEAR)

main90364-19006iLN166,171..DSL..GEN199708

36212CRING, SHAFT SNAP (FOR TRANSFER INPUT GEAR)

main90520-33168iLN166,171..DSL..GEN199708

T=2.05,MARK 1

main90520-33170iLN166,171..GEN,MA200108

T=2.15,MARK 3

main90520-33172iLN166,171..GEN,MA200108

T=2.25,MARK 5

36212DRING, SHAFT SNAP (FOR TRANSFER INPUT BEARING)

main90520-72001iVZN167..SR;VZN167,172..ATM..DLX200108-200411

T=1.45,MARK 1

main90520-72002iLN167..THSCB..IV3;LN167,172..(THDCB,THXTR)..DLX200108-200408

T=1.50,MARK 2

main90520-72003iKDN165..MA200108-200502

T=1.55,MARK 3

main90520-72004iVZN167..SR;VZN167,172..ATM..DLX200108-200411

T=1.60,MARK 4

main90520-72005iKZN165..SA,TH;LN167..SR..ARL;LN167..DCB..SA;RZN16#..ARL,GCC,GEN,SA;LN167..(SCB,THSCB)..CBU;KZN165..(THDCB,THSCB)..DLX;KDN16#,LN166,RZN174..ARL,GCC,TH200108-200508

T=1.65,MARK 5

main90520-76001iLN166,171..GEN,MA200108-200506

T=1.65

36221GEAR, TRANSFER IDLER

main36221-35010iLN166,171..DSL..GEN199708

36221BBEARING (FOR TRANSFER IDLER GEAR)

main90365-38001iLN166,171..GEN,MA200108

36221CRING, SHAFT SNAP (FOR TRANSFER IDLER GEAR)

main90520-28242iLN166,171..GEN,MA200108

T=1.50-1.55,MARK A

main90520-28243iLN166,171..GEN,MA200108

T=1.60-1.65,MARK B

36221EBEARING, RADIAL BALL (FOR TRANSFER IDLER GEAR)

main90363-30012iLN166,171..DSL..GEN199708

36221FRING, SHAFT SNAP (FOR TRANSFER IDLER GEAR BEARING)

main90520-68193iLN166,171..DSL..GEN199708

36223GEAR, TRANSFER COUNTER

main36223-35011iLN166,171..GEN,MA200108

36223ARING, SHAFT SNAP (FOR TRANSFER COUNTER GEAR)

main90520-30215iLN166,171..GEN,MA200108

T=2.10,MARK 1

main90520-30217iLN166,171..DSL..GEN199708

T=2.20,MARK 3

36223BBEARING (FOR TRANSFER COUNTER GEAR)

main90363-32006iLN166,171..GEN,MA200108

FRONT

main90369-45001iLN166,171..DSL..GEN199708

REAR

36223DRING, SHAFT SNAP (FOR TRANSFER COUNTER GEAR BEARING)

main90520-71221iLN166,171..DSL..GEN199708

36231SHAFT, TRANSFER OUTPUT, REAR

main36202-35030iRZN174;KDN16#,KZN165..MA,TH200109-200502

W(A.D.D)

main36202-35040iLN167,RZN169..DCB..(DSL,EFI)..ARL199708-200109

W(A.D.D)

main36231-35011iLN166,171..GEN,MA200108-200506

main36231-35030iKZN165..SA;KZN165,LN16#,172..DLX..(ARL,GCC,SA); RZN169,174..DLX..(ARL,GCC); RZN169..GEN200108-200404

main36231-71010iKZN165,LN167,172,VZN167,172..(DCB,SCB,XTR)..MTM..DLX..ARL200404-200501

36231FRING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT)

main90520-36250iLN166,171..GEN,MA200108-200506

T=2.40-2.45

main90520-36251iLN166,171..GEN,MA200108-200506

T=2.45-2.50

main90520-36252iLN166,171..DSL..GEN199708

T=2.50-2.55

main90520-36253iLN166,171..GEN,MA200108-200506

T=2.55-2.60

main90520-36254iLN166,171..GEN,MA200108-200506

T=2.60-2.65

main90520-36255iLN166,171..GEN,MA200108-200506

T=2.65-2.70

main90520-71221iVZN167..SR;VZN167,172..ATM..DLX200108-200411

T=1.65,ID=71.1

36231HBEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT FRONT)

main90363-40007iLN166,171..GEN,MA200108

36231JBEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT REAR)

main90363-28004iLN166,171..DSL..GEN199708

main90363-32006iLN167..SCB..IV3;VZN167..MTM..DLX;LN167..DCB..DLX..ARL;KZN165,LN172,VZN172..(DCB,SCB,XTR)..MTM..ARL200108-200501

36231PRING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT FRONT BEARING)

main90520-86001iLN166,171..GEN,MA200108

36232GEAR, TRANSFER FRONT DRIVE

main36232-35011iLN166,171..DSL..GEN199708

36232ABEARING (FOR TRANSFER FRONT DRIVE GEAR)

main90363-30014iLN166,171..GEN,MA200108

FRONT

main90369-45001iLN166,171..DSL..GEN199708

REAR

36232CRING, SHAFT SNAP (FOR TRANSFER FRONT DRIVE GEAR BEARING)

main90520-76001iLN166,171..DSL..GEN199708

36233GEAR, TRANSFER DRIVE

main36233-35010iLN166,171..GEN,MA200108

36233ABEARING, NEEDLE ROLLER (FOR TRANSFER DRIVE GEAR)

main90364-35001×2iLN166,171..GEN,MA200108

36235SLEEVE, TRANSFER HIGH & LOW CLUTCH

main36235-35010×2iLN166,171..DSL..GEN199708

main36235-35021iLN167..SCB..IV3;VZN167..MTM..DLX;LN167..DCB..DLX..ARL;KZN165,LN172,VZN172..(DCB,SCB,XTR)..MTM..ARL200108-200501

36237HUB, TRANSFER CLUTCH

main36237-35010iLN166,171..DSL..GEN199708

main36237-35030iLN167..THSCB..IV3;LN167,172..(THDCB,THXTR)..DLX200108-200408

36242GEAR, TRANSFER LOW

main36242-35011iLN166,171..DSL..GEN199708

36242ABEARING, NEEDLE ROLLER (FOR TRANSFER LOW GEAR)

main90364-45002iLN166,171..DSL..GEN199708

36255SPACER, TRANSFER OUTPUT SHAFT, NO.1

main36255-35010iLN166,171..GEN,MA200108-200506

main36255-35020iKZN165..XTR;KZN165..SCB..DLX;RZN168..DLX..GEN;KZN165..SR..(ARL,SA);LN167,RZN169..CBR,DSL;RZN169..DLX..(ARL,SA);LN166,172,RZN174..ARL,GCC;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH)199708

36255ABALL (FOR TRANSFER OUTPUT SHAFT SPACER)

main90360-05012iRZN169..DLX..ARL;LN167,RZN169..CBR,DSL;KZN165..(THDCB,THSCB,XTR)..SR;LN167,RZN169..(DEFI,EFI)..(SA,TH);LN167,RZN168..DLX..(DEFI,EFI)..(ARL,GEN);KZN165,LN166,172,RZN174..(DCB,SCB,THXTR,XTR)..(ARL,GCC,SA)199708-200203

main90360-06004×2iLN166,171..GEN,MA200108-200506

36256SPACER, TRANSFER OUTPUT SHAFT, NO.2

main36256-35010iLN166,171..DSL..GEN199708

36261ASUB-GEAR, TRANSFER, NO.1

main36261-35011iLN166,171..GEN,MA200108

36261BSPACER (FOR TRANSFER SUB-GEAR NO.1

main90560-38002iLN166,171..DSL..GEN199708

36262SUB-GEAR, TRANSFER, NO.2

main36262-35011iLN166,171..GEN,MA200108

36262ARING, SNAP (FOR TRANSFER SUB-GEAR NO.2

main90520-59003iLN166,171..DSL..GEN199708

36262BSPACER (FOR TRANSFER SUB-GEAR NO.2)

main90561-63002iLN166,171..DSL..GEN199708

9338115012

main93381-15012
