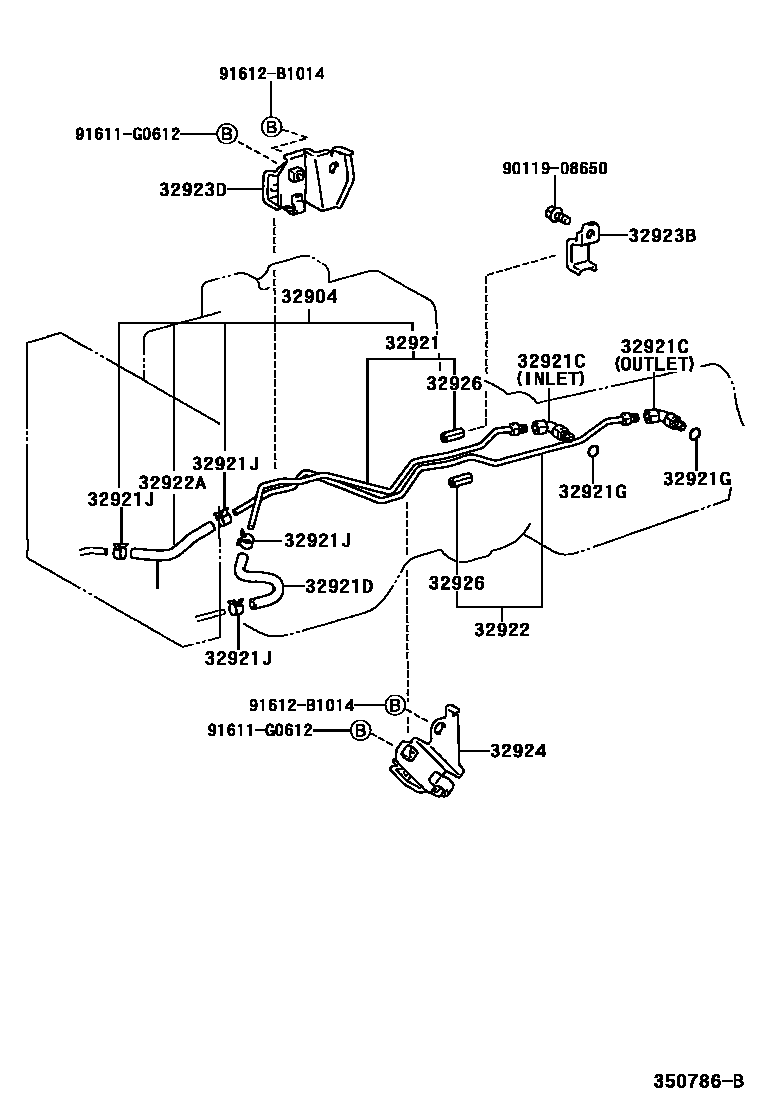

OIL COOLER & TUBE (ATM)

0001 1A340E 0002 1A340E,A340F 0003 1A340F 0004 1A43D

32904TUBE SUB-ASSY, OIL COOLER INLET, NO.1

main32904-04080iRZN149,154..(THDCB,THSCB,THXTR)..ATM200109-200408

32921TUBE, OIL COOLER INLET, NO.1

main32921-04080iRZN149,154..(THDCB,THSCB,THXTR)..ATM200109-200408

main32921-35300iRZN149..CO; RZN149..GEN200109

main32921-35331iLN152..ATM199806-200108

main32921-35400iKDN166,190..SRWGN200112-200411

main32921-35410iVZN167,172..ATM200208-200502

32921CUNION(FOR OIL COOLER TUBE)

main90404-16021iLN152..ATM199806-200108

INLET

main90407-14024iKDN166,190..ATM200112-200503

INLET

main90407-16009iKDN166,190,RZN149,154,VZN167,172..ATM..(ARL,CO,MA,TH)200109-200511

OUTLET

main90407-16010iLN152..ATM199806-200108

OUTLET

main90407-16012iRZN149,154..ATM..DLX199708-200203

INLET

32921DHOSE(FOR OIL COOLER INLET)

main32941-35290iKDN166,190..(DCB,XTR)..ATM..TH..CBU200112-200408

main90445-17097iRZN149,154..(DCB,SCB,XTR)..ATM..ARL200109-200502

main90445-17124iVZN167,172..ATM200208-200502

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189×2iLN152..ATM199806-200108

main90301-11006×2iKDN166..ATM200208-200411

32921JCLIP(FOR OIL COOLER HOSE)

main90467-16022×2iRZN149..CO200109

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-04080iRZN149,154..(THDCB,THSCB,THXTR)..ATM200109-200408

main32922-35330iRZN149..CO; RZN149..GEN200109

main32922-35360iLN152..ATM199806-200108

main32922-35430iKDN166,190..SRWGN200112-200411

main32922-35440iVZN167,172..ATM200208-200502

32922AHOSE(FOR OIL COOLER OUTLET)

main90445-17100iLN152..ATM199806-200108

main90445-17102iRZN149,154..(THDCB,THSCB,THXTR)..ATM200109-200408

main90445-17112iKDN190..MA200112-200503

main90445-17137iVZN167,172..ATM200208-200502

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32909-35210iKDN166,190..ATM..TH..CBU200112-200408

main32923-35040iLN152..ATM199806-200108

main32929-24060iRZN149,154..ATM..DLX..(ARL,GEN)199708

32923DCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.5

main32909-34040iRZN149,154..ATM..DLX..(ARL,GEN)199708

32924CLAMP, OIL COOLER TUBE, NO.2

main32909-34030iRZN149,154..(DCB,SCB,XTR)..ATM..ARL200109-200502

main32909-34050iVZN167,172..ATM200208-200502

main32909-35220iKDN166..ATM200208-200408

main32909-60080iKDN190..MA200112-200503

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-30020×6iRZN149..CO200109

L=35,ID=10

9011908650

main90119-08650

91611G0612

main91611-G0612

91612B1014

main91612-B1014

15 parts on this diagram · 4 diagrams in section
