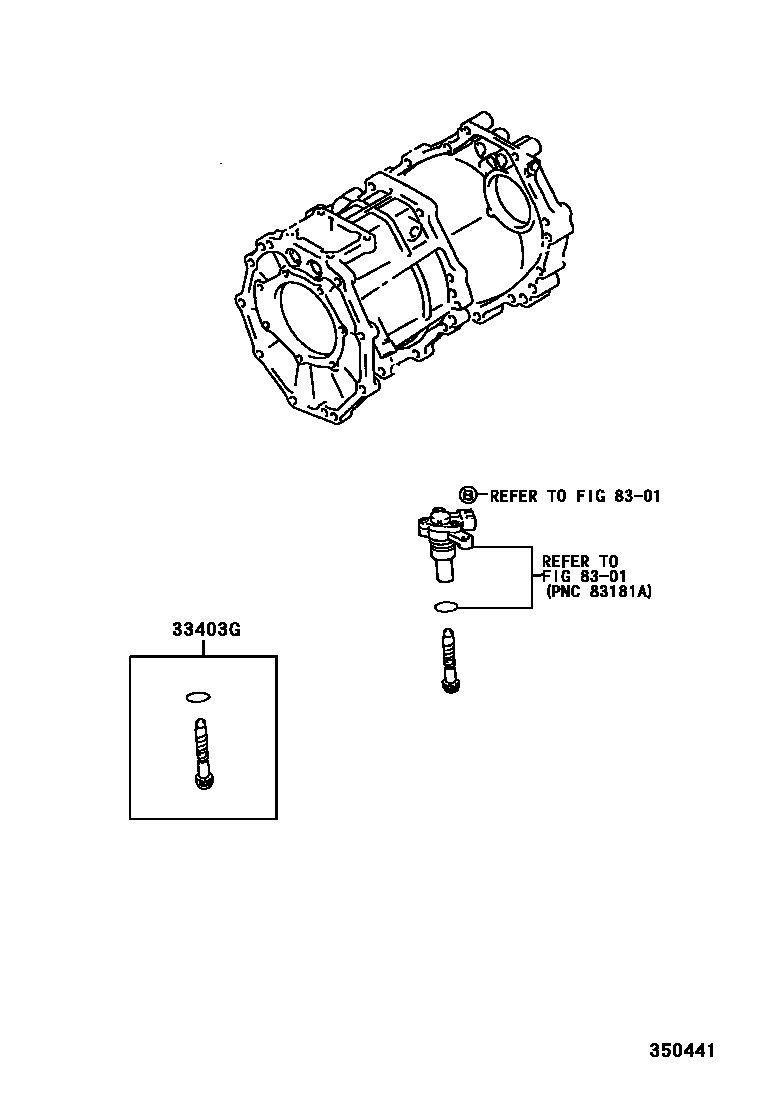

SPEEDOMETER DRIVEN GEAR (ATM)

0001 1A340E 0002 1A43D,A340E

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-29235iLN152..ATM199806-200108

N=20,MARK 20:6

main33403-39345iVZN167,172..ATM200208

N=31,MARK 31:11

main33403-69185iRZN149,154..ATM..ARL200109-200502

N=17,MARK 17:6

main33403-69195iRZN149..CO200206

N=18,MARK 18:6

main33482-59025iKDN190200112

N=18,MARK 18:6

8301METER

→ Go to FIG 83-01

2 parts on this diagram · 2 diagrams in section
