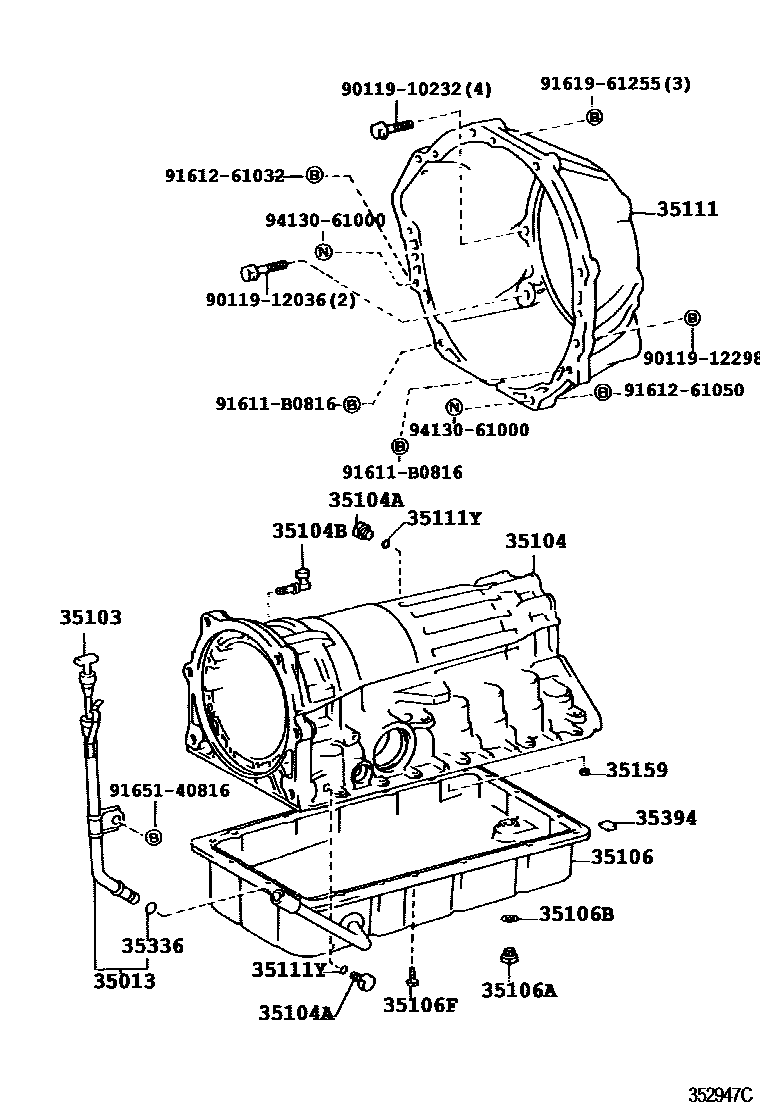

TRANSMISSION CASE & OIL PAN (ATM)

0001 1A340E 0002 1A43D 0003 1A340E 0004 1A340F 0005 1A340F

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-34030iRZN149,154..(DCB,SCB,XTR)..ATM..(ARL,CO)200109

main35013-35340iLN152..ATM199806-200009

main35013-35410iKDN166,190..ATM200112-200503

main35013-35420iLN152..ATM200009-200108

main35013-35430iVZN167,172..ATM200208-200502

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-34030iRZN149,154..(THDCB,THSCB,THXTR)..ATM200109-200408

main35103-35390iLN152..ATM199806-200108

main35103-35500iKDN190200112-200503

main35103-35510iVZN167,172..ATM200208-200502

main35103-35520iKDN166..ATM200208-200411

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-26021iLN152..ATM199806-200108

main35104-30133iKDN190200112-200503

main35104-35011iKDN166,VZN167,172..ATM200208-200502

main35104-35030iRZN149,154..ATM..DLX199708-200203

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001×2iRZN149..ATM..DLX;LN152,RZN154..ATM199708-200203

main90341-14011iKDN166..ATM200208-200411

RH(FRONT)

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03098iKDN166..ATM200208-200411

MISSION CASE SIDE

main90930-03099iLN152..ATM199806-200108

BODY SIDE

main90930-03108iRZN149,154..ATM..DLX199708-200203

main90930-03116iVZN167,172..ATM200208-200502

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-30041iLN152..ATM199806-200108

main35106-34010iRZN149,154..ATM..(ARL,CO)200109-200511

main35106-35012iKDN166,190..ATM200112-200503

main35106-35022iVZN167,172..ATM200208-200502

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10006iRZN149..ATM..DLX;LN152,RZN154..ATM199708-200203

main90341-10011iVZN167,172..ATM;KDN166,190,RZN149..ATM..(CO,MA,TH)200112-200511

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iRZN149..ATM..DLX;LN152,RZN154..ATM199708-200203

main35178-50010iKDN166,VZN167,172..ATM200208-200304

35106FBOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90119-06117×14iLN152..ATM199806-200108

main90119-06513×19iRZN149,154..ATM..DLX199708-200203

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-26030iLN152..ATM199806-200108

main35111-34020iRZN149,154..ATM..DLX199708-200203

main35111-35060iVZN167,172..ATM200208-200502

main35111-35090iKDN166,190..ATM200112-200503

main35111-60120iRZN149,154..ATM200207-200511

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196×2iRZN149..ATM..DLX;LN152,RZN154..ATM199708-200203

35159GASKET, BRAKE DRUM

main35159-30010iRZN149,154..ATM..DLX199708-200203

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iLN152,RZN154..ATM;RZN149..ATM..DLX..(ARL,GEN)199708

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011iRZN149..ATM..DLX;LN152,RZN154..ATM199708-200203

9011910232

main90119-10232

9011912036

main90119-12036

9011912298

main90119-12298

91611B0816

main91611-B0816

9161261032

main91612-61032

9161261050

main91612-61050

9161961255

main91619-61255

9165140816

main91651-40816

9413061000

main94130-61000

23 parts on this diagram · 5 diagrams in section
