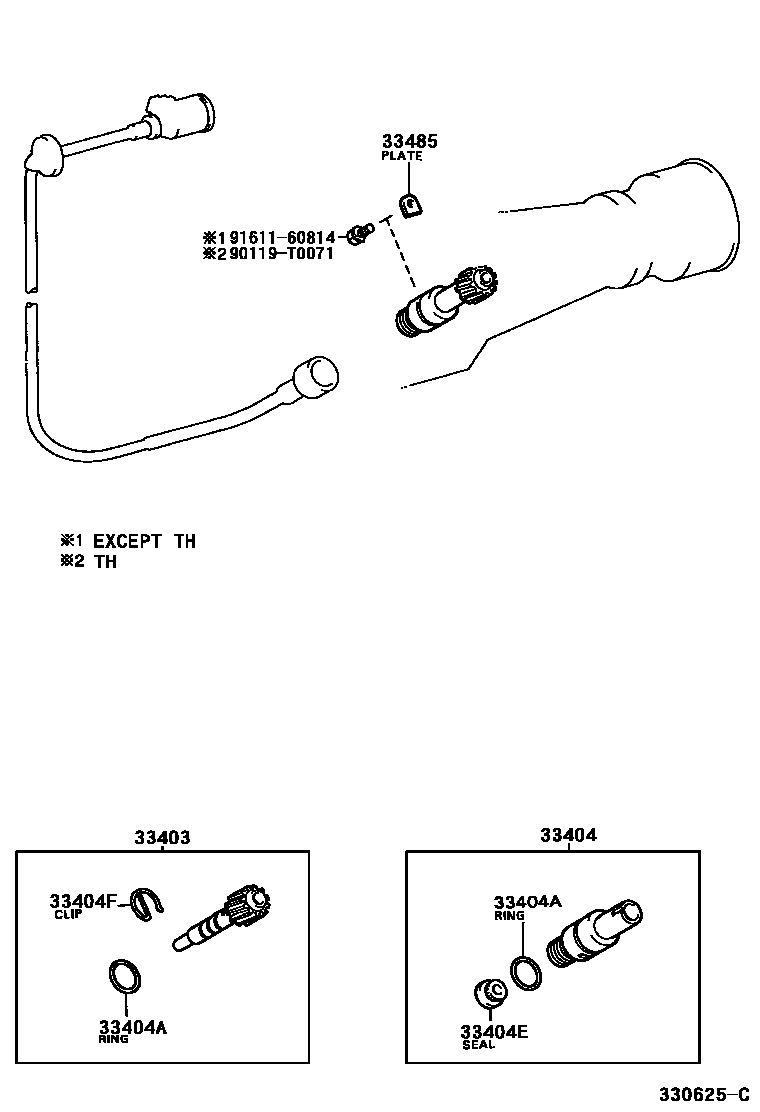

SPEEDOMETER DRIVEN GEAR (MTM)
33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)
N=31,MARK 31:11
N=32,MARK 32:11
N=33,MARK 33:11
N=32,MARK 32:10
N=31,MARK 31:10
N=32,MARK 32:10
N=27,MARK 27:8
N=29,MARK 29:11
N=19,MARK 19:6
N=20,MARK 20:6
N=31,MARK 31:11
N=30,MARK 30:11
N=28,MARK 28:11
N=29,MARK 29:11
N=28,MARK 28:11
main33482-39025iLN145..DCB..IV3;RZN147..DCB..GEN;RZN147..LHD..SCB..GEN;LN145,166,171,191,RZN142..LHD..GEN199708-200108
N=19,MARK 19:6
N=21,MARK 21:6
N=20,MARK 20:6
N=17
N=18,MARK 18:6
33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)
33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)
33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)
33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)
33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)
90119T0071
main90119-T0071
9161160814
main91611-60814
8 parts on this diagram · 2 diagrams in section
