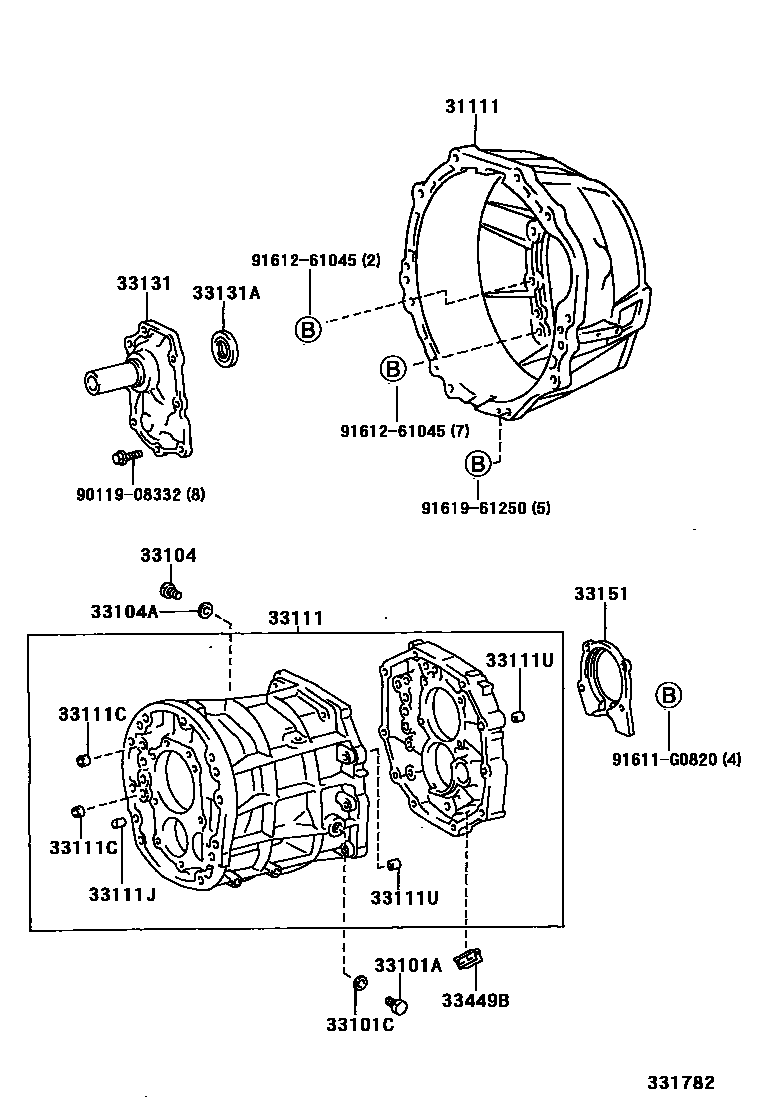

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1R151 0002 1R151 0003 1G52 0004 1G54 0005 1W56 0006 1G52 0007 1G50

31111HOUSING, CLUTCH

main31111-0W050iLN150..SR;LN145..DCB..GEN;LN145..LHD..SCB;LN152..THXTR..IV3;LN145..SCB..(SA,TH);LN145..LHD..DLX..TH;LN147..(THDCB,THSCB)..DLX;LN140,152,155,157,192..MTM..(SA,TH)199806-200603

PHILIPPINES SPEC

main31111-0W070iKDN145,150,155200110-200409

PHILIPPINES SPEC

main31111-22114iLN145..LHD..IV3;LN140,141,145,146,19#..(GCC,GEN,SA)..CBU200108-200508

main31111-25050iKDN145,150,155200110-200311

main31111-26032iRZN149,154..(DCB,SCB,XTR)..MTM..ARL200108-200501

main31111-30180iYN140199808-200010

main31111-35032iLN167..DSL;LN167..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN166,17#..DLX..(ARL,GCC,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI199812-200603

main31111-35090iVZN167,172..MTM200208-200501

main31111-35101iKZN165..(DCB,SCB)..DLX200109-200501

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006iLN147..SCB..IV3;KZN165..(DCB,SCB)..DLX;LN147,152..(DCB,XTR)..ARL..CBU;RZN149,154,VZN167,172..(DCB,SCB,XTR)..MTM..ARL200108-200501

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iLN145..DCB..GEN;LN150,RZN194..SR;LN152..DEFI..IV3;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..XTR..MTM..(DEFI,TDE)..TH;RZN148,149,168..MTM..DLX..EFI..(ARL,GEN);LN152,167,RZN147,193..MTM..(CBR,DSL,EFI);LN19#,RZN142,144,149,154,169..CBR,DEFI,DSL;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN190,LN140,141,146,147,155,157,166,172,RZN154,174,YN140..MTM..DLX..(ARL,GCC,SA,TH)199708-200603

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iKZN165,190..SR;RZN148,154..GEN..CBU;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;KDN151,16#,RZN144,16#,174,193..MTM;KZN165,RZN154..(THDCB,THSCB,THXTR)..MTM..DLX200108-200511

main90341-18057iLN147..THDCB;LN167..ARL,SA;LN145..DCB..TH;LN150,192..DLX;LN145..LHD..IV3;LN147..THSCB..IV3;LN145,152..(DCB,SCB,THXTR)..(ARL,GEN,SA)..CBU;KDN145,150,155,LN140,141,146,155,166,17#,191,RZN142,147200108-200508

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iLN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149,169..MTM..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN192,RZN144,149,154,169..CBR,DEFI,DSL;KZN165,LN152..(THXTR,XTR)..MTM..(DSL,TDE);LN152,167,RZN169..(DCB,XTR)..MTM..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..MTM..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)199708-200603

33111CASE, MANUAL TRANSMISSION

main33101-0K020iLN167,172..THDCB,THSCB,THXTR200311-200502

MADE IN PHILIPPINES

main33101-0W020iLN167..DSL..SA199808-200203

PHILIPPINES SPEC

main33101-30071iRZN149,154..(DCB,SCB,XTR)..MTM..ARL200108-200501

main33101-35050iLN147,167..THSCB..IV3;LN147,172..THDCB,THXTR;LN152,167..(THDCB,THXTR)..DLX..CBU200108-200402

main33101-35051iLN145..RHD..GEN;RZN147..RHD..SCB..GEN200501-200603

main33101-35070iLN166,171..GEN,MA200108-200506

main33101-35080iKZN165..ARL,TH200109-200202

main33101-35100iKDN165200110-200202

main33101-60040iKDN151,16#..MTM200202-200503

main33101-60050iVZN167,172..MTM;KZN165..(DCB,SCB)..DLX200202-200501

33111CPLUG(FOR TRANSMISSION CASE)

main90331-14004×4iLN145..RHD..SCB..GEN..CBU200501-200508

OD=14

main96411-41800×2iRZN154..GEN;RZN144,16#,174,193;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU200108-200511

OD=18

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-12002×6iRZN194200108-200502

L=16,OD=12

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-15001×4iKZN165,190..SR;KDN151,16#..MTM;KZN165..(THDCB,THSCB)..DLX200109-200504

L=14,OD=15

33131RETAINER, BEARING, FRONT(MTM)

main33131-0K030iLN145..RHD..DCB200412-200603

PHILIPPINES SPEC

main33131-0W020iLN167..DSL..SA;LN145..LHD..SCB;LN167..DEFI..TH;LN152..THXTR..IV3;LN150,152..MTM..SR;LN192,RZN147..SA,TH;LN145..LHD..DLX..TH;LN167..SCB..DEFI..SA;LN147..(THDCB,THSCB)..DLX;LN167..(THDCB,THSCB,XTR)..DSL;LN167..(THDCB,THSCB)..DLX..DEFI;LN145,RZN147..(DCB,THSCB)..(DSL,EFI)..(ARL,GEN);LN140,145,155,157,172,RZN142,YN140..(SCB,THXTR)..(ARL,SA,TH)199809-200412

PHILIPPINES SPEC

main33131-26020iLN147,167..THSCB..IV3;LN147,172..THDCB,THXTR;LN152,167..(THDCB,THXTR)..DLX..CBU200108-200402

main33131-30080iRZN149,154..(DCB,SCB,XTR)..MTM..ARL200108-200501

main33131-35031iVZN167,172..MTM;KZN165..(DCB,SCB)..DLX200109-200501

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-30014iLN145..DCB..GEN;LN150,RZN194..SR;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN167..DCB..DLX..DEFI..ARL;RZN149,169..MTM..DLX..(ARL,SA);LN167,RZN154..RHD..MTM..(DSL,EFI);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..MTM..SR..(DEFI,EFI)..(SA,TH);LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)199708-200603

main90311-32012iVZN167,172..MTM;KZN165..(DCB,SCB)..DLX200109-200501

main90311-T0021iLN145..RHD..DCB200412-200603

PHILIPPINES SPEC

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33107-30020iRZN144,148,149,154,16#,174,19#..MTM199708-200010

main33151-30051iRZN149,154..(DCB,SCB,XTR)..MTM..ARL200108-200501

main33151-35020iKZN165..(THDCB,THSCB,XTR)..SR;KZN165,190..(DCB,SCB)..(ARL,SA)199909-200203

main33151-35030iLN147..SCB..IV3;LN147,152..(DCB,XTR)..ARL..CBU200108-200501

33449BMAGNET, TRANSMISSION

main33449-26010iLN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH)199708-200603

main33449-30010iRZN169..DCB..SA;RZN154,194..RHD..MTM;RZN169..DLX..(ARL,SA);RZN144,149,154,169..CBR;RZN148,149,168,174,193..MTM..DLX..EFI..(ARL,GEN)199708-200206

REAR

main33449-30020iRZN169..DCB..SA;RZN154,194..RHD..MTM;RZN169..DLX..(ARL,SA);RZN144,149,154,169..CBR;RZN148,149,168,174,193..MTM..DLX..EFI..(ARL,GEN)199708-200206

FRONT

main33449-35030iKZN165..(THDCB,THSCB,XTR)..SR;KZN165,190..(DCB,SCB)..(ARL,SA)199909-200203

9011908332

main90119-08332

91611G0820

main91611-G0820

9161261045

main91612-61045

9161961250

main91619-61250

17 parts on this diagram · 7 diagrams in section
