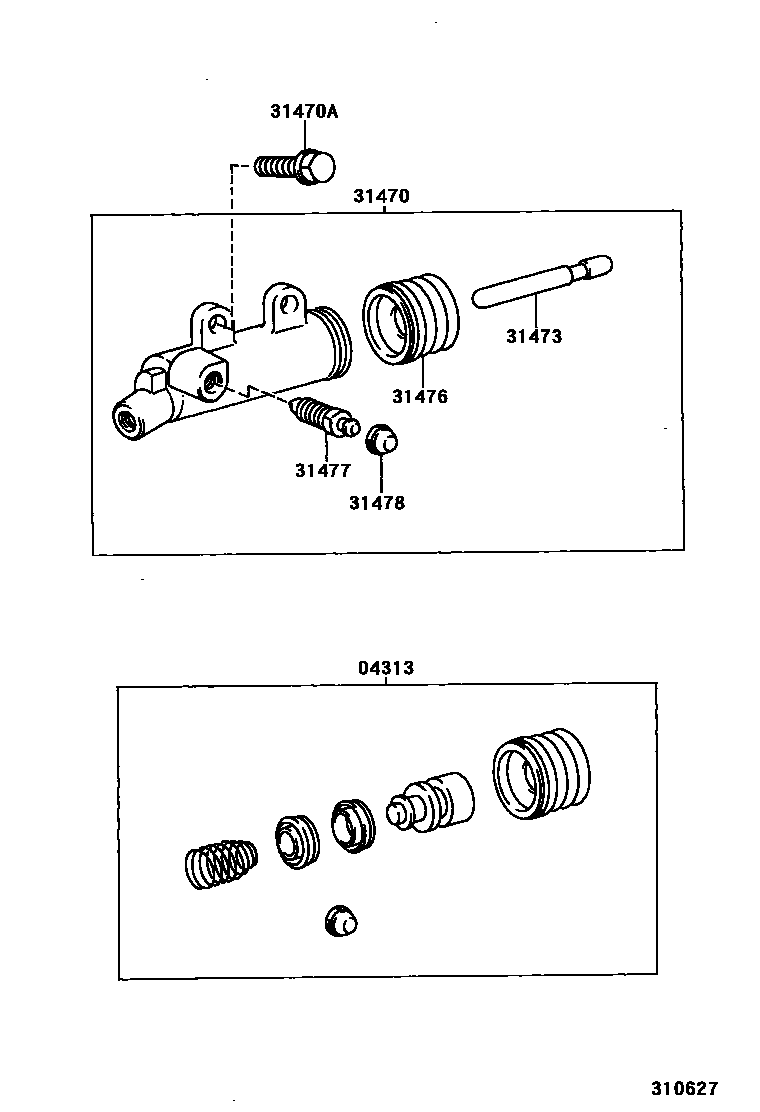

CLUTCH RELEASE CYLINDER

0001 1 0002 1 0003 1 0004 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-17010iLN147..SCB..IV3;LN147,152..(DCB,XTR)..ARL..CBU200108-200501

main04313-18020iKZN165,190199909-200105

main04313-22030iYN140199808-200010

main04313-35060iKDN165..MA200109-200502

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-22150iYN140199808-200010

main31470-30222iLN147,167..THSCB..IV3;LN147,172..THDCB,THXTR;LN152,167..(THDCB,THXTR)..DLX..CBU200108-200408

main31470-35120iVZN167,172..MTM200208-200501

main31470-35130iRZN154..GEN;RZN148,149..MTM..(CO,GCC);RZN149..(THDCB,THSCB)..MTM;RZN142,144,147,16#,174,193;RZN148,154..(DCB,SCB,THXTR)..MTM..(ARL,GEN)..CBU200108-200511

main31470-35140iKZN165..(THDCB,THSCB,XTR)..SR;KZN165,190..(DCB,SCB)..(ARL,SA)199909-200203

main31470-35160iKDN145,150,155200110-200212

main31470-35170iKDN165..(DCB,XTR)..CBU200110-200212

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-B0825×2iRZN194200108-200502

*8-1.25PX25-25

main91611-G0820×2iKZN165..(THDCB,THSCB,XTR)..SR;KZN165,190..(DCB,SCB)..(ARL,SA)199909-200203

*8-1.25PX20-20

main91651-40825×2iKDN165..MA;KDN165..IV1200110-200502

*8-1.25PX25-25

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-32010iKDN165,RZN194..MA,SA200108-200502

main31473-35050iLN145..DCB..TH;LN145..LHD..IV3;LN167..THDCB..SR;LN167..THSCB..CBU;LN167..(DCB,SCB)..(ARL,SA);LN145,166..(GCC,GEN,MA,SA)..CBU;LN140,141,146,150,155,17#,19#..(DCB,SCB,XTR)..DLX200108-200508

main31473-60141iKDN145,150,155,165..DCB,SCB,XTR200110-200212

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iLN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149,169..MTM..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN192,RZN144,149,154,169..CBR,DEFI,DSL;KZN165,LN152..(THXTR,XTR)..MTM..(DSL,TDE);LN152,167,RZN169..(DCB,XTR)..MTM..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..MTM..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)199708-200603

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iLN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149,169..MTM..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN192,RZN144,149,154,169..CBR,DEFI,DSL;KZN165,LN152..(THXTR,XTR)..MTM..(DSL,TDE);LN152,167,RZN169..(DCB,XTR)..MTM..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..MTM..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)199708-200603

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iKDN165,RZN194..MA,SA200108-200502

7 parts on this diagram · 4 diagrams in section
