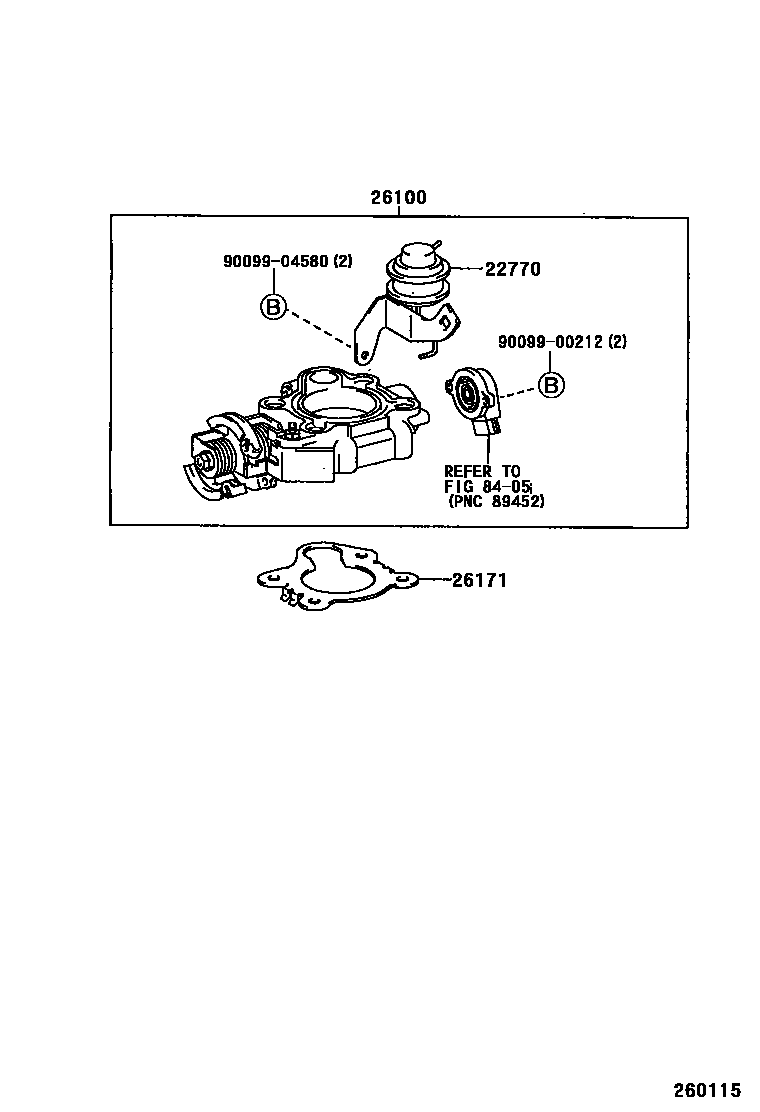

VENTURI

0001 1 0002 1 0005 1 0006 1 0007 1

22770ACTUATOR, IDEL UP

main26133-54260i5L..LN147,152,157,167,172,192199708-200010

main26133-67010i1KZTE..KZN165..SR..ARL199909-200009

26100VENTURI ASSY

main26100-54240i5LE..LN152..IV3;5LE..LN152,167,192..SA,TH;5LE..LN147,157,167,172..DLX..(ARL,TH)200009-200203

main26100-54250i5L..LN147,152,157,167,172,192199708-200010

main26100-67040i1KZTE..KZN165..SR..ARL199909-200009

main26100-67110i1KZTE..KZN165..(THDCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA)200009-200203

26171GASKET, VENTURI

main17116-54021i5L..LN147,152,157,167,172,192199708-200010

main26171-0L010i1KDFTV,2KDFTV..KDN145,15#,16#,190200406-200503

(L)

main26171-30011i1KDFTV,2KDFTV..KDN145,15#,16#,190200110-200210

main26171-30012i1KDFTV,2KDFTV..KDN145,15#,16#,190200210-200403

main26171-30013i1KDFTV,2KDFTV..KDN145,15#,16#,190200403-200406

main26171-67010i1KZTE..KZN165..SR..ARL199909-200009

main26171-67030×2i1KZTE..KZN165..(THDCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA)200009-200203

8405ELECTRONIC CONTROLED DIESEL (ECD)

→ Go to FIG 84-05

9009900212

main90099-00212

9009904580

main90099-04580

6 parts on this diagram · 5 diagrams in section
