V-BELT

0001 1 0002 1

16361ABELT, V(FOR FAN & ALTERNATOR)

main90080-91090i5VZFE..VZN167,172200208-200502

main90080-91206i1KDFTV,2KDFTV..KDN145,15#,16#,190200209-200503

(L)

main90080-92016i2L,5L..LN145,15#,167,192..TH199806-199812

(L)

main90080-92017i5LE..LN147,152,167,172..(DCB,SCB,XTR)..ARL200301-200312

(L),BANDO

main90916-02211i2L..LN145..LHD..IV3;2L,3L..LN141,145,146,166,171,191..(GCC,GEN,MA)..CBU; 5LE..LN147..IV3;2L..LN145..LHD..DLX..TH;5LE..LN167..DCB..DLX..ARL;5LE..LN147..(DCB,THDCB)..DLX;2L,3L..LN145,166..RHD..(GEN,SA)..CBU;2L,5LE..LN140,155,167,172,192..(SCB,THDCB,THSCB,THXTR,XTR)..DLX200108

(J)

main90916-02336i3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;2RZFE,3RZFE..RZN148,149,168,174..DLX..(ARL,GEN);1RZ#,2RZFE,3RZF..RZN142,144,147,149,154,169,193199708-200112

main90916-02385i1KZTE..KZN165..(THDCB,THSCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA)199909-200203

main90916-02524i1KDFTV,2KDFTV..KDN145,15#,16#,190200209-200503

(J)

main99364-80830i2Y..YN140199808-200010

L=830

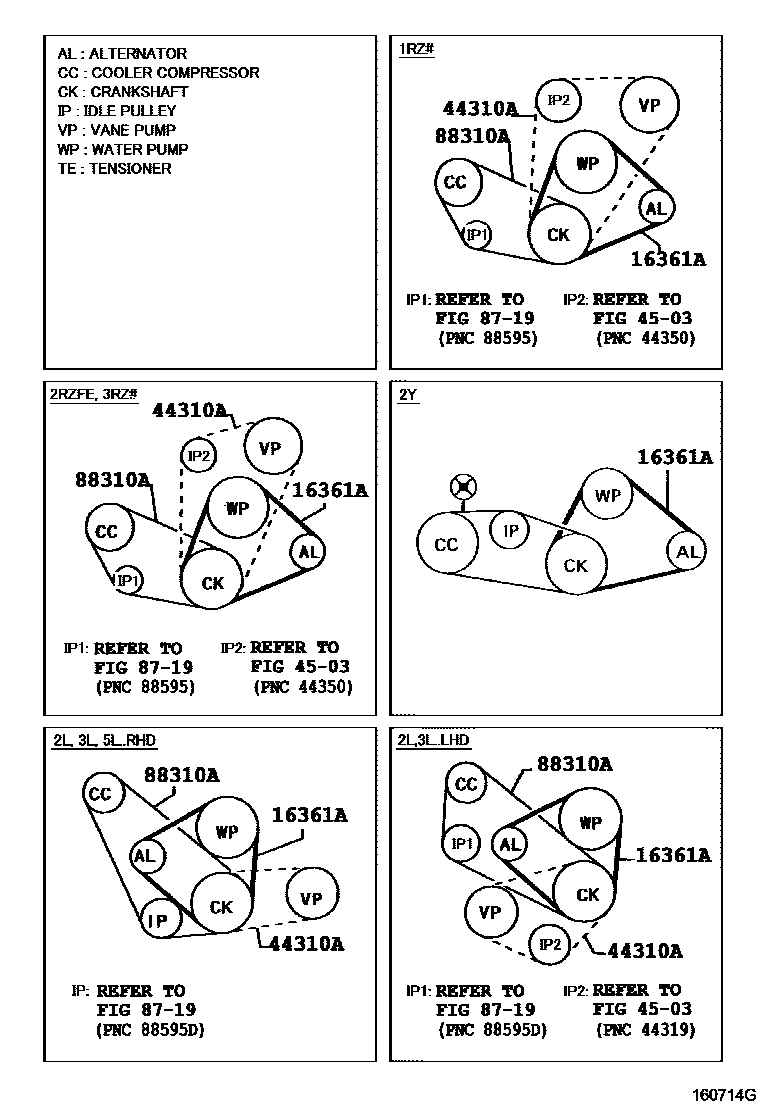

44310ABELT, V(FOR VANE PUMP)

main99332-00825iLN145,166..RHD..GEN..CBU199708

L=825

main99332-01120iRZN147..RHD..SCB..GEN199708

L=1120

main99332-10865iLN155..LHD200108-200409

L=865

main99364-31110iRZN149..GCC;RZN144,154,169..CBR;RZN149..DLX..CBR..GEN199708-200108

L=1110

main99364-71100iRZN149,154,169,174..ARL199708-200109

L=1110

main99364-81070iVZN167,172200208-200502

L=1070

main99364-81100iRZN169,174..ARL200108-200208

L=1100

main99364-91080iRZN193199708-200108

L=1080

4503POWER STEERING TUBE

→ Go to FIG 45-03

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main90080-92019iLN145,155..LHD..TH199902-200109

main90080-92020iLN145,150,155..RHD..TH200109-200409

main90916-02397iKZN190..SR;KZN165..ARL,SA200109-200504

L=1180

main99332-11205iLN145,155..LHD..TH199708-199902

L=1205

main99332-11265iLN167..DLX..SA199708-200009

L=1265

main99332-11275iLN145,15#,167,192..RHD..TH199806-199902

L=1275

main99364-30860iVZN167,172200208-200407

L=860

main99364-30940iRZN169..DCB..SA;RZN169..DLX..SA;RZN148,168..DLX..GEN;RZN149,19#..(DCB,SCB)..EFI..(GEN,SA);RZN142,144,147,149,154,169..CBR..(GCC,GEN)199708

L=940,BANDO

main99364-90930iRZN169..DLX..SA199807-200203

L=930
