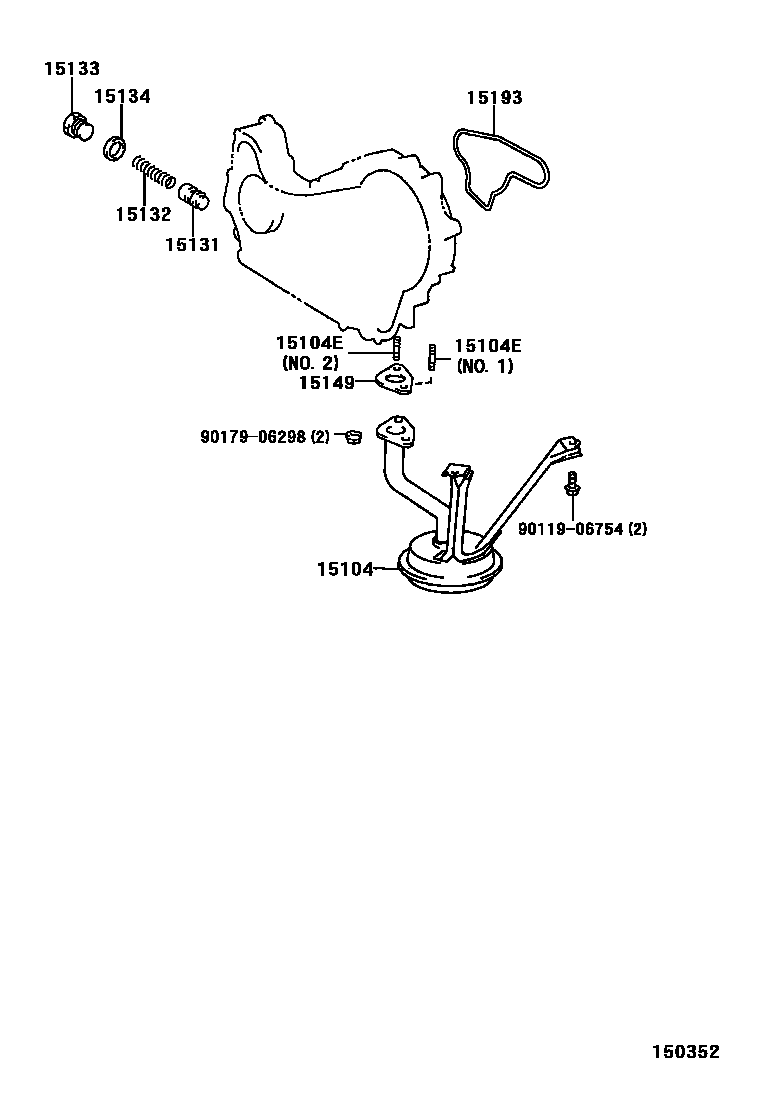

ENGINE OIL PUMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

15104STRAINER SUB-ASSY, OIL

main15104-05040i5L..LN192..TH199806-200009

main15104-05050i2L..LN145,150,155..TH200109-200301

main15104-30020i1KDFTV,2KDFTV..KDN145,15#200110-200409

main15104-54170i5LE..LN172..THXTR;5LE..LN167..DCB..SA;5LE..LN167..THSCB..IV3;5LE..LN167..DCB..SR..ARL;5LE..LN167..(SCB,THDCB,THSCB)..CBU;3L,5LE..LN166,171,19#..GCC,GEN,MA,SA200108

main15104-54220i2L,5LE..LN145,147,15#..(DCB,SCB,XTR)..(ARL,TH); 2L..LN145..RHD..GEN200402

(J)

main15104-62070i5VZFE..VZN167,172200208-200502

main15104-67050i1KZTE..KZN190..SR;1K#,2KDFTV..KDN16#,190,KZN165200109-200504

main15104-71010i2Y..YN140199808-200010

main15104-75080i2RZFE,3RZFE..RZN16#,193..GEN200108-200506

main15104-75090i1RZE..RZN147200108-200208

15104EBOLT, STUD(FOR OIL STRAINER)

main90116-06140i1KZTE..KZN165;1KZTE..KZN190..SR;2KDFTV..KDN165,190..IV1200109-200504

NO.1

main90116-T0019×2i1KDFTV,2KDFTV..KDN145,15#200404-200409

(L)

main90116-T0020i1KDFTV,2KDFTV..KDN16#,190200410-200503

(L),NO.1

main92122-40816×2i5LE..LN147..IV3;2L..LN145..LHD..IV3;3L,5LE..LN16#..ARL,GCC,GEN,SA;2L,5LE..LN145,152..(ARL,GEN,SA)..CBU;2L,5LE..LN145,147..(DCB,THDCB)..(ARL,TH);2L,3L,5LE..LN140,141,146,150,155,17#,19#..DLX200108-200208

main92122-60650i1KZTE..KZN190..SR;1K#,2KDFTV..KDN16#,190,KZN165200109-200504

NO.2

main92122-80816×2i5LE..LN167..THSCB;5LE..LN167..DCB..SA;2L..LN145..LHD..IV3;5LE..LN167..(SCB,THDCB)..CBU;5LE..LN147,152,172..THDCB,THSCB,THXTR;2L,3L,5LE..LN140,141,145,146,150,155,166,171,19#..CBU200208

15131VALVE, OIL PUMP RELIEF

main15131-24010i5VZFE..VZN167,172200208-200502

main15131-46040i2KDFTV..KDN145,150,155,165,190..TH200208-200504

main15131-54010i5LE..LN147,152,167,172..(DCB,SCB,XTR)..ARL200402

15132SPRING, OIL PUMP RELIEF VALVE

main15132-17010i1KZTE..KZN165..(THDCB,THSCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA)199909-200203

main15132-20020i5VZFE..VZN167,172200208-200502

main15132-40010i2Y..YN140199808-200010

main15132-54010i5LE..LN147,152,167,172..(DCB,SCB,XTR)..ARL200402

main15132-75010i1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN200203

main15132-75020i3RZFE..RZN169..SA;3RZFE..RZN169..DLX..ARL;3RZF..RZN144,149,154,169;3RZFE..RZN154,174,194..RHD;3RZFE..RZN149..DLX..(ARL,GEN)199708-200112

NO.1

main15132-75021i3RZFE..RZN154,169;3RZFE..RZN144,149,174,194..ARL,CO,GCC,SA200108-200511

NO.2

15133PLUG, OIL PUMP RELIEF VALVE

main15133-17010i1KZTE..KZN190..SR;2KDFTV..KDN165,190..MA;1K#..KDN151,166,KZN165200109-200504

main15133-24010i2Y..YN140199808-200010

main15133-54010i5LE..LN147,172..DCB,XTR;5LE..LN147,167..SCB..IV3;5LE..LN152,167..(DCB,XTR)..DLX..ARL..CBU200108-200312

15134GASKET, OIL PUMP RELIEF VALVE

main15134-67020i1KZTE..KZN165..(THDCB,THSCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA)199909-200203

15149GASKET, OIL STRAINER FLANGE

main15149-0L010i1KDFTV,2KDFTV..KDN145,15#,16#,190200209-200503

(L)

main15149-67010i1KDFTV,2KDFTV..KDN145,15#,16#,190200209-200503

(J)

15193GASKET, OIL PUMP

main15193-0L010i1KDFTV,2KDFTV..KDN145,15#,16#,190200211-200503

(L)

main15193-67011i1KZTE..KZN165;1KZTE..KZN190..SR;2KDFTV..KDN165,190..IV1200109-200504

9011906754

main90119-06754

9017906298

main90179-06298
