METER

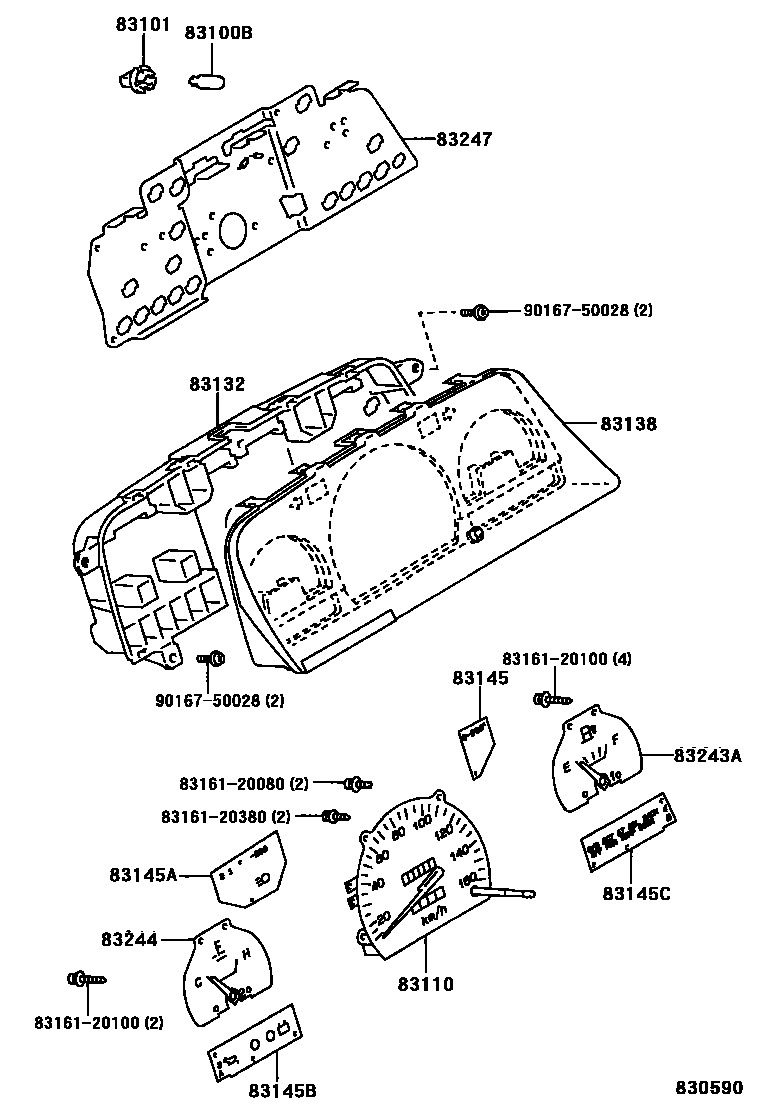

0001 1COMBINATION METER, W/O(TACHOM0002 1COMBINATION METER, W/O(TACHOM0003 1COMBINATION METER, W(TACHOMET0004 1SPEEDOMETER DRIVE CABLE 0006 1SPEEDOMETER DRIVE CABLE 0008 1CLOCK,DETECTOR REV. & SENSOR

83100BBULB, COMBINATION METER, NO.1

main83109-24020×4iLN8#,9#,RN8#,90,YN8#,9#198808-200106

12V3.4W W(GREEN CAP),TYPE C:REFER TO ILLUSTRATION

main83120-60020iLN200; RZN200200106

12V 1.4W,W(SOCKET)

main90010-06007iLN200,RZN200200106

12V 3.4W,W(SOCKET)

main90010-06057iLN200,RZN200200106

12V 3.4W,W(CAP)

main90981-11018×7iRN85..EFI..IV3; RN85..TW1..EFI199709-199909

12V 1.2W W/O SOCKET

main99132-12034×5iRN85..EFI..IV3; RN85..TW1..EFI199709-199909

12V 3.4W

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030×4iLN8#,9#,RN8#,90,YN8#,9#198808-200105

TYPE C:REFER TO ILLUSTRATION

main83101-14040×7iRN85..TW1..EFI199709-199909

W(TACHOMETER),TOSHIBA

main83101-20040×12iLN8#,9#,RN125,8#,90,YN8#,9#198808-200105

TYPE B:REFER TO ILLUSTRATION

83110SPEEDOMETER ASSY

main83110-34091iRN8#,90,YN81,86..V199408-199708

W(TACHOMETER)

main83110-35130iRN85..LHD..GEN;YN80,85,92..GEN199108-199312

main83110-35140iRN85..EFI;YN80,85,92..GEN199108-199408

MPH & KM/H

main83110-35150iRN8#,90,YN81,86..V199108-199408

main83110-35160iRN85,YN85..ARL199108-199408

main83110-35260iLN80,85..GEN199108-199208

W/O(TACHOMETER)

main83110-35270iLN80,85..GEN199108-199408

MPH & KM/H

main83110-35280iLN81,86..V199108-199408

main83110-35330iYN80,85..TH;RN85..RHD..GEN199108-199312

main83110-35350iRN8#,90,YN81,86..V199308-199408

W(TACHOMETER)

main83110-35360iRN85,YN85..ARL199108-199408

W(TACHOMETER)

main83110-35420iLN80,85,90..TH; LN80,85..GEN199108-199312

W(TACHOMETER & TRIP METER)

main83110-35430iLN80,85..GEN199108-199408

W(TACHOMETER & TRIP METER),MPH & KM/H

main83110-35440iLN81,86..V199108-199408

W(TACHOMETER)

main83110-35450iLN80,85,86,90..ARL,TH; LN80,85..GEN199312-199408

W(TACHOMETER & TRIP METER)

main83110-35530iRN85,YN85..ARL199105-199108

main83110-35620iRN125; RN8#,YN81,86..V199105-199108

W(TACHOMETER)

main83110-35650iRN85,YN85..ARL; RN90199105-199108

W(TACHOMETER)

main83110-35830iLN81,86199105-199108

W(TACHOMETER)

main83110-3D030iRN85..LHD..GEN;YN80,85,92..GEN199312-199408

main83110-3D050iLN80,85..GEN; LN85..RHD..STD..TH199312-199408

W/O(TACHOMETER)

main83110-3D080iRN85..LHD..STD;YN80,85,86,92..GEN199408-199909

main83110-3D090iRN85..EFI..CBU;YN80,85,92..GEN199408-199909

MPH & KM/H

main83110-3D110iRN85,YN85..ARL199408-199708

main83110-3D180iRN85,YN85..ARL199408-199501

W(TACHOMETER)

main83110-3D250iYN86..TW1..DLX199408-199508

CHINA SPEC

main83110-3D280iLN80,85..GEN199408-199909

MPH & KM/H

main83110-3D290iLN85..RHD..STD..TH199408-199806

W/O(TACHOMETER)

main83110-3D300iLN81,86..V199408-199708

main83110-3D340iLN86..GEN199703-200106

W(TACHOMETER)

main83110-3D350iLN80,85..GEN199408-199909

W(TACHOMETER),MPH & KM/H

main83110-3D360iLN81,86..V199408-199708

W(TACHOMETER)

main83110-3D370iLN80,85,86,9#..ARL,TH199408-199806

main83110-3D430iYN86..TW1..DLX199408-199508

CHINA SPEC & W(TACHO METER)

main83110-89287iYN80,85,87,92..GEN198808-199108

main83110-89288iYN80,85,87,92..GEN198808-199008

W(TRIP METER)

main83110-89289iYN80,85,87,92..GEN198808-199108

MPH & KM/H

main83110-89290iYN80,85,87,92..GEN198808-199008

W(TRIP METER),MPH & KM/H

main83110-89291iRN8#,YN81,86..V198808-199108

main83110-89297iRN85,YN85..ARL198808-199105

main83110-89305iLN80,85,90..GEN198808-199108

main83110-89306iLN80,90..GEN;LN85..RHD..GEN;LN85..LHD..MTM198808-199008

W(TRIP METER)

main83110-89307iLN80,85,90..GEN198808-199108

MPH & KM/H

main83110-89308iLN80,90..GEN;LN85..RHD..GEN;LN85..LHD..MTM198808-199008

W(TRIP METER),MPH & KM/H

main83110-89313iYN87..IV3;YN87..RHD..TW1199010-199108

W(TACHOMETER & TRIP METER)

main83110-89314iRN125198907-199105

main83110-89317iRN85,YN85..ARL; RN90198808-199105

W(TACHOMETER)

main83110-89321iLN80,85,90..TH199001-199108

main83110-89322iLN80,85,90..MTM..GEN198808-199108

W(TACHOMETER & TRIP METER),MPH & KM/H

main83110-89324iLN85..ARL198808-199108

main83110-89340iLN81,86199008-199108

main83110-89341iLN81,86199008-199105

W(TACHOMETER)

main83220-35370iLN200200106

main83220-35480iRZN200200106

83132CASE, COMBINATION METER

main83132-35020iRN85,YN85..ARL199108-199408

main83132-35040iRN85,YN85..ARL,V;LN8#,RN80,YN81,86..GEN,V199108-199208

W(TACHOMETER)

main83132-89305iYN80,85,87,92..GEN199008-199108

MPH & KM/H

main83132-89307iYN80,85,87,92..GEN198808-199108

main83132-89309iLN80,85,90..GEN198808-199108

main83132-89311iLN81,86199008-199108

main83132-89313iRN85..LHD..CBR;LN81,86,RN80,90,YN8#,92..GEN,V199108-199408

main83132-89315iLN80,85..GEN199108-199208

W/O(TACHOMETER)

main83132-89317iLN80,85..GEN; LN85..RHD..STD..TH199308-199408

W/O(TACHOMETER)

main83132-89319iRN85..EFI199401-199408

main83132-89321iLN86..V;RN85..TW1..V;RN85..LHD..T1;LN85..RHD..STD;LN85..LHD..GEN;RN85..LHD..TW1..STD;LN80,81,RN80,90,YN8#,92..GEN,V199408-199909

W/O(TACHOMETER)

main83132-89502iYN87..IV3;LN8#,90..MTM..GEN;YN87,92..RHD..(DCB,XTR)199001-199008

W(TACHOMETER & TRIP METER)

main83132-89504iRN85,YN85..ARL199408-199708

main83841-35290iLN86..GEN199703-200106

83138GLASS, SPEEDOMETER

main83138-35060iRN85,YN90..SR5..(GEN,TH)199401-199708

main83138-35080iLN85,9#..5F..SR5199108-199806

main83138-35100iLN81,86..V199108-199708

W(TACHOMETER)

main83138-35120iLN90..4FC199611-199806

main83138-89301iLN80,90..GEN;LN85..RHD..GEN;LN85..LHD..MTM198808-199008

W(TRIP METER)

main83138-89303iYN80,85,87,92..GEN198808-199008

W(TRIP METER)

main83138-89305iLN80,86..GEN;LN85..RHD..STD;LN85..LHD..GEN199208-200106

W/O(TACHOMETER)

main83138-89307iRN85..LHD..STD..GEN;YN80,85,86,87,92..GEN198808-199909

main83138-89309iRN8#,90,YN81,86..V199108-199408

main83138-89311iLN81,86..V199108-199408

main83138-89502iYN80,85,87..TH; YN87..IV3;YN87,92..RHD..(DCB,XTR)199001-199008

W(TACHOMETER & TRIP METER)

main83138-89504iRN85..LHD..TW1..STD..CBR199501-199709

W(TACHOMETER)

main83138-89506iRN85,YN85..ARL198808-199708

W(TACHOMETER)

main83138-89508iRN90..ARL198808-199308

main83138-89510iLN85,90..SR5199001-199108

main83138-89512iLN85..LHD..4F;LN80,85..RHD..GEN; LN85..LHD..5F..GEN199312-199408

W(TACHOMETER & TRIP METER); W(TACHOMETER)

main83138-89514iLN8#..RHD..MTM..GEN; LN85,90..LHD..MTM198808-198904

MPH & KM/H; W(TACHOMETER & TRIP METER),MPH & KM/H

main83138-89522iRN85,YN85..ARL198808-199708

83145LENS, METER, NO.1

main83145-89504iRN85,YN85..ARL198808-199708

main83145-89546iRN85,YN85..ARL;LN85..LHD..5F..GEN; RN90..5F;LN85..RHD;LN85..LHD..4F;LN85,RN85..LHD..(TH,V);RN85,YN85..RHD..5F..(GEN,TH);LN80,81,86,90,RN80,YN80,81,86,90..4FC,5F199312-199408

W(TACHOMETER)

83145ALENS, METER, NO.2

main83145-89502iRN85,YN85..ARL198808-199708

main83145-89528iYN87..IV3;RN125,8#,YN8#..TH,V;YN87,92..RHD..(DCB,XTR)199001-199008

main83145-89558iLN85,9#..SR5199001-199806

main83145-89560iLN85..4FC..ARL;LN85..MTM..(DLX,STD);LN80,81,86,90..DLX,STD199001-199312

83145BLENS, METER, NO.3

main83145-89404iRN85,YN85..ARL199008-199708

main83145-89530iRN85..RHD..GEN;RN85..LHD..(DLX,SR5);LN86,YN80,85,86..TH,V;RN85..LHD..TW1..STD..CBR;LN80,81,85,9#,RN80,90,YN81,90..GEN,TH,V199501-199709

main83145-89532iLN86..ARL;RN90..5F..ARL199308-199408

main83145-89540iLN86..GEN199703-200106

main83831-3D690iLN200,RZN200200106

83145CLENS, METER, NO.4

main83145-35060iRN85,YN85..ARL199008-199708

main83145-35550iRN85..TW1..EFI199709-199909

main83145-89406iRN85,YN85..ARL198808-199008

main83145-89524iYN87..IV3;YN87..RHD..TW1;YN80,85..RHD..T1..(GEN,TH);LN8#,90,RN125,8#,YN81,86..MTM..(GEN,TH,V)199008-199010

main83145-89542iLN86..GEN199703-200106

main83145-89550iLN85,86,RN90..ARL198808-199308

main83832-3D690iLN200,RZN200200106

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83243-34020iLN80,85..GEN;RN85,YN85..ARL;RN85..LHD..TW1..STD..CBR199501-199909

W(TACHOMETER)

main83243-35040iRN85,YN85..ARL199108-199708

main83243-35080iLN81,86..V199208-199308

W(TACHOMETER)

main83243-35100iLN85..LHD..4F; RN85..ARL;LN85..RHD..GEN;LN85..LHD..5F..GEN;LN80,YN85..RHD..5F..(ARL,GEN)199312-199408

W(TACHOMETER & TRIP METER); W(TACHOMETER)

main83243-35140iLN85..LHD..5F..GEN199408-199708

TURKEY SPEC & W(TACHOMETER)

main83243-89311iLN8#,90,RN8#,YN8#,92..GEN,V198808-199108

main83243-89313iRN85..LHD;LN8#,RN80,YN8#,92..GEN,V199108-199208

W/O(TACHOMETER)

main83243-89502iLN85,RN125,90..ARL,V; YN87..IV3;LN85..MTM..GEN;YN87..RHD..TW1;YN85,92..RHD..T1..(ARL,GEN);LN80,90,RN8#,YN81,86..ARL,GEN,V198808-199001

W(TACHOMETER)

main83243-89506iRN85,YN85..ARL198808-199108

main83882-3D690iLN200,RZN200200106

83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER

main83244-34120iLN80,85..GEN;RN85,YN85..ARL199408-199501

W(TACHOMETER)

main83244-34140iLN81,86,RN8#,90,YN81,86..V; LN85..LHD..GEN199408-199708

TURKEY SPEC & W(TACHOMETER); W(TACHOMETER)

main83244-35060iRN85,YN85..ARL199108-199708

main83244-35120iLN81,85,86,RN90..LHD..(GEN,V)199208-199308

W(TACHOMETER)

main83244-35140iRN90..5F..ARL;LN80,85,86,90,YN90..ARL,GEN,TH;RN85,YN80,85..RHD..5F..(GEN,TH)199308-199408

main83244-89317iLN80,85,90,YN80,85,87,92..GEN198808-199108

main83244-89319iLN85,90,YN80,85,87,92..LHD; RN8#,YN81,86..V198808-198908

MIDDLE EAST SPEC

main83244-89401iLN81,86,RN8#,YN81,86..V; LN85,90,YN80,85,87,92..LHD198908-199108

MIDDLE EAST SPEC

main83244-89403iRN85..LHD..GEN;LN80,85,YN80,85,92..GEN199108-199208

W/O(TACHOMETER)

main83244-89405iLN85,YN80,85,92..LHD..GEN199108-199312

MIDDLE EAST SPEC

main83244-89502iLN85,90..LHD..MTM; RN8#,YN81,86..V198808-198908

W(TACHOMETER & TRIP METER); W(TACHOMETER)

main83244-89504iLN85,RN90..ARL; YN87..IV3;LN85..MTM..GEN;YN87..RHD..TW1;LN80,90,RN85..ARL,GEN;YN85,92..RHD..T1..(ARL,GEN)198808-199001

W(TACHOMETER)

main83244-89508iRN85,YN85..ARL198808-199108

main83244-89512iRN125198907-199108

main83883-3D690iLN200,RZN200200106

83247PLATE, METER CIRCUIT

main83149-35040iLN85..LHD..4F;LN80,85..RHD..GEN; LN85..LHD..5F..GEN199312-199408

W(TACHOMETER & TRIP METER); W(TACHOMETER)

main83149-35060iRN85,YN85..ARL199308-199408

main83149-35080iRN85,YN85..ARL199308-199408

W(TACHOMETER)

main83149-35100iRN90..5F..ARL199308-199408

main83149-35140iLN86..ARL199308-199408

main83149-35200iRN90..ARL199408-199510

main83149-35220iRN85,YN85..ARL199408-199510

W(TACHOMETER)

main83149-35380iRN85,YN85..ARL199510-199708

main83149-35420iRN8#,90,YN81,86..V199510-199708

W(TACHOMETER)

main83149-35430iRN85,YN85..ARL; RN90..ARL199510-199708

W(TACHOMETER)

main83247-34106iYN86..TW1..DLX199510-199708

CHINA SPEC

main83247-35040iRN85,YN85..ARL199408-199510

main83247-35060iRN85,YN85..ARL; RN90199008-199108

W(TACHOMETER)

main83247-35080iLN85..ARL199008-199108

main83247-35160iRN85,YN85..ARL199108-199308

main83247-35400iYN80,85..TH;RN85..RHD..GEN199108-199208

main83247-35420iRN125; RN8#,YN81,86..V199108-199208

W(TACHOMETER)

main83247-35440iRN85,YN85..ARL; RN90..ARL199108-199308

W(TACHOMETER)

main83247-35700iLN80,85,90..TH; LN80,85..GEN199108-199208

W(TACHOMETER & TRIP METER)

main83247-35720iLN81,86..V199108-199408

W(TACHOMETER)

main83247-35740iLN86..ARL199108-199308

main83247-35860iYN80,85..TH;RN85..RHD..GEN199208-199408

main83247-35880iRN125; RN90..V199208-199308

W(TACHOMETER)

main83247-89321iYN80,85,87,92..GEN199008-199108

MPH & KM/H

main83247-89323iYN80,85,87,92..GEN198808-199108

main83247-89325iRN8#,YN81,86..V198808-199108

main83247-89327iLN80,85,90..GEN198808-199108

main83247-89329iLN81,86199008-199108

main83247-89331iRN8#,90,YN81,86..V199108-199408

main83247-89333iLN85..LHD..GEN199108-199308

MPH & KM/H

main83247-89335iYN80,85,92..GEN;RN85..LHD..CBR..GEN199108-199408

main83247-89337iLN80..GEN;LN85..RHD..STD;LN85..LHD..GEN199208-199408

W/O(TACHOMETER)

main83247-89339iLN81,86..V199108-199405

main83247-89343iRN85..EFI199401-199408

main83247-89347iYN80,85,86,92..GEN;RN85..LHD..STD..CBR199408-199909

main83247-89349iRN8#,90,YN81,86..V199408-199708

main83247-89351iLN81,86..V199408-199708

main83247-89353iLN85..RHD..STD..TH199408-199806

W/O(TACHOMETER)

main83247-89355iRN85..EFI199408-199909

main83247-89357iLN81,86..V199405-199408

main83247-89406iRN85,YN85..ARL198808-199008

main83247-89504iRN85..RHD;RN85..LHD..TW1199709-199909

W(TACHOMETER)

main83247-89506iRN8#,YN81,86..V198808-199108

W(TACHOMETER)

main83247-89508iRN85,YN85..ARL; RN90198808-199008

W(TACHOMETER)

main83247-89524iLN80,85,90..TH199001-199108

main83247-89528iLN85..ARL198808-199008

main83247-89626iLN81,86199008-199108

W(TACHOMETER)

main83861-35290iLN86..GEN199703-200106

main83861-35300iLN86..GEN199703-200106

W(TACHOMETER)

main83861-3D690iLN200200106

main83861-3D710iRZN200200106

8316120080CASE, COMBINATION METER MIRROR, NO.1

main83161-20080

8316120100CASE, COMBINATION METER MIRROR, NO.1

main83161-20100

8316120380CASE, COMBINATION METER MIRROR, NO.1

main83161-20380

9016750028

main90167-50028

16 parts on this diagram · 6 diagrams in section
