EPC Data

ARMREST & VISOR

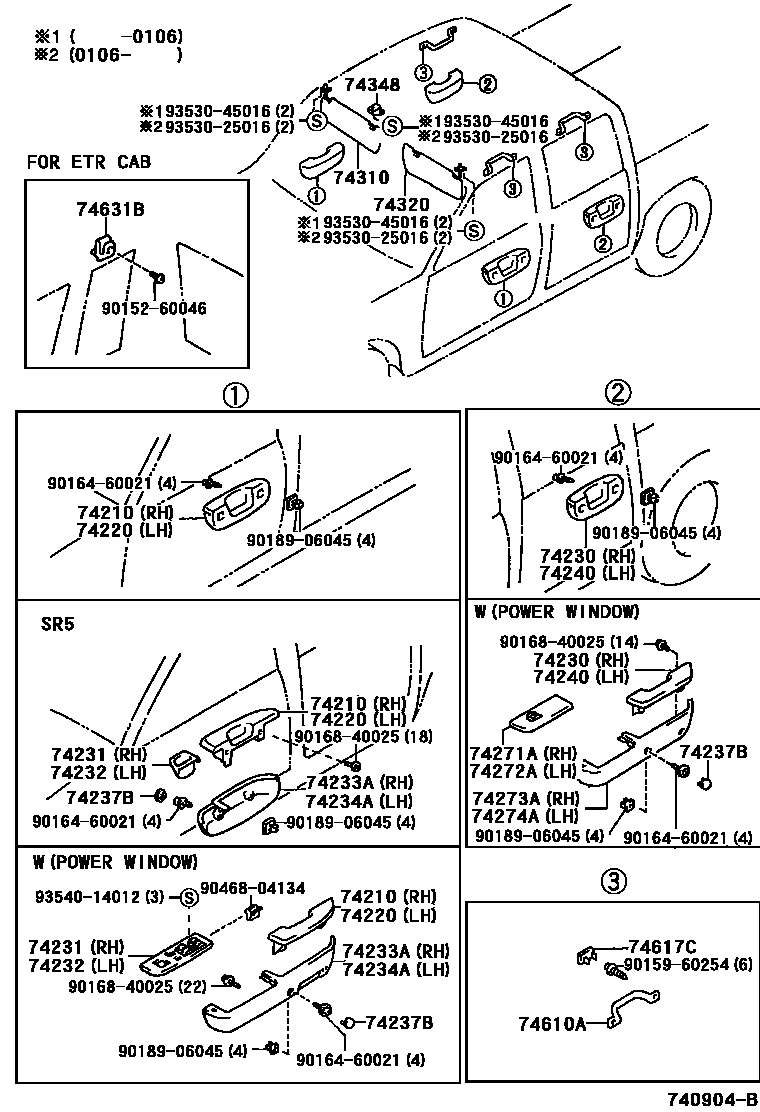

Parts diagram
74210ARMREST ASSY, FRONT, RH
main74210-89105-02i199208-199708
W(VINYL SEAT),RED,TRIM3#
main74210-89105-03i198808-198901
GRAY,TRIM1#
main74210-89105-04i198808-198901
BLUE,TRIM8#
main74210-89105-06i198808-198901
BROWN,TRIM4#
main74210-89105-B0i199705-200106
MEDIUM GRAY,TRIM1#
main74210-89105-E0i198901-199108
BROWN,TRIM4#
main74210-89105-J0i198901-199204
MEDIUM BLUE,TRIM8#
main74210-89106-02i199108-199708
RED,TRIM3#
main74210-89106-03i198808-198901
DLX PACKAGE,GRAY,TRIM1#; GRAY,TRIM1#
main74210-89106-04i198808-198901
BLUE,TRIM8#; DLX PACKAGE,BLUE,TRIM8#
main74210-89106-06i198808-198901
BROWN,TRIM4#; DLX PACKAGE,BROWN,TRIM4#
main74210-89106-B0i198901-200106
MEDIUM GRAY,TRIM1#
main74210-89106-E0i198901-199108
BROWN,TRIM4#; DLX PACKAGE,BROWN,TRIM4#
main74210-89106-J0i198901-199108
DLX PACKAGE,MEDIUM BLUE,TRIM8#
main74210-89107-02i199408-199508
CHINA SPEC OR W(POWER WINDOW & MAGNET DOOR LOCK),RED,TRIM3#; W(POWER WINDOW & MAGNET DOOR LOCK),RED,TRIM3#
main74210-89107-03i198808-199408
W(POWER WINDOW & MAGNET DOOR LOCK),GRAY,TRIM1#
main74210-89107-04i199408-199508
CHINA SPEC OR W(POWER WINDOW & MAGNET DOOR LOCK),BLUE,TRIM8#; W(POWER WINDOW & MAGNET DOOR LOCK),BLUE,TRIM8#
main74210-89107-06i198808-199108
BROWN,TRIM4#
74220ARMREST ASSY, FRONT, LH
main74210-89105-02i199208-199708
W(VINYL SEAT),RED,TRIM3#
main74210-89105-03i198808-198901
GRAY,TRIM1#
main74210-89105-04i198808-198901
BLUE,TRIM8#
main74210-89105-06i198808-198901
BROWN,TRIM4#
main74210-89105-B0i199204-199708
W(VINYL SEAT),MEDIUM GRAY,TRIM1#
main74210-89105-E0i198901-199108
BROWN,TRIM4#
main74210-89105-J0i198901-199204
MEDIUM BLUE,TRIM8#
main74210-89106-02i199108-199708
RED,TRIM3#
main74210-89106-03i198808-198901
DLX PACKAGE,GRAY,TRIM1#; GRAY,TRIM1#
main74210-89106-04i198808-198901
BLUE,TRIM8#; DLX PACKAGE,BLUE,TRIM8#
main74210-89106-06i198808-198901
BROWN,TRIM4#; DLX PACKAGE,BROWN,TRIM4#
main74210-89106-B0i198901-199108
DLX PACKAGE,MEDIUM GRAY,TRIM1#
main74210-89106-E0i198901-199108
BROWN,TRIM4#; DLX PACKAGE,BROWN,TRIM4#
main74210-89106-J0i199408-199708
MEDIUM BLUE,TRIM8#
main74220-89103-02i199408-199508
CHINA SPEC OR W(POWER WINDOW & MAGNET DOOR LOCK),RED,TRIM3#; W(POWER WINDOW & MAGNET DOOR LOCK),RED,TRIM3#
main74220-89103-03i199508-199806
W(POWER WINDOW & MAGNET DOOR LOCK),GRAY,TRIM1#
main74220-89103-04i199408-199508
CHINA SPEC OR W(POWER WINDOW & MAGNET DOOR LOCK),BLUE,TRIM8#; W(POWER WINDOW & MAGNET DOOR LOCK),BLUE,TRIM8#
main74220-89103-06i198910-199108
BROWN,TRIM4#
74230ARMREST ASSY, REAR, RH
main74210-89105-02i199108-199708
RED,TRIM3#
main74210-89105-03i198808-198901
GRAY,TRIM1#
main74210-89105-04i198808-198901
BLUE,TRIM8#
main74210-89105-06i198808-198901
BROWN,TRIM4#
main74210-89105-B0i198901-200106
MEDIUM GRAY,TRIM1#
main74210-89105-E0i198901-199108
BROWN,TRIM4#
main74210-89105-J0i198901-199408
MEDIUM BLUE,TRIM8#
main74210-89106-02i199008-199708
RED,TRIM3#
main74210-89106-B0i198907-199708
MEDIUM GRAY,TRIM1#
main74210-89106-E0i198907-199108
BROWN,TRIM4#
main74210-89106-J0i198907-199708
MEDIUM BLUE,TRIM8#
main74210-89108-02i199108-199408
W(POWER WINDOW & MAGNET DOOR LOCK),RED,TRIM3#
main74210-89108-03i199108-199408
W(POWER WINDOW & MAGNET DOOR LOCK),GRAY,TRIM1#
main74210-89108-04i199108-199408
W(POWER WINDOW & MAGNET DOOR LOCK),BLUE,TRIM8#
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74231-10050-C0i199608-199806
W(POWER WINDOW & MAGNET DOOR LOCK),BLACK,TRIM1#
main74231-89102-02i199501-199708
RED,TRIM3#
main74231-89102-03i199408-199501
GRAY,TRIM1#; W(REMOTE CONTROL MIRROR),GRAY,TRIM1#
main74231-89102-04i199501-199708
BLUE,TRIM8#
main74231-89102-06i198808-199108
BROWN,TRIM4#
main74231-89106-02i199501-199708
RED,TRIM3#; W(POWER WINDOW & MAGNET DOOR LOCK),RED,TRIM3#
main74231-89106-03i199108-199408
W(POWER WINDOW & MAGNET DOOR LOCK),GRAY,TRIM1#
main74231-89106-04i199108-199408
W(POWER WINDOW & MAGNET DOOR LOCK),BLUE,TRIM8#
74232PANEL, FRONT ARMREST BASE, UPPER LH
main74232-10021-22i199608-199806
W(POWER WINDOW & MAGNET DOOR LOCK),BLACK,TRIM1#
main74232-89102-02i199501-199708
RED,TRIM3#
main74232-89102-03i199408-199501
GRAY,TRIM1#
main74232-89102-04i199501-199708
BLUE,TRIM8#
main74232-89102-06i198808-199108
BROWN,TRIM4#
main74232-89103-02i199108-199408
W(REMOTE CONTROL OUTER MIRROR),RED,TRIM3#
main74232-89103-03i199108-199408
W(REMOTE CONTROL OUTER MIRROR),GRAY,TRIM1#
main74232-89103-04i199108-199408
W(REMOTE CONTROL OUTER MIRROR),BLUE,TRIM8#
main74232-89103-06i199008-199108
W(REMOTE CONTROL OUTER MIRROR),BROWN,TRIM4#
main74232-89104-02i199208-199408
W(POWER WINDOW & MAGNET DOOR LOCK),RED,TRIM3#
main74232-89104-03i199408-199501
GRAY,TRIM1#; W(POWER WINDOW & MAGNET DOOR LOCK),GRAY,TRIM1#
main74232-89104-04i199408-199501
BLUE,TRIM8#; W(POWER WINDOW & MAGNET DOOR LOCK),BLUE,TRIM8#
main74232-89106-02i199408-199501
RED,TRIM3#
main74232-89106-03i200106-200412
W(POWER WINDOW),GRAY,TRIM1#
main74232-89106-04i199501-199708
BLUE,TRIM8#; W(POWER WINDOW & MAGNET DOOR LOCK),BLUE,TRIM8#
74233APANEL, FRONT DOOR ARMREST BASE, LOWER RH
main74233-89101-02i199008-199708
RED,TRIM3#
main74233-89101-03i198808-199806
GRAY,TRIM1#
main74233-89101-04i199408-199708
BLUE,TRIM8#
main74233-89101-06i198808-199108
BROWN,TRIM4#
main74233-89102-02i199508-199708
RED,TRIM3#; W(POWER WINDOW & MAGNET DOOR LOCK),RED,TRIM3#
main74233-89102-03i199408-199508
GRAY,TRIM1#; W(POWER WINDOW & MAGNET DOOR LOCK),GRAY,TRIM1#
main74233-89102-04i199408-199508
BLUE,TRIM8#; W(POWER WINDOW & MAGNET DOOR LOCK),BLUE,TRIM8#
74234APANEL, FRONT DOOR ARMREST BASE, LOWER LH
main74234-89101-02i199008-199708
RED,TRIM3#
main74234-89101-03i199408-199508
CHINA SPEC,GRAY,TRIM1#
main74234-89101-04i198808-199408
BLUE,TRIM8#
main74234-89101-06i198808-199108
BROWN,TRIM4#
main74234-89102-02i199508-199708
RED,TRIM3#; W(POWER WINDOW & MAGNET DOOR LOCK),RED,TRIM3#
main74234-89102-03i199108-199408
W(POWER WINDOW & MAGNET DOOR LOCK),GRAY,TRIM1#
main74234-89102-04i199408-199508
BLUE,TRIM8#; W(POWER WINDOW & MAGNET DOOR LOCK),BLUE,TRIM8#
74237BCAP, DOOR ARMREST BASE
main74237-89101-02×4i199008-199708
RED,TRIM3#
main74237-89101-03×4i200106-200412
W(POWER WINDOW),GRAY,TRIM1#
main74237-89101-04×4i199408-199708
BLUE,TRIM8#
main74237-89101-06×4i198808-199108
BROWN,TRIM4#
74240ARMREST ASSY, REAR, LH
main74210-89105-02i199108-199708
RED,TRIM3#
main74210-89105-03i198808-198901
GRAY,TRIM1#
main74210-89105-04i198808-198901
BLUE,TRIM8#
main74210-89105-06i198808-198901
BROWN,TRIM4#
main74210-89105-B0i198901-200106
MEDIUM GRAY,TRIM1#
main74210-89105-E0i198901-199108
BROWN,TRIM4#
main74210-89105-J0i198901-199408
MEDIUM BLUE,TRIM8#
main74210-89106-02i199008-199708
RED,TRIM3#
main74210-89106-B0i198907-199708
MEDIUM GRAY,TRIM1#
main74210-89106-E0i198907-199108
BROWN,TRIM4#
main74210-89106-J0i198907-199708
MEDIUM BLUE,TRIM8#
main74220-89104-02i199108-199408
W(POWER WINDOW & MAGNET DOOR LOCK),RED,TRIM3#
main74220-89104-03i200106-200412
W(POWER WINDOW & MAGNET DOOR LOCK),GRAY,TRIM1#
main74220-89104-04i199108-199408
W(POWER WINDOW & MAGNET DOOR LOCK),BLUE,TRIM8#
74271APANEL, REAR DOOR ARMREST BASE, UPPER RH
main74271-89101-02i199108-199408
RED,TRIM3#
main74271-89101-03i200106-200412
GRAY,TRIM1#
main74271-89101-04i199108-199408
BLUE,TRIM8#
74272APANEL, REAR DOOR ARMREST BASE, UPPER LH
main74272-89101-02i199408-199708
RED,TRIM3#
main74272-89101-03i200106-200412
GRAY,TRIM1#
main74272-89101-04i199408-199708
BLUE,TRIM8#
74273APANEL, REAR DOOR ARMREST BASE, LOWER RH
main74273-89101-02i199408-199708
RED,TRIM3#
main74273-89101-03i200106-200412
GRAY,TRIM1#
main74273-89101-04i199408-199708
BLUE,TRIM8#
74274APANEL, REAR DOOR ARMREST BASE, LOWER LH
main74274-89101-02i199108-199408
RED,TRIM3#
main74274-89101-03i199108-199408
GRAY,TRIM1#
main74274-89101-04i199408-199708
BLUE,TRIM8#
74310VISOR ASSY, RH
main74310-35050-B0i199308-199806
GRAY,TRIM1#
main74310-35050-J0i199308-199408
BLUE,TRIM8#
main74310-89129-03i198808-199708
GRAY,TRIM1#
main74310-89129-04i198808-199108
BLUE,TRIM8#
main74310-89129-06i198808-199108
BROWN,TRIM4#
main74310-89129-J0i199108-199408
BLUE,TRIM8#
main74310-89132-02i199208-199708
W(VANITY MIRROR),RED,TRIM3#
main74310-89132-03i199608-199705
W(VANITY MIRROR),GRAY,TRIM1#
main74310-89132-J1i199208-199708
W(VANITY MIRROR),BLUE,TRIM8#
main74310-89133-02i199008-199108
RED,TRIM3#
main74310-89133-03i198808-199109
GRAY,TRIM1#
main74310-89133-04i198808-199108
BLUE,TRIM8#
main74310-89133-06i198808-199108
BROWN,TRIM4#
main74310-89133-B0i199109-199608
SLATE GRAY,TRIM1#
main74310-89133-D0i199109-199708
RED,TRIM3#
main74310-89133-J1i199408-199708
LIGHT BLUE,TRIM8#
main74310-89134-03i198910-199308
GRAY,TRIM1#
main74310-89134-04i198910-199108
BLUE,TRIM8#
main74310-89134-06i198910-199108
BROWN,TRIM4#
main74310-89134-J1i199108-199308
BLUE,TRIM8#
74320VISOR ASSY, LH
main74320-35040-B0i199705-199708
W(PEN HOLDER),GRAY,TRIM1#
main74320-35040-D0i199308-199708
W(PEN HOLDER),RED,TRIM3#
main74320-35040-J0i199308-199708
W(PEN HOLDER),BLUE,TRIM8#
main74320-89124-02i199008-199108
RED,TRIM3#
main74320-89124-03i198808-199108
GRAY,TRIM1#
main74320-89124-04i198808-199108
BLUE,TRIM8#
main74320-89124-06i198808-199108
BROWN,TRIM4#
main74320-89124-B0i199608-199705
SLATE GRAY,TRIM1#
main74320-89124-D0i199109-199708
RED,TRIM3#
main74320-89124-J1i199108-199408
LIGHT BLUE,TRIM8#
main74320-89126-03i198910-199806
GRAY,TRIM1#
main74320-89126-04i198910-199108
BLUE,TRIM8#
main74320-89126-06i198910-199108
BROWN,TRIM4#
main74320-89126-J1i199108-199408
BLUE,TRIM8#
main74320-89130-03i198808-199708
GRAY,TRIM1#
main74320-89130-04i198808-199108
BLUE,TRIM8#
main74320-89130-06i198808-199108
BROWN,TRIM4#
main74320-89130-J0i199108-199408
BLUE,TRIM8#
main74320-89131-02i199208-199308
W(PEN HOLDER),RED,TRIM3#
main74320-89131-03i199108-199308
W(PEN HOLDER),GRAY,TRIM1#
main74320-89131-J0i199108-199308
W(PEN HOLDER),BLUE,TRIM8#
74348HOLDER, VISOR
main74348-14010-02×2i199008-199108
RED,TRIM3#
main74348-14010-06×2i198808-198901
BROWN,TRIM4#
main74348-14010-24×2i198808-198901
BLUE,TRIM8#
main74348-14010-43×2i198808-198901
GRAY,TRIM1#
main74348-14010-B0×2i198901-199108
SLATE GRAY,TRIM1#
main74348-14010-E0×2i198901-199108
LIGHT BROWN,TRIM4#
main74348-14010-J0×2i198901-199108
LIGHT BLUE,TRIM8#
main74348-35010-B0×2i199108-199608
GRAY,TRIM1#
main74348-35010-D0×2i199108-199708
RED,TRIM3#
main74348-35010-J0×2i199108-199408
BLUE,TRIM8#
main74348-89102-04×2i198907-199108
BLUE,TRIM8#
main74348-89102-06×2i198907-199108
BROWN,TRIM4#
main74348-89102-J0×2i199108-199308
BLUE,TRIM8#
74610AGRIP SUB-ASSY, ASSIST
main74603-89101-02×3i199008-199708
RED,TRIM3#
main74603-89101-03i198808-198901
GRAY,TRIM1#
main74603-89101-04i198808-198901
BLUE,TRIM8#
main74603-89101-06i198808-198901
BROWN,TRIM4#
main74603-89101-B0×3i199008-199108
SLATE GRAY,TRIM1#
main74603-89101-B1i199108-199806
MEDIUM GRAY,TRIM1#
main74603-89101-E0i198901-199108
LIGHT BROWN,TRIM4#
main74603-89101-J0×3i199008-199108
LIGHT BLUE,TRIM8#
main74603-89101-J2i199408-199708
MEDIUM BLUE,TRIM8#
main74610-16010-06i198808-199108
BROWN,TRIM4#
main74610-16010-12i199108-199708
RED,TRIM3#
main74610-16010-13i198808-199108
GRAY,TRIM1#
main74610-16010-14i198808-199108
BLUE,TRIM8#
main74610-16010-B1×3i200106-200412
SLATE GRAY,TRIM1#
main74610-16010-B2×3i199108-200106
COLOMBIA SPEC,MEDIUM GRAY,TRIM1#
main74610-16010-J3×3i199108-199408
MEDIUM BLUE,TRIM8#
74617CPLUG, ASSIST GRIP
main74617-16010-12×6i199108-199308
RED,TRIM3#
main74617-16010-50×6i198808-198901
BROWN,TRIM4#
main74617-16010-57×2i198808-198901
GRAY,TRIM1#
main74617-16010-59×6i198808-198901
BLUE,TRIM8#
main74617-16010-B1×6i198901-199108
SLATE GRAY,TRIM1#
main74617-16010-B3×2i199108-199705
MEDIUM GRAY,TRIM1#
main74617-16010-E1×6i198901-199108
LIGHT BROWN,TRIM4#
main74617-16010-J1×6i198901-199108
LIGHT BLUE,TRIM8#
main74617-16010-J3×2i199408-199708
BLUE,TRIM8#
74631BHOOK, COAT
main74631-12070-01×2i199401-199504
BLACK,TRIM1#
main74631-12070-06×2i198808-199108
BROWN,TRIM4#
main74631-12070-22×2i199208-199708
RED,TRIM3#
main74631-12070-23×2i198808-199303
GRAY,TRIM1#
main74631-12070-24×2i198808-199303
BLUE,TRIM8#
main74631-12070-R9×2i199303-199408
BLUE,TRIM8#
main74631-12070-S4×2i199303-199806
GRAY,TRIM1#
main74631-89102-03×2i198907-199308
GRAY,TRIM1#
main74631-89102-04×2i198907-199308
BLUE,TRIM8#
main74631-89102-06×2i198907-199108
BROWN,TRIM4#
9015260046
main90152-60046
9015960254
main90159-60254
9016460021
main90164-60021
9016840025
main90168-40025
9018906045
main90189-06045
9046804134
main90468-04134
9353025016
main93530-25016
9353045016
main93530-45016
9354014012
main93540-14012

28 parts on this diagram · 2 diagrams in section

ARMREST & VISOR — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
