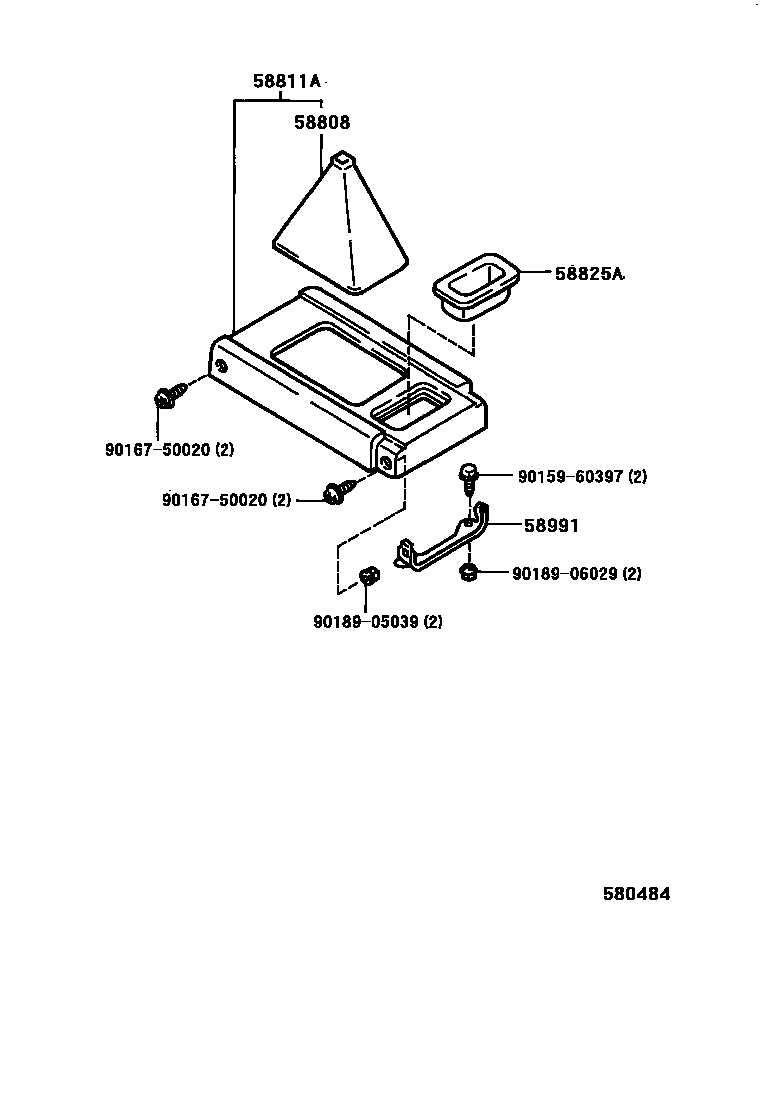

CONSOLE BOX & BRACKET

0001 1 0002 1 0003 1 0004 1

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-89114-02iRN8#,90..SR5..V199008-199408

RED,TRIM3#

main58808-89114-03iRN8#..SR5;RN85..5F..DLX..ARL;LN85,90,RN125,90,YN92..5F..(DLX,SR5)198808-199010

GRAY,TRIM1#

main58808-89114-04iRN8#..SR5;RN85..5F..DLX..ARL;LN85,90,RN125,90,YN92..5F..(DLX,SR5)198808-199010

BLUE,TRIM8#

main58808-89114-06iRN8#..SR5;RN85..5F..DLX..ARL;LN85,90,RN125,90,YN92..5F..(DLX,SR5)198808-199010

BROWN,TRIM4#

main58808-89114-B0iYN90199408-199501

MEDIUM GRAY,TRIM1#

main58808-89114-E0iRN8#..SR5;RN85..5F..DLX..ARL;LN85,90,RN125,90,YN92..5F..(DLX,SR5)199010-199108

BROWN,TRIM4#

main58808-89114-J0iYN86..TW1..DLX;RN8#,90..SR5..V199501-199508

MEDIUM BLUE,TRIM8#

58811ABOX, CONSOLE, FRONT

main58802-89114-02iRN8#,90..SR5..V199008-199408

RED,TRIM3#

main58802-89114-03iRN8#..SR5;RN85..5F..DLX..ARL;LN85,90,RN125,90,YN92..5F..(DLX,SR5)198808-199010

GRAY,TRIM1#

main58802-89114-04iRN8#..SR5;RN85..5F..DLX..ARL;LN85,90,RN125,90,YN92..5F..(DLX,SR5)198808-199010

BLUE,TRIM8#

main58802-89114-06iRN8#..SR5;RN85..5F..DLX..ARL;LN85,90,RN125,90,YN92..5F..(DLX,SR5)198808-199010

BROWN,TRIM4#

main58802-89114-B0iYN86..TW1..DLX;RN8#,90..5F..SR5;LN85..RHD..TW1..CBU;LN85,86,90,RN85,YN9#..5F..(DLX,SR5)..(ARL,GEN,TH)199408-199508

MEDIUM GRAY,TRIM1#

main58802-89114-E0iRN8#..SR5;RN85..5F..DLX..ARL;LN85,90,RN125,90,YN92..5F..(DLX,SR5)199010-199108

BROWN,TRIM4#

main58802-89114-J0iRN8#..SR5;RN85..5F..DLX..ARL;LN85,86,90,RN125,90,YN92..5F..(DLX,SR5)199010-199201

MEDIUM BLUE,TRIM8#

main58811-89120-03iLN85,86,90,RN85,90..4FC198808-199806

GRAY,TRIM1#

main58811-89120-04iLN85,86,RN85,90..4FC198808-199408

BLUE,TRIM8#

main58811-89120-06iLN85,RN85,90..4FC198808-199108

BROWN,TRIM4#

58825APOCKET, CONSOLE BOX

main58825-89111-02iRN8#,90..SR5..V199508-199708

RED,TRIM3#

main58825-89111-03iRN8#..SR5;RN85..5F..DLX..ARL;LN85,90,RN125,90,YN92..5F..(DLX,SR5)198808-199010

GRAY,TRIM1#

main58825-89111-04iRN8#..SR5;RN85..5F..DLX..ARL;LN85,90,RN125,90,YN92..5F..(DLX,SR5)198808-199010

BLUE,TRIM8#

main58825-89111-06iRN8#..SR5;RN85..5F..DLX..ARL;LN85,90,RN125,90,YN92..5F..(DLX,SR5)198808-199010

BROWN,TRIM4#

main58825-89111-B0iRZN200;LN200..SRV200106-200412

MEDIUM GRAY,TRIM1#

main58825-89111-E0iRN8#..SR5;RN85..5F..DLX..ARL;LN85,90,RN125,90,YN92..5F..(DLX,SR5)199010-199108

BROWN,TRIM4#

main58825-89111-J0iRN8#..SR5;RN85..5F..DLX..ARL;LN85,86,90,RN125,90,YN92..5F..(DLX,SR5)199010-199201

MEDIUM BLUE,TRIM8#

58991BRACKET, CONSOLE BOX MOUNTING, UPPER

main58991-89103iRN8#..SR5;RN85..DLX..ARL;LN85,86,RN85..4FC..STD;LN85,86,90,RN125,90,YN92..DLX,SR5198808-199201

9015960397

main90159-60397

9016750020

main90167-50020

9018905039

main90189-05039

9018906029

main90189-06029

8 parts on this diagram · 4 diagrams in section
