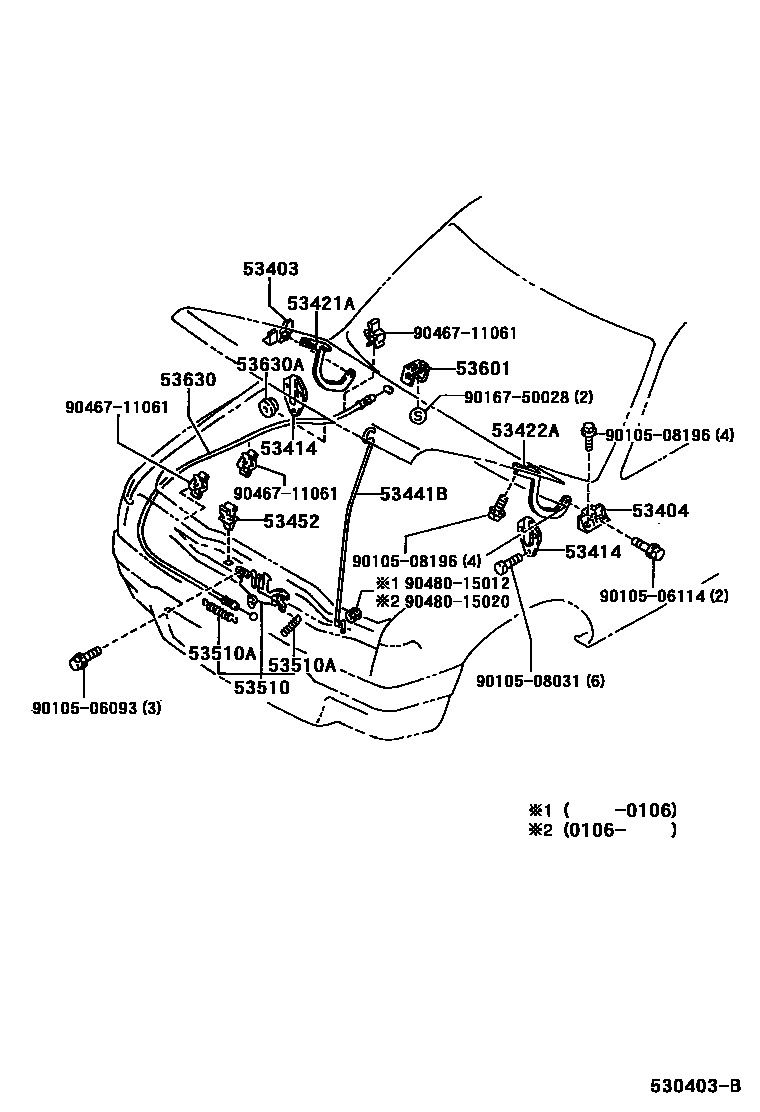

HOOD LOCK & HINGE

53403BRACKET SUB-ASSY, HOOD HINGE, RH

main53403-89102iLN8#,90,RN125,8#,90,YN8#,92198808-198909

main53403-89103iLN8#,90,RN125,8#,90,YN8#,9#198909-199511

RH,A51-A54

53404BRACKET SUB-ASSY, HOOD HINGE, LH

main53404-89102iLN8#,90,RN125,8#,90,YN8#,9#198909-199511

LH,P11

main53404-89103iLN8#,90,RN125,8#,90,YN8#,9#198909-199511

LH,A51-A54

53414SEAL, HOOD HINGE

main53414-89103×2iLN200,RZN200200106

53421AARM, HOOD HINGE, RH

main53421-89103iLN8#,90,RN125,8#,90,YN8#,9#198909-199511

RH,P11

main53421-89104iLN8#,90,RN125,8#,90,YN8#,9#198909-199511

RH,A51-A54

53422AARM, HOOD HINGE, LH

main53422-89102iLN8#,90,RN125,8#,90,YN8#,9#198909-199511

LH,P11

main53422-89103iLN8#,90,RN125,8#,90,YN8#,9#198909-199511

LH,A51-A54

53441BSUPPORT, HOOD

main53441-89105iRN85..CBU;RN85..RHD..IV3;RN85..EFI..IV3;LN8#,9#,RN80,90,YN8#,92199705-200106

53452HOLDER, HOOD STAY

main53452-90351iRN85..CBU;RN85..RHD..IV3;RN85..EFI..IV3;LN8#,9#,RN80,90,YN8#,92199705-200106

53510LOCK ASSY, HOOD

main53510-35040iLN80,85,86,9#,RN85,90,YN80,85,90..RHD199108-199909

main53510-35050iLN85,86,RN85,YN80,85,86,92..LHD..(GEN,TH)199108-199705

main53510-35060iLN81,86,RN125,8#,90,YN81,86..V199108-199708

main53510-89115iLN85,90,YN80,85,87,92..LHD198808-199108

main53510-89116iLN80,85,90,RN85,90,YN80,85,87,92..RHD198808-199108

main53510-89117iLN81,86,RN125,8#,YN81,86..V198808-199108

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-07019iLN81,85,86,90,RN125,8#,YN8#,92..LHD199011-199108

WD=0.7,CW=29.25,L=34

main90506-07021iLN8#,9#,RN125,8#,90,YN8#,9#199108-199705

WD=0.7,CW=37.25,L=40

main90506-09039iLN8#,90,RN125,8#,90,YN8#,92198808-199011

WD=0.9,CW=21.25,L=34

main90506-20008iRN85..EFI..IV3199709-199909

WD=2.0,CW=17

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-89103-02iRN8#..SR5199008-199108

RED,TRIM3#

main53601-89103-03iLN8#,90,RN8#,90,YN8#,92198808-198901

GRAY,TRIM1#

main53601-89103-04iLN8#,90,RN8#,90,YN8#,92198808-198901

BLUE,TRIM8#

main53601-89103-06iLN8#,90,RN8#,90,YN8#,92198808-198901

BROWN,TRIM4#

main53601-89103-B0iRN85..CBU;RN85..RHD..IV3;RN85..EFI..IV3;LN8#,9#,RN80,90,YN8#,92199705-200106

MEDIUM GRAY,TRIM1#

main53601-89103-D0iRN8#,90,YN86..(DLX,SR5)..V199109-199708

RED,TRIM3#

main53601-89103-E0iLN8#,90,RN125,8#,90,YN8#,92198901-199108

BROWN,TRIM4#

main53601-89103-J0iLN8#,90,RN125,8#,90,YN8#,9#198901-199408

MEDIUM BLUE,TRIM8#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-89112iLN81,86,RN8#,90,YN81,86..V198808-199708

main53630-89113iLN8#,90,RN85,90,YN80,85,87,92..ARL,GEN198808-198809

main53630-89114iLN200,RZN200200106

53630AGROMMET(FOR HOOD LOCK CONTROL CABLE)

main90480-40008iLN80,85,86,9#,RN85,90,YN80,85,87,9#..RHD198808-199909

9010506093

main90105-06093

9010506114

main90105-06114

9010508031

main90105-08031

9010508196

main90105-08196

9016750028

main90167-50028

9046711061

main90467-11061

9048015012

main90480-15012

9048015020

main90480-15020

20 parts on this diagram · 1 diagram in section
