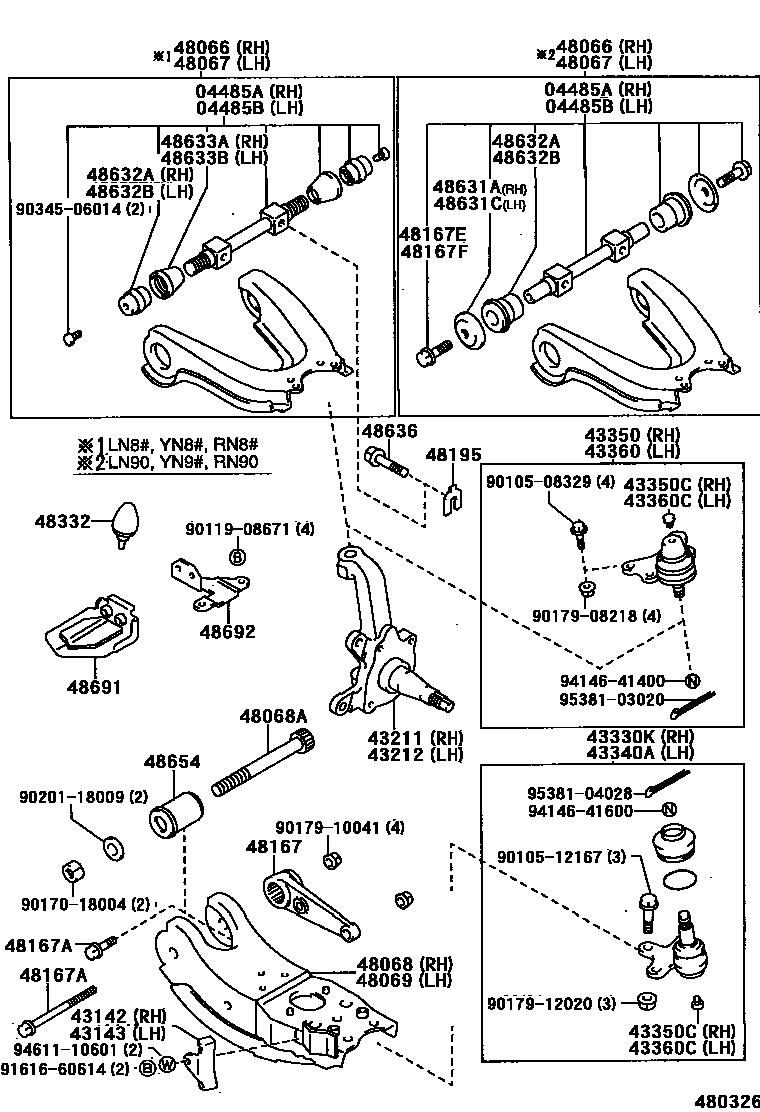

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1 0003 1

04485ASHAFT KIT, FRONT SUSPENSION UPPER ARM, RH

main04485-35020iYN80,85..ARL,GEN;LN8#,9#,RN8#,YN81,86199503-200106

main04485-35040iLN200,RZN200200106-200412

main04485-35050iLN90,RN90,YN92..ARL,GEN,V198808-199708

main04485-35060iRN125198907-199308

04485BSHAFT KIT, FRONT SUSPENSION UPPER ARM, LH

main04485-35020iYN80,85..ARL,GEN;LN8#,9#,RN8#,YN81,86199503-200106

main04485-35040iLN200,RZN200200106-200401

main04485-35050iLN90,RN90,YN92..ARL,GEN,V198808-199708

main04485-35060iRN125198907-199308

43142SEAT, STEERING KNUCKLE STOPPER, RH

main43142-35010iLN8#,90,RN8#,90,YN8#,9#199308-199503

43143SEAT, STEERING KNUCKLE STOPPER, LH

main43142-35010iLN8#,90,RN8#,90,YN8#,9#199308-199503

43211KNUCKLE, STEERING, RH

main43201-35030iRN125198907-199308

main43211-35130iLN90,RN85,YN87,92;LN8#,RN80,90,YN80,81,85,86,90..ARL,TH,V198808-199503

main43211-35140iLN80,85,YN80,85..GEN198808-199909

main43211-35220iLN8#,9#,RN85,YN85199709-200106

W(FRONT DISC BRAKE)

43212KNUCKLE, STEERING, LH

main43202-35020iRN125198907-199308

main43212-35090iLN90,RN85,YN87,92;LN8#,RN80,90,YN80,81,85,86,90..ARL,TH,V198808-199503

main43212-35100iLN80,85,YN80,85..GEN198808-199909

main43212-35180iLN8#,9#,RN85,YN85199709-200106

W(FRONT DISC BRAKE)

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-39245iLN8#,90,RN8#,90,YN8#,92198808-199108

main43330-39265iRN125198907-199108

main43330-39295iYN80,85..ARL,GEN;LN8#,9#,RN8#,90,YN81,86,92199503-200106

main43330-39315iLN200,RZN200200106-200401

sub43330-39835

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-39295iYN80,85..ARL,GEN;LN8#,9#,RN8#,90,YN81,86,92199503-199909

main43340-39225iLN8#,90,RN8#,90,YN8#,92198808-199108

main43340-39245iRN125198907-199308

43350JOINT ASSY, FRONT UPPER BALL, RH

main43350-39075iYN80,85..ARL,GEN;LN8#,9#,RN8#,90,YN81,86,92199503-200106

main43350-39085iRN125199108-199308

43350CPLUG (FOR FRONT UPPER BALL JOINT RH)

main90345-06014iLN8#,90,RN125,8#,90,YN8#,9#198808-199503

43360JOINT ASSY, FRONT UPPER BALL, LH

main43350-39075iYN80,85..ARL,GEN;LN8#,9#,RN8#,90,YN81,86,92199503-199909

main43360-39085iLN200,RZN200200202

43360CPLUG (FOR FRONT UPPER BALL JOINT LH)

main90345-06014iYN80,85..ARL,GEN;LN8#,9#,RN8#,90,YN81,86,92199503-200106

48066ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH

main48066-35050iLN90..TH;LN8#,RN8#,YN8#,90198808-199503

sub48066-35130

main48066-35080iLN90,RN90,YN92..ARL,GEN,V198808-199708

sub48066-34030

main48066-35110iRN125198907-199308

48067ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH

main48066-35050iYN80,85..ARL,GEN;LN8#,9#,RN8#,YN81,86199503-200106

sub48066-35130

main48066-35080iLN90,RN90,YN92..ARL,GEN,V198808-199708

sub48066-34030

main48067-35060iRN125198907-199308

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-35050iRN125198907-199308

sub48068-35051

main48068-35090iLN200,RZN200200106

main48605-35120iRN90;RN85..LHD;LN8#,90,RN80,YN8#,92..GEN,TH,V199108-199308

main48605-35121iRN85,YN92;LN8#,90,RN80,90,YN8#,90..ARL,TH,V199308-199503

48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)

main90114-18003×2iYN80,85..ARL,GEN;LN8#,9#,RN8#,90,YN81,86,92199503-200106

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-35050iRN125198907-199308

sub48069-35051

main48069-35090iLN200,RZN200200106

main48606-35120iRN90;RN85..LHD;LN8#,90,RN80,YN8#,92..GEN,TH,V199108-199308

W(FR DISC BRAKE)

main48606-35121iLN80,85,YN80,85..GEN199308-199909

W(FR DISC BRAKE)

48167ARM, TORQUE

main48167-35020×2iLN8#,90,RN8#,90,YN8#,92198808-199108

main48167-35040×2iLN8#,90,RN8#,90,YN8#,9#199108-199503

48167ABOLT(FOR TORQUE ARM SETTING)

main90105-10087×2iYN80,85..ARL,GEN;LN8#,9#,RN8#,90,YN81,86,92199503-200106

L=129

main90105-10088×2iYN80,85..ARL,GEN;LN8#,9#,RN8#,90,YN81,86,92199503-200106

L=26

sub91512-81025

48167EBOLT(FOR FRONT SUSPENSION TORQUE ARM RH)

main90105-12017×2iLN90,RN90,YN92..ARL,GEN,V198808-199708

main90105-12112×2iRN125198907-199308

48167FBOLT(FOR FRONT SUSPENSION TORQUE ARM LH)

main90105-12017×2iLN90,RN90,YN92..ARL,GEN,V198808-199708

main90105-12112×2iRN125198907-199308

48195SHIM, CAMBER ADJUST

main90565-12004iYN80,85..ARL,GEN;LN8#,9#,RN8#,90,YN81,86,92199503-200105

T=4.0

main90565-12008iYN80,85..ARL,GEN;LN8#,9#,RN8#,90,YN81,86,92199503-200105

T=1.6

main90565-12009iLN8#,90,RN8#,90,YN8#,9#198808-199503

T=1.2

48332BUMPER, FRONT SPRING, NO.2

main48332-35020×4iLN8#,90,RN8#,90,YN8#,9#198808-199503

48631ARETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM RH)

main90948-02020×2iLN90,RN90,YN92..ARL,GEN,V198808-199708

main90948-02065iRN125198907-199308

FR

main90948-02066iRN125198907-199308

RR

sub90948-02142

48631CRETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM LH)

main90948-02020×2iLN90,RN90,YN92..ARL,GEN,V198808-199708

main90948-02065iRN125198907-199308

FR

main90948-02066iRN125198907-199308

RR

sub90948-02142

48632ABUSH, FRONT SUSPENSION UPPER ARM, RH

main48632-30012×2iLN90..TH;LN8#,RN8#,YN8#,90198808-199503

main48632-35020×2iLN90,RN90,YN92..ARL,GEN,V198808-199708

main48632-35050iRN125198907-199308

FR

main48635-35010iRN125198907-199308

RR

48632BBUSH, FRONT SUSPENSION UPPER ARM, LH

main48632-30012×2iYN80,85..ARL,GEN;LN8#,9#,RN8#,YN81,86199503-200106

main48632-35020×2iLN90,RN90,YN92..ARL,GEN,V198808-199708

main48632-35050iRN125198907-199308

FR

main48635-35010iRN125198907-199308

RR

48633ASEAL, FRONT SUSPENSION UPPER ARM PIVOT DUST, RH

main48633-35010×2iLN90..TH;LN8#,RN8#,YN8#,90198808-199503

48633BSEAL, FRONT SUSPENSION UPPER ARM PIVOT DUST, LH

main48633-35010×2iYN80,85..ARL,GEN;LN8#,9#,RN8#,YN81,86199503-200106

48636BOLT, UPPER ARM SET

main90105-12080×4iLN8#,90,RN8#,90,YN8#,9#198808-199503

48654BUSH, LOWER ARM

main48654-35010×2iLN90..TH;LN8#,RN8#,YN8#,90198808-199503

main48654-35060×2iLN90,RN90,YN92..ARL,GEN,V198808-199708

48691INSULATOR, UPPER ARM BUSH, HEAT

main48691-35011iRN8#,90,YN8#,9#198808-199503

48692BRACKET, UPPER ARM BUSH INSULATOR

main48692-35011iRN8#,90,YN8#,9#198808-199503

9010508329

main90105-08329

9010512167

main90105-12167

9011908671

main90119-08671

9017018004

main90170-18004

9017908218

main90179-08218

9017910041

main90179-10041

9017912020

main90179-12020

9020118009

main90201-18009

9034506014

main90345-06014

9161660614

main91616-60614

9414641400

main94146-41400

9414641600

main94146-41600

9461110601

main94611-10601

9538103020

main95381-03020

9538104028

main95381-04028

48 parts on this diagram · 3 diagrams in section
