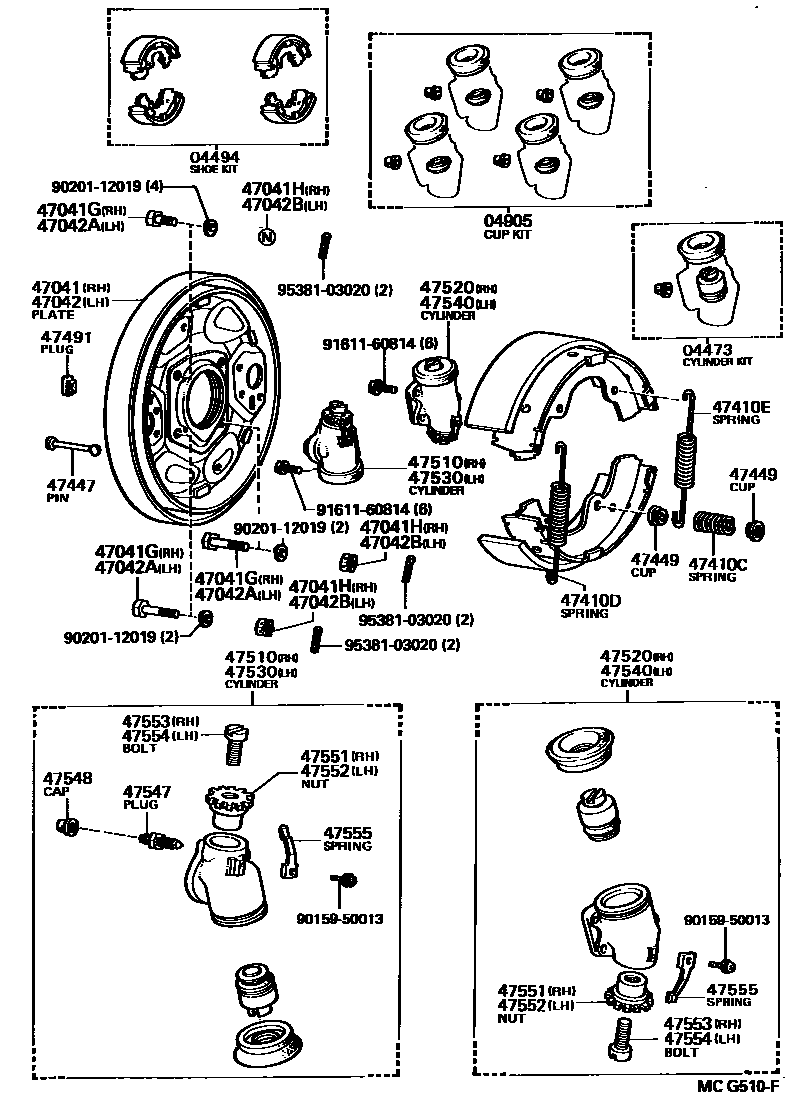

FRONT DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04473CYLINDER KIT, FRONT WHEEL

main04473-26010iLN80,85,YN80,85..GEN198808-199909

04494SHOE KIT, FRONT BRAKE

main04494-26030iLN80,85,YN80,85..GEN198808-199408

main04494-26070iLN80,85,YN80,85..GEN199408-199909

04905CUP KIT, FRONT WHEEL CYLINDER

main04905-35050iLN80,85,YN80,85..GEN198808-199909

47041PLATE SUB-ASSY, BRAKE BACKING, FRONT RH

main47041-35070iLN80,85,YN80,85..GEN198808-199909

47041GBOLT(FOR BRAKE BACKING PLATE FRONT RH)

main90101-12060iLN80,85,YN80,85..GEN198808-199909

NO.1

main90102-12006iLN80,85,YN80,85..GEN198808-199909

NO.2

main90102-12011iLN80,85,YN80,85..GEN198808-199909

NO.3

47041HNUT(FOR BRAKE BACKING PLATE FRONT RH)

main90171-12006iLN80,85,YN80,85..GEN198808-199909

NO.2,3

main94115-71200iLN80,85,YN80,85..GEN198808-199909

NO.1

47042PLATE SUB-ASSY, BRAKE BACKING, FRONT LH

main47042-35060iLN80,85,YN80,85..GEN198808-199909

47042ABOLT(FOR BRAKE BACKING PLATE FRONT LH)

main90101-12060iLN80,85,YN80,85..GEN198808-199909

NO.1

main90102-12006iLN80,85,YN80,85..GEN198808-199909

NO.2

main90102-12011iLN80,85,YN80,85..GEN198808-199909

NO.3

47042BNUT(FOR BRAKE BACKING PLATE FRONT LH)

main90171-12006iLN80,85,YN80,85..GEN198808-199909

NO.2,3

main94115-71200iLN80,85,YN80,85..GEN198808-199909

NO.1

47410CSPRING(FOR FRONT BRAKE SHOE HOLD DOWN)

main90501-20756iLN80,85,YN80,85..GEN198808-199909

47410DSPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)

main90506-23301iLN80,85,YN80,85..GEN198808-199909

47410ESPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)

main90506-23301iLN80,85,YN80,85..GEN198808-199909

47447PIN, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)

main47447-20020iLN80,85,YN80,85..GEN198808-199909

47449CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)

main47449-30020iLN80,85,YN80,85..GEN198808-199909

47491PLUG, HOLE(FOR FRONT BRAKE)

main47491-36010iLN80,85,YN80,85..GEN198808-199909

47510CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER)

main47510-26030iLN80,85,YN80,85..GEN198808-199909

47520CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER)

main47520-26010iLN80,85,YN80,85..GEN198808-199909

47530CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER)

main47530-26030iLN80,85,YN80,85..GEN198808-199909

47540CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER)

main47540-26010iLN80,85,YN80,85..GEN198808-199909

47547PLUG, BLEEDER(FOR FRONT DRUM BRAKE)

main47547-12010iLN80,85,YN80,85..GEN198808-199909

47548CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT)

main31478-30010iLN80,85,YN80,85..GEN198808-199909

47551NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)

main47551-26020iLN80,85,YN80,85..GEN198808-199909

47552NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)

main47552-26020iLN80,85,YN80,85..GEN198808-199909

47553BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)

main47553-30051iLN80,85,YN80,85..GEN198808-199909

47554BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)

main47554-30051iLN80,85,YN80,85..GEN198808-199909

47555SPRING, ADJUSTER LOCK(FOR FRONT BRAKE)

main47555-26030iLN80,85,YN80,85..GEN198808-199909

9015950013

main90159-50013

9020112019

main90201-12019

9161160814

main91611-60814

9538103020

main95381-03020

30 parts on this diagram · 1 diagram in section
