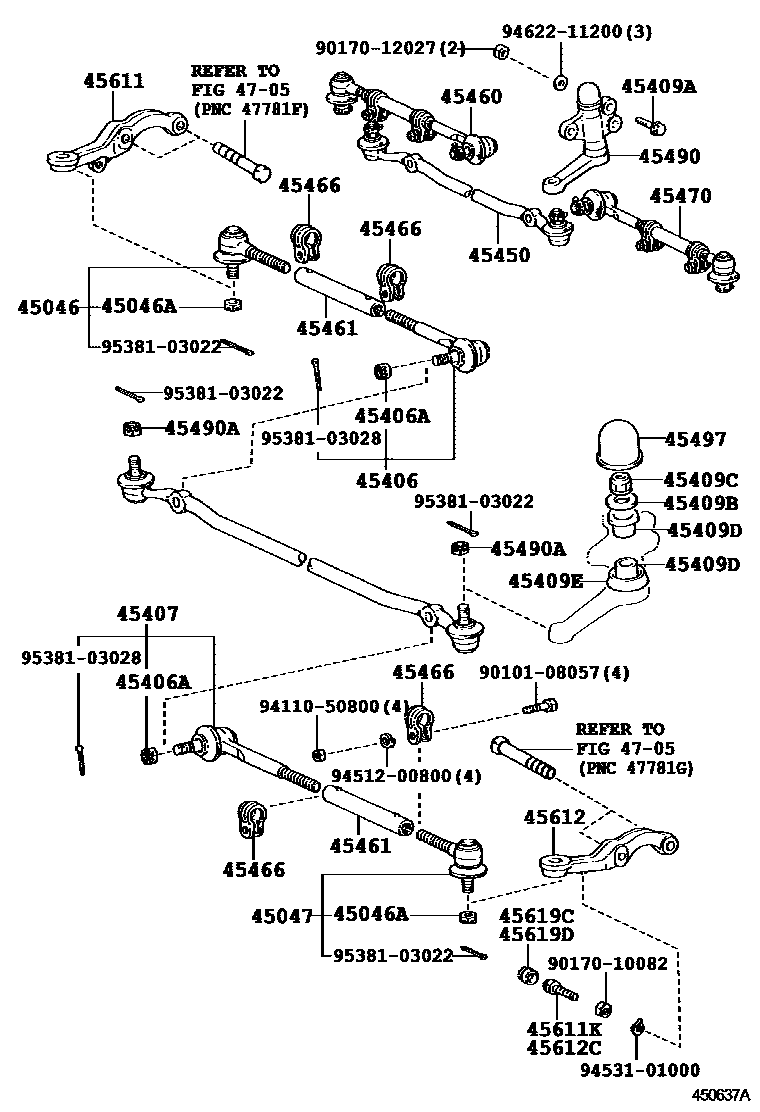

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1MANUAL STEERING 0005 1POWER STEERING 0006 1POWER STEERING 0007 1POWER STEERING 0008 1POWER STEERING

45046END SUB-ASSY, TIE ROD, RH

main45046-39165iLN8#,90,RN8#,90,YN8#,9#198808-200106

sub45046-39375

main45046-39235iRN125198907-199308

sub45046-39355

main45046-39385iLN200,RZN200200106-200412

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-14042iLN200,RZN200198907-200106

45047END SUB-ASSY, TIE ROD, LH

main45046-39165iLN8#,90,RN8#,90,YN8#,9#198808-200106

sub45046-39375

main45046-39235iRN125198907-199308

sub45046-39355

main45046-39385iLN200,RZN200200106-200412

45406ROD SUB-ASSY, TIE, RH

main45406-39115iYN80,85..ARL,GEN;LN8#,9#,RN8#,90,YN81,86,92198808-200106

main45406-39165iRN125198907-199108

sub45406-39175

sub45465-35040

main45406-39175iRN125199108-199308

sub45406-39185

main45406-39185iLN200,RZN200200106-200412

45406ANUT, CASTLE(FOR TIE ROD)

main90171-14042iLN8#,90,RN125,8#,90,YN8#,9#198808-200412

45407ROD SUB-ASSY, TIE, LH

main45406-39115iLN8#,90,RN8#,90,YN8#,9#198808-200106

main45406-39165iRN125198907-199108

sub45406-39175

sub45465-35040

main45406-39175iRN125199108-199308

sub45406-39185

main45406-39185iLN200,RZN200200106-200412

45409ABOLT, HEXAGON(FOR IDLER ARM SUPPORT SETTING)

main90101-12152iLN8#,90,RN8#,90,YN8#,9#198808-200106

*12-1.25PX95-25

main90101-12153iLN8#,90,RN8#,90,YN8#,9#198808-200106

*12-1.25PX35-26

45409BWASHER, PLATE(FOR IDLER ARM RUBBER BUSH)

main90201-14010iLN8#,90,RN8#,90,YN8#,92198808-200412

45409CNUT(FOR IDLER ARM SUPPORT)

main94184-61400iLN8#,90,RN125,8#,90,YN8#,9#198808-200106

45409DBUSH(FOR IDLER ARM)

main90386-18002iLN8#,90,RN8#,90,YN8#,9#198907-200106

main90386-19005iRN125199108-199308

main90389-21004iLN200,RZN200200106-200412

45409ESEAL, DUST(FOR IDLER ARM SUPPORT)

main90304-31012iLN8#,90,RN125,8#,90,YN8#,9#198808-200412

45450ROD ASSY, STEERING RELAY

main45450-39155iLN80,85,86,90,RN85,90,YN80,85,87,9#..RHD198808-199909

main45450-39165iLN81,85,86,90,RN8#,90,YN8#,92..LHD198808-200106

main45451-39015iRN125198907-199108

sub45451-39145

main45451-39145iRN125199108-199308

main45451-39405iRZN200200106

main45451-39605iLN200200106

45460ROD ASSY, TIE, RH

main45460-39215iLN8#,90,RN8#,90,YN8#,9#198808-200106

main45460-39335iRN125198907-199108

sub45460-39355

main45460-39355iRN125199108-199308

sub45460-39505

main45460-39505iLN200,RZN200200106-200412

45461ROD, STEERING TIE

main45465-35020iLN8#,90,RN8#,90,YN8#,92198808-199211

main45465-35030iRN125198907-199108

main45465-35040iRN125199108-200412

main45465-35050iYN80,85..ARL,GEN;LN8#,9#,RN8#,90,YN81,86,92199211-200106

45466CLAMP, TIE ROD END

main45466-30020iLN200,RZN200198808-200412

45470ROD ASSY, TIE, LH

main45460-39215iLN8#,90,RN8#,90,YN8#,9#198808-200106

main45460-39335iRN125198907-199108

sub45460-39355

main45460-39355iRN125199301-199308

sub45460-39505

main45460-39505iLN200,RZN200200106

main45470-39115iRN125199108-199301

sub45460-39355

45490ARM ASSY, STEERING IDLER

main45490-39305iYN85..RHD..(ARL,GEN);LN80,85,86,9#,RN85,90..RHD198808-199909

sub45490-39306

main45490-39315iLN81,85,86,90,RN8#,90,YN8#,92..LHD198808-200106

sub45490-39316

main45490-39325iRN125198907-199108

sub45490-39355

main45490-39365iRN125199108-199308

main45490-39455iLN200,RZN200200106-200206

sub45490-39456

main45490-39456iLN200,RZN200200206-200401

main45490-39515iLN200,RZN200200401

sub45490-39456

45490ANUT, CASTLE(FOR IDLER ARM)

main90171-12028iLN8#,90,RN125,8#,90,YN8#,9#198808-200412

45497CAP, IDLER ARM BRACKET

main45497-28010iLN8#,90,RN8#,90,YN8#,92198808-200412

45611ARM, STEERING KNUCKLE, RH

main45611-35130iRN125198907-199308

main45611-35160iLN90..TH;LN8#,RN8#,YN8#,90198808-200106

main45611-35170iLN90,RN90,YN92..ARL,GEN,V198808-199708

45611KBOLT(FOR STEERING KNUCKLE STOPPER RH)

main90106-10032iLN8#,90,RN8#,90,YN8#,9#198808-200106

45612ARM, STEERING KNUCKLE, LH

main45612-35150iRN125198907-199308

main45612-35180iLN90..TH;LN8#,RN8#,YN8#,90198808-200106

main45612-35190iLN90,RN90,YN92..ARL,GEN,V198808-199708

45612CBOLT(FOR STEERING KNUCKLE STOPPER LH)

main90106-10032iLN8#,90,RN8#,90,YN8#,9#198808-200106

45619CCOVER, STEERING KNUCKLE STOPPER, RH

main45619-14020iLN8#,90,RN8#,90,YN8#,92198808-199308

main45619-35030iLN8#,90,RN8#,90,YN8#,9#199308-200106

45619DCOVER, STEERING KNUCKLE STOPPER, LH

main45619-14020iLN8#,90,RN8#,90,YN8#,92198808-199308

main45619-35030iLN8#,90,RN8#,90,YN8#,9#199308-200106

4705

9010108057

main90101-08057

9017010082

main90170-10082

9017012027

main90170-12027

9411050800

main94110-50800

9451200800

main94512-00800

9453101000

main94531-01000

9462211200

main94622-11200

9538103022

main95381-03022

9538103028

main95381-03028

35 parts on this diagram · 8 diagrams in section
