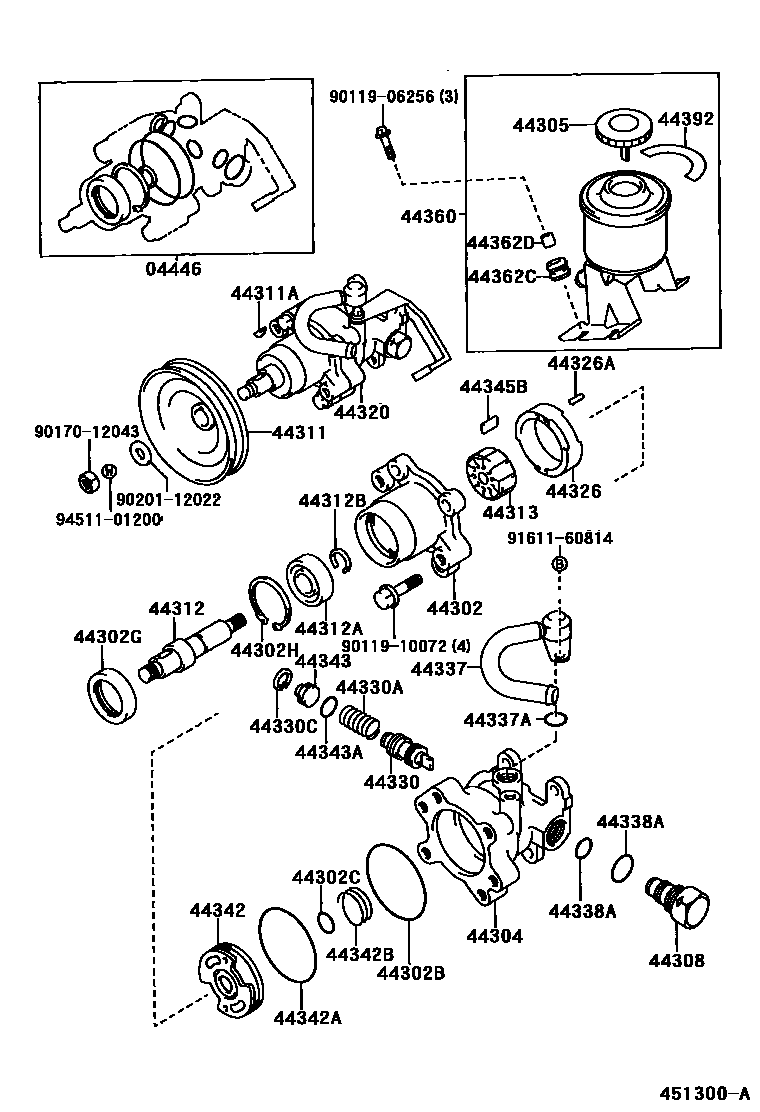

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

04446GASKET KIT, POWER STEERING PUMP

main04446-26030iLN85,86,90..RHD..(ARL,TH)199408-199608

main04446-30030iLN85..RHD..TW1..CBU199402-199408

NEW ZEALAND SPEC OR HONG KONG SPEC

main04446-30120iRZN200200106-200412

main04446-53030iLN200200106-200412

44302HOUSING SUB-ASSY, VANE PUMP, FRONT

main44302-12010iRN85..TW1;RN125,80,90;LN85..LHD..TW1..CBU198908-199008

main44302-14010iYN90;YN85..ARL;YN85..5F..GEN..CBU199108-199503

main44302-22020iLN85..RHD..T1..IV3199208-199408

NEW ZEALAND SPEC OR MALTA SPEC

main44302-30110iLN85..RHD..T1..IV3199408-199812

NEW ZEALAND SPEC OR MALTA SPEC

main44302-34010iRZN200200106

main44302-35040iLN200200106

44302BRING, O, NO.1(FOR VANE PUMP HOUSING)

main90301-60001iYN85..ARL;LN85..LHD..TW1;LN81,85,86,90,RN125,8#,90..ARL,TH,V199008-199108

44302CRING, O, NO.2(FOR VANE PUMP HOUSING)

main96711-19016iRN85..V;LN85..LHD..GEN;YN85..5F..GEN..CBU;LN81,85,86,90,RN125,80,90..ARL,TH,V;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN)199208-199304

44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

main90311-17004iLN85..RHD..T1..IV3199408-199812

NEW ZEALAND SPEC OR MALTA SPEC

main90311-17007iRZN200200106

main90311-18015iLN200200106

main90311-24001iLN85..LHD..5F..GEN..CBU199508-199708

W(TACHO METER)

44302HRING, SNAP, NO.1(FOR VANE PUMP HOUSING)

main90521-44002iLN85..LHD..5F..GEN..CBU199508-199708

W(TACHO METER)

main90521-51003iLN85..RHD..TW1..CBU199408-199909

NEW ZEALAND SPEC OR HONG KONG SPEC

44304HOUSING SUB-ASSY, VANE PUMP, REAR

main44304-28021iYN85..RHD..TW1;YN81,85,86..ARL,V;YN85..LHD..T1..4F;YN85,92..5F..GEN..CBU199608-199708

main44304-30051iLN85..RHD..TW1..CBU199208-199402

NEW ZEALAND SPEC

main44304-35021iRN85..V;RN85..RHD;RN125,80,90199008-199304

main44304-35031iRN85..EFI..CBU199401-199909

main44304-35041iLN85..LHD..TW1..CBU;LN81,85,86..LHD..(TH,V)198808-199208

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-22040iYN81,85,86..ARL,V;YN85..5F..GEN..CBU199508-199608

sub44305-22060

main44305-35010iLN85..RHD..TW1..CBU199208-199402

NEW ZEALAND SPEC

sub44305-35030

44308UNION SUB-ASSY, PRESSURE PORT

main44308-26041iLN200,RZN200200106

main44308-35060iRN85..V;RN85..T1..EFI;LN85..LHD..GEN;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN;LN81,85,86,90,RN80,90..ARL,TH,V;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN)199503-199508

44311PULLEY, VANE PUMP

main44311-12010iYN85..ARL199008-199108

main44311-20010iRN80,90;RN85..V;RN85..RHD;RN85..EFI199304-199503

main44311-22070iLN85..RHD..T1..IV3199208-199408

NEW ZEALAND SPEC OR MALTA SPEC

main44311-30150iLN85..RHD..T1..IV3199408-199812

NEW ZEALAND SPEC OR MALTA SPEC

main44311-35030iLN81,85,86..LHD199208-199508

main44311-35050iLN200200106

44311AKEY, VANE PUMP PULLEY

main90280-05008iRN85..V;RN90,YN90;RN85..EFI;YN85..5F..GEN..CBU;LN81,85,86,RN80..LHD;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN)199408-199503

44312SHAFT, VANE PUMP

main44312-12010iRN90;RN125,8#..V;LN85..LHD..TW1..CBU198808-198908

main44312-26010iRZN200200106

main44312-28010iLN86,9#..RHD;LN85..RHD..T1..5F..CBU199608-199909

main44312-32020iLN200200106

44312ABEARING(FOR VANE PUMP SHAFT)

main90363-17004iRN85..V;RN85..RHD;YN85..ARL;YN85..5F..CBU;LN85..LHD..TW1;LN81,85,86,90,RN125,80,90..ARL,TH,V199108-199208

NEW ZEALAND SPEC

main90363-17011iLN85..RHD..TW1..CBU199408-199909

NEW ZEALAND SPEC OR HONG KONG SPEC

sub90363-17017

main90363-17013iRZN200200106

44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)

main90520-10003iLN200200106

main90520-15001iRN85..V;RN85..RHD;RN85..T1..EFI;RN90,YN85..ARL,V;YN85..5F..GEN..CBU;RN85..LHD..TW1..GEN;LN81,85,86,RN80..LHD199503-199508

main90520-15005iLN85..RHD..T1..IV3199408-199812

NEW ZEALAND SPEC OR MALTA SPEC

44313ROTOR, VANE PUMP

main44313-12010iRN90;RN8#..V;LN85..LHD..TW1..CBU198808-198810

NO MARK

main44313-12020iRN90;RN8#..V;LN85..LHD..TW1..CBU198808-198810

MARK 1

main44313-12030iRN90;RN8#..V;LN85..LHD..TW1..CBU198808-198810

MARK 2

main44313-12040iRN90;RN8#..V;LN85..LHD..TW1..CBU198808-198810

MARK 3

main44313-12050iRN90;RN8#..V;LN85..LHD..TW1..CBU198808-198810

MARK 4

main44313-22040iRN85..V;RN85..RHD;YN85..ARL;YN85..5F..CBU;LN85..LHD..TW1;LN81,85,86,90,RN125,80,90..ARL,TH,V199108-199208

NO MARK,NEW ZEALAND SPEC

main44313-22050iLN85..LHD..IV3;YN85..RHD..TW1;RN85..T1..EFI..CBU;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN85,YN86..LHD..(TH,V);LN85..RHD..T1..5F..CBU;LN85,YN85199608-200106

MARK 1

main44313-22060iRN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,90,RN80,90,YN81,85,86..ARL,TH,V199508-199608

MARK 2

main44313-22070iRN85..V;RN85..RHD;YN85..ARL;YN85..5F..CBU;LN85..LHD..TW1;LN81,85,86,90,RN125,80,90..ARL,TH,V199108-199208

MARK 3,NEW ZEALAND SPEC

main44313-22080iRN85..V;RN85..RHD;YN85..ARL;YN85..5F..CBU;LN85..LHD..TW1;LN81,85,86,90,RN125,80,90..ARL,TH,V199108-199208

MARK 4,NEW ZEALAND SPEC

main44313-26060iLN200,RZN200200106

NO MARK

main44313-26070iLN200,RZN200200106

MARK 1

main44313-26080iLN200,RZN200200106

MARK 2

main44313-26090iLN200,RZN200200106

MARK 3

main44313-26100iLN200,RZN200200106

MARK 4

44320PUMP ASSY, VANE

main44320-35230iRN90;RN125,8#..V198808-198908

main44320-35231iRN80,90;RN85..V;RN85..RHD199304-199503

main44320-35241iRN85..EFI..CBU199401-199909

main44320-35250iLN81,86;LN85..LHD..TW1..CBU198808-199105

main44320-35251iLN85..LHD..TW1;LN81,85,86..LHD..(TH,V)199105-199208

main44320-35261iYN81,86..V;YN85..LHD..T1..4F;YN85,92..5F..GEN..CBU199608-199708

main44320-35310iLN85,90..SR5198910-198912

main44320-35440iLN85..RHD..T1..IV3199208-199408

NEW ZEALAND SPEC OR MALTA SPEC

sub90179-12022

main44320-35441iLN86,9#..RHD;LN85..RHD..T1..5F..CBU199608-199909

main44320-35470iYN85..ARL;YN85..RHD..TW1199608-199708

main44320-35560iRZN200200106

main44320-35570iLN200200106

44326RING, CAM(FOR VANE PUMP)

main44325-12010iLN85..TH;RN85..TW1;LN85..LHD..TW1..CBU;LN90,RN125,80,90..ARL,TH,V198908-199008

NO MARK

main44325-12020iRN85..V;LN85..LHD..GEN;YN85..5F..GEN..CBU;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN);LN81,85,86,90,RN80,90,YN90..ARL,TH,V199304-199503

MARK 1

main44325-12030iLN85..RHD..TW1..CBU199402-199408

MARK 2,NEW ZEALAND SPEC OR HONG KONG SPEC

main44325-12040iRN85..V;LN85..LHD..GEN;YN85..5F..GEN..CBU;RN85..LHD..TW1..CBR..GEN;LN81,85,86,90,RN80,90..ARL,TH,V;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN)199503-199508

MARK 3

main44325-12050iLN85..RHD..TW1..CBU199208-199402

MARK 4,NEW ZEALAND SPEC

main44325-22070iRN85..EFI..CBU199401-199909

NO MARK

main44325-22080iRN85..EFI..CBU199401-199909

MARK 1

main44325-22090iRN85..EFI..CBU199401-199909

MARK 2

main44325-22100iRN85..EFI..CBU199401-199909

MARK 3

main44325-22110iRN85..EFI..CBU199401-199909

MARK 4

main44325-32270iLN200,RZN200200106

NO MARK

main44325-32280iLN200,RZN200200106

MARK 1

main44325-32290iLN200,RZN200200106

MARK 2

main44325-32300iLN200,RZN200200106

MARK 3

main44325-32310iLN200,RZN200200106

MARK 4

44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)

main90250-04071×2iLN200,RZN200200106

L=23.3,OD=4.0

main90250-05008×2iYN85..ARL;LN85..LHD..TW1;LN81,85,86,90,RN125,8#,90..ARL,TH,V199008-199108

L=25,OD=5.0

44330VALVE ASSY, FLOW CONTROL

main44330-12130iRN90;RN8#..V;LN85..LHD..TW1..CBU198808-198906

MARK A

main44330-12131iRN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,90,RN80,90,YN81,85,86..ARL,TH,V199508-199608

MARK A

sub44330-32670

main44330-12140iRN90;RN8#..V;LN85..LHD..TW1..CBU198808-198906

MARK B

main44330-12141iLN85..LHD..IV3;YN85..RHD..TW1;RN85..T1..EFI..CBU;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN85,YN86..LHD..(TH,V);LN85..RHD..T1..5F..CBU;LN85,YN85199608-200106

MARK B

sub44330-32680

main44330-12150iRN90;RN8#..V;LN85..LHD..TW1..CBU198808-198906

MARK C

main44330-12151iLN85..TH;RN85..TW1;LN85..LHD..TW1..CBU;LN90,RN125,80,90..ARL,TH,V198908-199008

MARK C

sub44330-32690

main44330-12160iRN90;RN8#..V;LN85..LHD..TW1..CBU198808-198906

MARK D

main44330-12161iRN85..V;RN85..RHD;YN85..ARL;YN85..5F..CBU;LN85..LHD..TW1;LN81,85,86,90,RN125,80,90..ARL,TH,V199108-199208

MARK D

sub44330-32700

main44330-12170iRN90;RN8#..V;LN85..LHD..TW1..CBU198808-198906

MARK E

main44330-12171iLN85..LHD..IV3;YN85..RHD..TW1;RN85..T1..EFI..CBU;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN85,YN86..LHD..(TH,V);LN85..RHD..T1..5F..CBU;LN85,YN85199608-200106

MARK E

sub44330-32710

main44330-12180iRN90;RN8#..V;LN85..LHD..TW1..CBU198808-198906

MARK F

main44330-12181iLN85..RHD..TW1..CBU199208-199402

MARK F,NEW ZEALAND SPEC

sub44330-32720

main44330-26071iLN200,RZN200200106

MARK A

main44330-26081iLN200,RZN200200106

MARK B

main44330-26091iLN200,RZN200200106

MARK C

main44330-26101iLN200,RZN200200106

MARK D

main44330-26111iLN200,RZN200200106

MARK E

main44330-26121iLN200,RZN200200106

MARK F

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90501-12103iRN90;RN125,8#..V;LN85..LHD..TW1..CBU198808-198908

main90501-13034iLN200,RZN200200106

44330CRING, SNAP(FOR FLOW CONTROL VALVE)

main96151-01700iRN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,90,RN80,90,YN81,85,86..ARL,TH,V199508-199608

44337UNION, POWER STEERING SUCTION PORT

main44337-30010iLN85,90..TH198910-199008

main44337-35040iLN81,85,86..LHD199208-199508

main90404-16016iRN85..V;RN85..RHD;RN125,80,90199008-199304

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-11016iLN200,RZN200200106

main96711-19013iLN85..RHD..T1..IV3;LN85..RHD..TW1..CBU199108-199208

NEW ZEALAND SPEC

44338ARING, O(FOR PRESSURE PORT UNION)

main90301-19018iLN200,RZN200200106

ID=19.2,OD=22.3

main90301-22001iLN85..TH;RN85..TW1;LN85..LHD..TW1..CBU;LN90,RN125,80,90..ARL,TH,V198908-199008

OD=25.5,ID=22.5

main96711-19014iRN85..RHD;LN85..LHD..TH;LN85..LHD..IV3;YN85..RHD..TW1;RN85..T1..EFI..CBU;RN90,YN85,86..ARL,V;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN85,YN85..LHD..T1..4F;LN81,86199608-200106

OD=17.0,ID=13.0

44342PLATE, VANE PUMP SIDE, REAR

main44341-12010iLN85..TW1..IV3199208-199708

MALTA SPEC

main44342-26020iLN200,RZN200200106

44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)

main90301-18007iLN200,RZN200200106

INNER

main90301-47001iLN200,RZN200200106

OUTER

main90301-53002iLN85..RHD..T1..IV3;LN85..RHD..TW1..CBU199408-199909

NEW ZEALAND SPEC

44342BSPRING, COMPRESSION(FOR VANE PUMP SIDE PLATE REAR)

main90501-23014iRN90;RN125,8#..V;LN85..LHD..TW1..CBU198808-198908

44343SEAT, FLOW CONTROL SPRING

main44343-12040iRN90;RN125,8#..V;LN85..LHD..TW1..CBU198808-198908

44343ARING, O(FOR FLOW CONTROL SPRING SEAT)

main96711-19014iRN90;RN125,8#..V;LN85..LHD..TW1..CBU198808-198908

44345BPLATE, VANE PUMP

main44345-12010×10iLN85..TH;RN85..TW1;LN85..LHD..TW1..CBU;LN90,RN125,80,90..ARL,TH,V198908-199008

L=14.997

main44345-12020×10iRN85..V;LN85..LHD..GEN;YN85..5F..GEN..CBU;LN81,85,86,90,RN125,80,90..ARL,TH,V;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN)199208-199304

L=14.995

main44345-12030×10iLN85..LHD..IV3;YN85..RHD..TW1;RN85..T1..EFI..CBU;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN85,YN86..LHD..(TH,V);LN85..RHD..T1..5F..CBU;LN85,YN85199608-200106

L=14.993

main44345-12040×10iRN85..RHD;LN85..LHD..4F;RN85..T1..EFI;LN85..LHD..IV3;YN85..5F..GEN..CBU;RN85..LHD..TW1..STD;RN85..LHD..(DLX,SR5);LN81,85,86,90,RN80,90,YN81,85,86..ARL,TH,V199508-199608

L=14.991

main44345-12050×10iRN85..V;LN85..LHD..GEN;YN85..5F..GEN..CBU;LN81,85,86,90,RN125,80,90..ARL,TH,V;RN85,YN85..RHD..(4FC,5F)..(ARL,GEN)199208-199304

L=14.989

main44345-26010×10iLN200,RZN200200106

L=15.000

main44345-26020×10iLN200,RZN200200106

L=14.998

main44345-26030×10iLN200,RZN200200106

L=14.996

main44345-26040×10iLN200,RZN200200106

L=14.994

main44345-26050×10iLN200,RZN200200106

L=14.992

44360RESERVOIR ASSY, VANE PUMP OIL

main44306-35140iYN90;YN85..ARL199008-199503

main44306-35200iYN85..5F..GEN..CBU199108-199508

sub44306-35220

main44306-35250iRZN200200106

main44360-35060iRN90;RN125,8#..V198808-198908

main44360-35061iRN85..V;RN85..RHD;RN85..EFI;RN125,80,90199108-199503

main44360-35081iLN81,86;LN85..LHD..TW1..CBU198808-199108

main44360-35082iLN81,86..LHD;LN85..LHD..4F;LN85..LHD..TH;LN85..LHD..IV3199508-200106

main44360-35090iLN85,90..TH198910-199004

main44360-35091iLN85,90..ARL,TH199008-199108

main44360-35092iLN85..RHD..T1..IV3199208-199812

NEW ZEALAND SPEC OR MALTA SPEC

main44360-35180iLN200200106

44362CCUSHION(FOR VANE PUMP OIL RESERVOIR)

main90480-16005×3iLN85,86,90..RHD..(ARL,TH)199008-199608

main90540-09020×3iRN90;RN85..V;RN85..RHD;RN85..T1..EFI;RN85..LHD..TW1..GEN;LN81,85,86,RN80..LHD199503-199508

44362DSPACER(FOR VANE PUMP OIL RESERVOIR)

main90387-10040×3iLN85,86,90..RHD..(ARL,TH)199008-199608

main90560-06014×3iRN90;RN125,8#..V;LN85..LHD..TW1..CBU198808-198908

44392LABEL, OIL RESERVOIR CAUTION

main44392-35010iRN90;RN125,8#..V;LN85..LHD..TW1..CBU198808-198908

9011906256

main90119-06256

9011910072

main90119-10072

9017012043

main90170-12043

9020112022

main90201-12022

9161160814

main91611-60814

9451101200

main94511-01200

40 parts on this diagram · 7 diagrams in section
