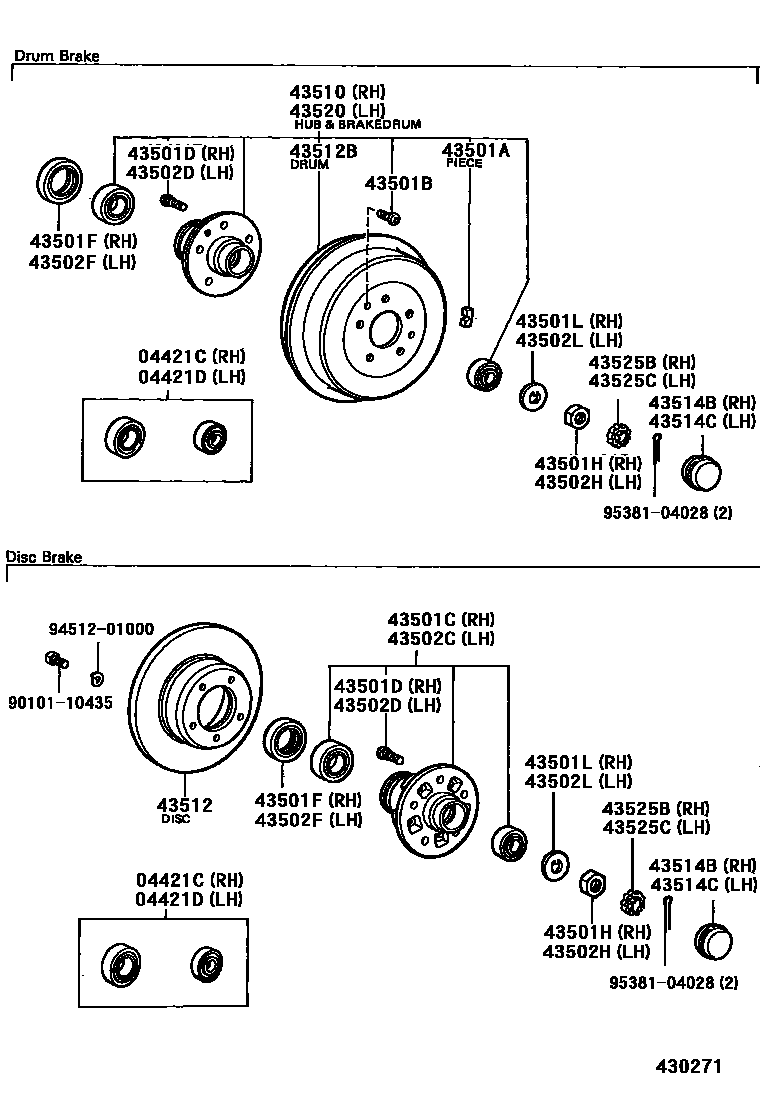

FRONT AXLE HUB

0001 1 0002 1

04421CBEARING KIT, FRONT AXLE SHAFT, RH

main04421-35010iLN8#,90,RN8#,90,YN8#,92198808-199108

main04421-35020iLN8#,90,RN8#,90,YN8#,9#199108-199503

04421DBEARING KIT, FRONT AXLE SHAFT, LH

main04421-35010iLN8#,90,RN8#,90,YN8#,92198808-199108

main04421-35020iLN8#,90,RN8#,90,YN8#,9#199108-199503

43501APIECE, BALANCE (FOR FRONT BRAKE DRUM)

main90937-01100iYN85..GEN..CBU;LN80,85,YN80..GEN;YN85..4F..GEN..IV3;YN85..T1..5F..GEN..IV3198808-199909

40.5G

main90937-01117iYN85..GEN..CBU;LN80,85,YN80..GEN;YN85..4F..GEN..IV3;YN85..T1..5F..GEN..IV3198808-199909

10G

main90937-01118iYN85..GEN..CBU;LN80,85,YN80..GEN;YN85..4F..GEN..IV3;YN85..T1..5F..GEN..IV3198808-199909

20G

main90937-01119iYN85..GEN..CBU;LN80,85,YN80..GEN;YN85..4F..GEN..IV3;YN85..T1..5F..GEN..IV3198808-199909

30G

main90937-01146iYN85..GEN..CBU;LN80,85,YN80..GEN;YN85..4F..GEN..IV3;YN85..T1..5F..GEN..IV3198808-199909

25G

43501BBOLT, SET (FOR FRONT BRAKE DRUM SETTING)

main90113-10035×2iYN85..GEN..CBU;LN80,85,YN80..GEN;YN85..4F..GEN..IV3;YN85..T1..5F..GEN..IV3198808-199909

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-39015iYN85..ARL;LN86,RN85,YN86,92;LN80,81,85,9#,RN80,90,YN81..ARL,TH,V199503-199709

main43502-39105iLN8#,9#,RN85,YN85199709-200106

main43503-29015iRZN200;LN200..SRV200106

W(ABS)

main43511-35100iRN125199108-199308

main43511-35905iRN125198907-199108

main43511-39015iLN200,RZN200..DLX,STD200106

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02047×5iYN85..ARL;LN86,RN85,YN86,92;LN80,81,85,9#,RN80,90,YN81..ARL,TH,V199503-200002

main90942-02049×6iRN125198907-199308

main90942-02052×5iYN85..RHD..T1..GEN;LN85..RHD..T1..5F..GEN..CBU199010-199108

KENYA SPEC

43501FSEAL, OIL (FOR FRONT AXLE HUB RH)

main90311-50005iYN80,85..ARL,GEN;LN8#,9#,RN8#,90,YN81,86,92199503-200106

main90311-66001iRN125198907-199308

main90311-66003iLN200,RZN200200106

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90170-19185iLN8#,90,RN8#,90,YN8#,9#198808-199503

43501LWASHER, CLAW (FOR FRONT AXLE HUB RH)

main90214-20007iLN8#,90,RN8#,90,YN8#,9#198808-199503

main90214-42030iLN200,RZN200200106

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-39015iYN85..ARL;LN86,RN85,YN86,92;LN80,81,85,9#,RN80,90,YN81..ARL,TH,V199503-199709

main43502-39105iLN8#,9#,RN85,YN85199709-200106

main43503-29015iRZN200;LN200..SRV200106

W(ABS)

main43511-35100iRN125199108-199308

main43511-35905iRN125198907-199108

main43511-39015iLN200,RZN200..DLX,STD200106

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02047×5iLN80,85,YN80,85..GEN198808-199909

W(FRONT DISC BRAKE)

main90942-02049×6iRN125198907-199308

main90942-02052×5iYN85..RHD..T1..GEN;LN85..RHD..T1..5F..GEN..CBU199010-199108

KENYA SPEC

43502FSEAL, OIL (FOR FRONT AXLE HUB LH)

main90311-50005iYN80,85..ARL,GEN;LN8#,9#,RN8#,90,YN81,86,92199503-200106

main90311-66001iRN125198907-199308

main90311-66003iLN200,RZN200200106

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90170-19185iLN8#,90,RN8#,90,YN8#,9#198808-199503

43502LWASHER, CLAW (FOR FRONT AXLE HUB LH)

main90214-20007iYN80,85..ARL,GEN;LN8#,9#,RN8#,90,YN81,86,92199503-200106

main90214-42030iLN200,RZN200200106

43510HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH

main43510-39035iYN85..GEN..CBU;LN80,85,YN80..GEN;YN85..4F..GEN..IV3;YN85..T1..5F..GEN..IV3198808-199909

43512DISC, FRONT

main43512-35140×2iRN90..ARL198808-199708

main43512-35180×2iLN86199909-200002

main43512-35190×2iRN125198907-199308

43512BDRUM, BRAKE

main43512-35100×2iYN85..GEN..CBU;LN80,85,YN80..GEN;YN85..4F..GEN..IV3;YN85..T1..5F..GEN..IV3198808-199909

43514BCAP, FRONT AXLE HUB GREASE, RH

main43514-35010iYN80,85..ARL,GEN;LN8#,9#,RN8#,90,YN81,86,92199503-200106

main43514-35020iLN200,RZN200200106

43514CCAP, FRONT AXLE HUB GREASE, LH

main43514-35010iLN8#,90,RN8#,90,YN8#,9#198808-199503

main43514-35020iRN125198907-199308

43520HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH

main43510-39035iYN85..GEN..CBU;LN80,85,YN80..GEN;YN85..4F..GEN..IV3;YN85..T1..5F..GEN..IV3198808-199909

43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH

main43525-22010iLN8#,90,RN8#,90,YN8#,9#198808-199503

43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH

main43525-22010iLN8#,90,RN8#,90,YN8#,92198808-199108

9010110435

main90101-10435

9451201000

main94512-01000

9538104028

main95381-04028

25 parts on this diagram · 2 diagrams in section
