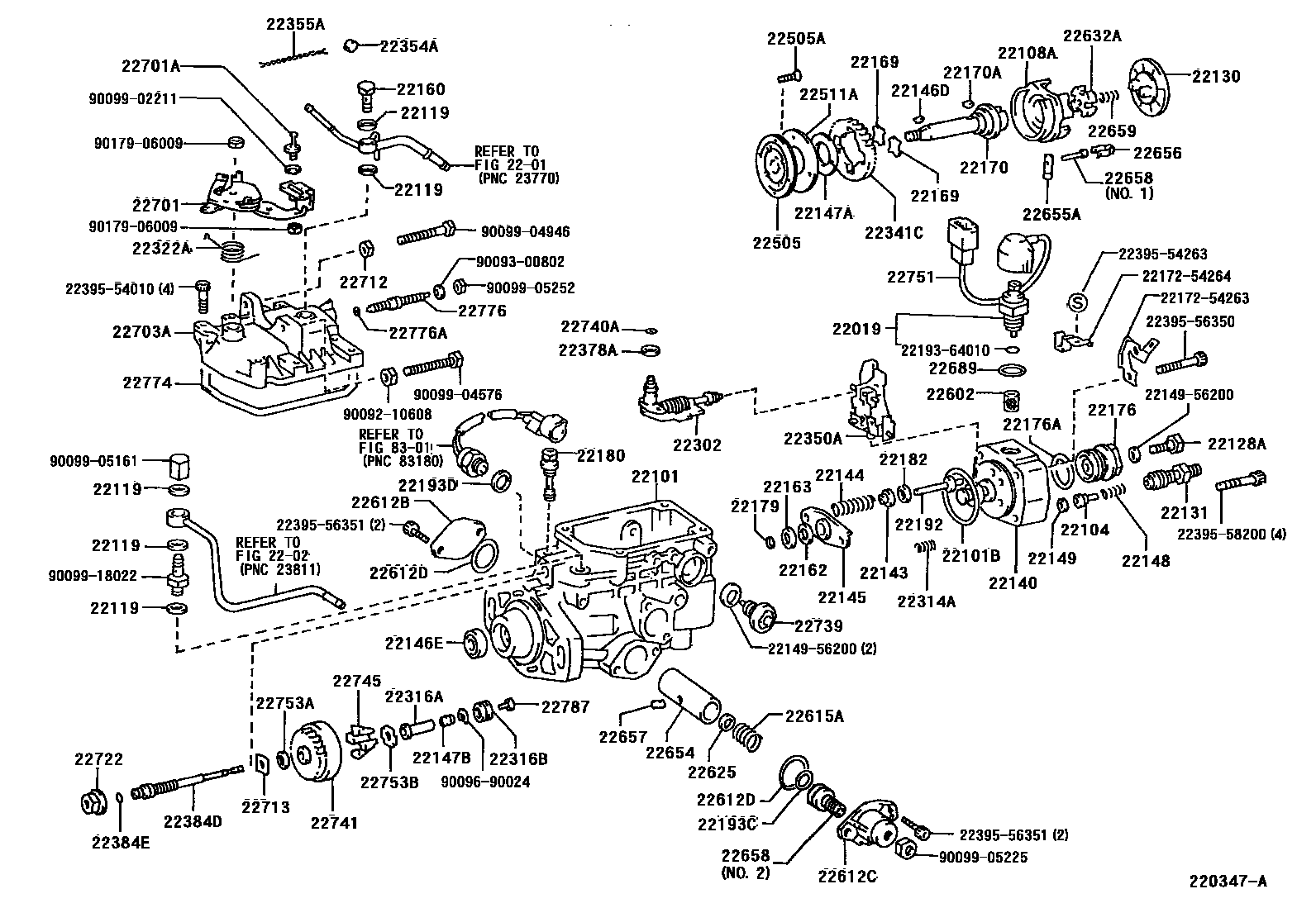

INJECTION PUMP BODY
2201INJECTION NOZZLE
22019SOLENOID ASSY, FUEL CUT
W(HIGH ALTITUDE COMPENSATOR)
2202INJECTION PUMP ASSEMBLY
22101HOUSING SUB-ASSY, INJECTION PUMP
W(HIGH ALTITUDE COMPENSATOR)
W/O(HIGH ALTITUDE COMPENSATOR)
W/O(HIGH ALTITUDE COMPENSATOR)
W(HIGH ALTITUDE COMPENSATOR & TACHO METER PICK UP SENSOR)
W(TACHO METER)
22101BRING, O(FOR INJECTION PUMP HOUSING)
22104VALVE SUB-ASSY, INJECTION PUMP DELIVERY
22108ARING SUB-ASSY, ROLLER
22119WASHER, AIR BLEEDER NIPPLE
22128ABOLT, DISTRIBUTIVE HEAD
22130CAMPLATE SUB-ASSY, FACE
22131HOLDER, DELIVERY VALVE
22140HEAD SUB-ASSY, DISTRIBUTIVE PUMP
W(TACHO METER & HIGH ALTITUDE COMPENSATOR)
22143SEAT, SPRING UPPER
22144SPRING, PUMP PLUNGER
HONGKONG SPEC
W(HIGH ALTITUDE COMPENSATOR & TACHO METER)
22145SEAT, SPRING, LOWER
22146DKEY(FOR DRIVE GEAR)
22146ESEAL(FOR DRIVE SHAFT)
22147AWASHER, DRIVE SHAFT
22147BRING, GOVERNOR SLEEVE
22148SPRING, DELIVERY VALVE
22149GASKET, DELIVERY VALVE
W(TACHO METER) OR HONG K0NG SPEC OR NEW ZEALAND SPEC
22160SCREW SUB-ASSY, OVERFLOW
22162PLATE, PLUNGER UPPER
22163PLATE, PLUNGER LOWER
22169JOINT, RUBBER
22170SHAFT SUB-ASSY, DRIVE
W(HIGH ALTITUDE COMPENSATOR & TACHO METER)
22170AKEY(FOR DRIVE SHAFT)
22176PLUG, DISTRIBUTIVE HEAD
22176ARING, O(FOR DISTRIBUTIVE HEAD PLUG)
22179SHIM, PLUNGER ADJUSTING
T=2.88
T=1.9
T=2.0
T=2.1
T=2.2
T=2.3
T=2.4
T=2.5
T=2.6
T=2.7
T=2.8
T=2.9
22180VALVE SUB-ASSY, REGULATOR
22182PLATE, TAPPET ADJUSTING SHIM
T=0.5
T=0.8
T=1.0
T=1.2
T=1.5
T=1.8
T=2.0
22192GUIDE SUB-ASSY, PLUNGER SPRING
22193RING, O(FOR LEVER CONNECTING PIN)
main22193-55031i2L..LN80,90..GEN;2L..LN85..GEN..CBU;2L..LN85..TW1..IV3;2L..LN85..LHD..T1..IV3; 2L..LN85..RHD..T1..GEN..IV3198808-199108
NO.2; W(HIGH ALTITUDE COMPENSATOR),NO.2
22193CRING, O(FOR TIMER COVER STOPPER)
22193DRING, O(FOR REVOLUTION DETECTOR)
22302SHAFT SUB-ASSY, SPEED CONTROL
22314ASPRING, LEVER SUPPORT
22316ASLEEVE, GOVERNOR
ID=1.00
ID=1.00
ID=0.80,HONGKONG SPEC
MARK 26
MARK 28
ID=0.70
ID=0.95
ID=0.60
ID=0.95
main22316-5B060i2L..LN85..LHD..4F;2L..LN85..LHD..TW1;2L..LN80,85..T1..5F..GEN; 2L..LN85..RHD..4F;2L..LN85..RHD..TW1199703-199909
ID=0.65; ID=0.65,HONGKONG SPEC
ID=0.70
MARK 23
ID=0.8
ID=1.1
ID=0.75
ID=0.80
22316BBEARING, BALL(FOR GOVERNOR SLEEVE)
22322ASPRING, RETURN
22341CGEAR, GOVERNOR DRIVE
22350AGOVERNOR ASSY, TORQUE CONTROL
22354ASEAL, ROD
22355AWIRE, GOVERNOR HOUSING SEAL
22378AWASHER, GOVERNOR THRUST
22384DSHAFT, GOVERNOR
22384ERING, O(FOR GOVERNOR MAIN SHAFT)
22505PUMP SUB-ASSY, FUEL FEED
22505ASCREW(FOR FUEL FEED PUMP)
22511ACOVER, FEED PUMP
NEW ZEALAND SPEC & W(TACHO METER PICK UP)
22602FILTER SUB-ASSY, FUEL INJECTION PUMP
22612BCOVER, TIMER
22612CCOVER, TIMER
22612DRING, O(FOR TIMER COVER)
22615ASPRING, TIMER OUTER
K=0.16,L=32.3,NO.1
K=0.18,L=32.0,NO.1
K=1.7,L=27.9; K=1.7,L=27.9,NO.2
K=0.15,L=32.5,NO.1
K=0.17,L=32.2,NO.1
K=3.00,L=37.3
K=2.50,L=38.2
K=2.70,L=37.0
K=2.70,L=39.2
K=2.85,L=37.4
K=2.80,L=38.1
K=0.10,L=37.2; K=0.10,L=37.2,NO.1
K=0.11,L=35.5; K=0.11,L=35.5,NO.1
K=0.12,L=35.0; K=0.12,L=35.0,NO.1
K=0.13,L=34.6,NO.1
K=0.14,L=34.3,NO.1
K=3.30,L=37.1
22625WASHER, TIMER SENSOR ADJUSTING
22632ACOUPLING, INJECTION PUMP
22654PISTON, TIMER
22655APIN, TIMER SLIDE
22656CLIP, TIMER
22657CLIP, TIMER
22658STOPPER, TIMER
NO.2
NO.1
NO.1
NO.2
22659SPRING, COUPLING
22689WASHER(FOR SWIVEL NIPPLE)
22701LEVER SUB-ASSY, ADJUSTING
W(TACHO METER),MARK 130
W(HIGH ALTITUDE COMPENSATOR),MARK 131
MARK 128
MARK 129
MARK 330
MARK 331
MARK 659
MARK 660
22701AJOINT, BALL(FOR ADJUSTING LEVER)
22703ACOVER SUB-ASSY, GOVERNOR
main22703-17080i2L..LN85..RHD..T1..IV3;2L..LN85..RHD..TW1..CBU; 2L..LN85..TW1..IV3;2L..LN85..LHD..TW1;2L..LN85..LHD..IV3;2L..LN80,85..T1..GEN..CBU199108-199510
W(TACHO METER); W(TACHO METER) OR W(POWER STEERING) & NEW ZEALAND SPEC
main22703-54351i2L..LN85..RHD..T1..IV3;2L..LN85..RHD..TW1..CBU; 2L..LN85..TW1..IV3;2L..LN85..LHD..TW1;2L..LN85..LHD..IV3;2L..LN80,85..T1..GEN..CBU199108-199208
W(HIGH ALTITUDE COMPENSATOR & TACHO METER); W(HIGH ALTITUDE COMPENSATOR)
22712NUT, ROCK
22713WASHER, GOVERNOR GEAR ADJUSTING
T=1.05
T=1.25
T=1.45
T=1.65
T=1.85
22722NUT, GOVERNOR SHAFT ROCK
22739BOLT, GOVERNOR LINK SUPPORT
22740SHAFT SUB-ASSY, GOVERNOR ADJUSTING
NEW ZEALAND SPEC
HONGKONG SPEC
22740ARING, O(FOR GOVERNOR ADJUSTING SHAFT)
22741HOLDER SUB-ASSY, FLYWEIGHT
22745FLYWEIGHT, DISTRIBUTIVE PUMP
22751WIRE SUB-ASSY, FUEL CUT SOLENOID
W(HIGH ALTITUDE COMPENSATOR)
W(TACHO METER)
22753AWASHER, FLYWEIGHT, NO.1
22753BWASHER, FLYWEIGHT, NO.2
22774GASKET, GOVERNOR COVER
22776SCREW, SMOKE SET ADJUSTING
22776ARING, O(FOR SMOKE SET SCREW)
22787PLUG, GOVERNOR SLEEVE
L=3.4
L=3.6
L=3.8
L=4.0
L=4.1
L=3.0
L=3.2
L=4.2
8301METER
2214956200GASKET, DELIVERY VALVE
main22149-56200
2217254263CLIP, CONNECTOR SUPPORT, SOLENOID
main22172-54263
2217254264CLIP, CONNECTOR SUPPORT, SOLENOID
main22172-54264
2219364010RING, O(FOR LEVER CONNECTING PIN)
main22193-64010
2239554010BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-54010
2239554263BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-54263
2239556350BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-56350
2239556351BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-56351
2239558200BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-58200
9009210608
main90092-10608
9009300802
main90093-00802
9009690024
main90096-90024
9009902211
main90099-02211
9009904576
main90099-04576
9009904946
main90099-04946
9009905161
main90099-05161
9009905225
main90099-05225
9009905252
main90099-05252
9009918022
main90099-18022
9017906009
main90179-06009
